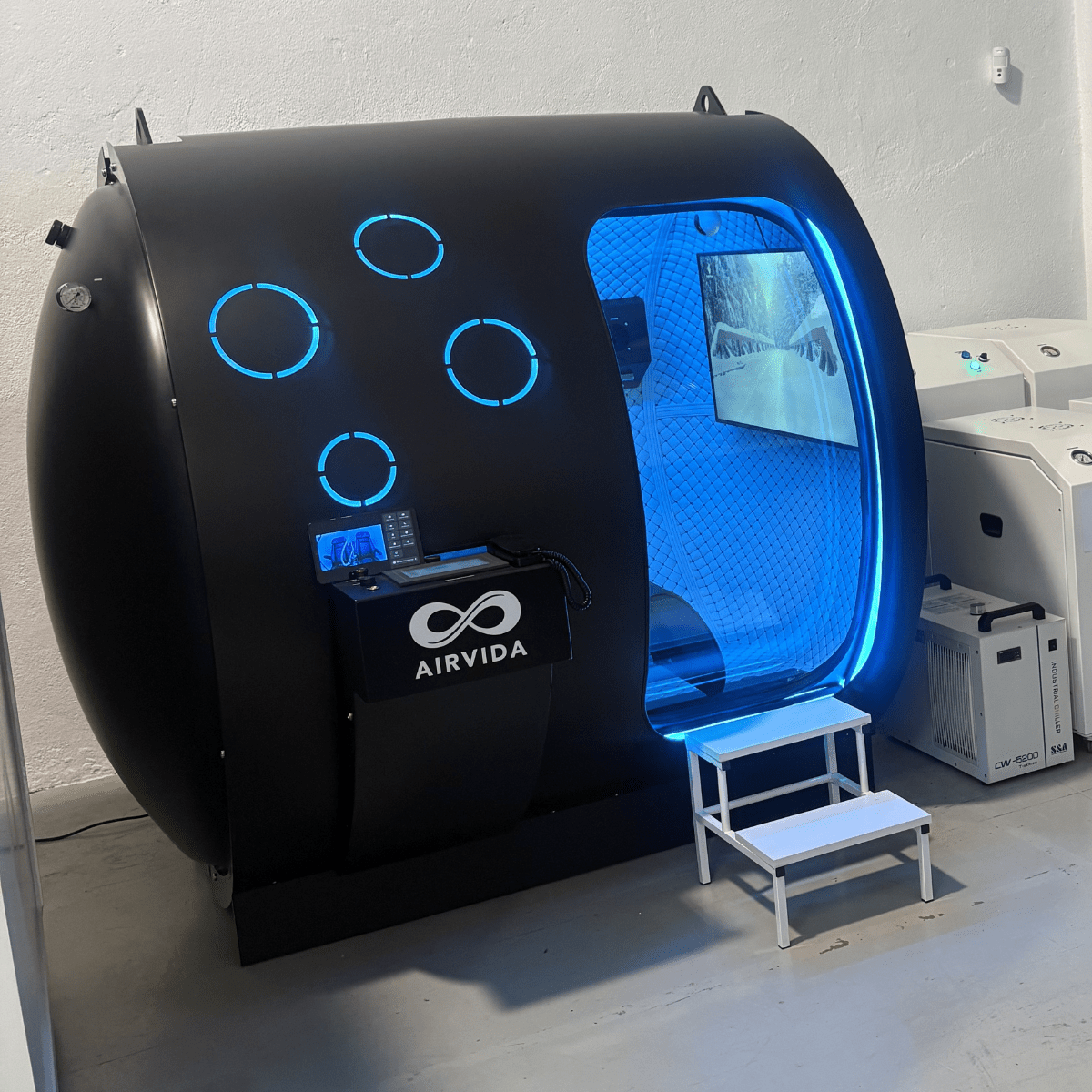

Overview

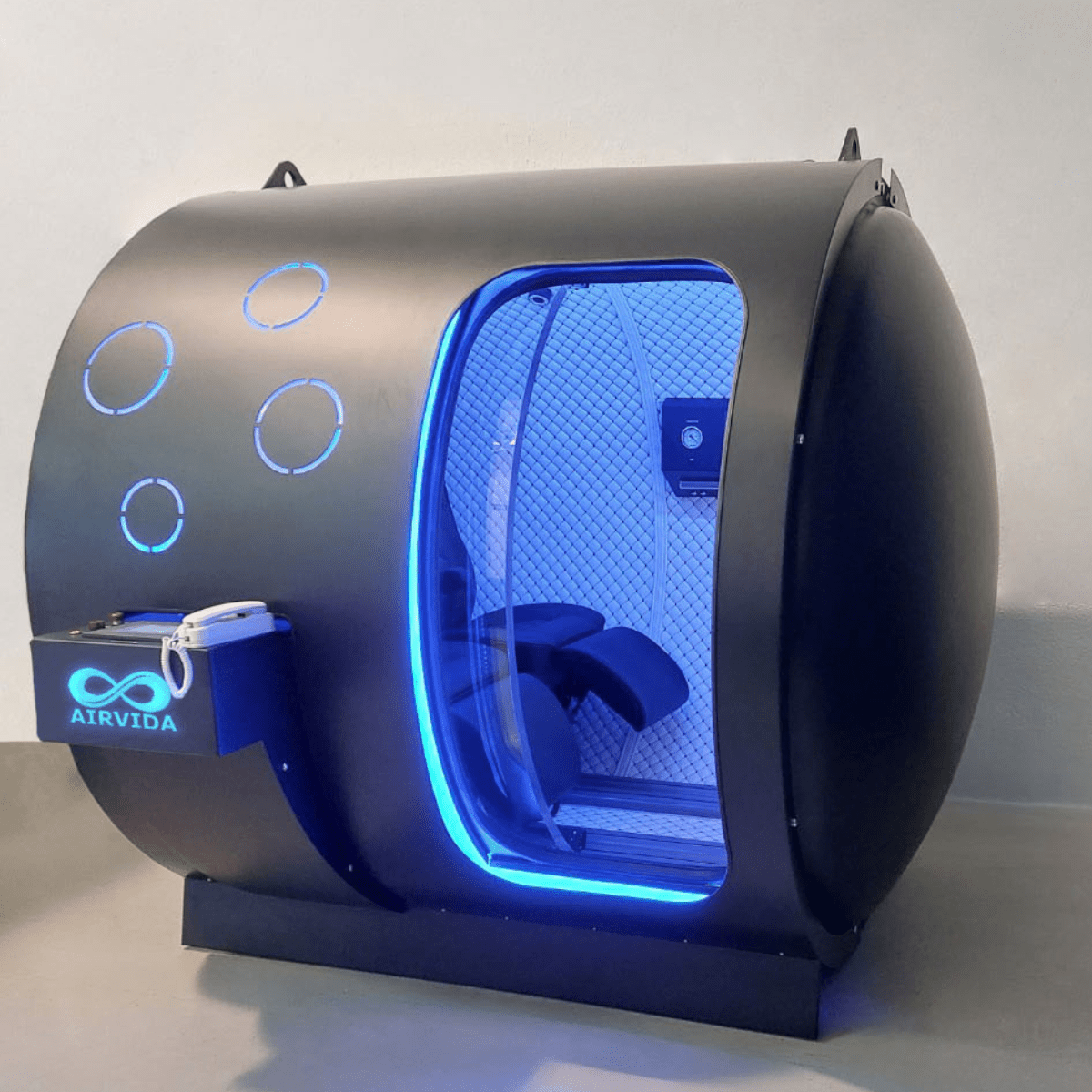

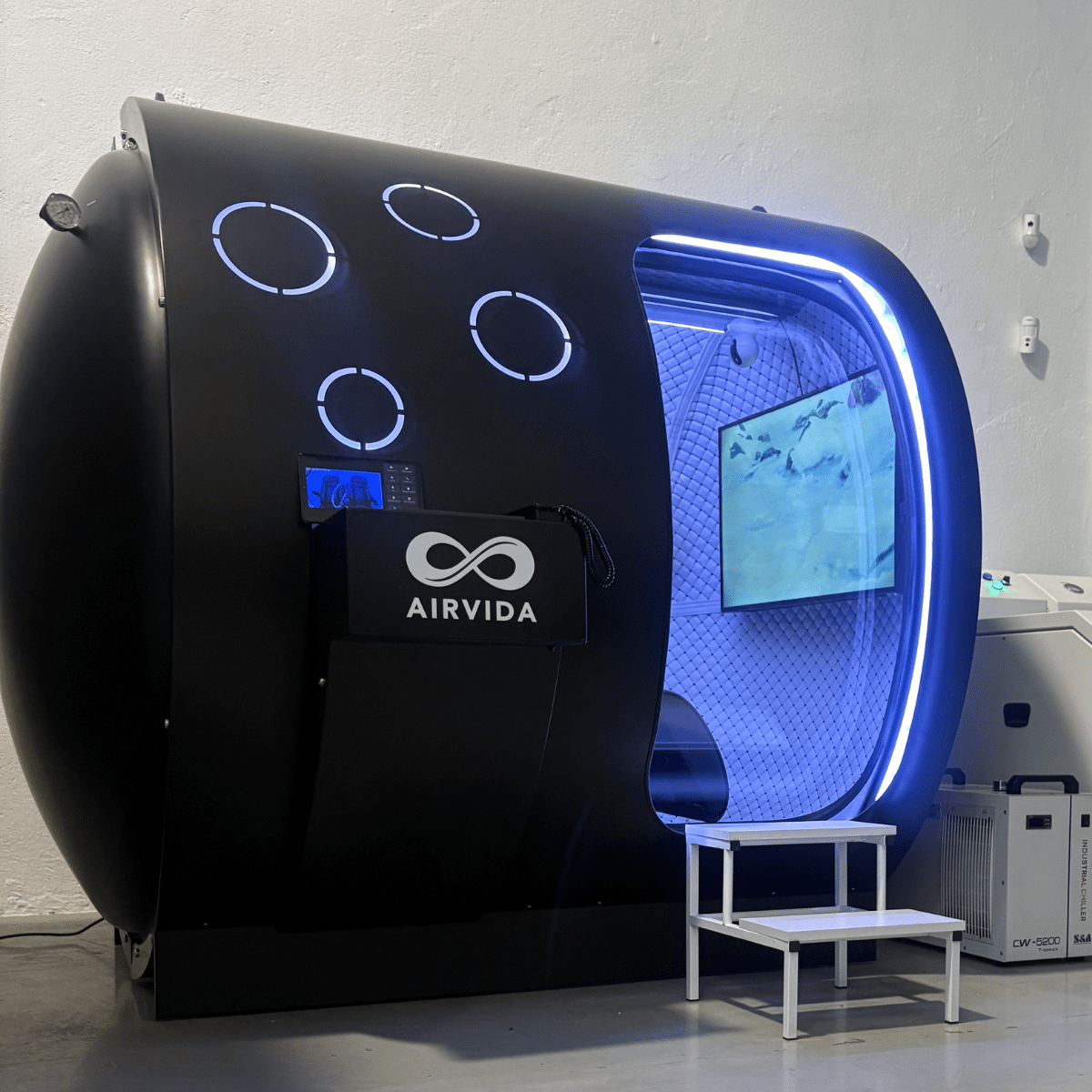

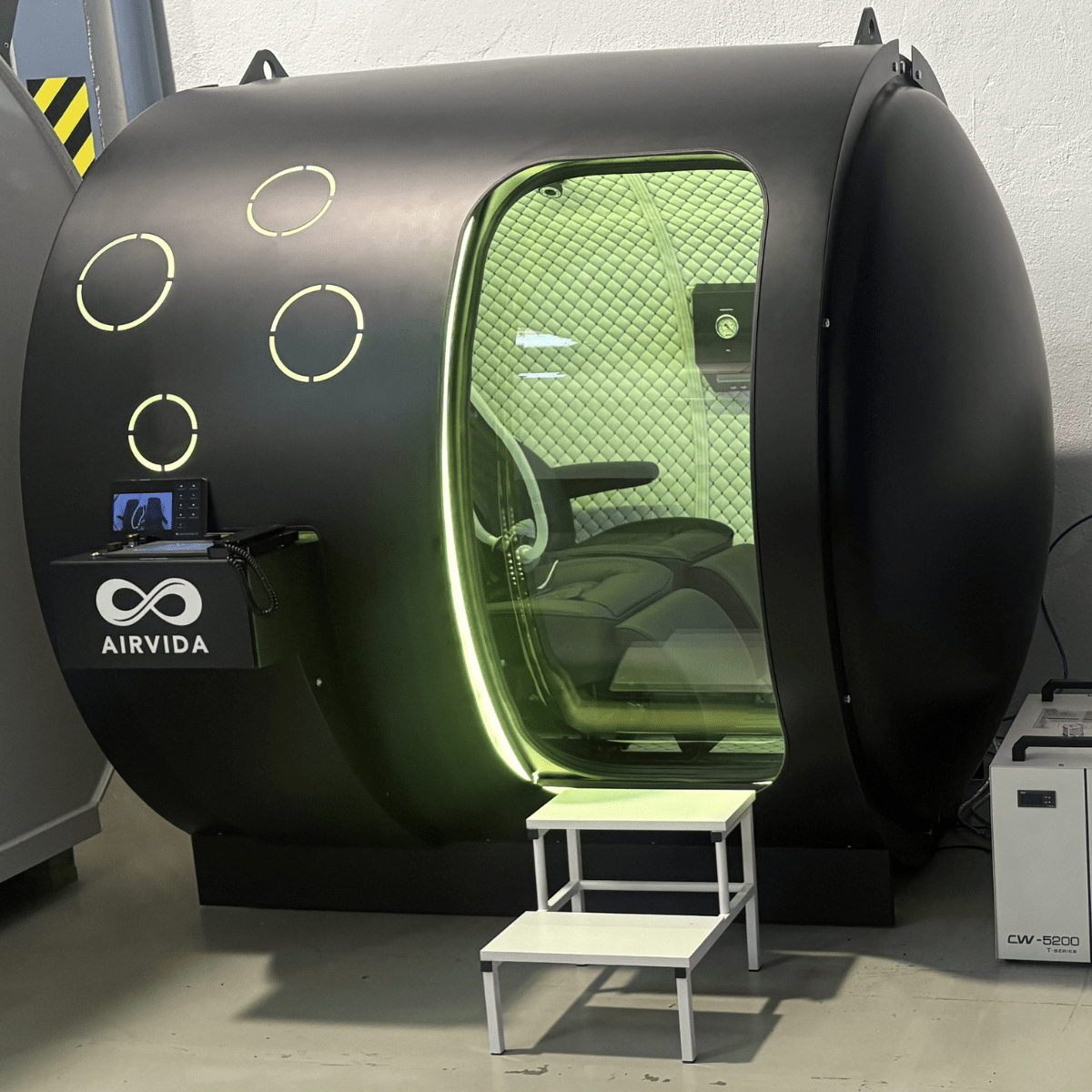

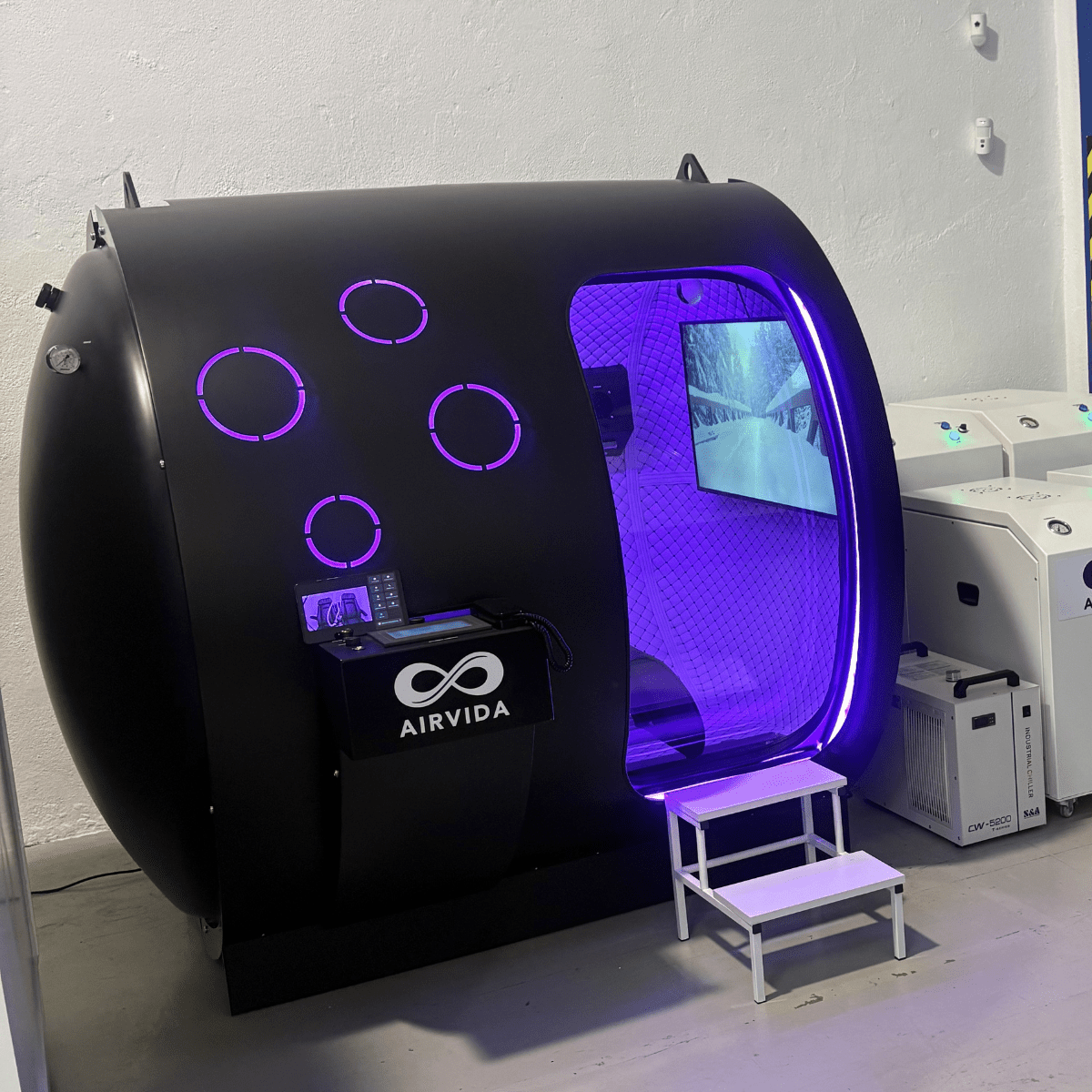

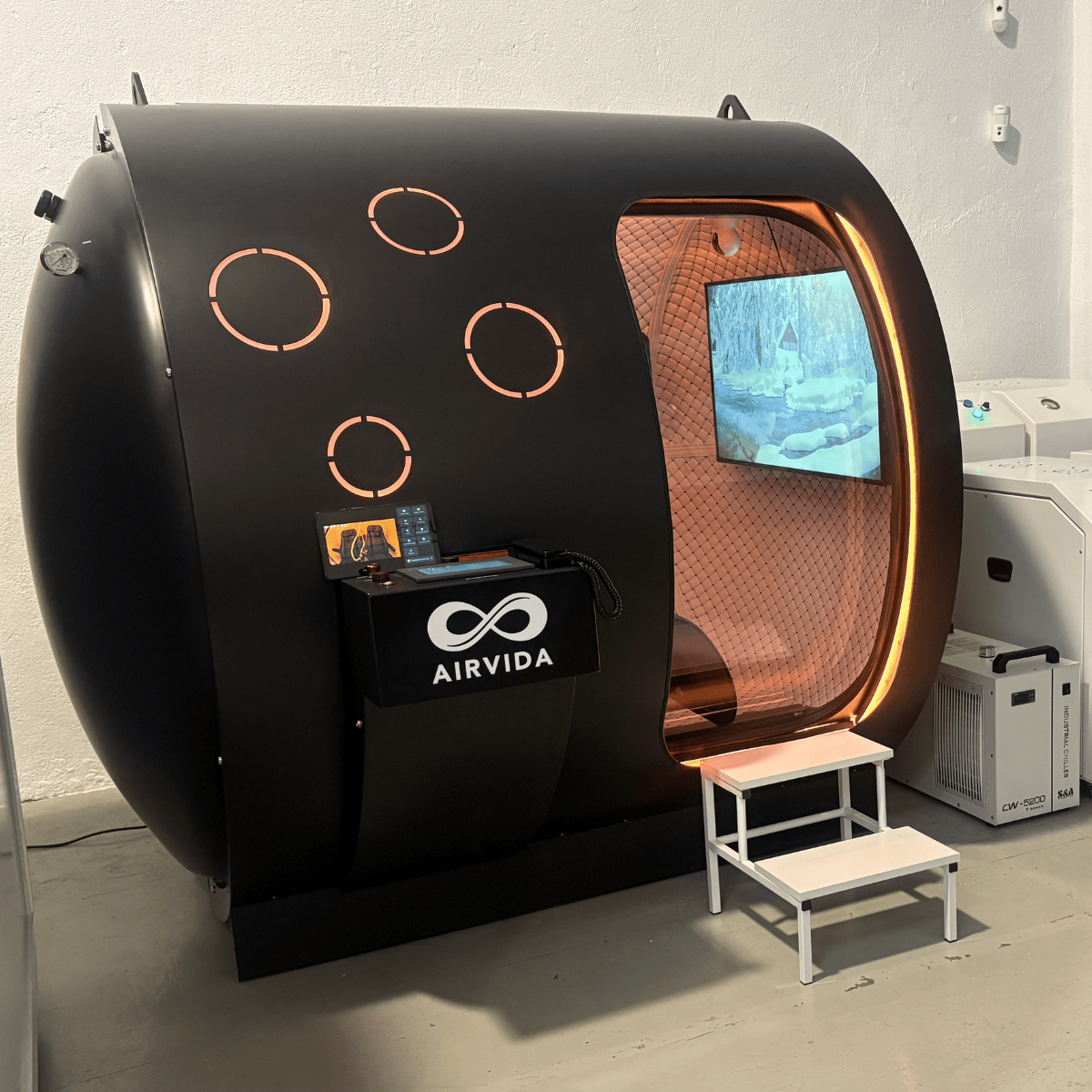

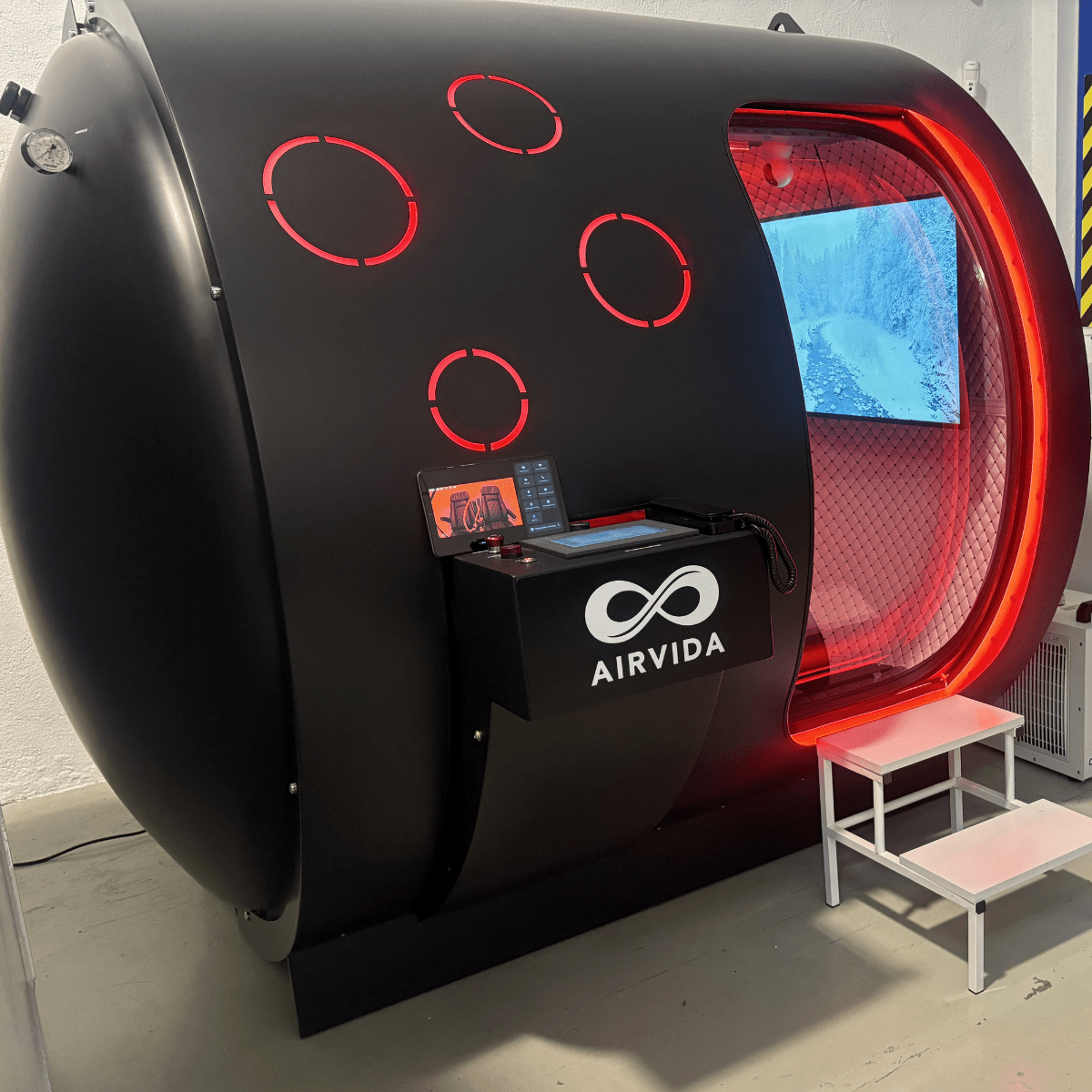

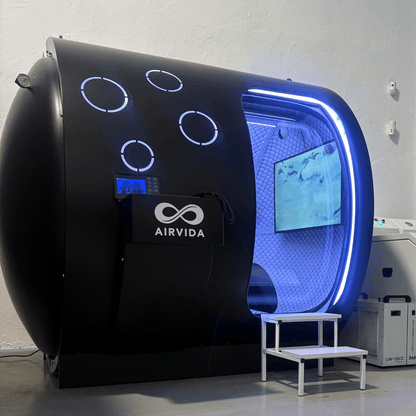

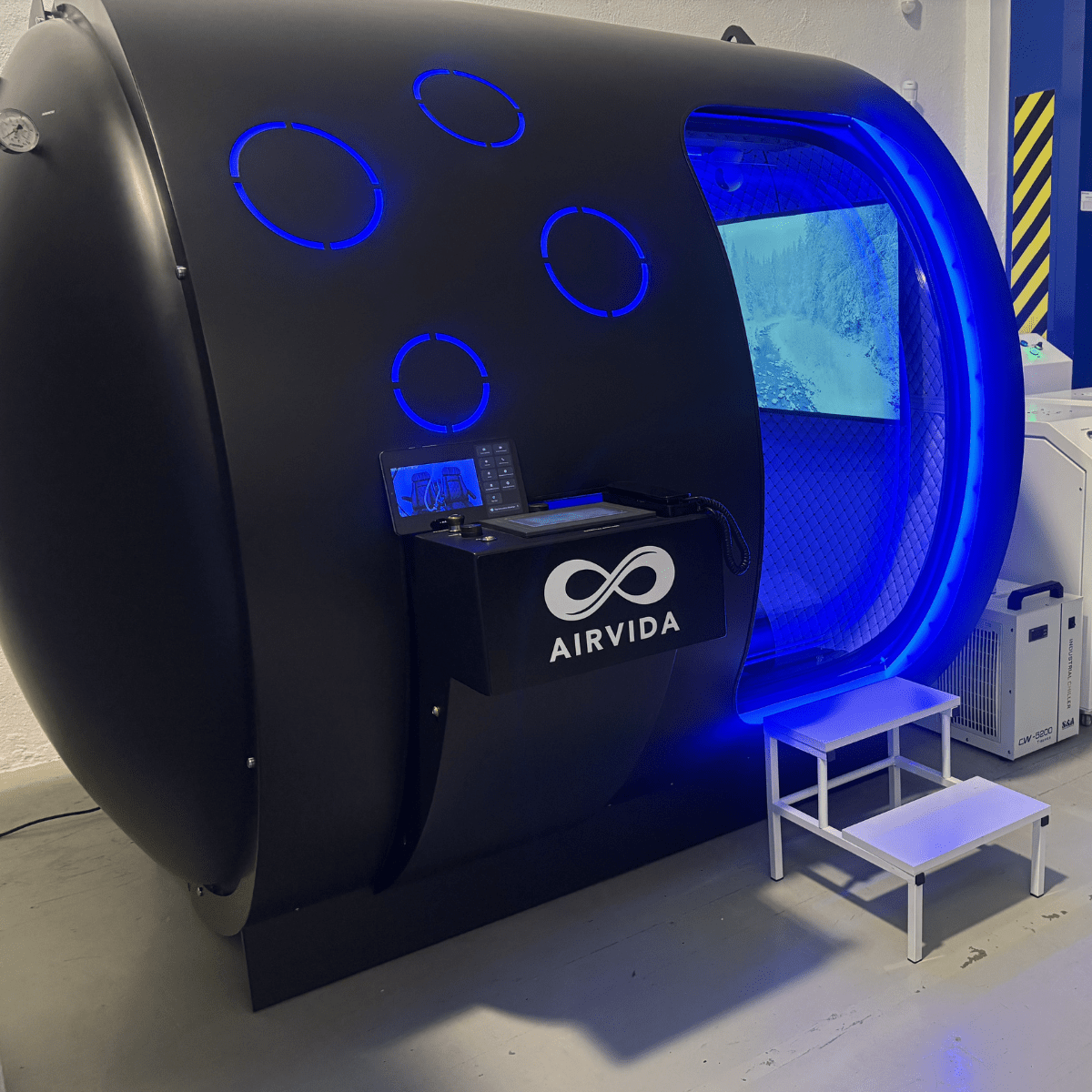

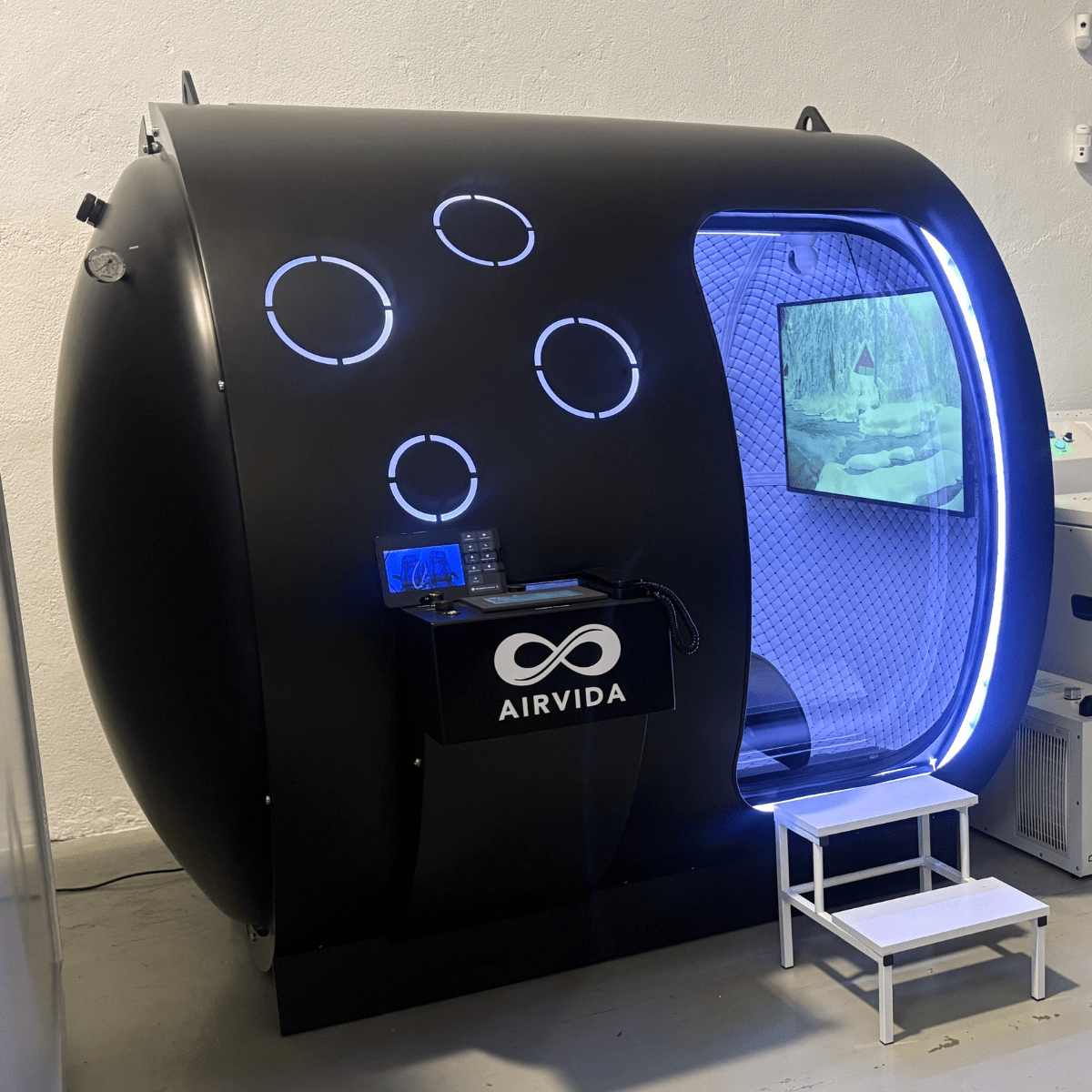

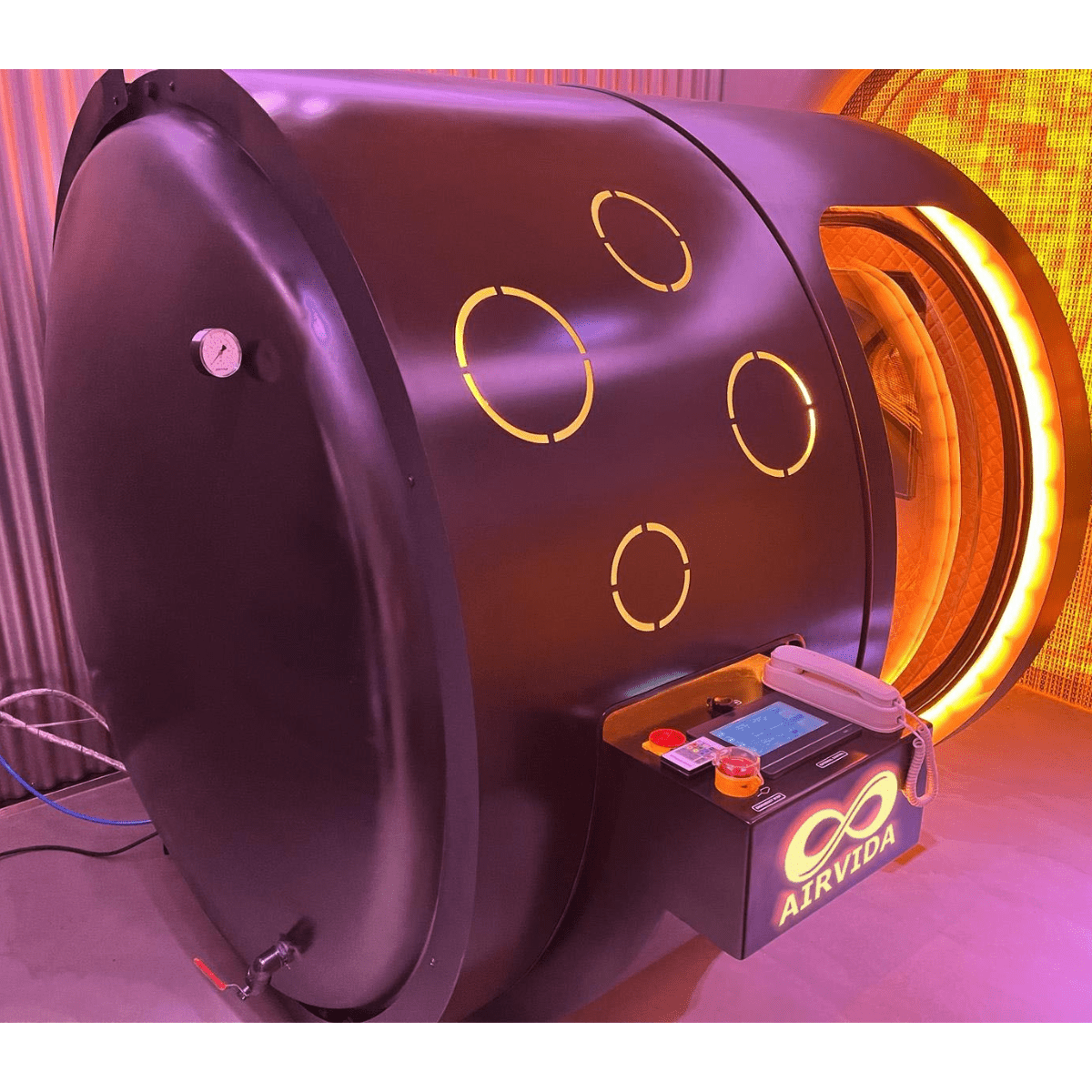

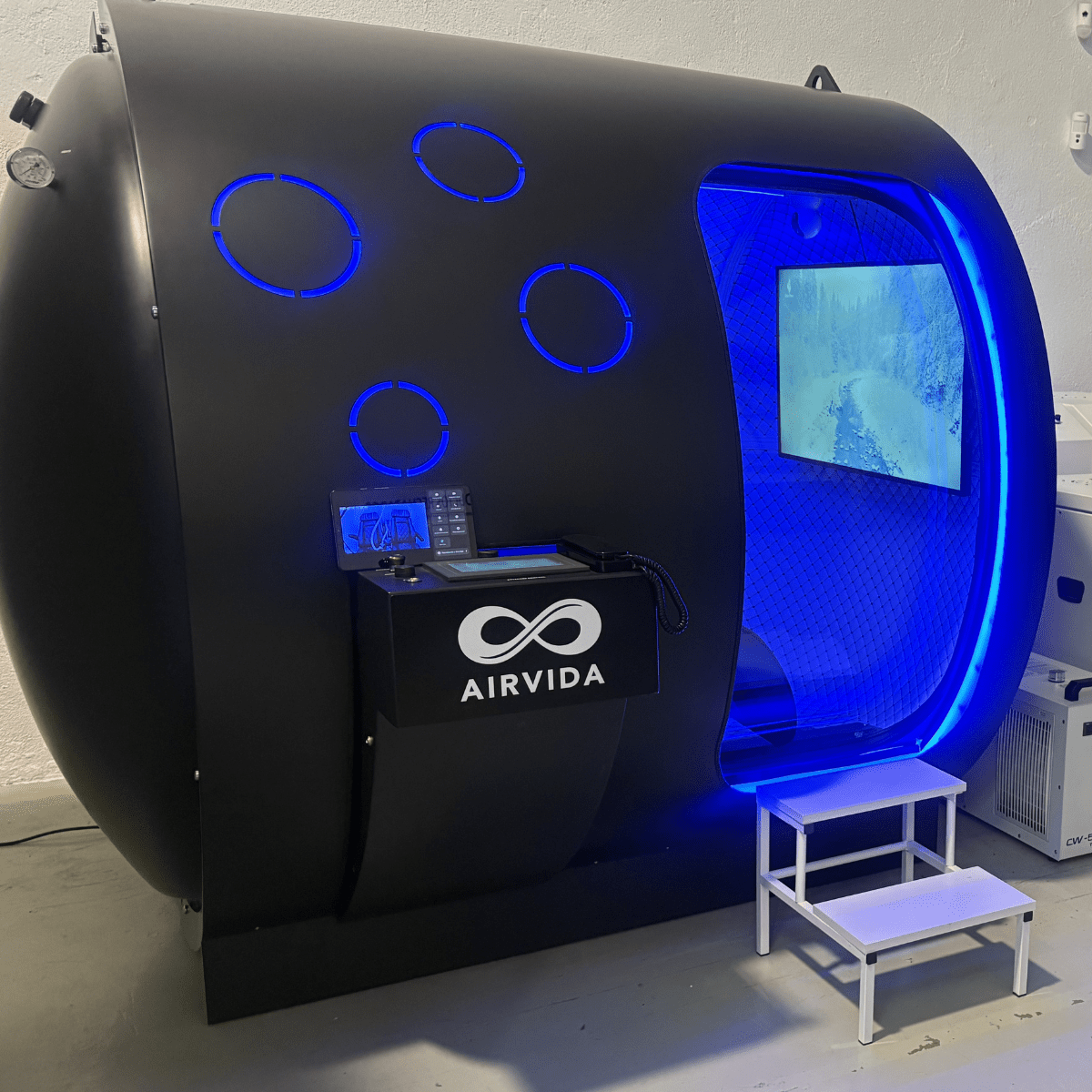

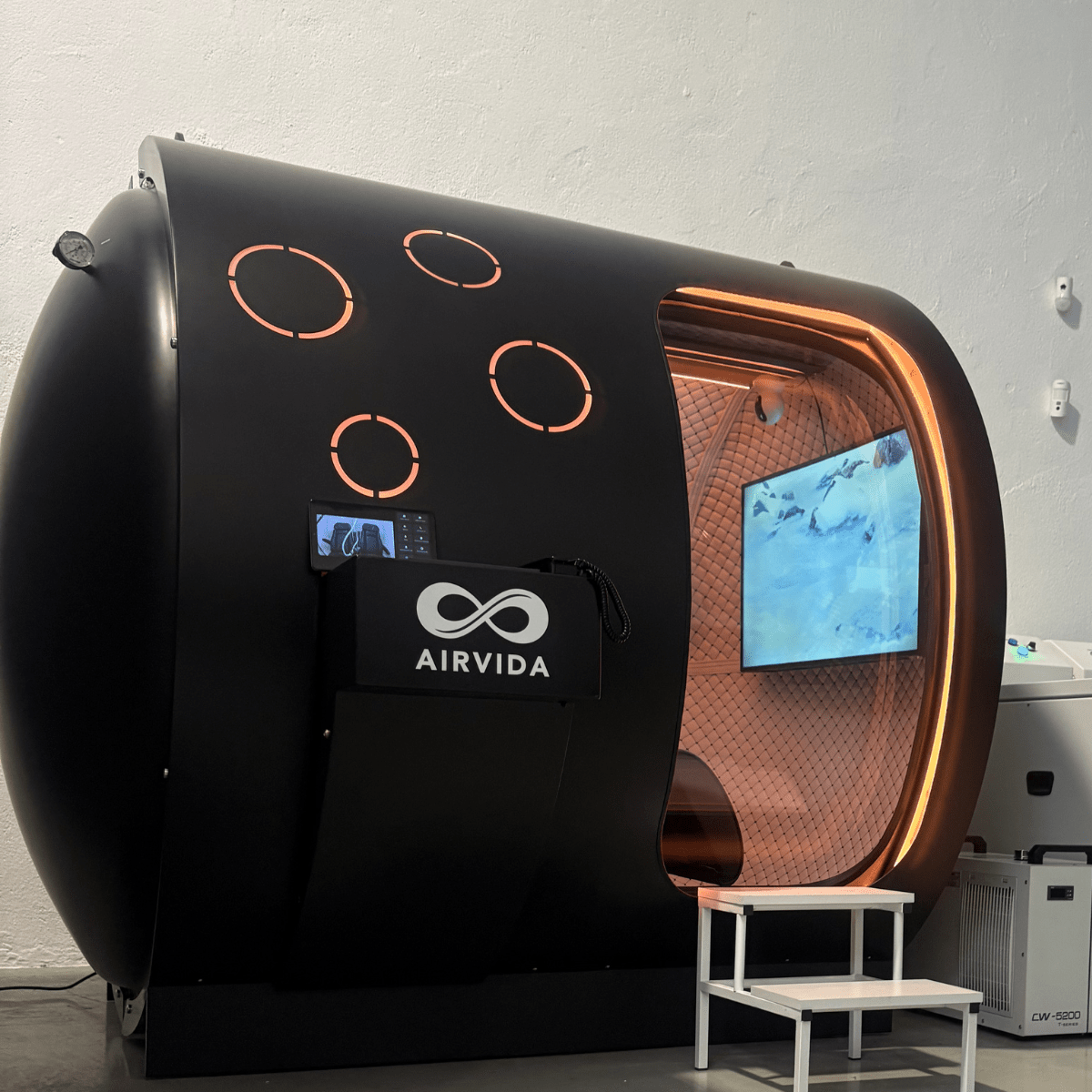

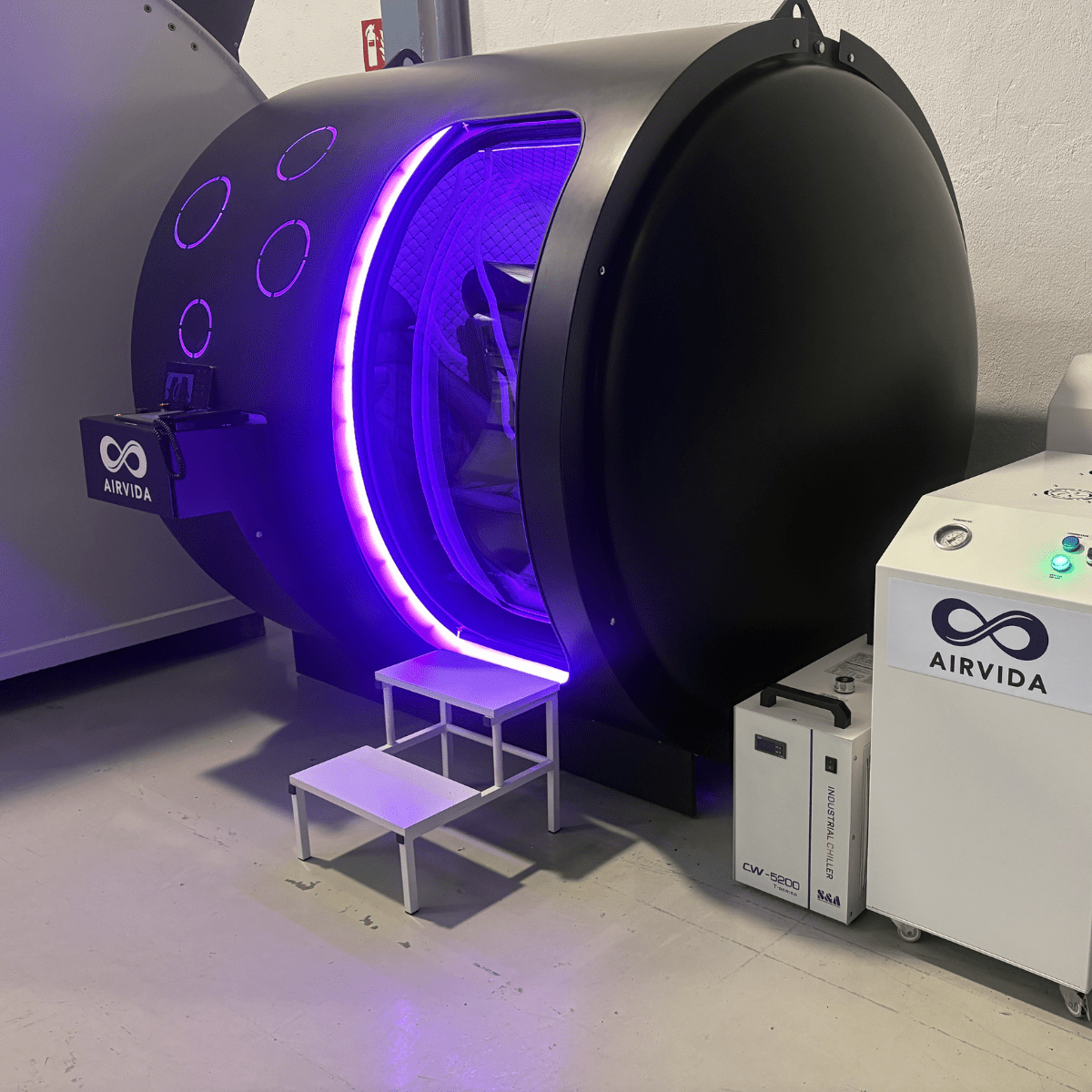

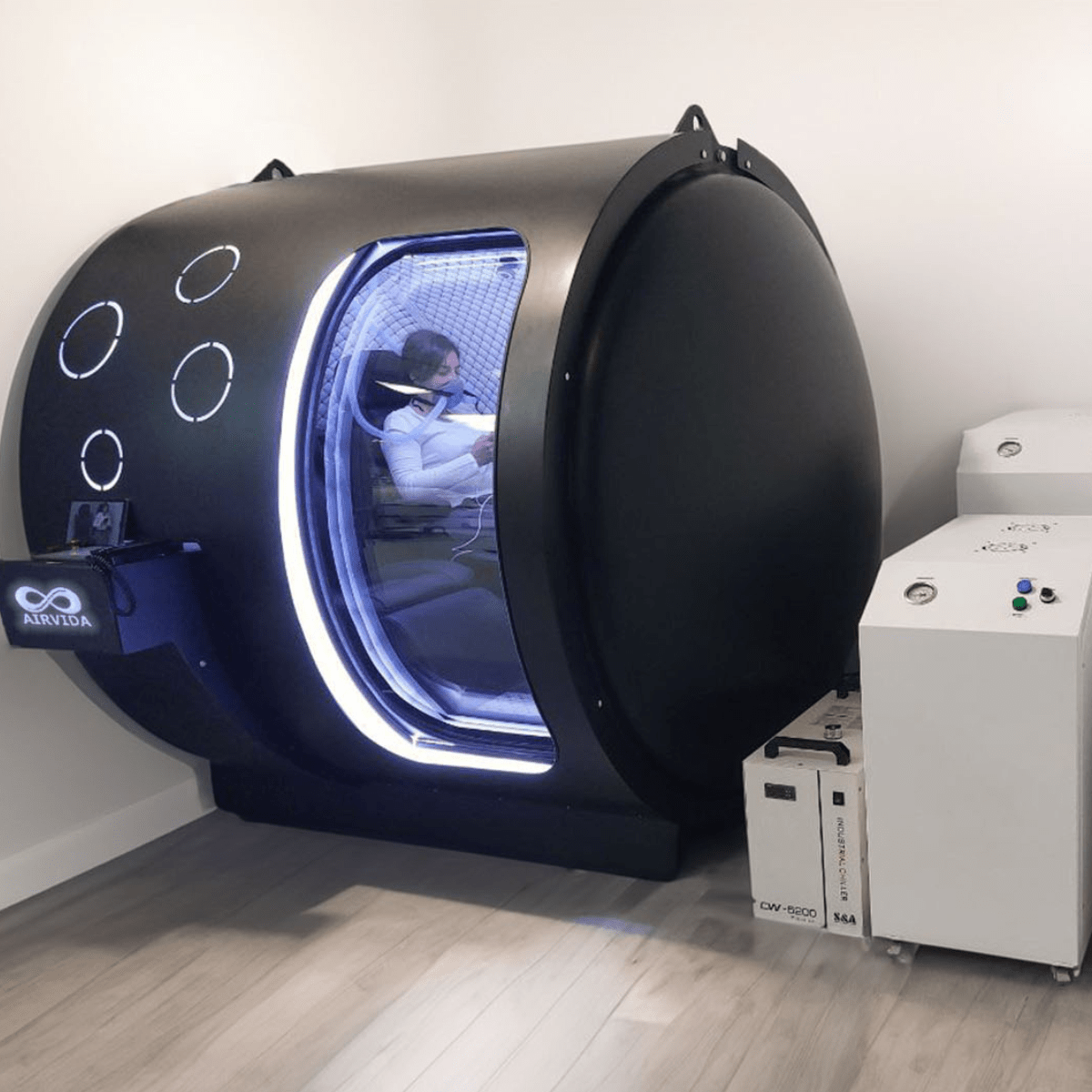

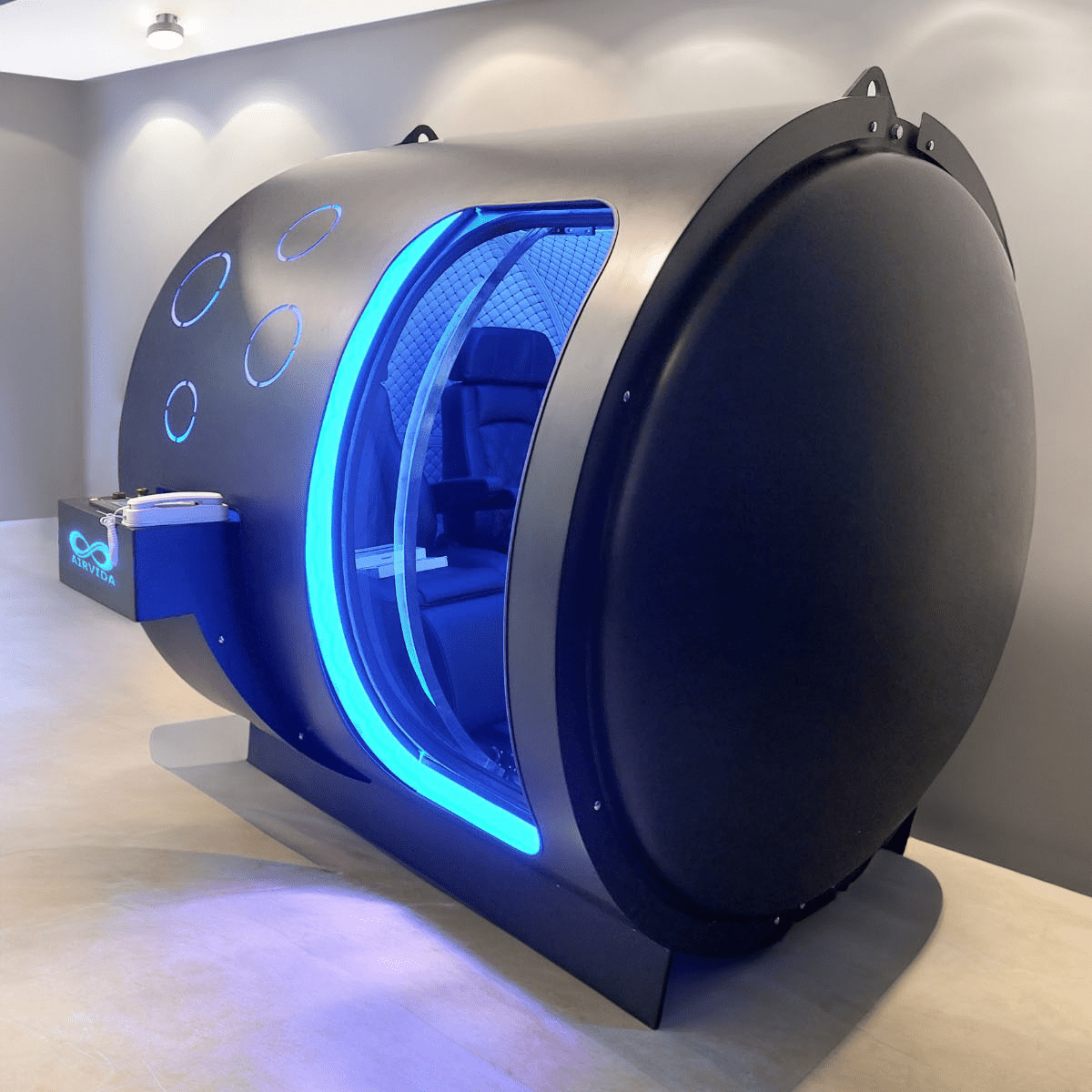

This is a hard-shell multiplace hyperbaric chamber operating from 1.00 to 2.00 ATA, electronically adjustable in 0.01 ATA increments, with oxygen delivered to each occupant through a Built-In Breathing System (BIBS) mask or hood rather than by pressurising the chamber itself with oxygen.
That distinction is the whole architecture. In a BIBS chamber the vessel is pressurised with air while occupants breathe oxygen through a sealed mask, so the chamber atmosphere stays close to normal. Airvida caps internal oxygen at 23.5% and fits an automatic cutover to air if internal oxygen exceeds that threshold — an engineering control acting on the oxygen supply itself, not a procedure someone has to remember.
Expandable, not fixed. The chamber ships as a 2-person unit and expands to 4 or 6 persons using modular ring sections. It is designed to be disassembled and reassembled on site and to pass through standard doorways, so capacity is a decision that can be revisited rather than one locked in at purchase.

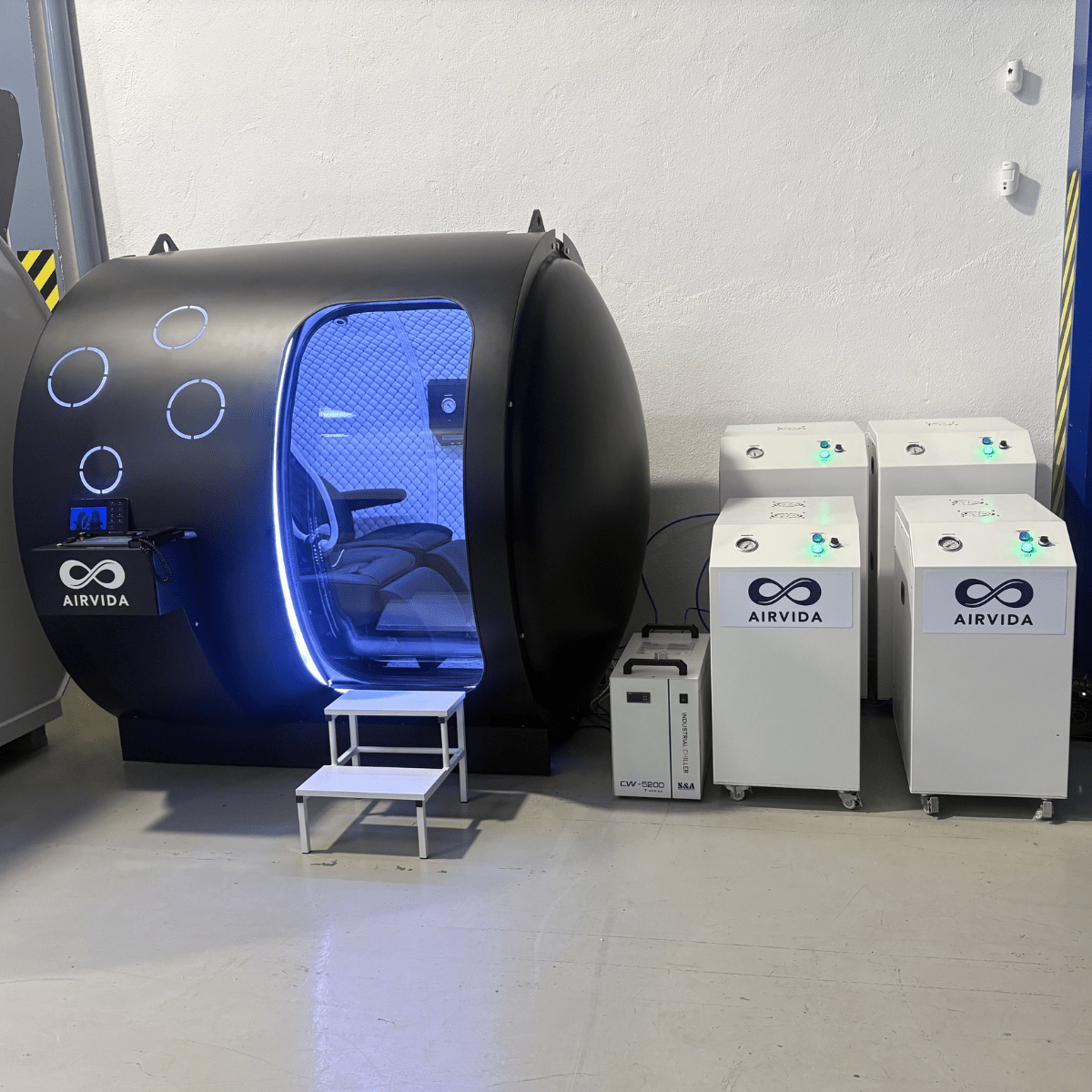

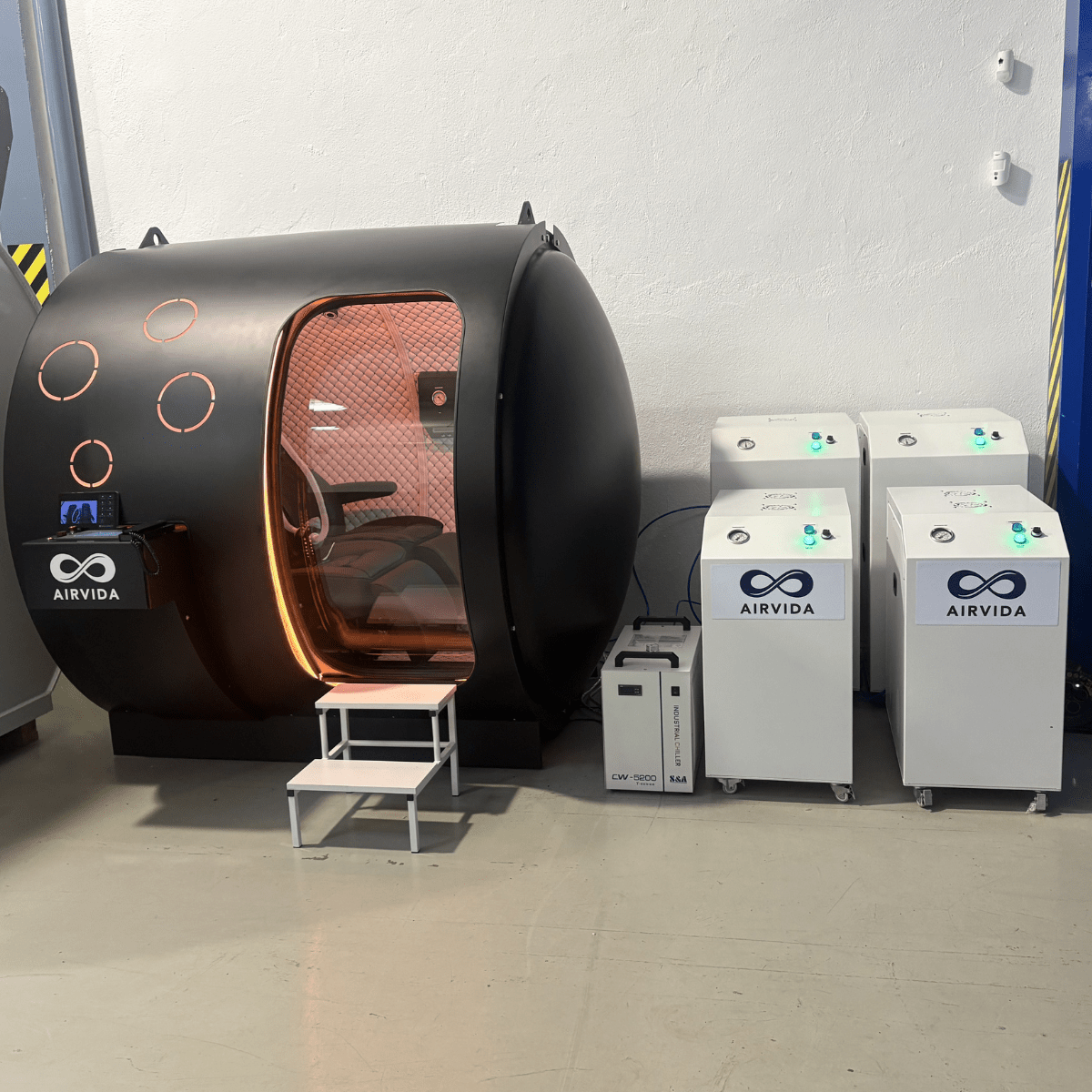

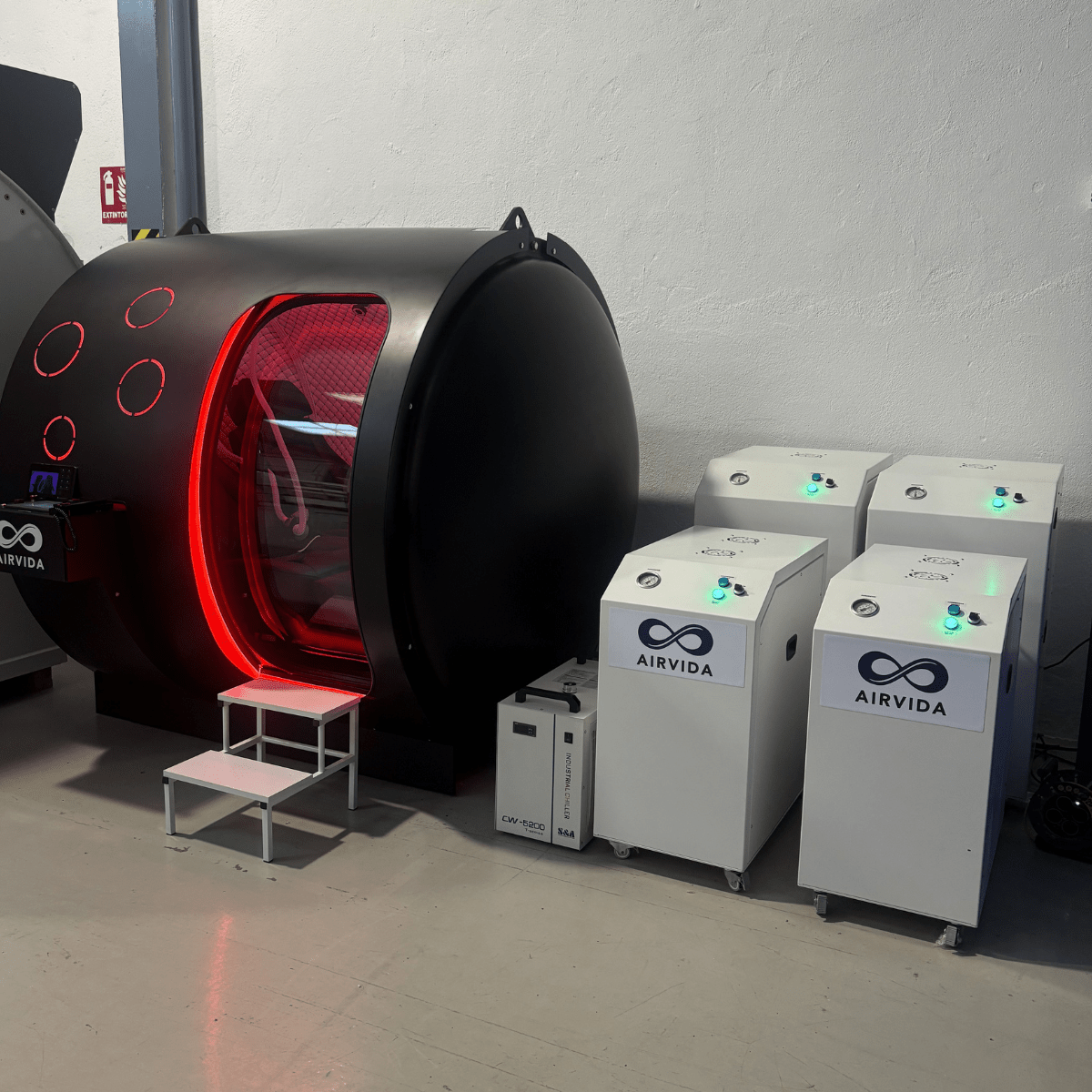

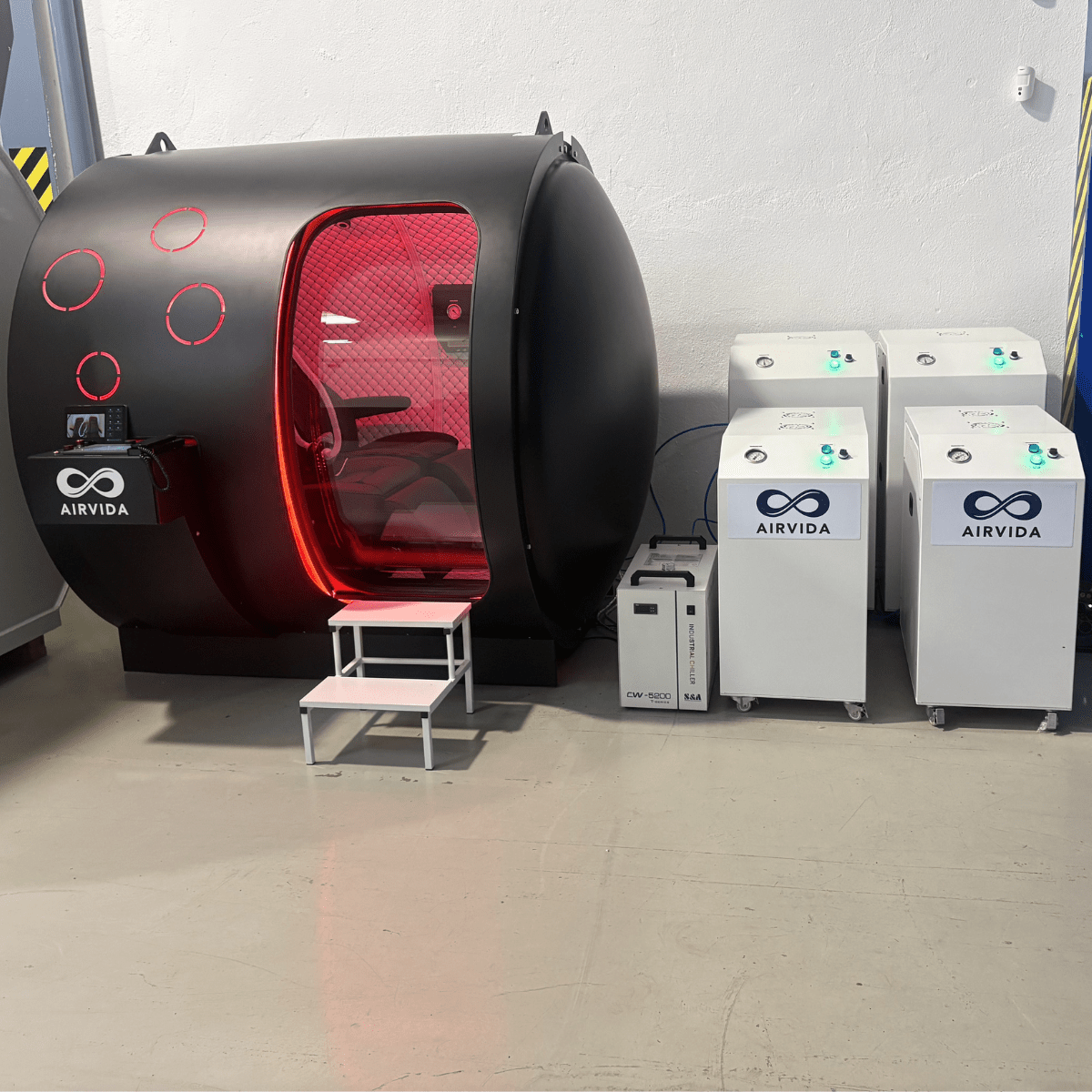

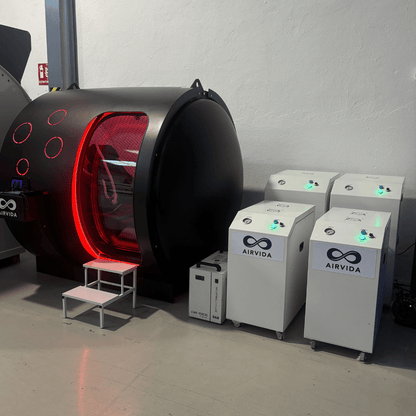

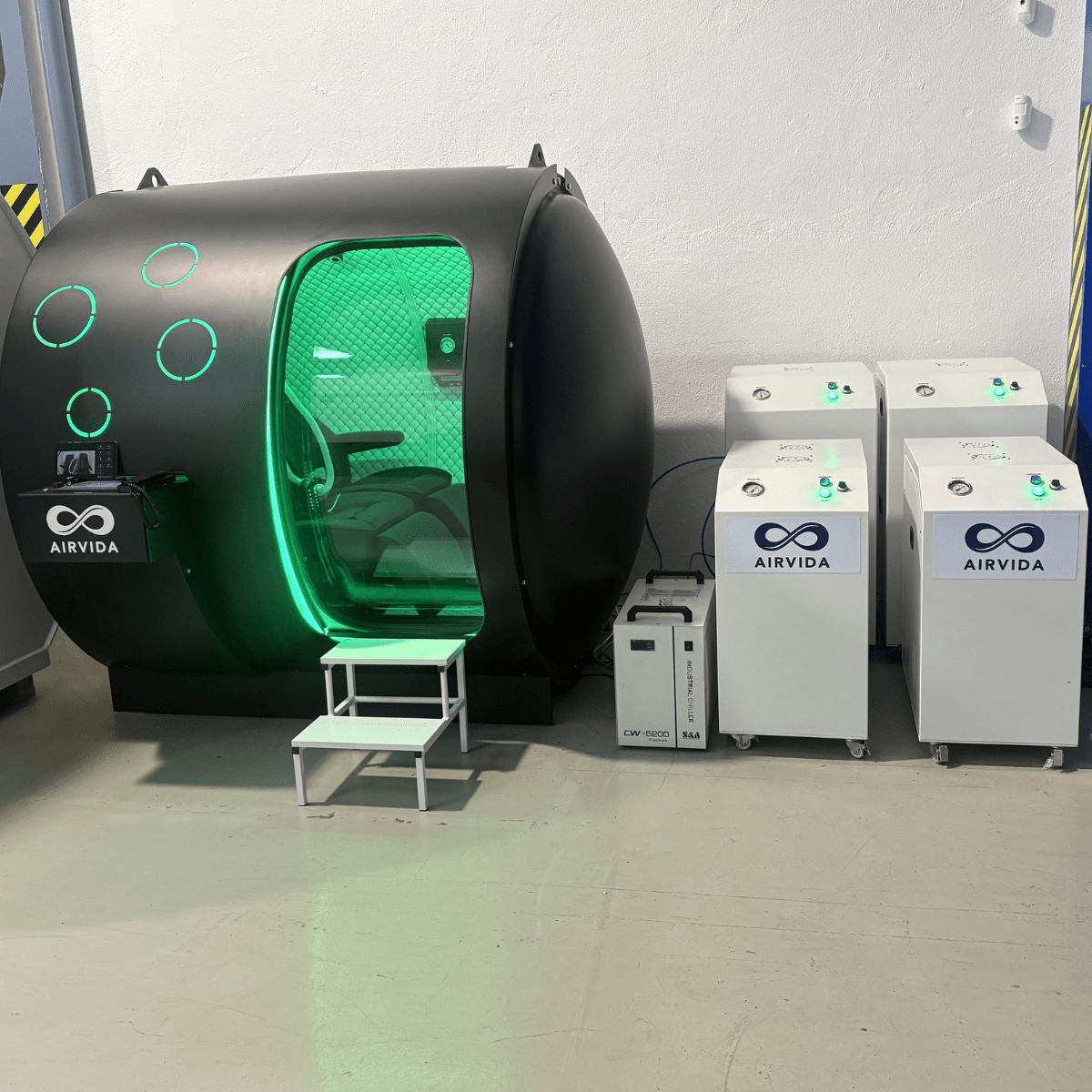

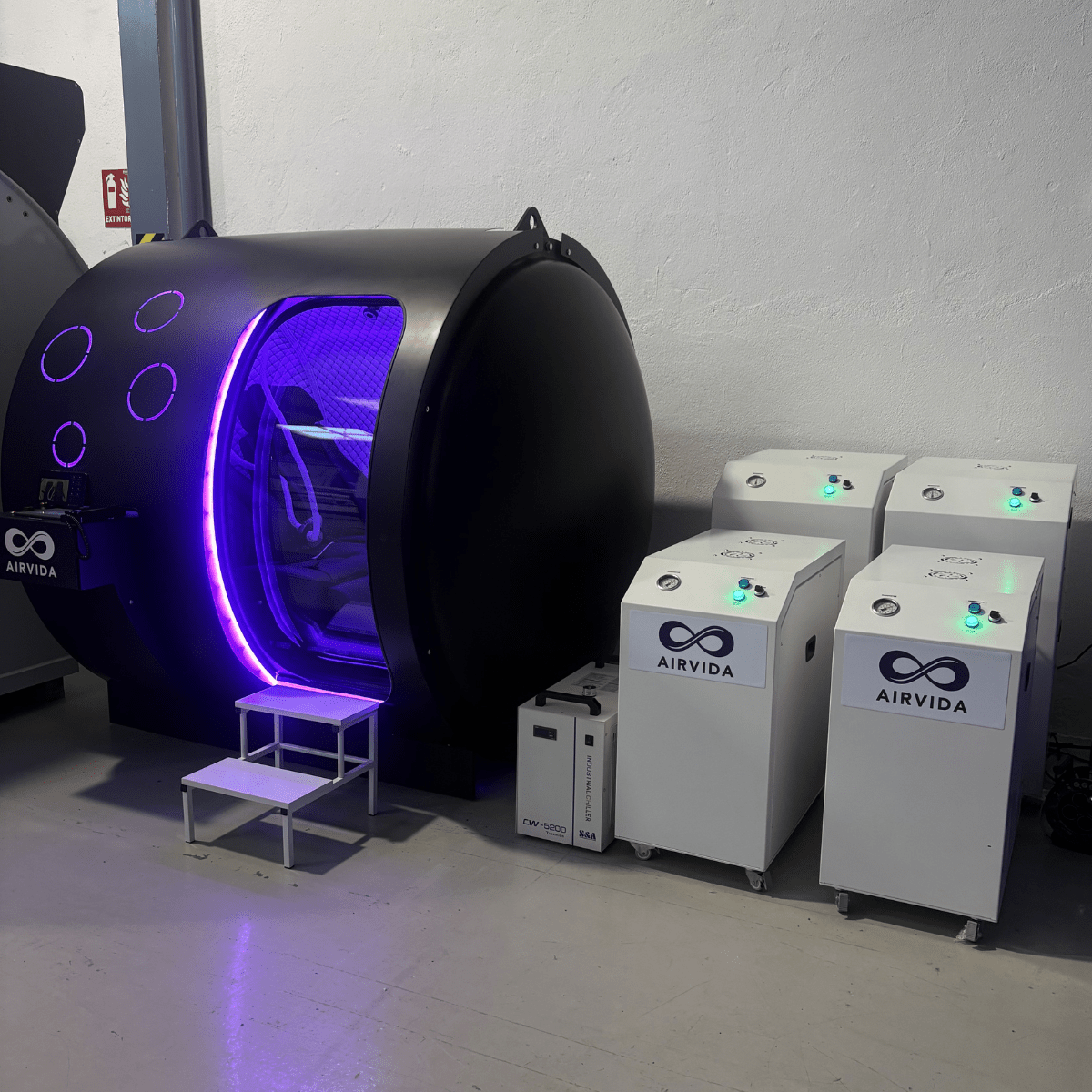

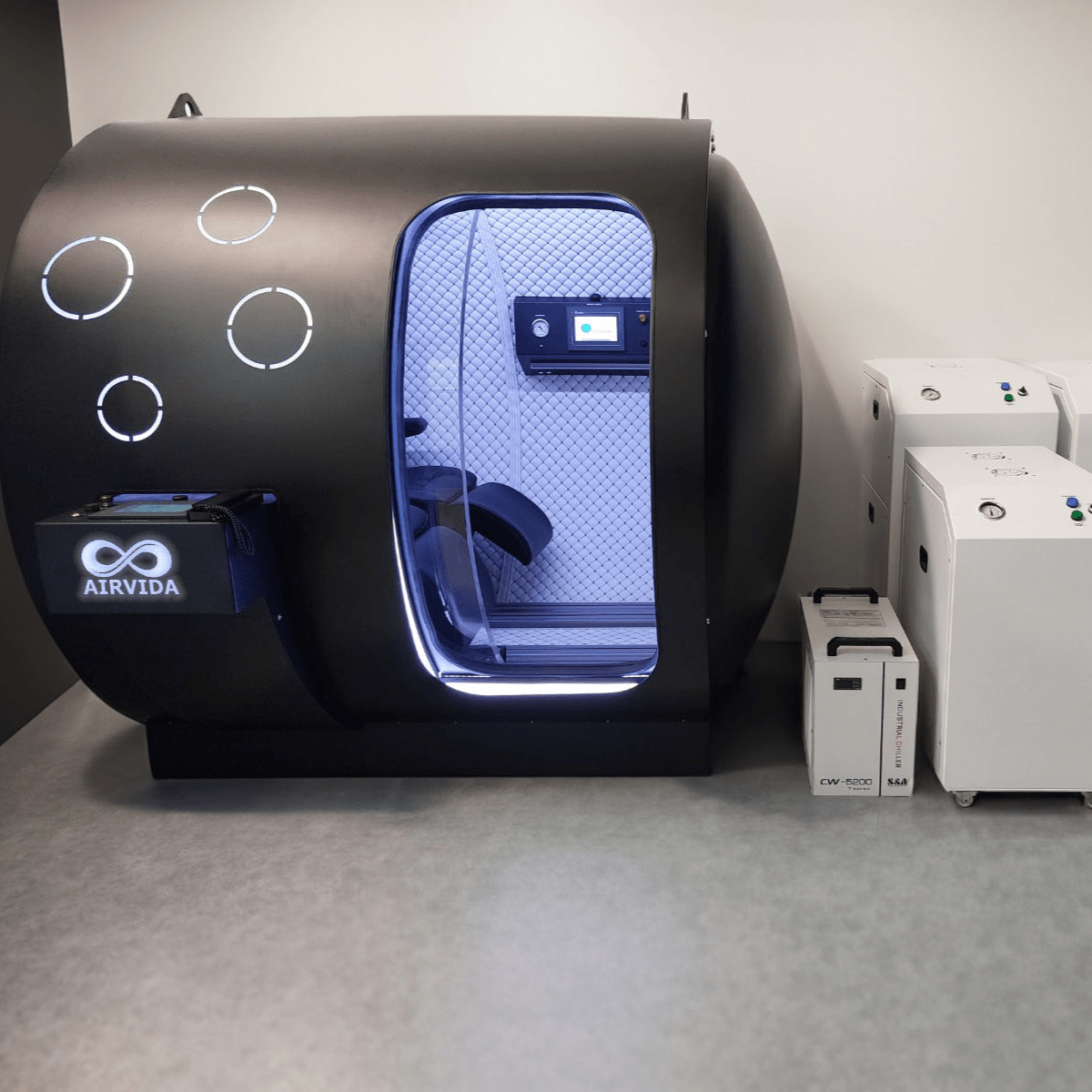

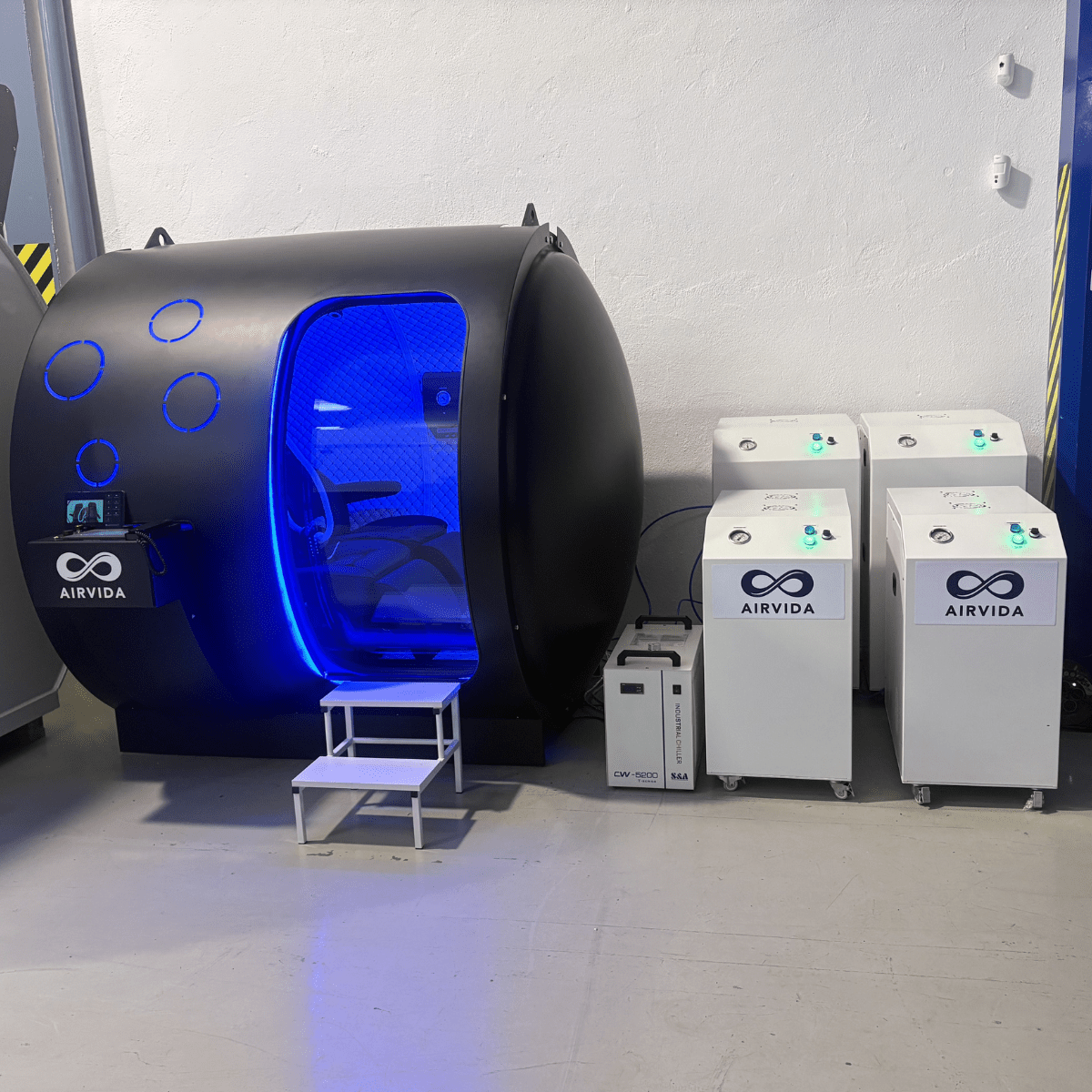

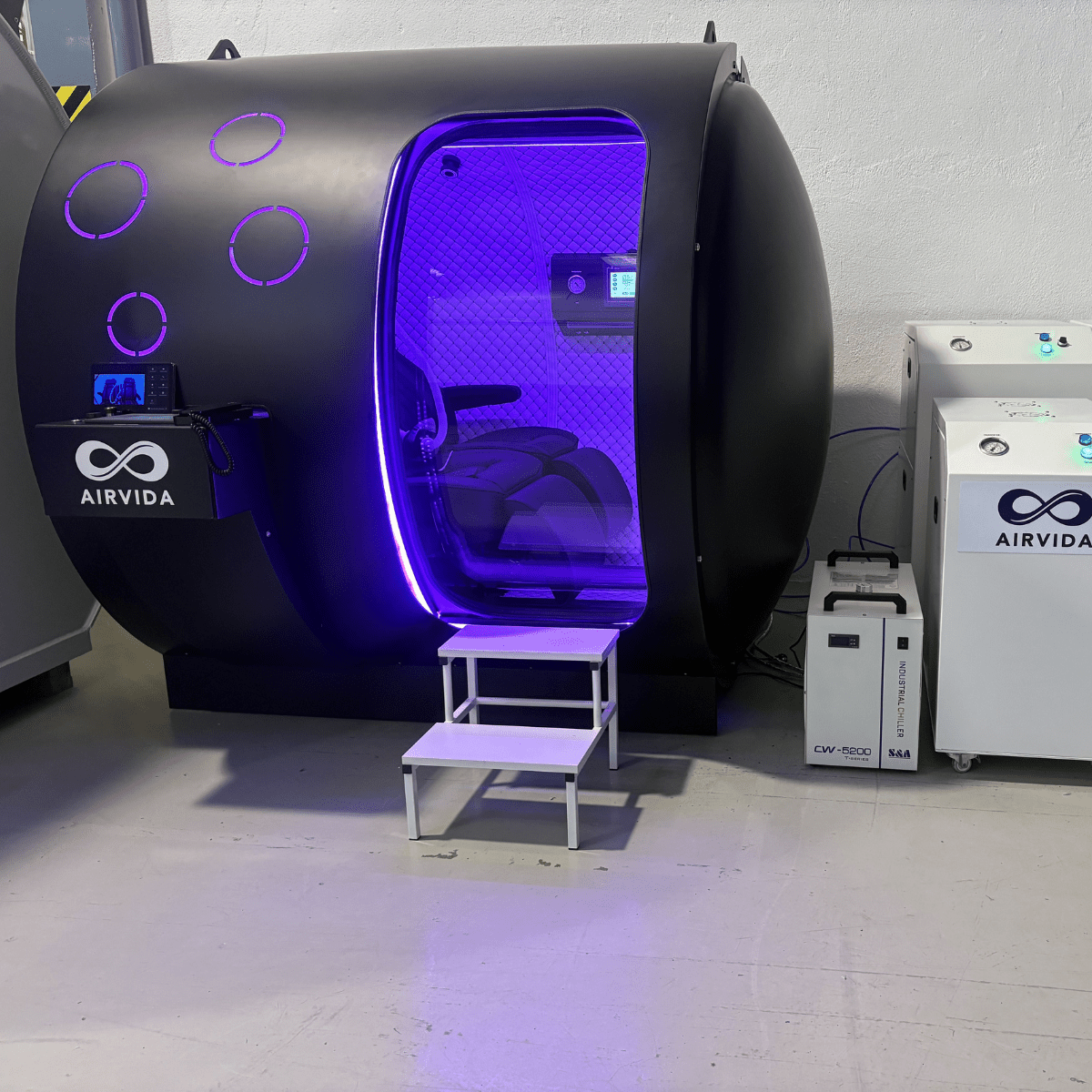

Systems. Two 650 LPM air compressors and two oxygen concentrators producing 1,200 Lph at 93% ±3% O₂, with BIBS delivery at 40 L/min and ventilation flow of 125–400 L/min. Built-in air and oxygen reserve tanks, UVC sterilisation and high-purity oxygen filtration. A water cooler is included.

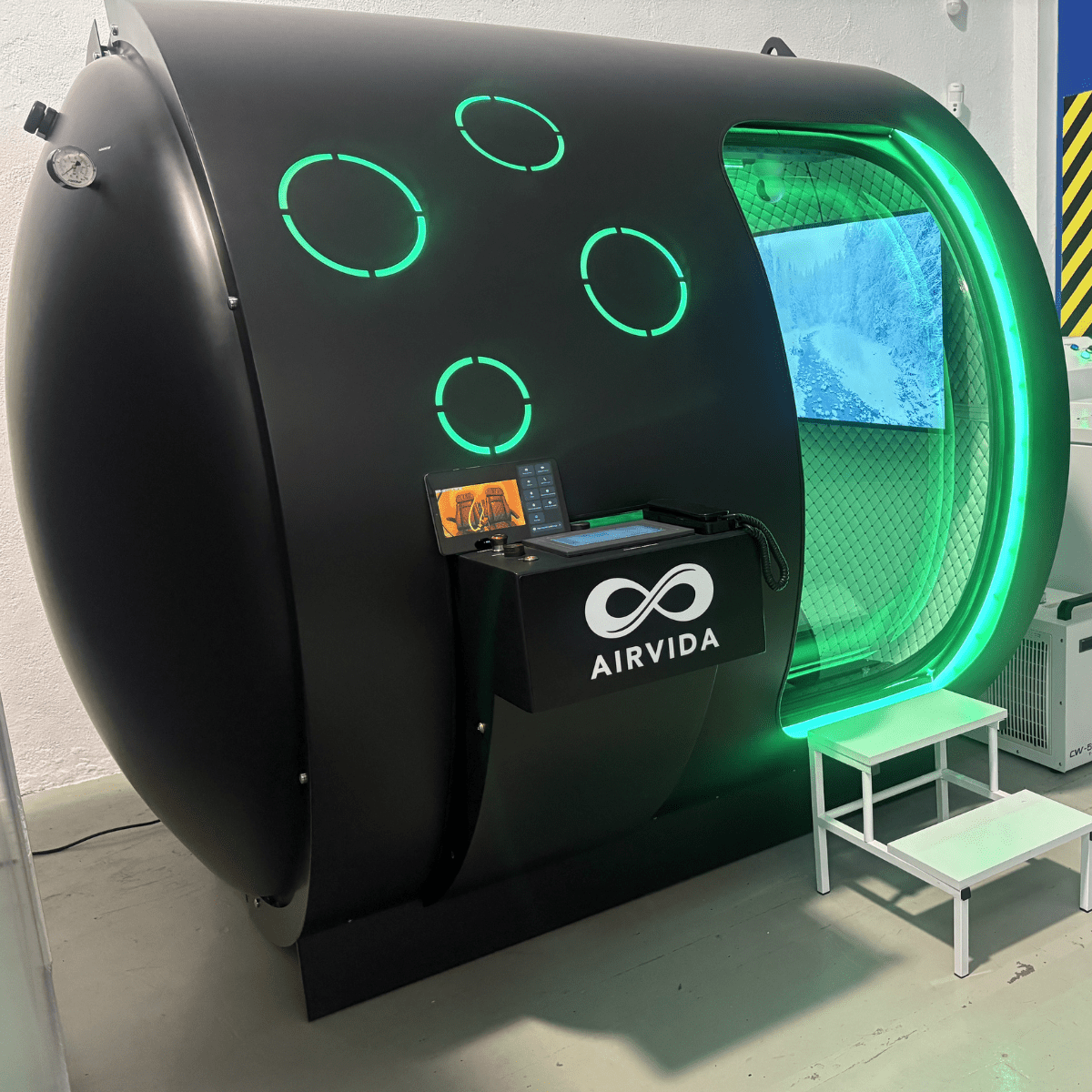

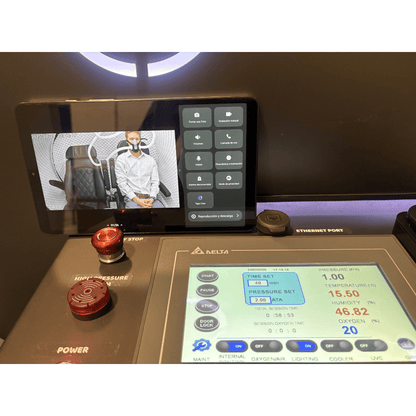

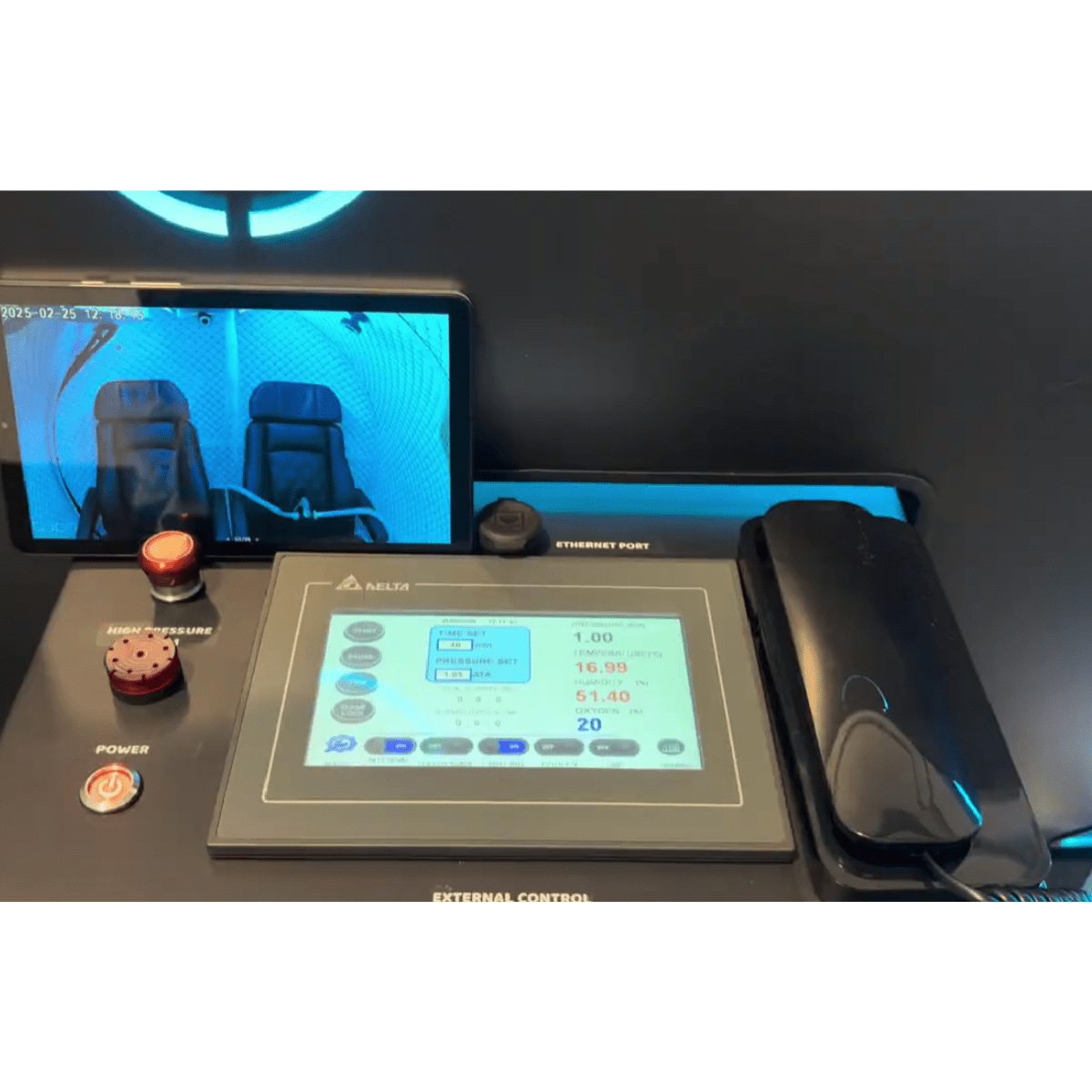

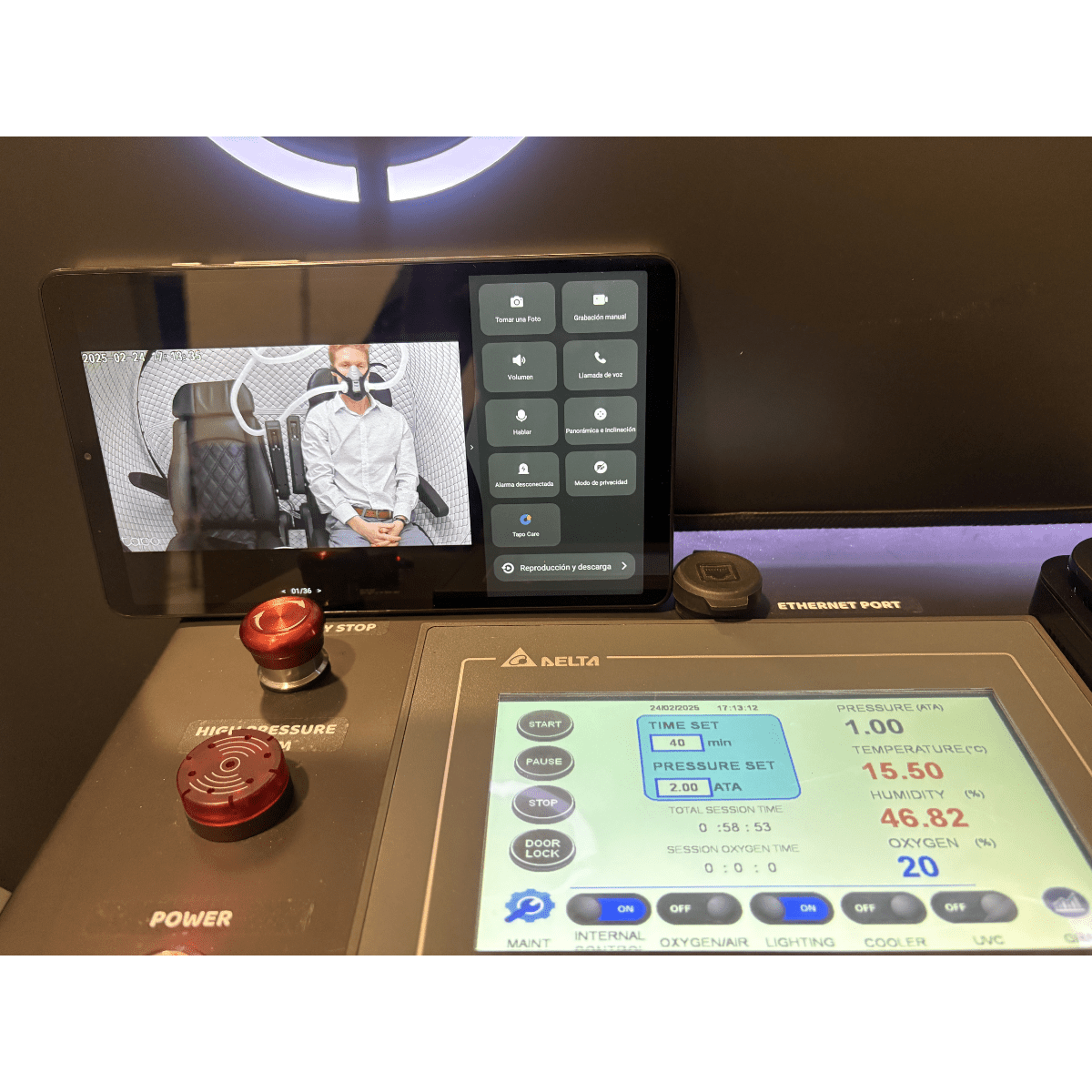

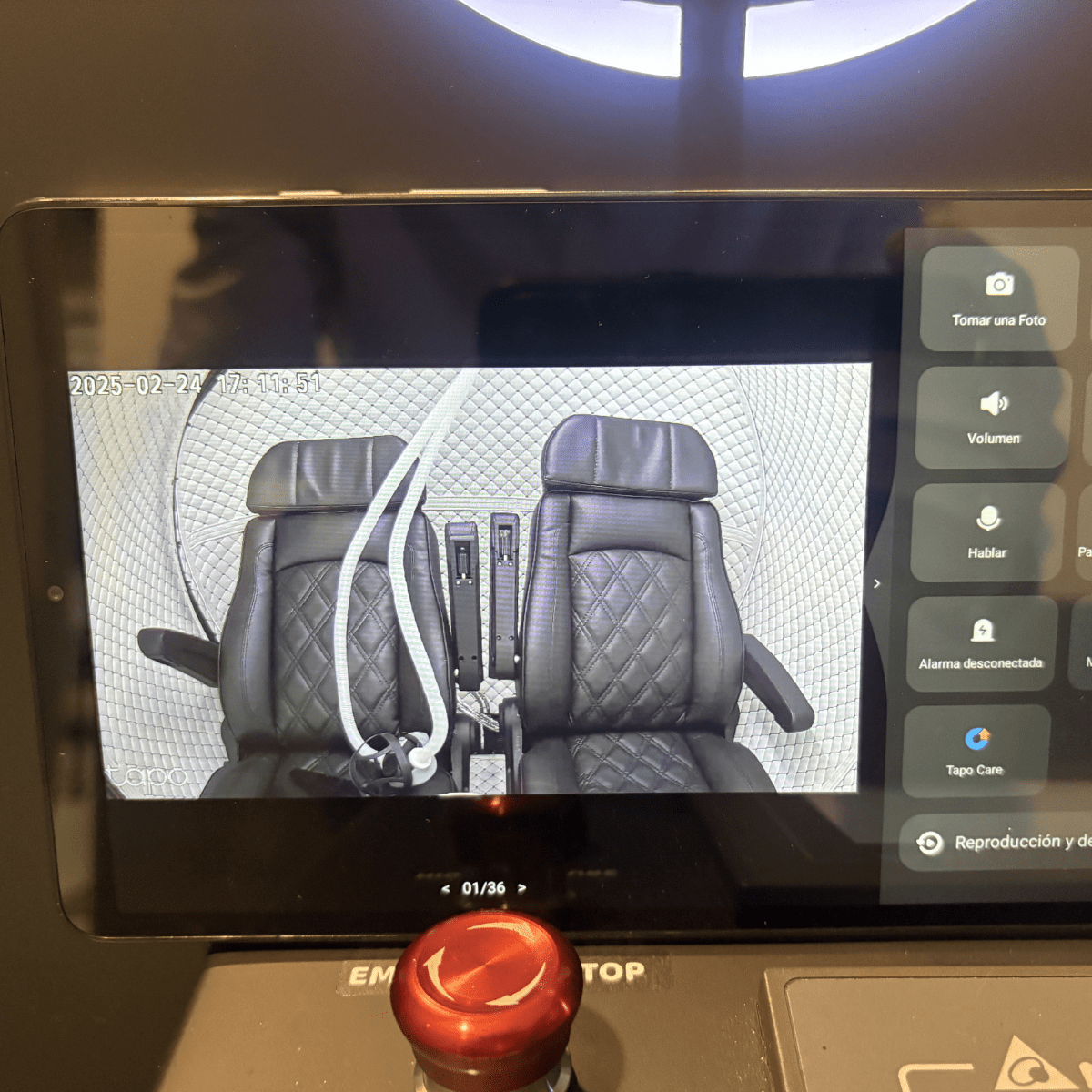

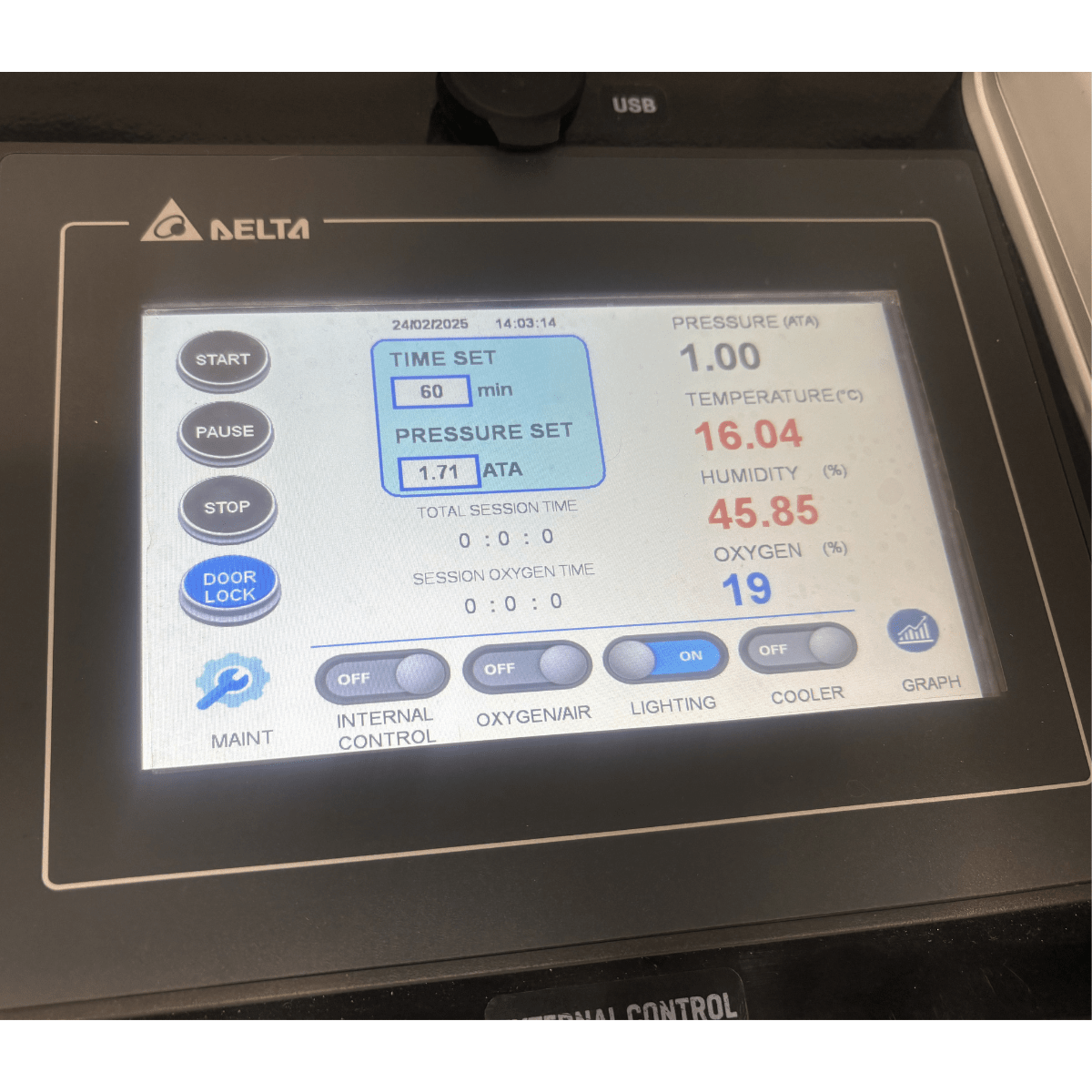

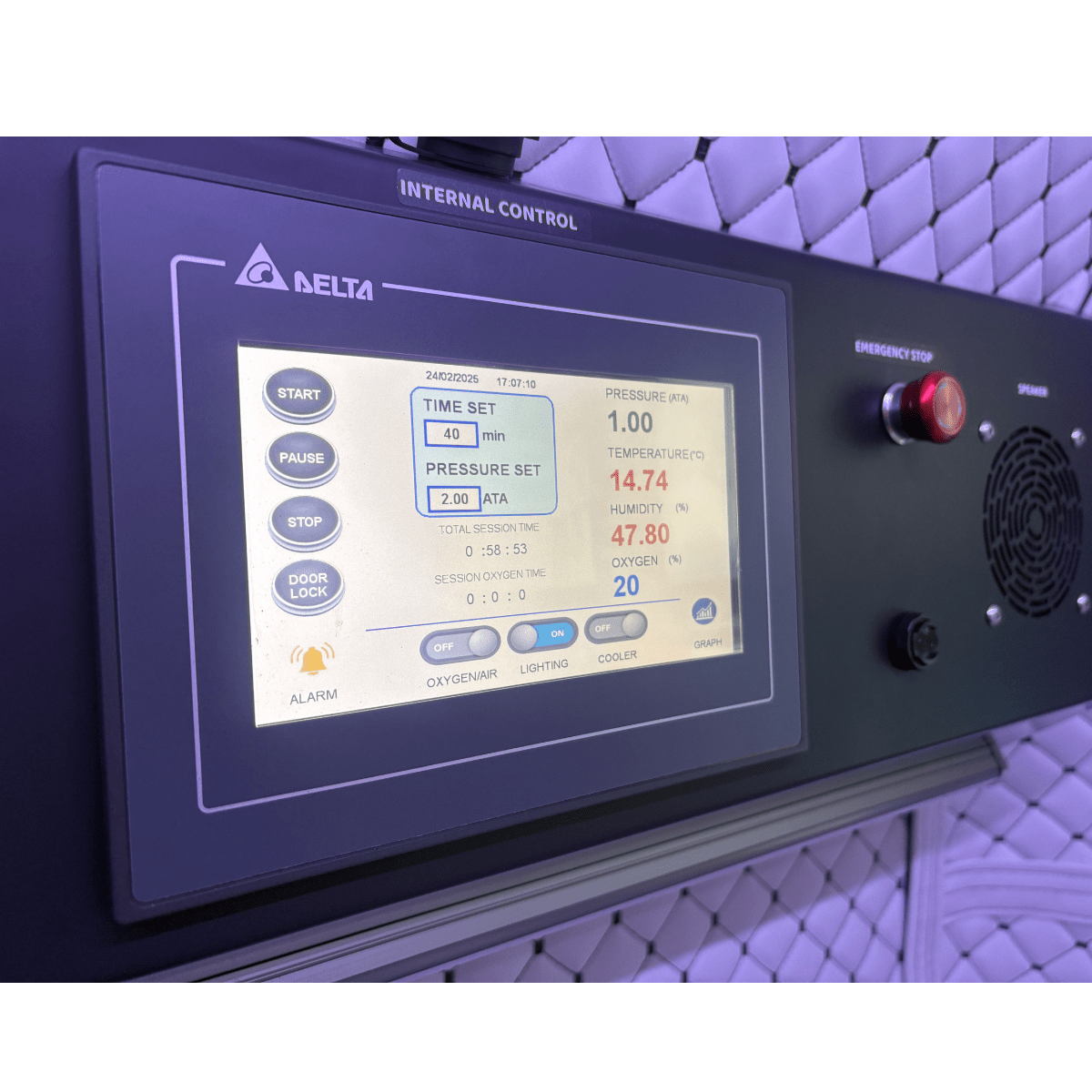

Monitoring and control. CO₂ and O₂ sensors, airflow and safety sensors, an automatic ear equaliser, and control panels both inside and outside the chamber — so an occupant is not dependent on an operator to know what the chamber is doing. A data logger records session history. An internal camera and a two-way communication system with phone access connect occupants to the operator.

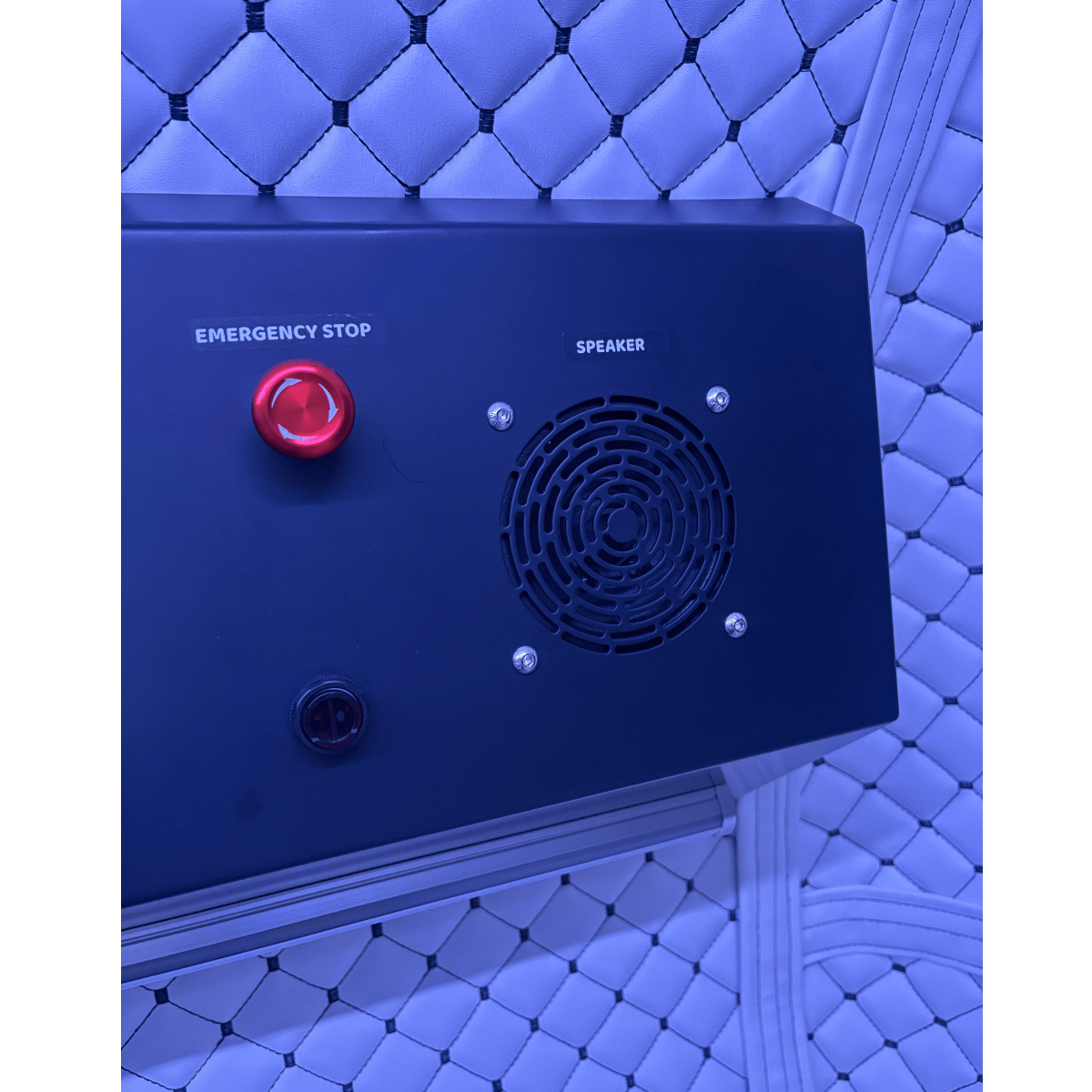

Safety. Two manual pressure release valves, automatic door sealing, emergency stop buttons inside and outside, and emergency depressurisation at approximately 0.015 bar/s.

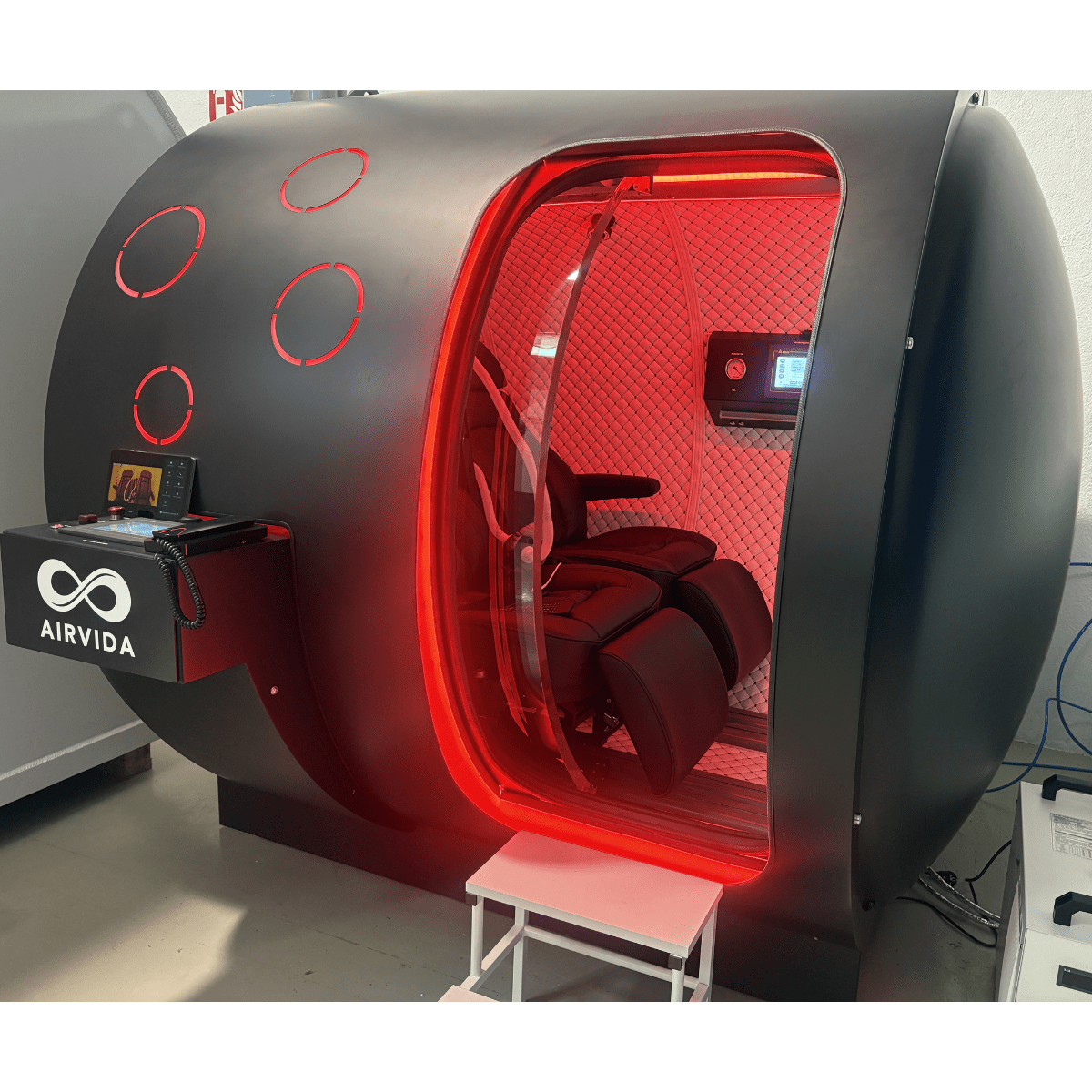

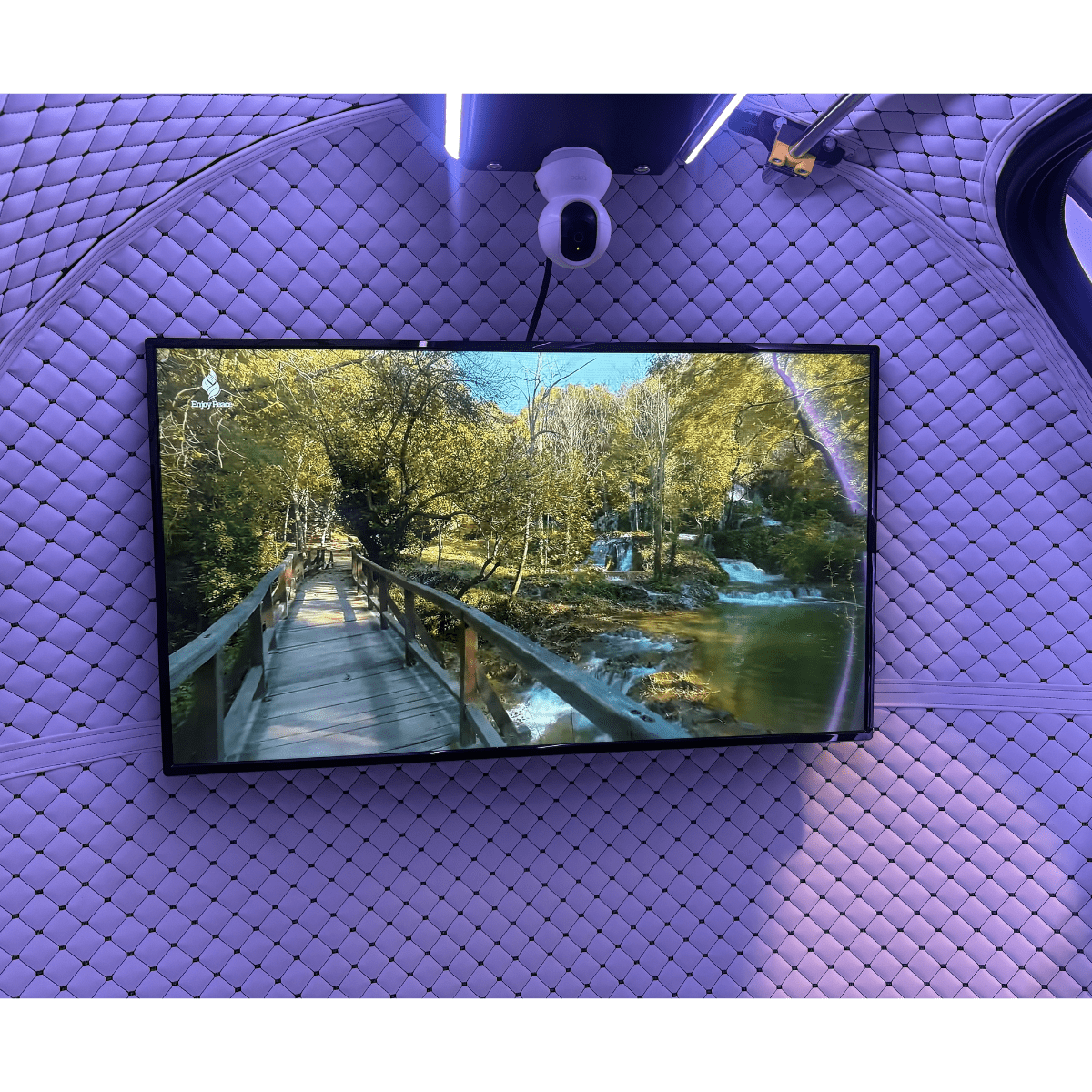

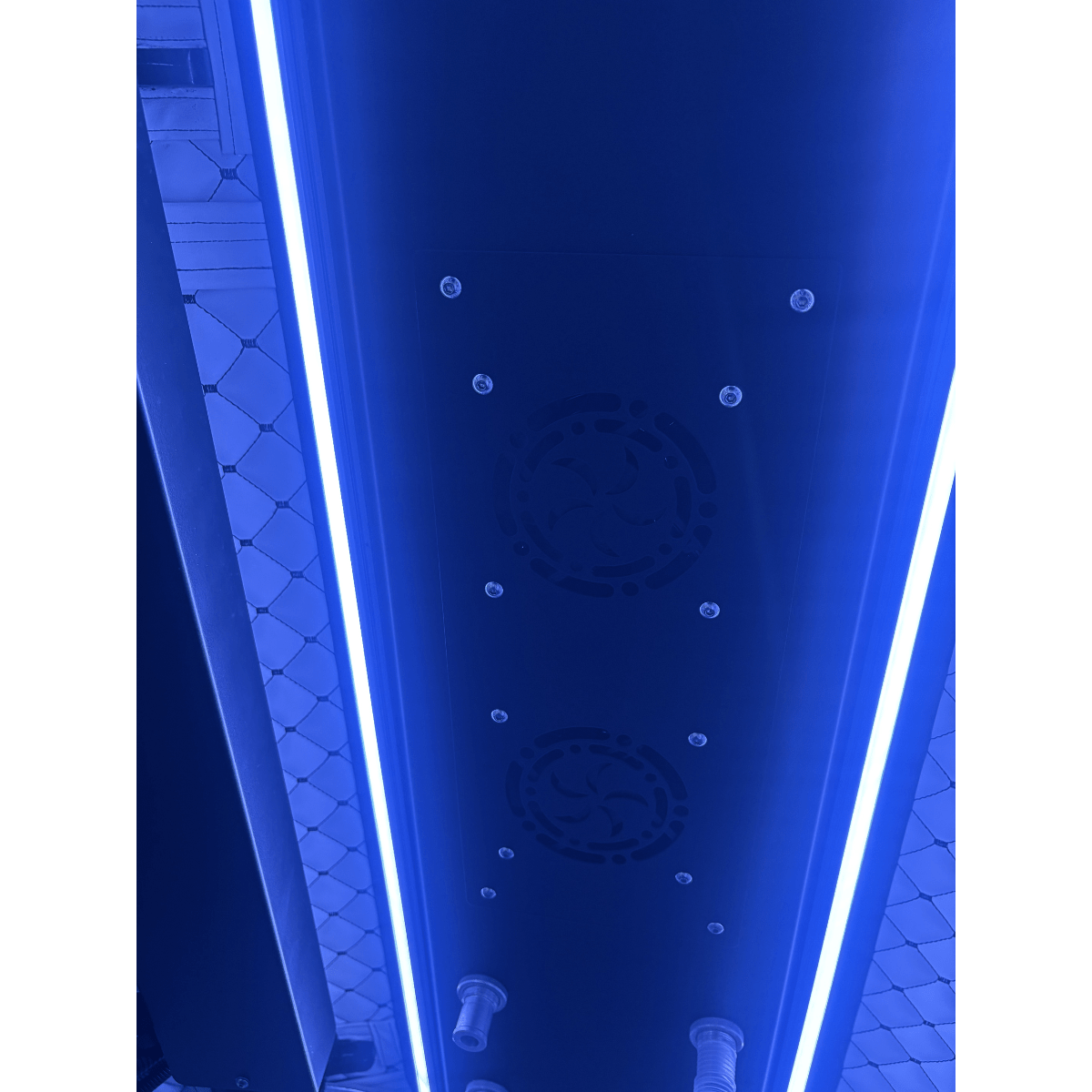

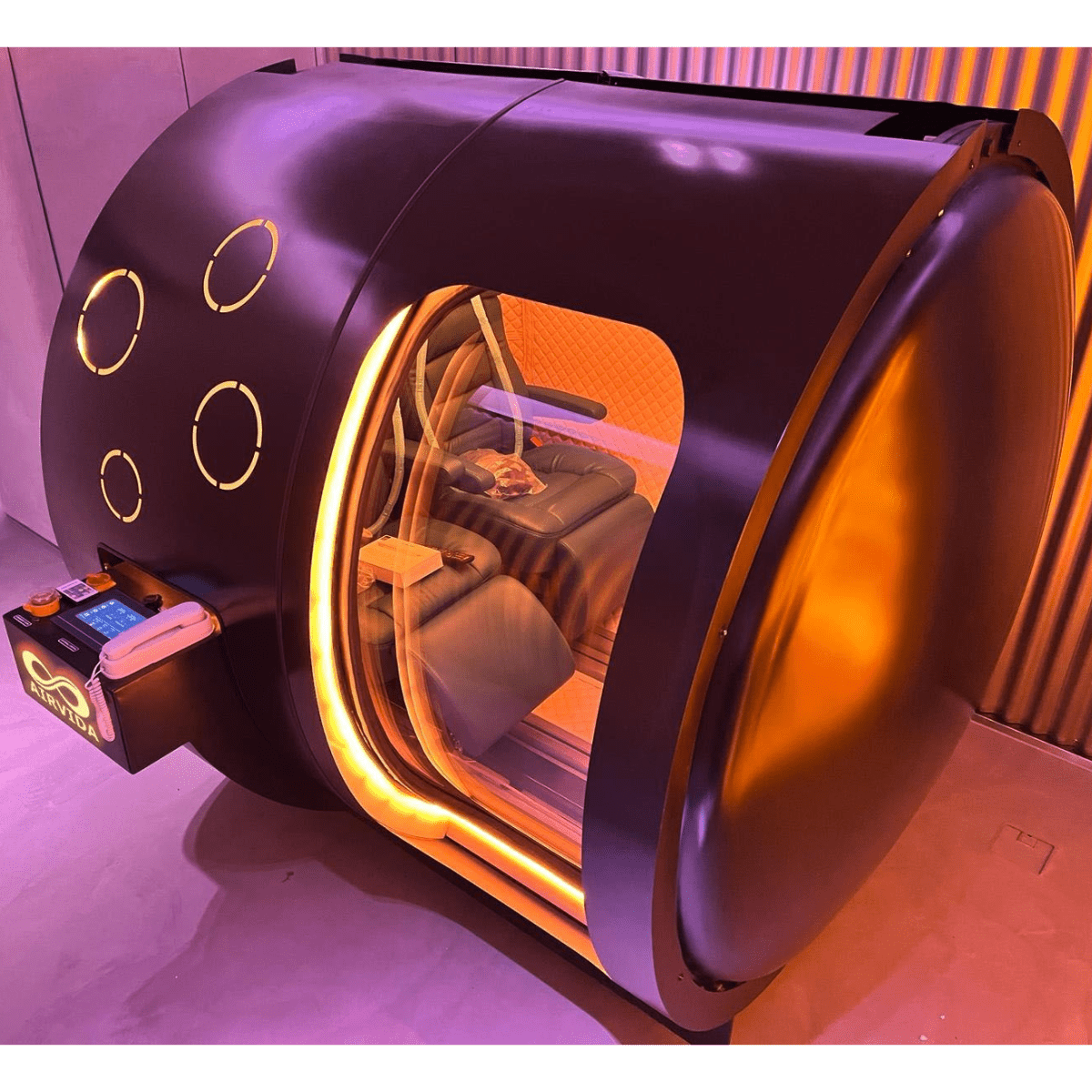

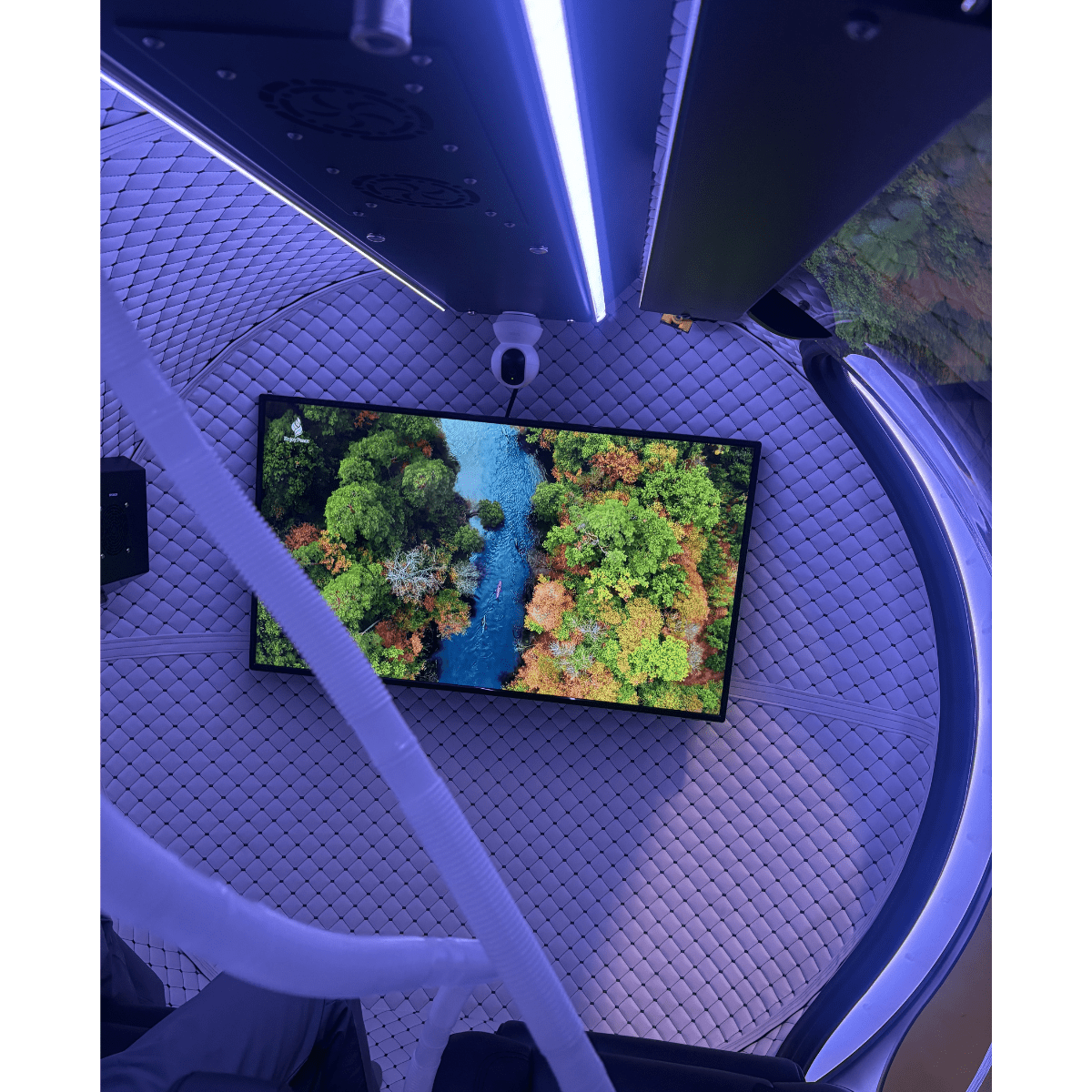

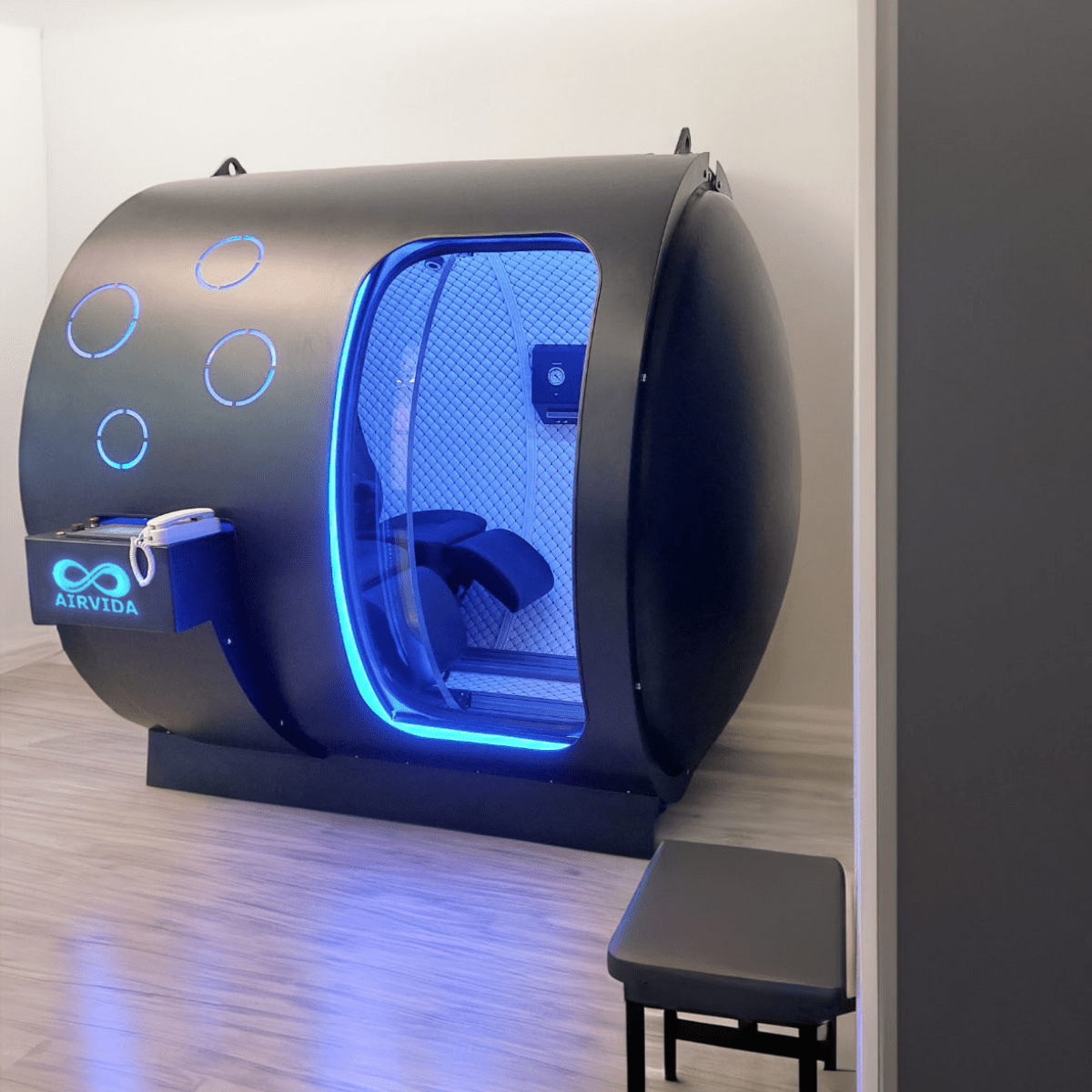

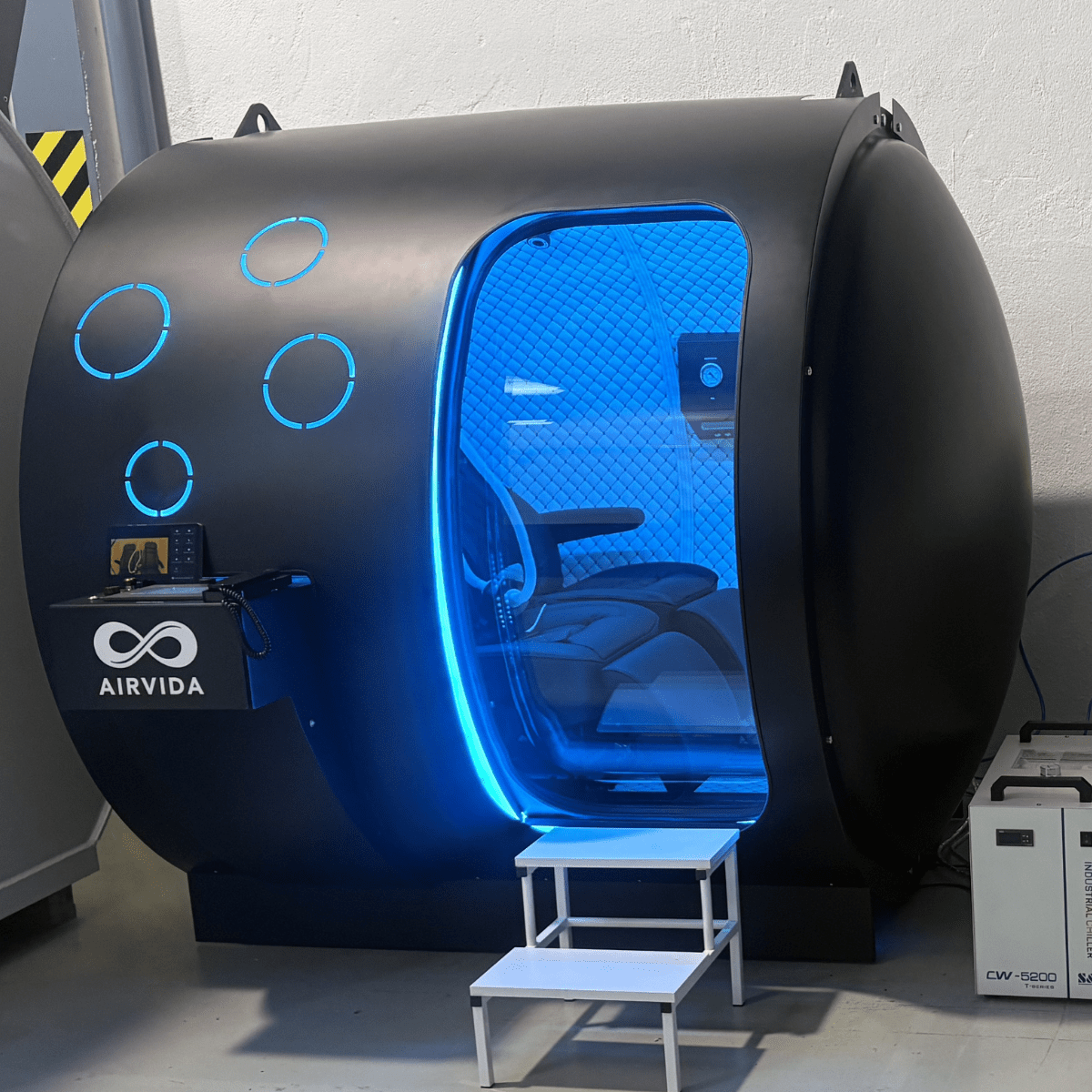

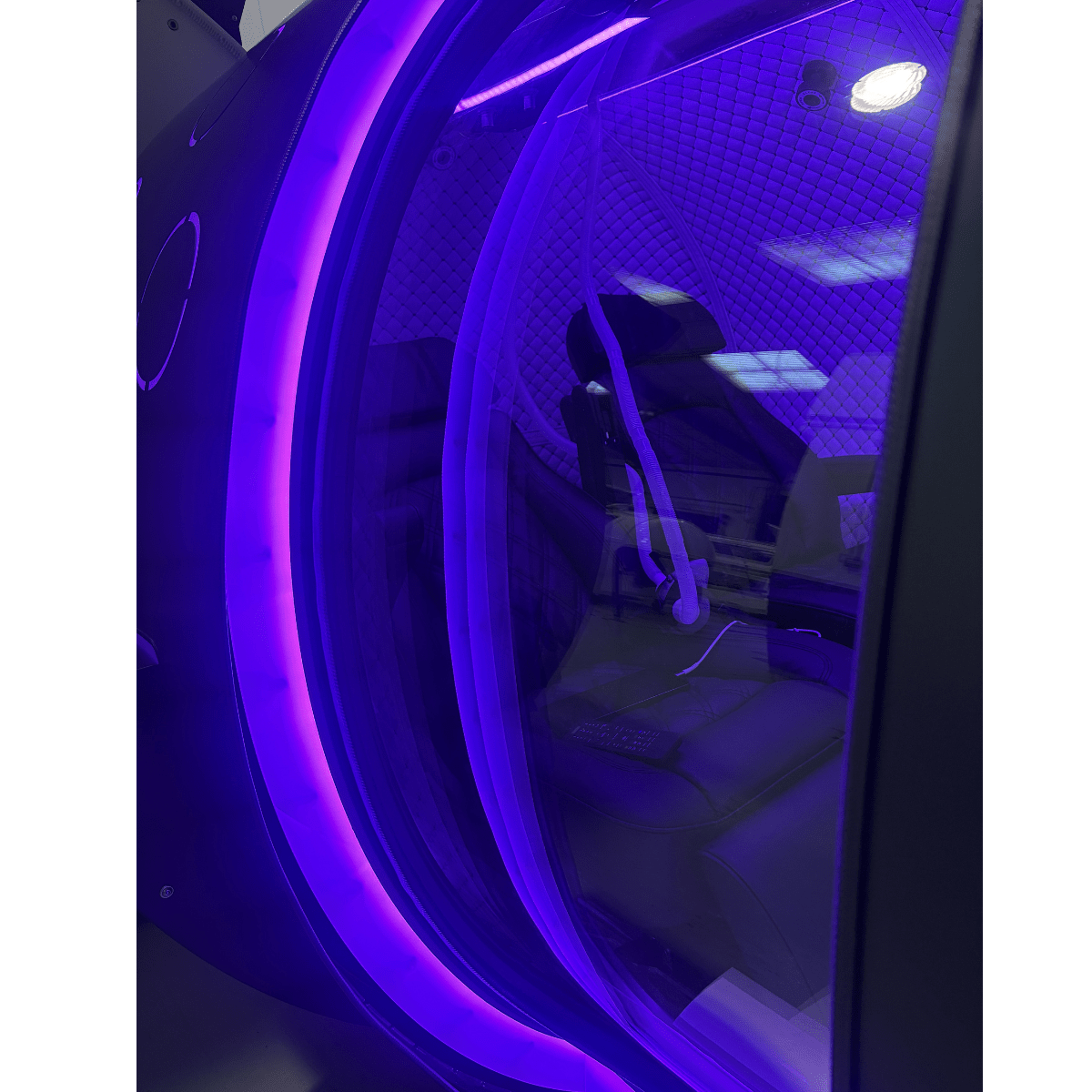

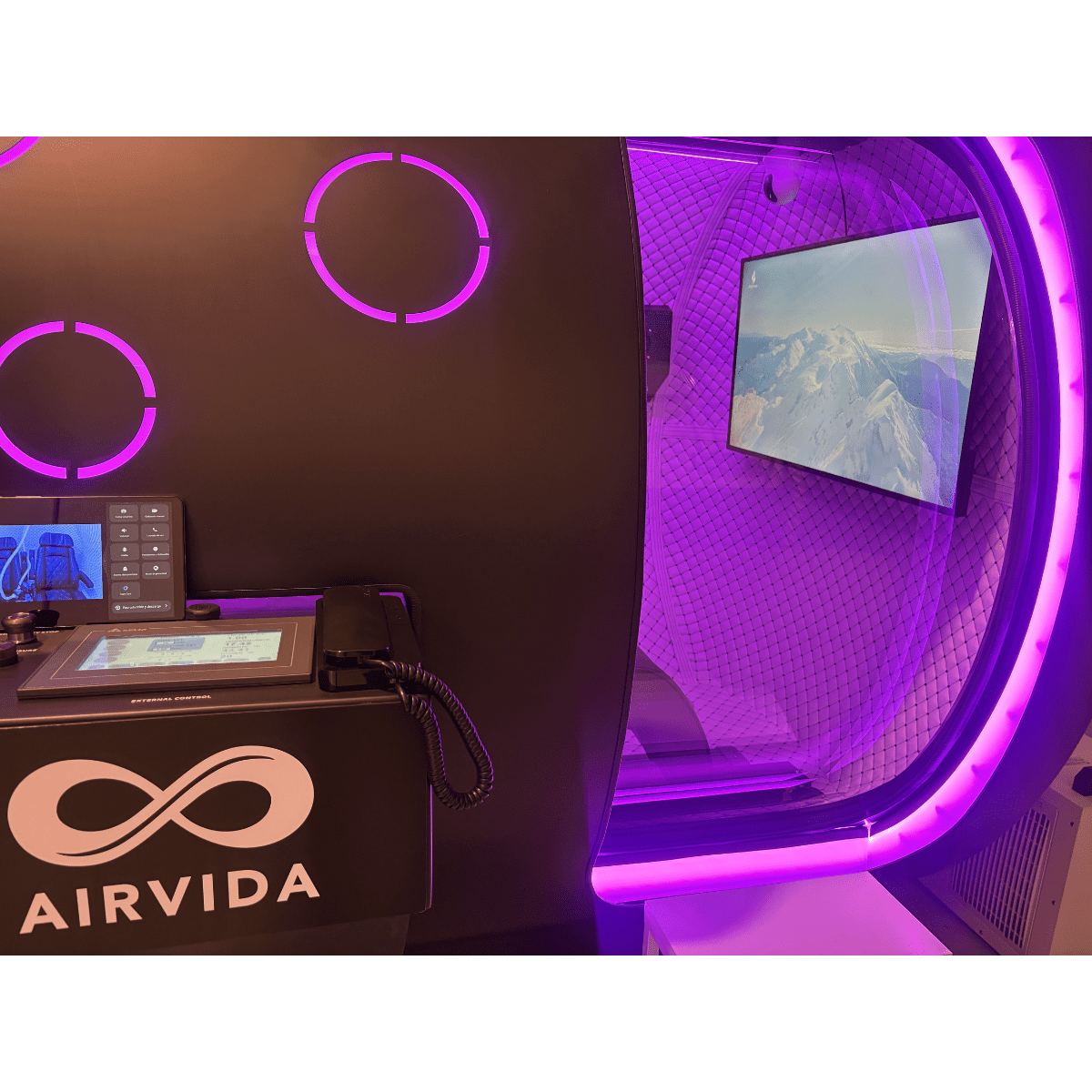

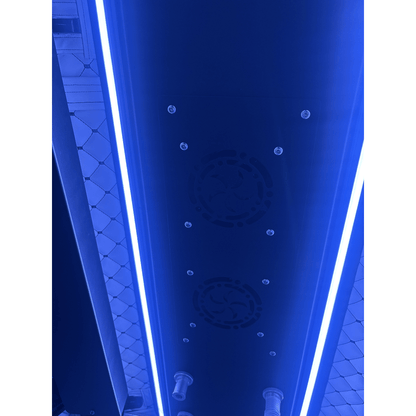

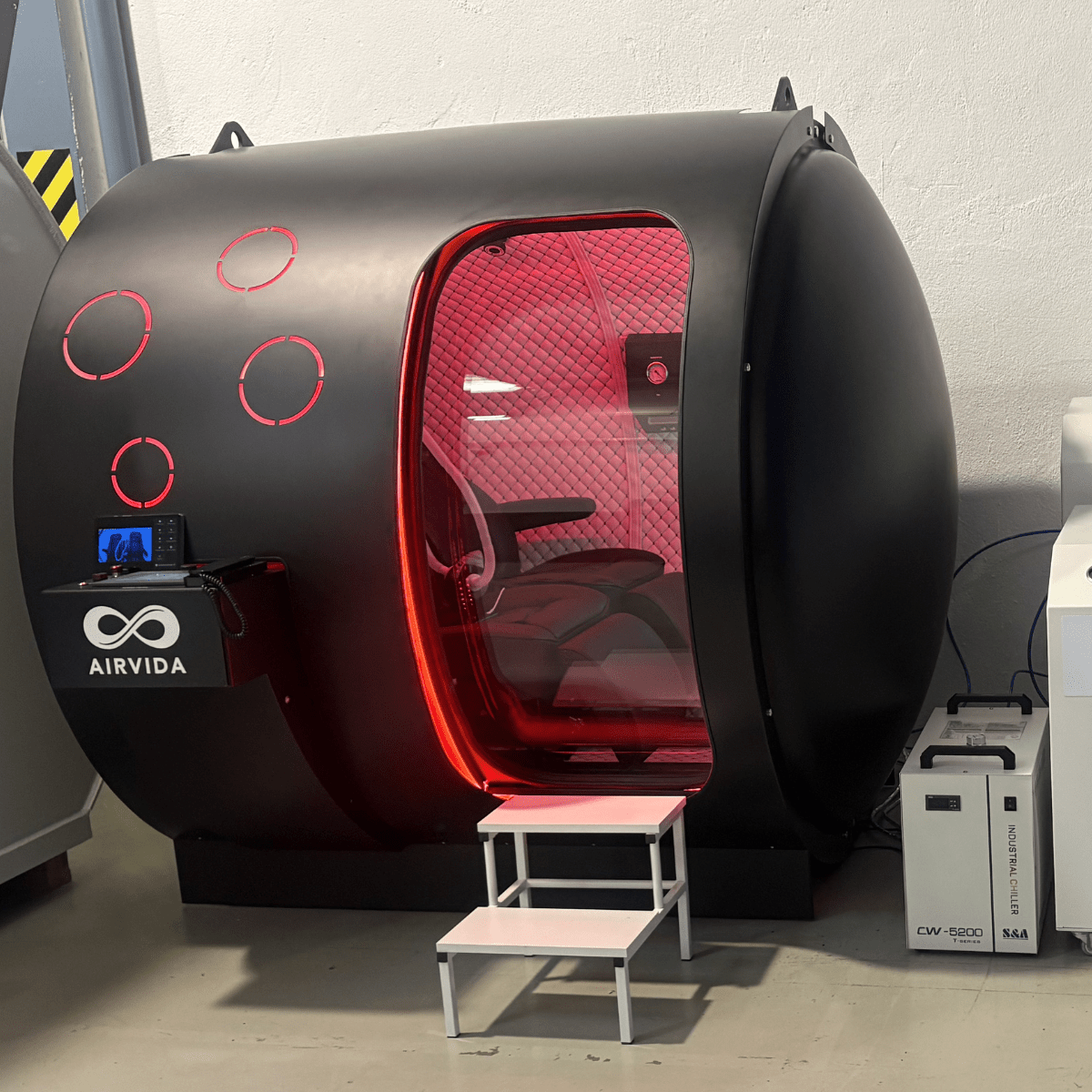

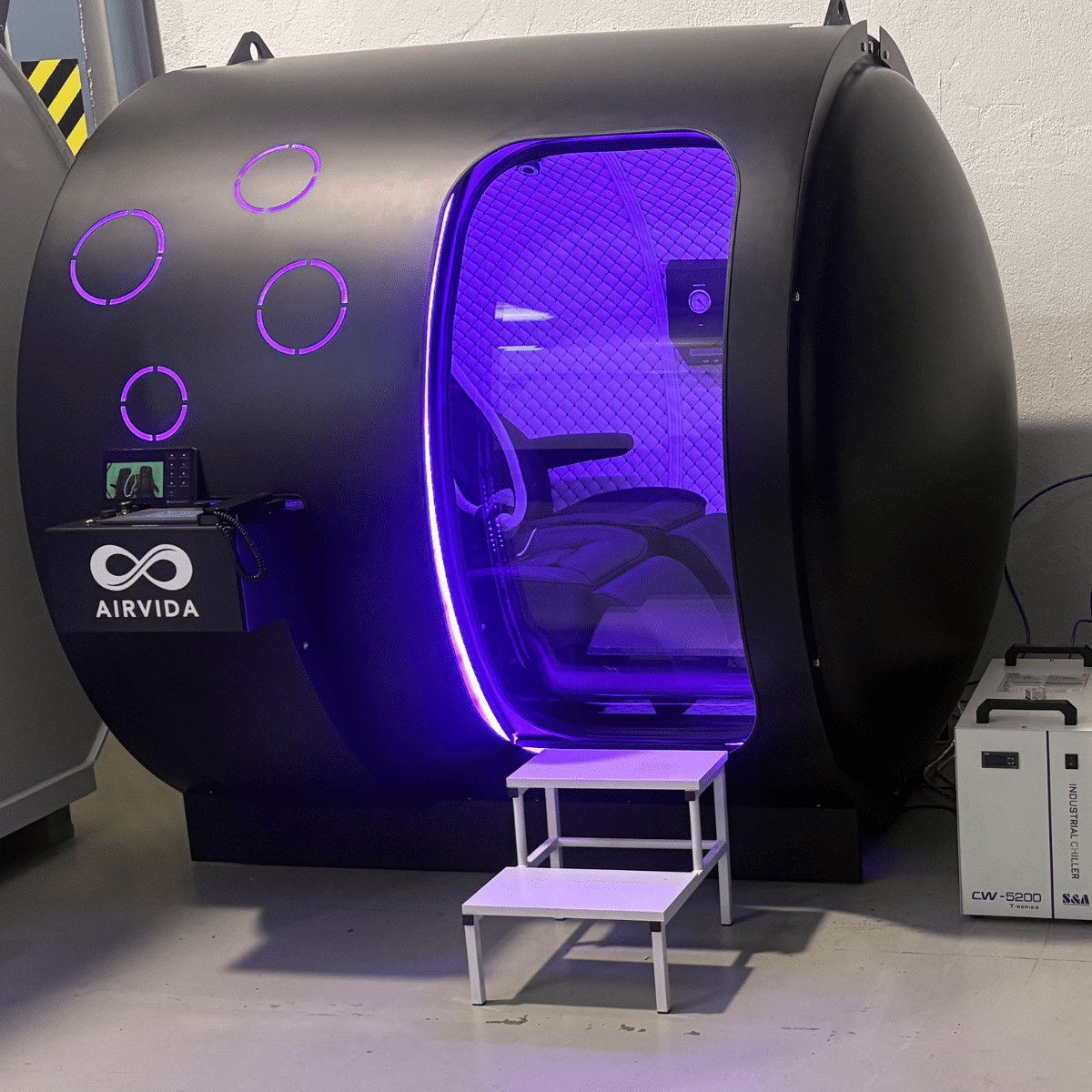

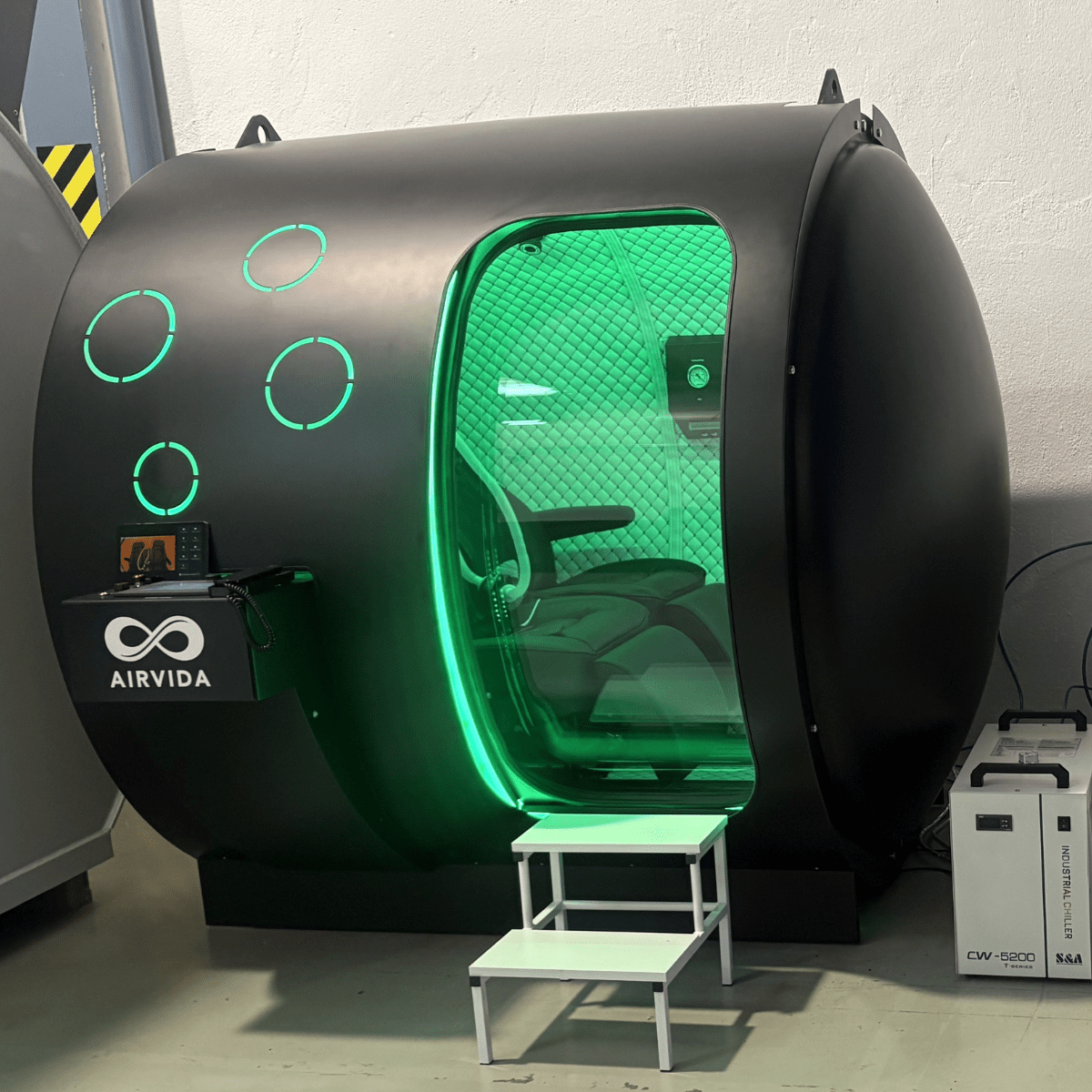

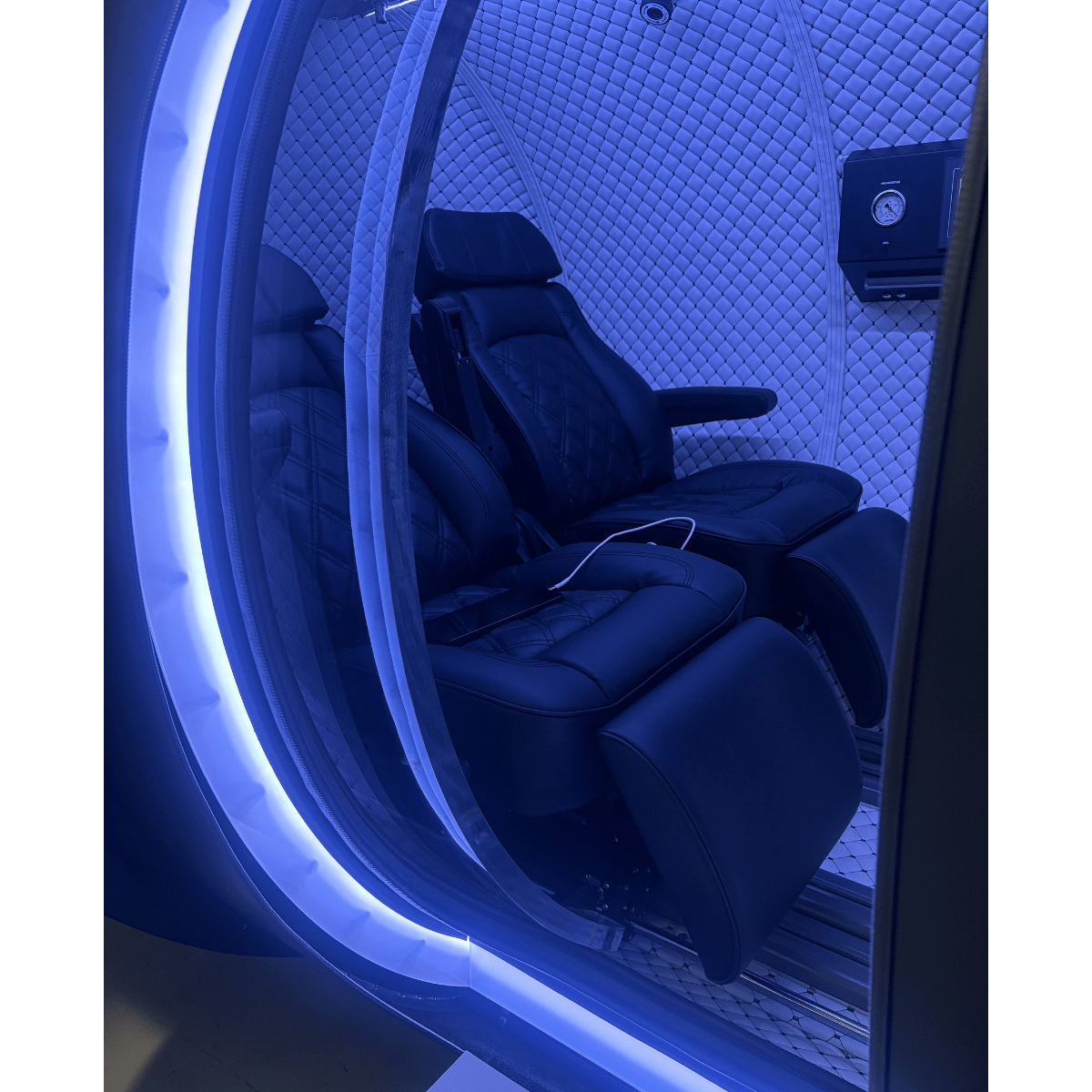

Interior. Premium leather reclining seats for sessions of 60 to 90 minutes, an LED lighting system with mood lighting, a Smart TV, device connections and two USB ports.
Construction is aluminium, with a steel option. The chamber is manufactured in Europe and carries CE marking, ASME PVHO-1, ISO, TÜV NORD and ENAC certification.
Supplied with professional on-site installation, full system testing and calibration, operator training and walkthroughs, and lifetime customer support.
Key Specifications
|
|
| Brand |
Airvida Chambers |
| Model |
Phoenix Multiplace |
| Type |
Hard-shell multiplace hyperbaric chamber, seated |
| Pressure range |
1.00–2.00 ATA, electronically adjustable in 0.01 increments |
| Capacity |
2 persons, expandable to 4 or 6 by modular ring sections |
| Session duration |
60–90 minutes |
| Oxygen delivery |
BIBS mask or hood |
| BIBS flow rate |
40 L/min |
| Internal oxygen limit |
23.5% maximum, with automatic shutoff to air above that level |
| Oxygen concentrators |
2 × 1,200 Lph at 93% ±3% O₂ |
| Air compressors |
2 × 650 LPM |
| Ventilation flow |
125–400 L/min |
| Reserve |
Built-in air and oxygen reserve tanks |
| Filtration |
High-purity oxygen filtration; UVC sterilisation |
| External dimensions |
W 87" × L 87" × H 77" |
| Door |
31" (79 cm) |
| Total system weight |
1,763–2,204 lb |
| Air pump, each |
35" × 18" × 35" |
| Concentrator, each |
35" × 22" × 43" |
| Water cooler |
22" × 11" × 19" |
| Construction |
Aluminium; steel option available |
| Modularity |
Disassembles and reassembles on site; fits standard doorways |
| Monitoring |
CO₂ and O₂ sensors, airflow and safety sensors, automatic ear equaliser |
| Controls |
Internal and external control panels |
| Safety |
2 manual pressure release valves; automatic door sealing; internal and external emergency stops; emergency depressurisation ≈ 0.015 bar/s |
| Communication |
Internal camera, two-way communication, phone access |
| Interior |
Premium leather reclining seats, LED and mood lighting, Smart TV, device inputs, 2 USB ports |
| Data |
Session history data logger |
| Certifications |
CE, ASME PVHO-1, ISO, TÜV NORD, ENAC |
| Origin |
Manufactured in Europe |
| Installation |
Professional on-site installation, full system testing and calibration, operator training |
| Support |
Lifetime customer support |
Features
- Hard-shell multiplace chamber, 1.00–2.00 ATA in 0.01 increments
- BIBS oxygen delivery at 40 L/min — occupants breathe oxygen while the chamber stays on air
- Internal oxygen capped at 23.5% with automatic cutover to air above that threshold
- Expandable from 2 to 4 or 6 persons using modular ring sections
- Disassembles for on-site assembly; fits standard doorways
- Dual 650 LPM air compressors and dual 1,200 Lph oxygen concentrators
- Built-in air and oxygen reserve tanks
- UVC sterilisation and high-purity oxygen filtration
- CO₂ and O₂ sensors, airflow and safety sensors, automatic ear equaliser
- Control panels inside and outside the chamber
- Two manual pressure release valves, automatic door sealing, dual emergency stops
- Emergency depressurisation at approximately 0.015 bar/s
- Internal camera and two-way communication with phone access
- Premium leather reclining seats, LED mood lighting, Smart TV, USB
- Session data logger
- CE, ASME PVHO-1, ISO, TÜV NORD and ENAC certified; manufactured in Europe
- Professional installation, calibration and operator training included
- Lifetime customer support
Required Disclosure
This product is not intended to diagnose, treat, cure or prevent any disease. Information provided by the manufacturer and its partners is educational and does not constitute medical advice.
Hyperbaric oxygen therapy is FDA-cleared only for a specific and limited list of conditions, using chambers and protocols cleared for those uses. Claims beyond those indications are not supported by FDA clearance. Consult a qualified physician before beginning hyperbaric use, particularly with any respiratory, cardiac or ear condition, or during pregnancy.
