InfraCouch Full-Body 4-Wavelength Red Light Therapy Bed
InfraCouch Full-Body 4-Wavelength Red Light Therapy Bed
Couldn't load pickup availability
Share

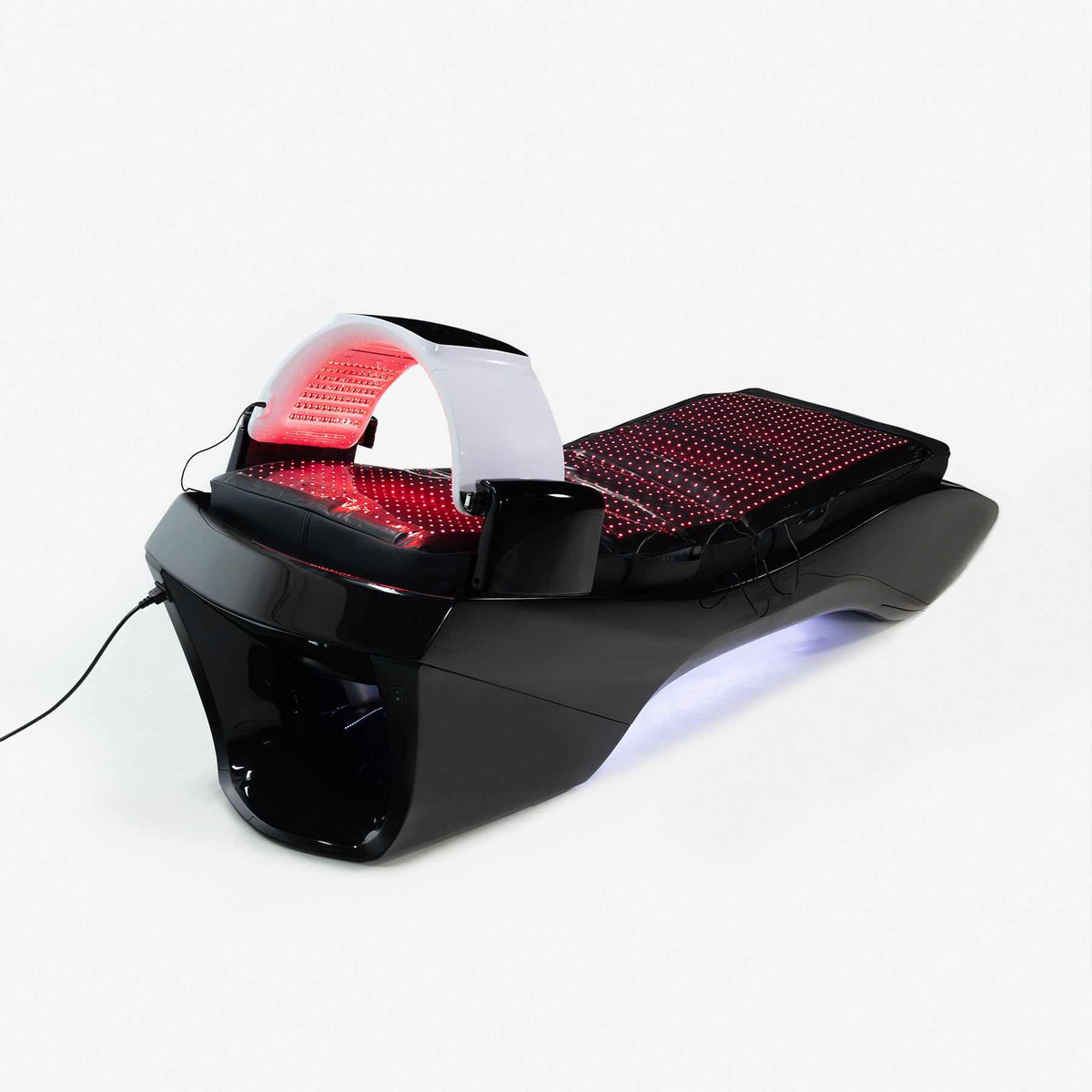

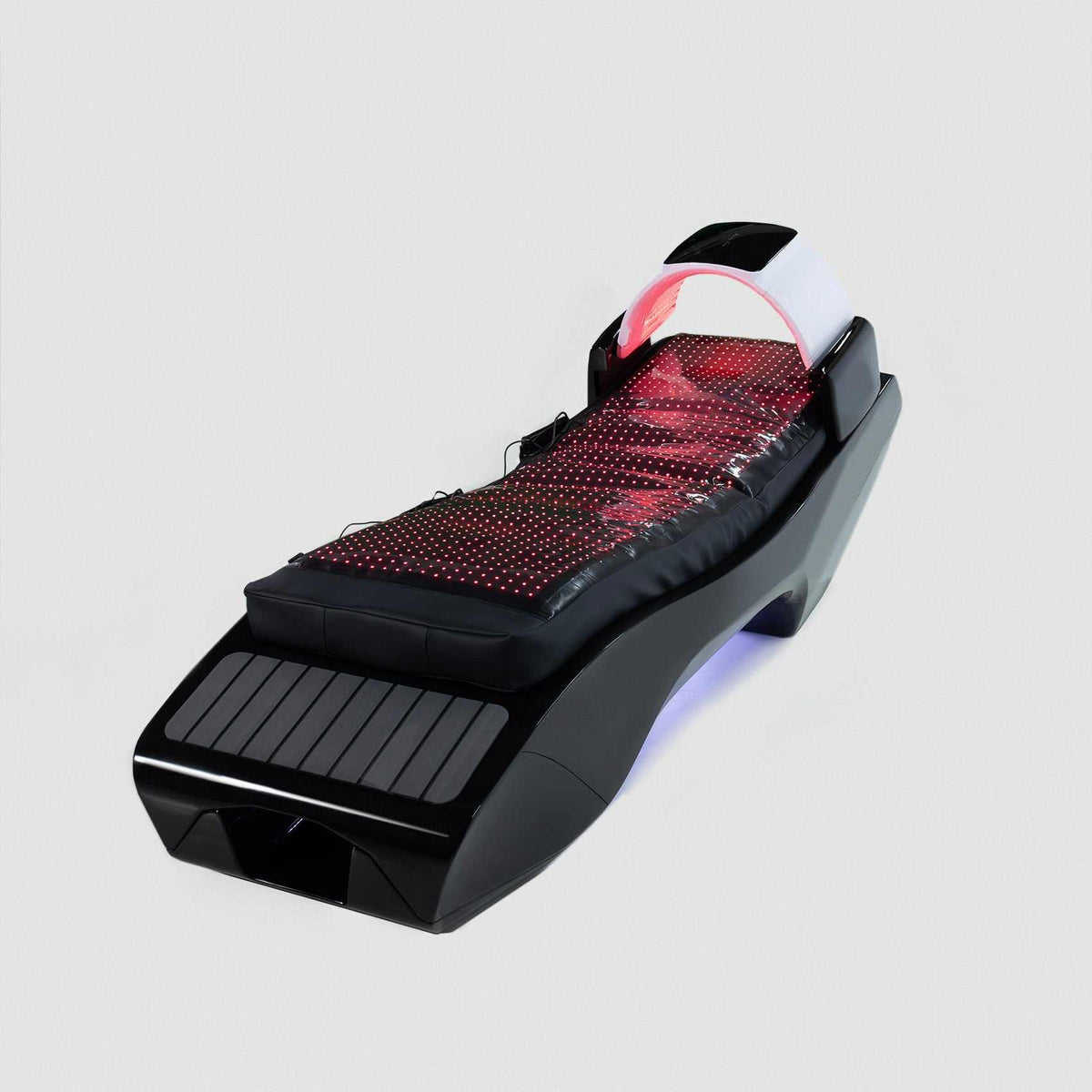

The InfraCouch is a dedicated full-body red light therapy bed, built as a single-purpose light unit rather than a multi-modality couch. A client reclines for a session of 10 to 30 minutes while a 1,152-LED array across a 2000 × 600 mm treatment mattress covers the body in one pass.
Wavelengths and LED construction. The array is specified across 630 nm, 660 nm, 810 nm and 850 nm. Each LED package carries three chips — two at 660 nm and one at 850 nm — across 1,152 LEDs in total.
The optical design is where a light bed is won or lost. The array is fitted with 30° convex beam-angle lenses, narrowing the output cone so light is concentrated at the treatment surface rather than scattered across the room. Pulsed output is available across six automatic levels, for sessions up to 30 minutes.
Power. The couch draws a total connected load of 0.7 kW at 5 A, with the LED array itself rated at 130 W, from a standard 110V/60Hz or 220V/50Hz supply. No dedicated circuit and no electrical work.
An integrated soft vibration system runs through the couch itself.
Vacuactivus positions the InfraCouch as the light-only specialist in their range — where their HaloX capsule combines five technologies, this does one thing with a documented LED specification. It is engineered for continuous commercial use in medical spas, chiropractic clinics, recovery studios, fitness centres and longevity facilities, and built for the duty cycle of a working studio floor rather than occasional single-user sessions.

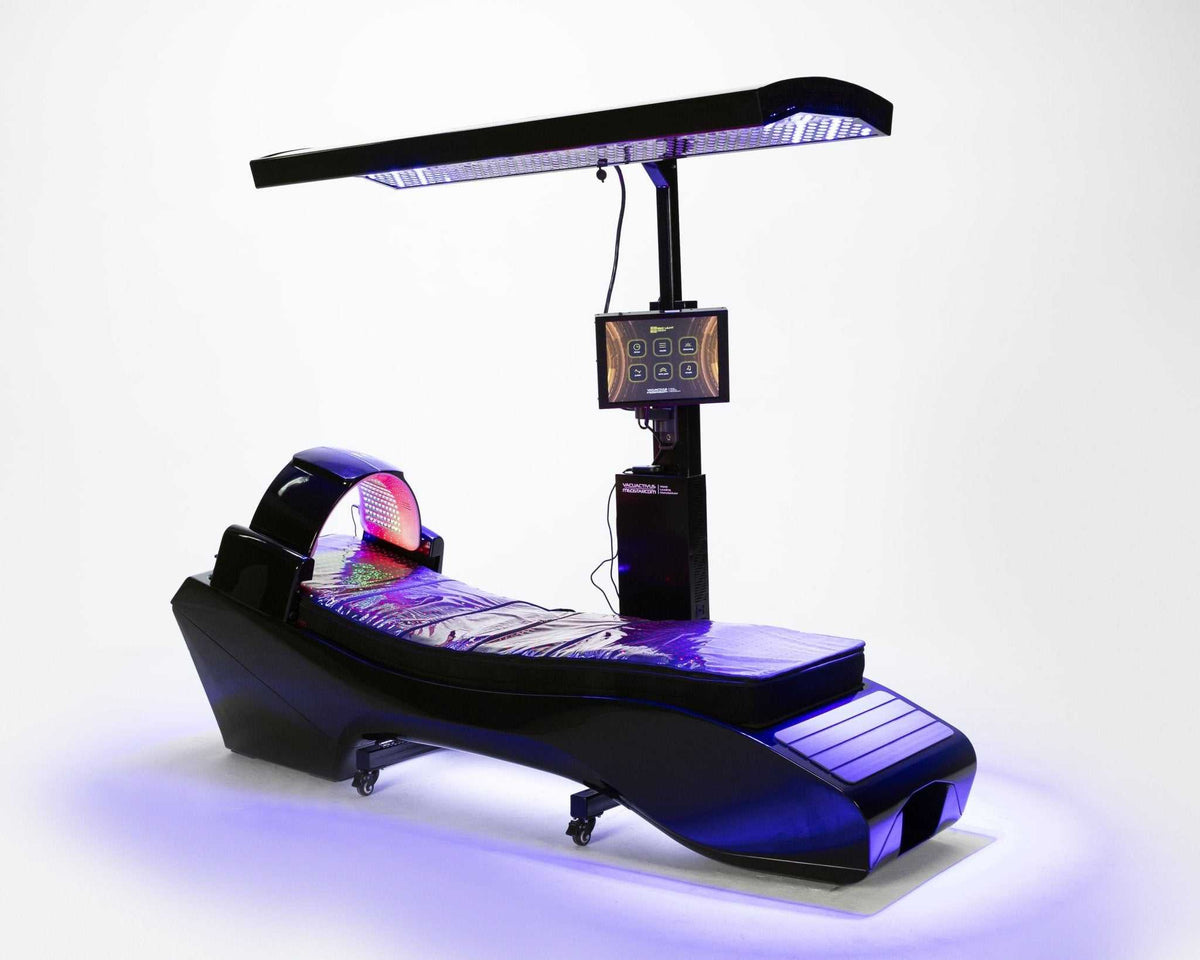

Modules. An LED facial mask is available — 520 × 310 × 280 mm with a cooling fan, 35 W and 264 LEDs, offering red (615–655 nm), orange (590–630 nm), yellow (580–590 nm), green (540–580 nm), cyan (480–490 nm), blue (395–435 nm) and purple (360–400 nm) outputs plus a cyclic mode. Head, scalp and neck massage and eye massage modules are also offered, and a top red light panel is available to add overhead coverage.
The couch measures 2000 × 890 × 1100 mm (79" × 35" × 43") and weighs 80 kg. Built to order.
Key Specifications
| Brand | Cryonick Wellness Technology |
| Model | InfraCouch Red Light |
| Type | Full-body LED red light therapy bed |
| Wavelengths | 630 nm, 660 nm, 810 nm, 850 nm |
| LED array | 1,152 LEDs; three chips per LED — two at 660 nm, one at 850 nm |
| Treatment surface | LED mattress, 2000 × 600 mm |
| Optics | 30° convex beam-angle lenses |
| Pulsed output | Yes — 6 automatic levels |
| Session duration | Up to 30 minutes |
| Additional function | Integrated soft vibration |
| Total connected load | 0.7 kW at 5 A |
| LED array power consumption | 130 W |
| Power supply | 110V/60Hz or 220V/50Hz |
| Length | 2000 mm (79") |
| Width | 890 mm (35") |
| Height | 1100 mm (43") |
| Weight | 80 kg |
| LED facial mask | 520 × 310 × 280 mm, 35 W, 264 LEDs, with cooling fan |
| Facial mask outputs | Red 615–655 nm · Orange 590–630 nm · Yellow 580–590 nm · Green 540–580 nm · Cyan 480–490 nm · Blue 395–435 nm · Purple 360–400 nm · cyclic |
| Available modules | Top red light panel; head, scalp and neck massage; eye massage |
| Included | Couch unit, integrated red light system, soft vibration system, control interface, power components, documentation |
| Availability | Built to order |
| Warranty | 1 year on body, motors and parts; extension to 3 years available if elected within 10 days of purchase; unlimited after-warranty service option |
Features
- 1,152-LED full-body array, three chips per LED
- Wavelengths specified across 630 nm, 660 nm, 810 nm and 850 nm
- 2000 × 600 mm LED treatment mattress — full-body coverage in a single reclined session
- 30° convex beam-angle lenses concentrating output at the treatment surface
- Pulsed output with six automatic levels
- Sessions up to 30 minutes
- Integrated soft vibration system
- 0.7 kW connected load on a standard outlet — no dedicated circuit
- Single-purpose light bed — no shared capacity with other modalities
- Built for continuous commercial duty cycles
- LED facial mask available with seven colour outputs and cyclic mode
- Head, scalp, neck and eye massage modules available
- Top red light panel available for overhead coverage
- 1-year warranty, extendable to 3 years
Before You Buy
The extended warranty has a 10-day window. Coverage extends to three years only if elected within 10 days of purchase. The standard term is one year. Unlike this manufacturer's fitness range, installation and training are not stated as included — confirm whether they are offered.
Plan delivery and siting. 2000 mm long and 80 kg, built to order — confirm the lead time and check the access route before scheduling.
Establish eye protection. A 1,152-LED array is a significant light source. Confirm with the manufacturer whether protective eyewear is supplied and required, and build it into your session protocol.
Agree a client screening protocol covering photosensitivity, photosensitising medication, pregnancy and any condition affecting light exposure, before the first session.
Required Disclosure
This equipment is for wellness and recovery purposes only. It is not a medical device, is not FDA approved for medical use, and is not intended to diagnose, treat, cure or prevent any disease.
Clients taking photosensitising medication, with photosensitivity disorders, with any eye condition, or who are pregnant should consult a qualified healthcare professional before use.
Availability restriction: this manufacturer's products are not available for sale to Canada.
