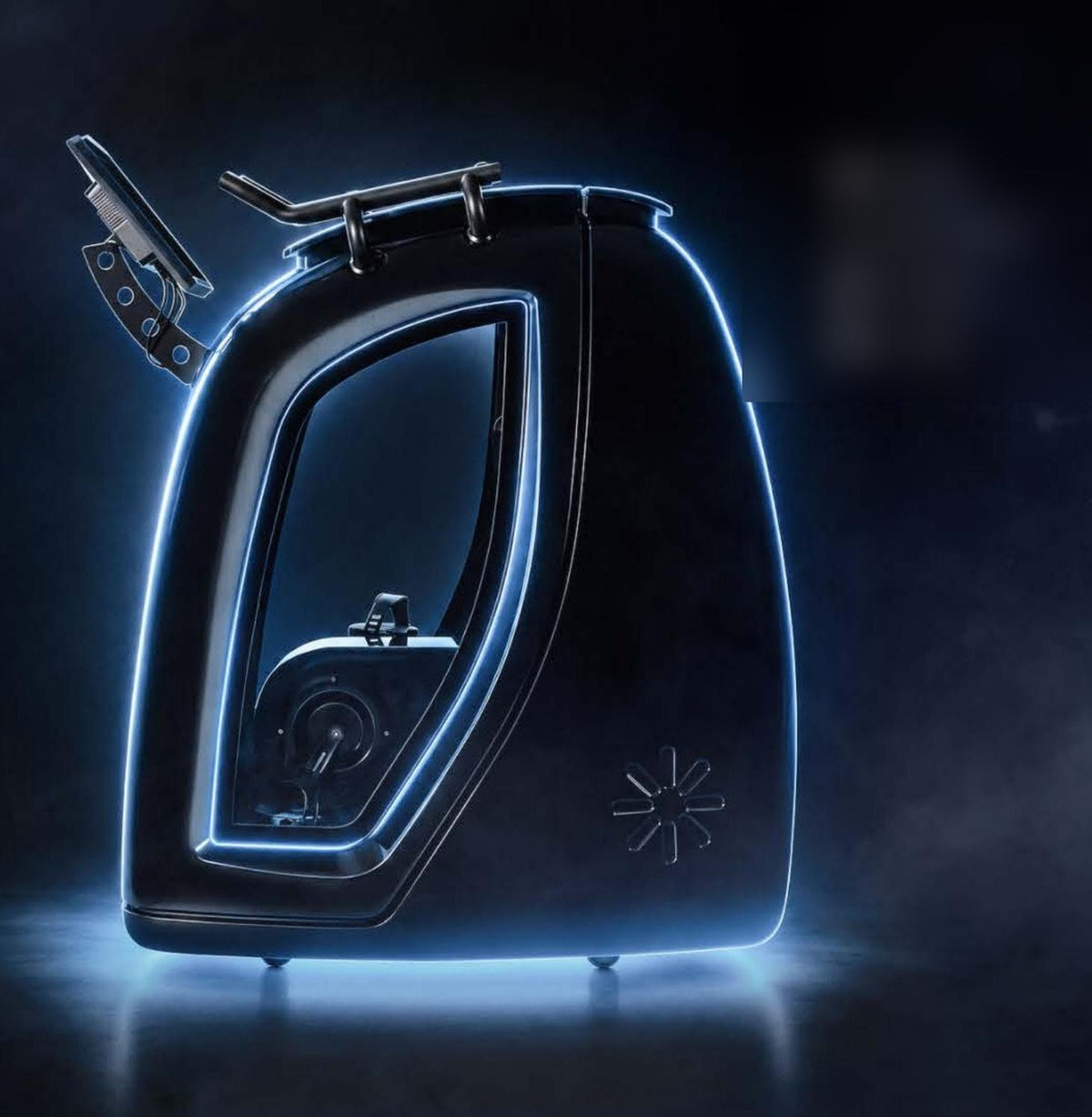

InfraStar Sole — Infrared Vacuum Training Bike

Overview

The InfraStar Sole is a recumbent lower-body training system that combines vacuum (negative pressure) resistance with infrared heating in an enclosed lower-body capsule. The user pedals in a recumbent position while the lower body — thighs, hips and abdomen — is sealed inside the capsule, with the vacuum pump drawing the capsule down to 0–30 mBar and infrared heat applied across +20 to +50 °C (+68 to +122 °F).

The recumbent format is the practical difference from an upright vacuum bike: the rider is supported through the back and hips rather than loading the wrists and lower back, which changes who can use it and for how long.

A neoprene skirt forms the seal at the waist; five skirts are supplied with the configurations offered, in a choice of colour combinations.

Environment and entertainment. The capsule carries LED lighting, a collagen lamp and aromatherapy. A large touchscreen — 23" or 32" depending on configuration — runs over Wi-Fi with streaming applications including Netflix, YouTube, Spotify and Radio Garden. Bluetooth headphone pairing is supported, and the machine can be controlled from an iPhone or Android app via QR code.

Configurations. The Grand provides vacuum and infrared with the collagen lamp, aromatherapy and the large-screen media system. The CryoNick adds a cryo program running −20 to −30 °C (−4 to −22 °F), so hot and cold can be alternated within a single session rather than requiring a second machine.

The machine measures 1361 mm (53") high by 1241 mm (49") wide by 689 mm (27") long and runs from a standard 230V/50Hz or 120V/60Hz supply at 2 kW — no three-phase service and no electrical work.

US deliveries include installation and staff training.

Key Specifications

Features

• Vacuum (negative pressure) resistance, 0–30 mBar, around the enclosed lower body
• Infrared heating across +20 to +50 °C
• Recumbent riding position — supported through the back and hips
• CryoNick configuration adds a −20 to −30 °C cryo program for hot–cold alternation in one session
• Large 23" or 32" touchscreen with Wi-Fi and streaming apps
• Bluetooth headphone pairing and iPhone/Android app control
• LED lighting, collagen lamp and aromatherapy in the capsule
• Five neoprene skirts supplied, ten colour combinations
• Optional EMS belts for forearms and waist
• Runs from a standard outlet at 2 kW — no three-phase service
• Installation and staff training included on US deliveries

Before You Buy

Specify the configuration and voltage at order. Grand and CryoNick differ in whether the cryo program is fitted, and the machine is built for either 230V/50Hz or 120V/60Hz.

Confirm the warranty term on the quote. The standard term is one year with an optional extension; confirm the extension window before you order, as this manufacturer applies a short deadline to extended coverage on other equipment.

Confirm screen size and options in writing — display size varies by configuration, and EMS belts are a separate line item.

Plan the room. 1361 mm high and 1241 mm wide, plus clearance for the rider to get in and out of the capsule and for servicing access.

Operator training matters. The capsule combines applied heat, applied cold on the CryoNick, and a sealed vacuum enclosure. Installation and staff training are included on US deliveries — confirm the scope and who delivers it.

Screen clients as you would for any heat, cold or pressure modality, and confirm the intake protocol with the manufacturer before the first session.

Required Disclosure

This equipment is for fitness and wellness purposes only. It is not a medical device, is not FDA approved for medical use, and is not intended to diagnose, treat, cure or prevent any disease.

Availability restriction: this manufacturer's products are not available for sale to Canada.
