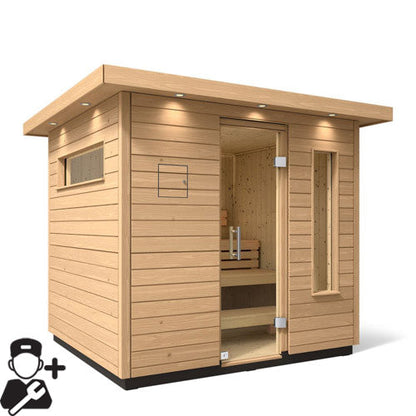

KOHLER C2 Traditional Outdoor Sauna, Douglas Fir — 3, 5 or 6 Person

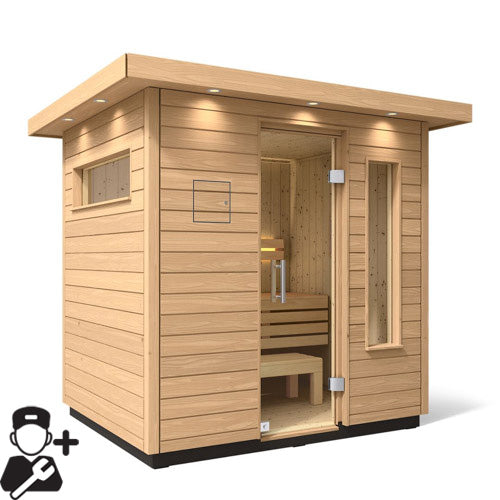

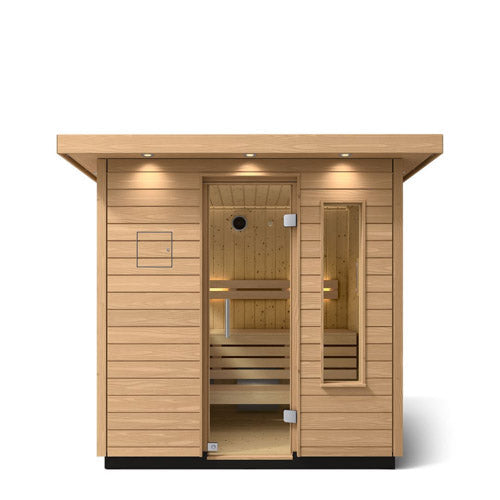

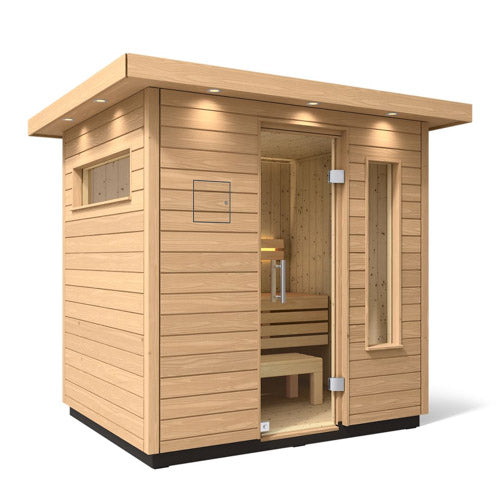

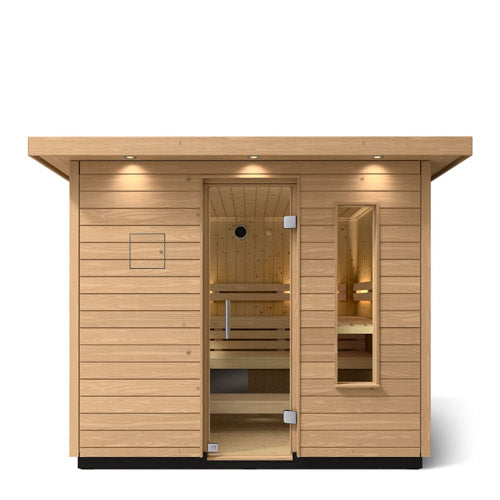

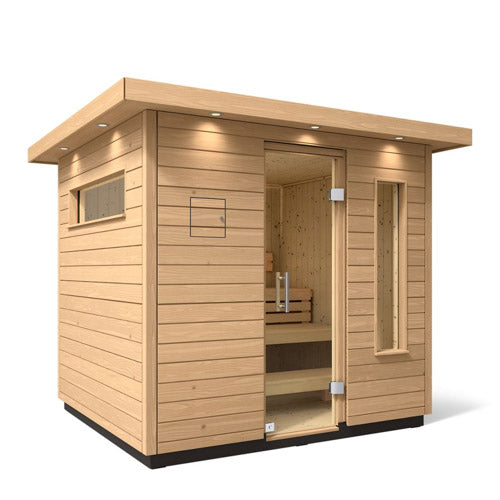

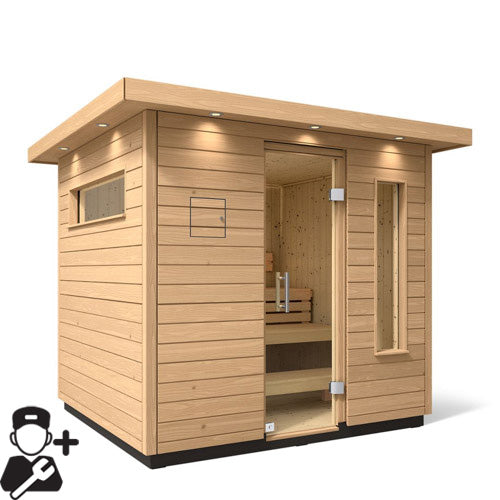

The C2 is Kohler's outdoor sauna: a permanent freestanding structure built around a freestanding FERO 9 kW electric heater and natural stones, so water ladled over the stones releases löyly — the burst of soft steam that separates a real Finnish sauna from a cabinet that only radiates dry heat. It comes in three-, five- and six-person cabins, all clad in Douglas fir, all with the floor included.

What makes an outdoor sauna different from an indoor one is everything wrapped around the hot room, and this is where the C2 spends its engineering. The roof is triple-insulated — two layers of mineral wool with an air gap between them to stop heat loss, finished with a waterproof EPDM membrane, the same material used on commercial flat roofs. The walls carry 2-1/8" (54 mm) of mineral wool between a Scandinavian spruce interior and the Douglas fir exterior. Windows are double-pane insulated units rather than single glass. Roof eaves overhang the walls by roughly 8" on every side, shading the cladding and keeping rain off it. Together those are the details that decide whether an outdoor sauna holds temperature in February and whether its exterior still looks right in year ten.

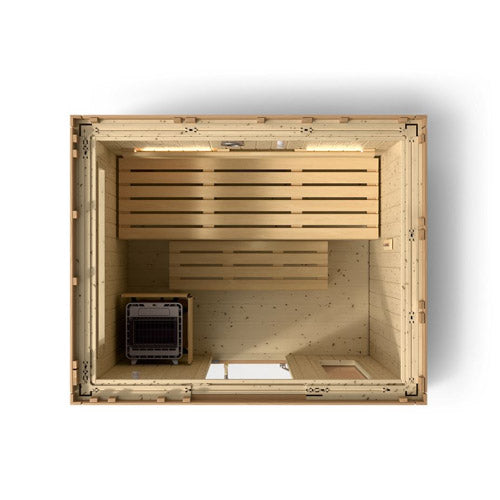

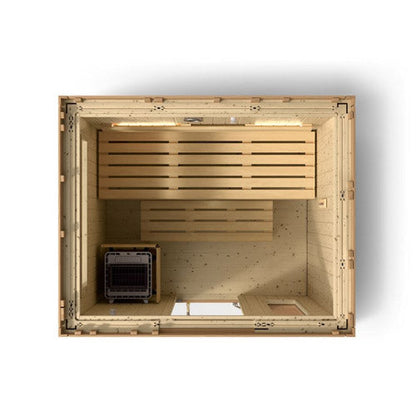

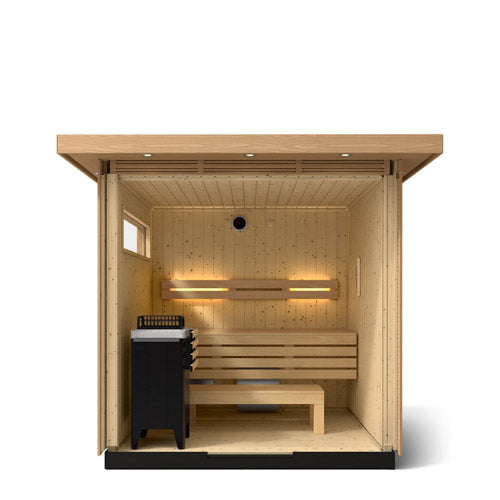

Inside, the cabin is lined in Scandinavian spruce with a 22-7/8" (580 mm) deep solid obeche bench, matching backrest, headrest and stool. Obeche is the traditional choice for contact surfaces because it conducts heat poorly and stays comfortable to sit on at full temperature. The FERO heater stands free on the floor behind an obeche railing. A wall-mounted thermometer and a beech wood 20-minute hourglass sand timer sit inside — analog instruments that need no power and don't fail in the heat.

Climate is held by a dual thermostat arrangement and Aerotherm ventilation, which maintains air exchange inside the cabin during a session. The digital control panel mounts externally on the front of the unit and handles temperature, time and backrest lighting; its cover locks, both to keep weather out and to prevent the sauna being switched on by anyone who shouldn't. The front door locks as well when the sauna isn't in use — worth having on a structure that sits unattended in a garden.

The entry door is 5/16" (8 mm) tempered glass on matte aluminum hinges with a rubber seal, with a 10-5/8" (270 mm) beech handle inside that stays cool to the touch and a stainless steel handle outside. Interior lighting is indirect 2700K warm white behind the backrest; a separate run of exterior lighting wraps the cabin. Walls, floor and roof are joined tongue-and-groove.

Certified to UL 875 and CSA C22.2 No. 164. Installed freestanding only.

Included: complete sauna cabin with heater and stones, digital control panel, benches, backrest, backrest lighting, headrest, stool, thermometer, sand timer and installation hardware.

Specifications by size — Douglas Fir

Common to all sizes: one dedicated circuit with Class A GFCI (an RCD outside North America) · 22-7/8" (580 mm) obeche bench, backrest, headrest and stool · 2-1/8" (54 mm) mineral wool wall insulation · triple-insulated roof, two mineral wool layers plus air gap, waterproof EPDM membrane · double-pane insulated windows · 5/16" (8 mm) tempered glass door with rubber seal · locking front door · locking control panel cover · 10-5/8" (270 mm) beech interior handle, stainless steel exterior handle · 2700K warm white indirect interior lighting plus exterior perimeter lighting · Aerotherm ventilation · dual thermostatic control · tongue-and-groove walls, floor and roof · Douglas fir, Scandinavian spruce, obeche and beech construction · matte aluminum door hinges · UL 875 and CSA C22.2 No. 164 · freestanding installation only.

Site preparation — read before ordering

• A qualified structural engineer or the local authority must verify structural integrity, static loads, local code compliance and load-bearing capacity including snow and wind loads. Kohler states this as a requirement, not a suggestion.
• The C2 bears on four posts. Minimum loading per post is 400.9 lbs/ft² (3-person), 572 lbs/ft² (5-person) or 765.5 lbs/ft² (6-person). Maximum static load 57.35 lb/ft².
• Electrical: a NEMA 14-50R receptacle and appropriate supply must be installed at the sauna site before delivery, on a dedicated Class A GFCI circuit at 220–240 V, 50 A.
• No power cable is supplied. The sauna ships with a weatherproof plug box containing a NEMA SS2-50P male plug. A certified electrician must source a lockable extension cord of the right length, NEMA 14-50P at one end and NEMA SS2-50R at the other.
• The exhaust vent is on the rear of the cabin — keep that area unobstructed.
• Deliver to a dry, level location with room to unpack; establish a clear perimeter for delivery and assembly.
• Freestanding installation only — the C2 is not an alcove product.

Safety and care

Use only KOHLER aromatic extracts, approximately 10 drops per liter (0.26 gal) of water. Do not operate where aerosol products are in use or where oxygen is being administered. Use a towel or mat on the bench. The front door lock is for securing the sauna when it is not in use — it must not be locked from outside while anyone is inside.

⚠ WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood

Warranty

Covered by the KOHLER Sauna Limited Warranty: five years on the sauna against defects in material and workmanship under normal residential use, from date of purchase or delivery, for the original purchaser, in the United States and Canada. Accessories carry a one-year limited warranty. The warranty is void if the product is installed in a commercial application. Heater stones and electrician costs are not covered. Original sales receipt required.

Accessories

Aromatic extracts: 39814-A4 Recharge · 39814-A1 Sleep · 39814-A2 Breathe · 39814-A6 Relax

No floor or roof kits apply — the C2 ships with its floor, and the roof is integral.
