The New York Hot Tub

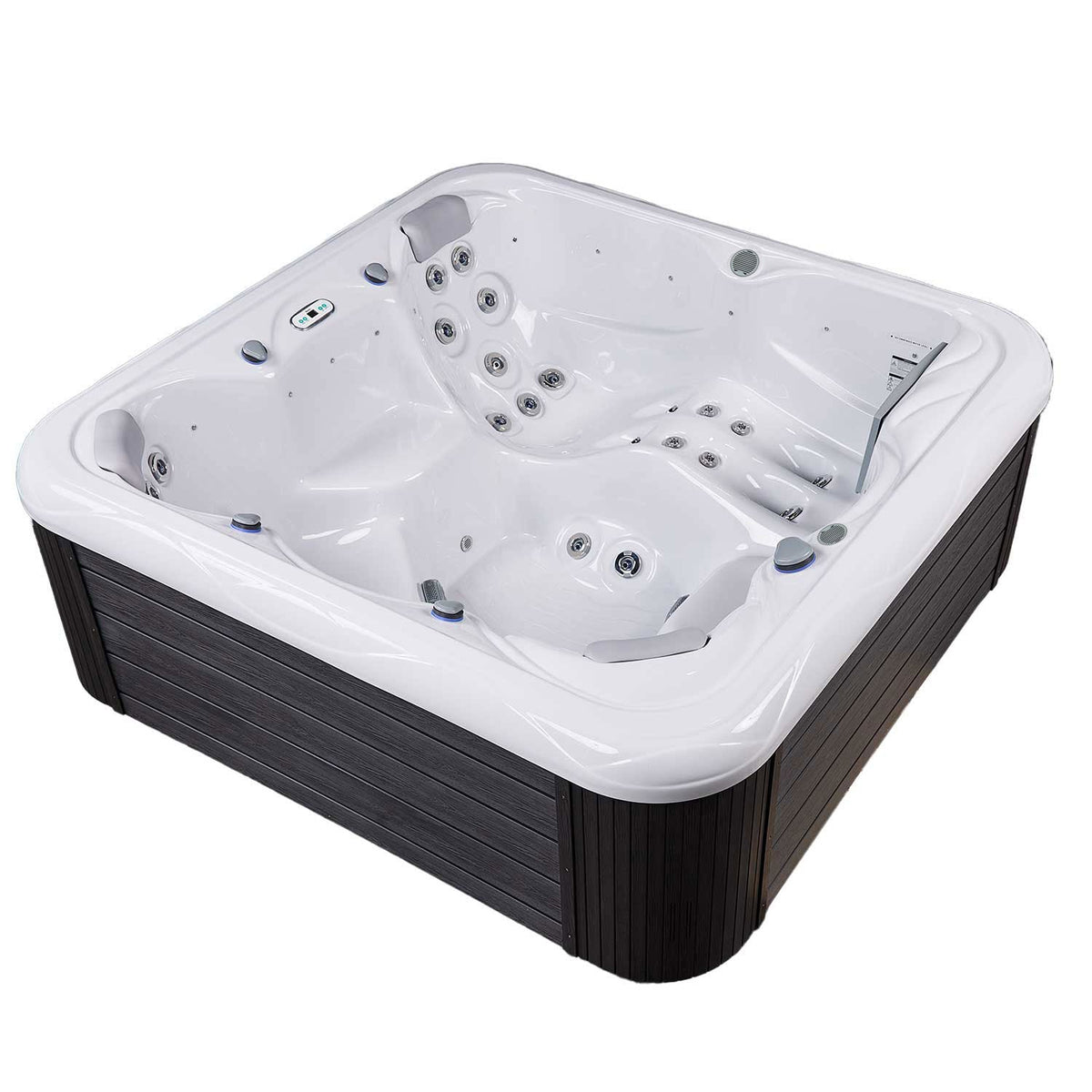

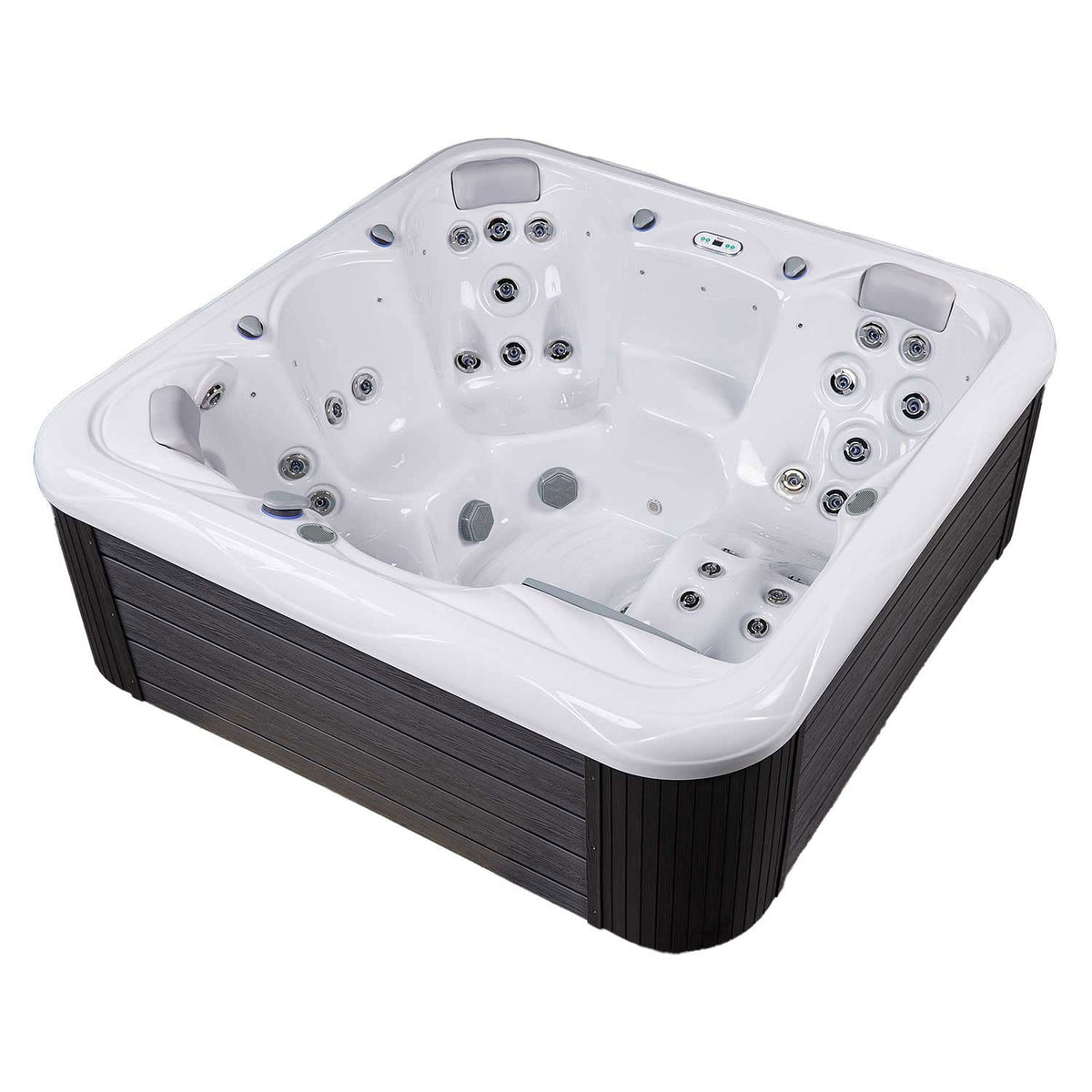

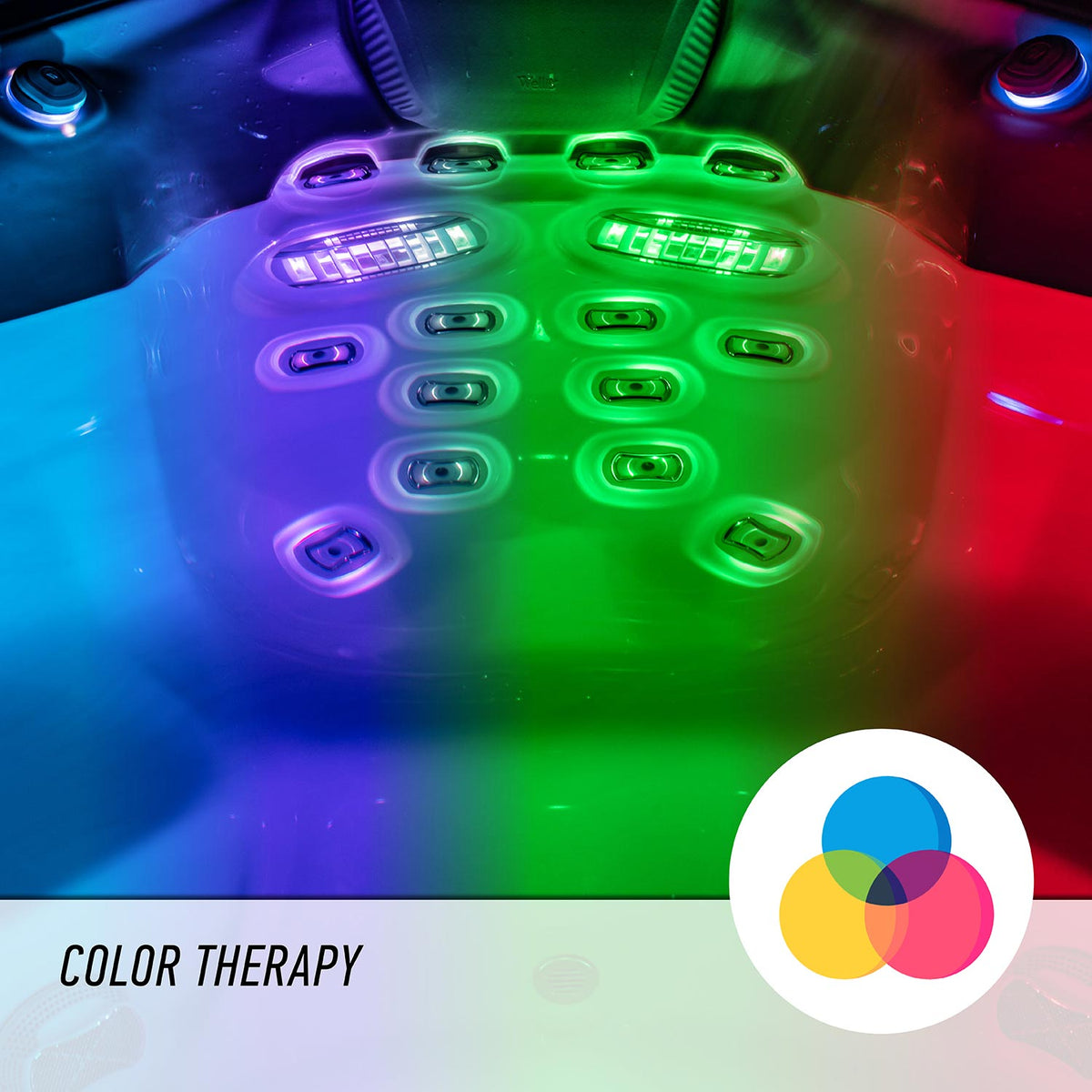

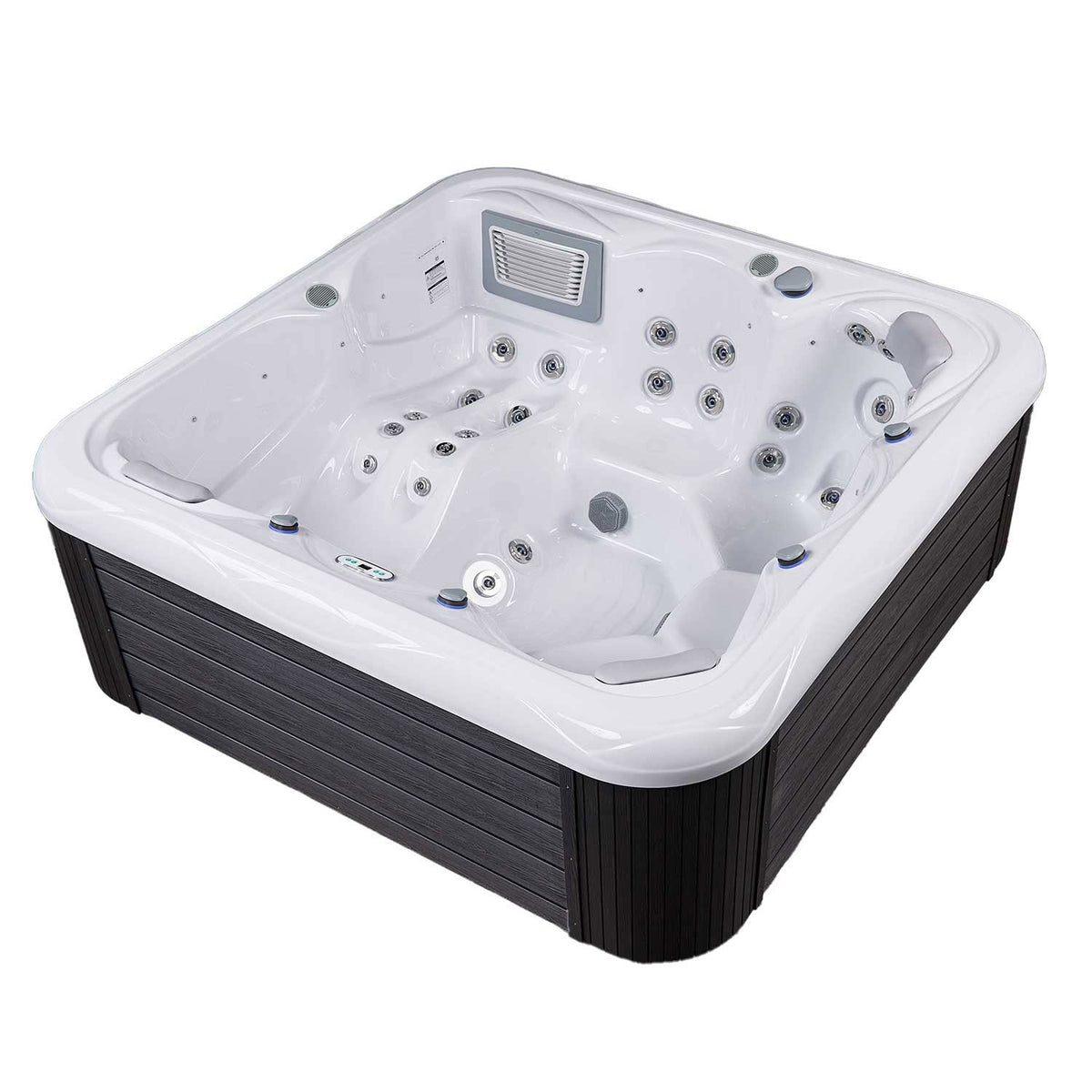

A six-person outdoor spa with five bucket seats and one reclining lounge, on an 85-inch square footprint that fits most patios and deck spaces. 49 jets are distributed across the six positions, with each seat configured differently, and perimeter waterline lighting runs around the shell so the whole waterline glows after dark rather than a single spot light.
Please note: this spa is hard-wired, not plug-in. It requires a dedicated 50 A / 240 V circuit, 6 AWG copper four-wire including ground, installed by a licensed electrician with a GFCI disconnect. Most jurisdictions require a permit and inspection. Budget the electrical work alongside the spa.

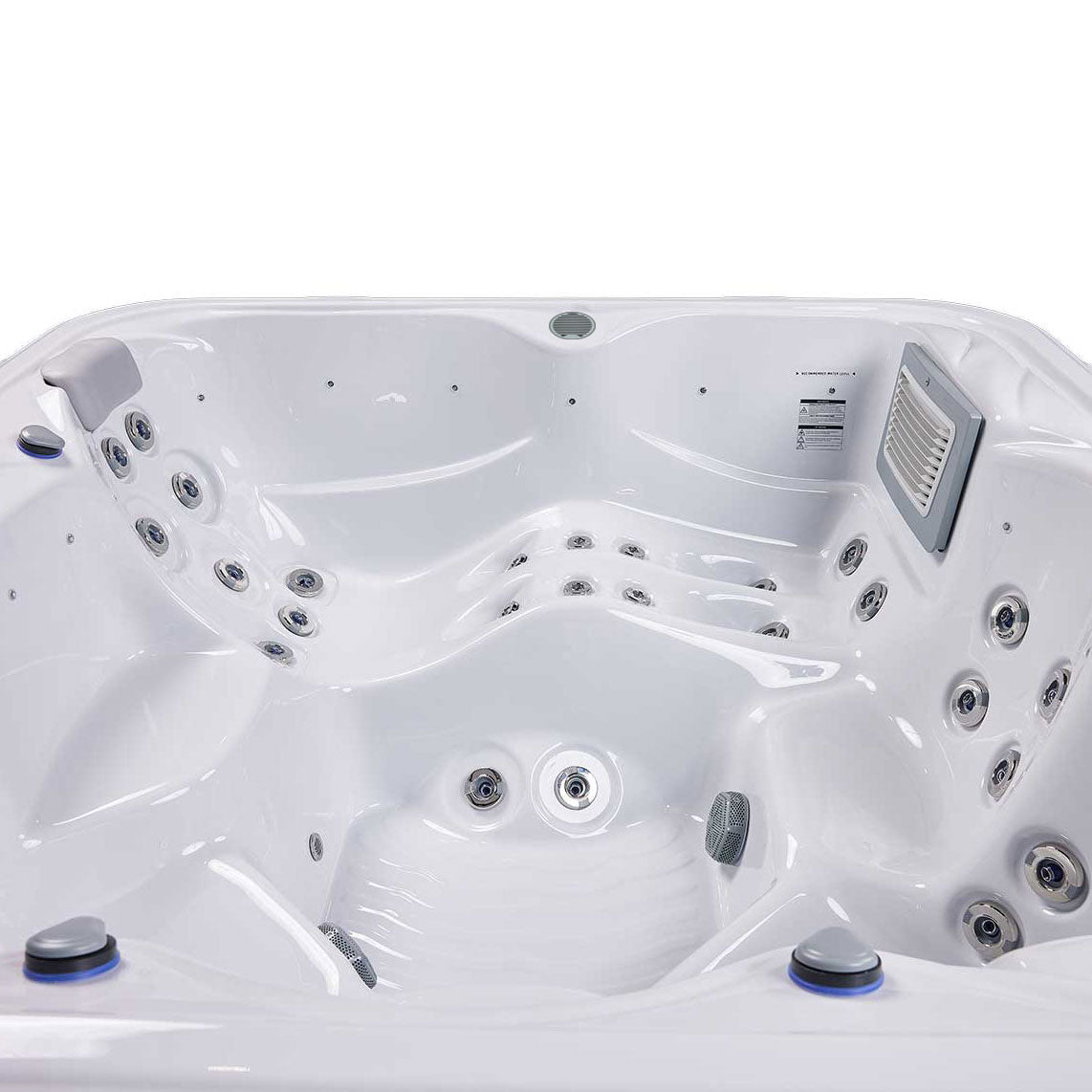

Your spa now comes with an integrated premium sound system — simply connect your smartphone and enjoy your favorite playlist as you sink into total relaxation.

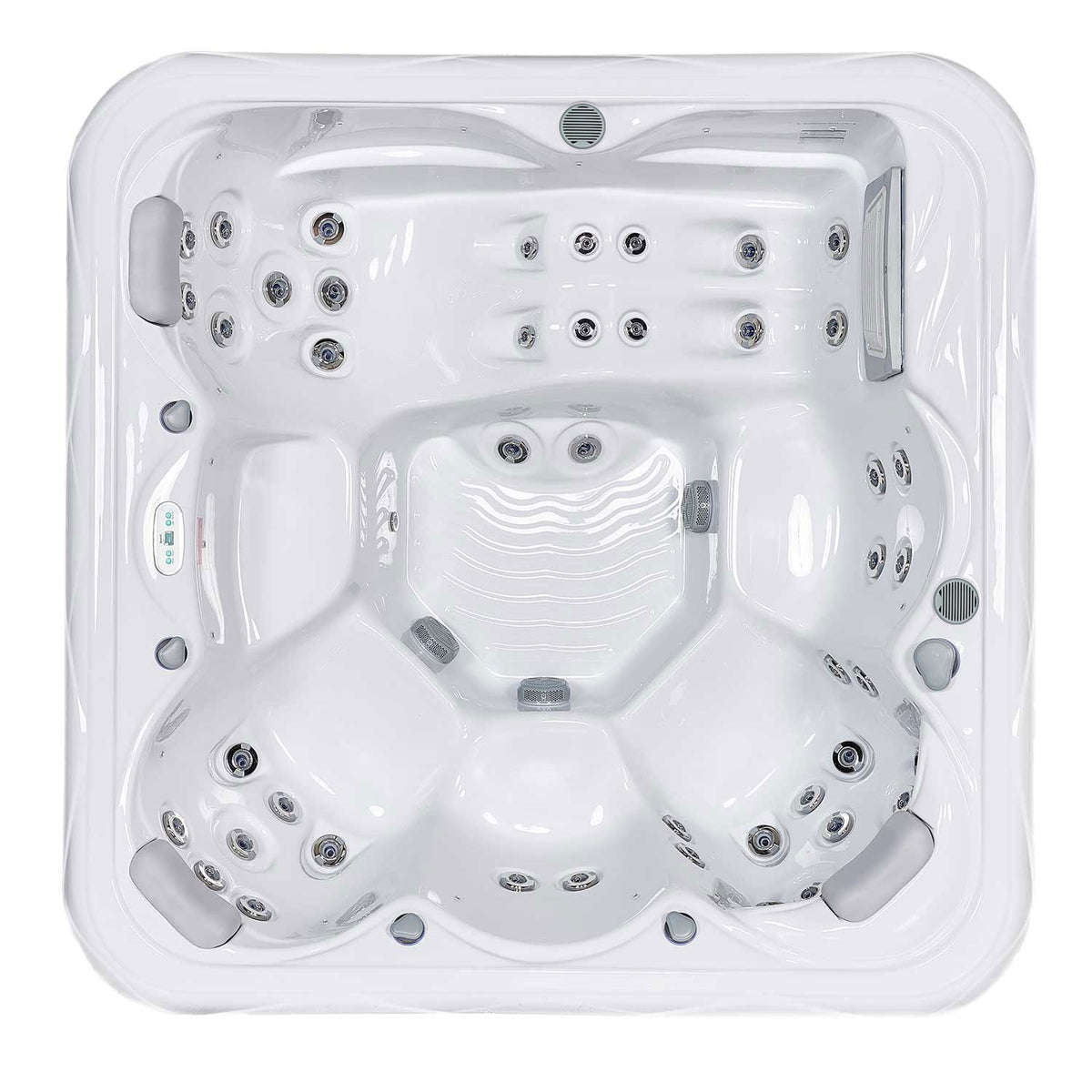

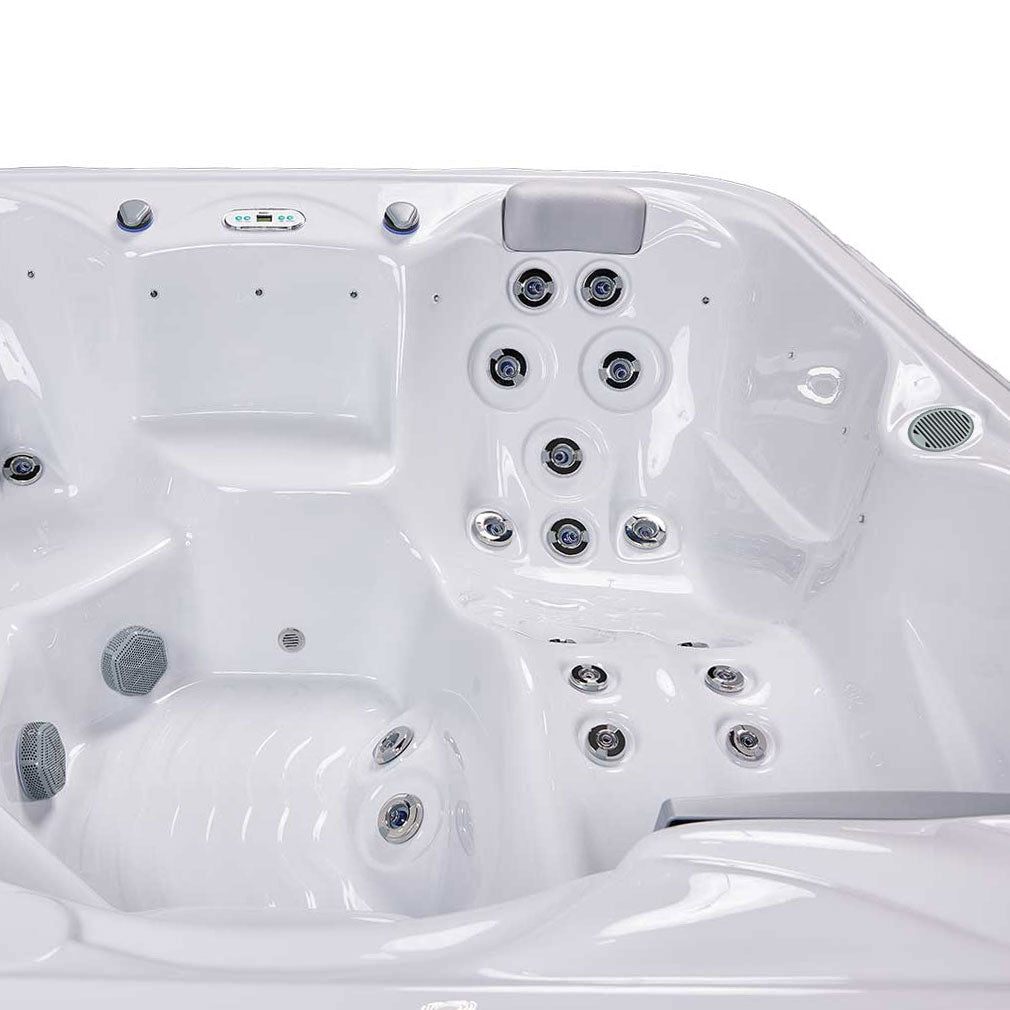

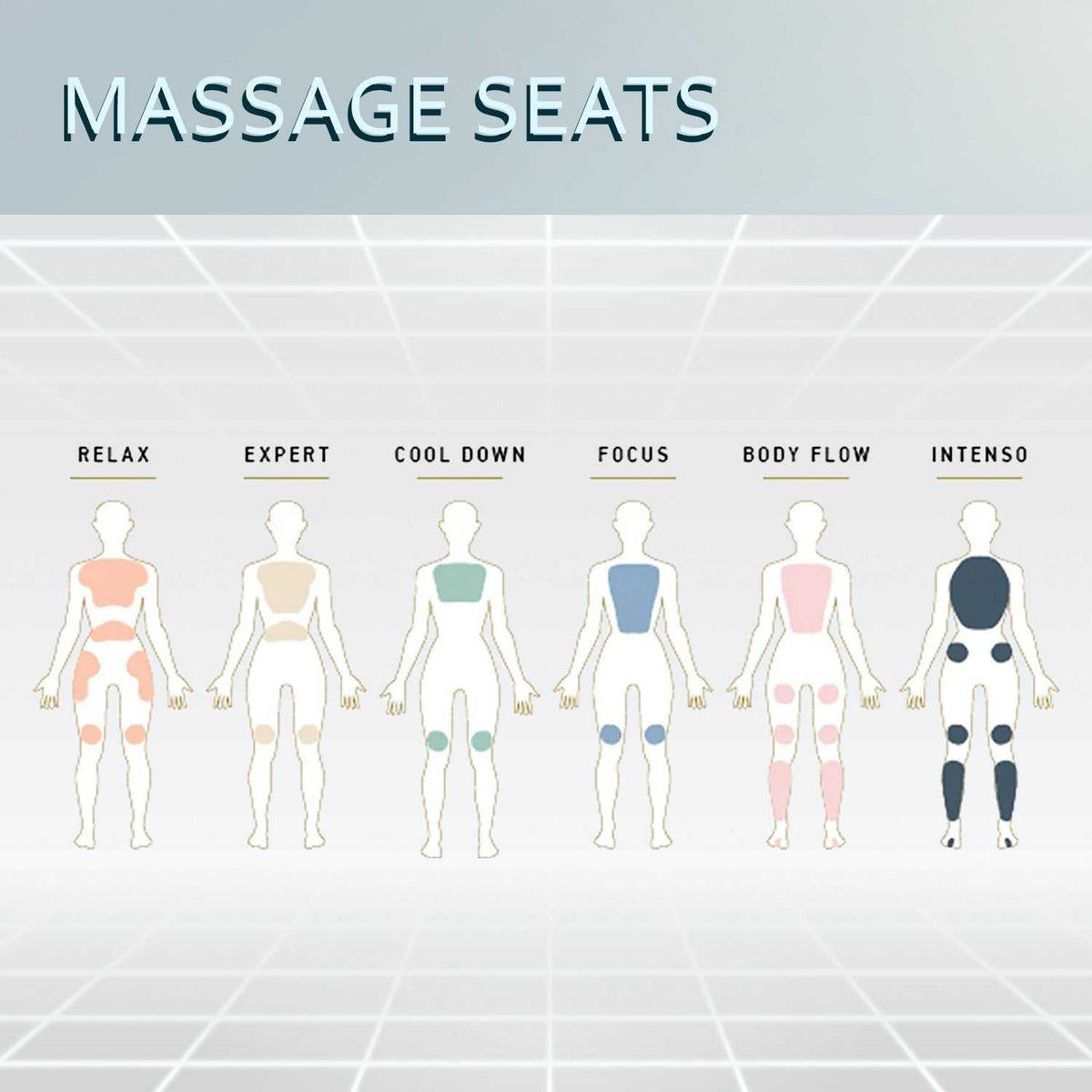

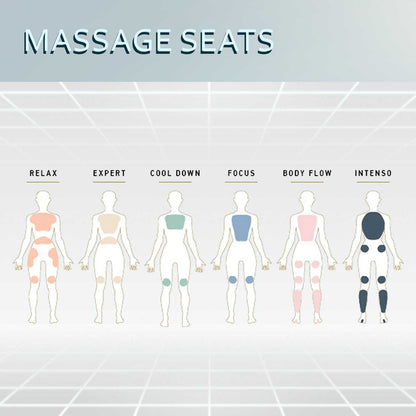

Six seats, six different layouts
-
mySEAT™ lounge — a contoured reclining seat shaped to suit a range of body sizes and heights, so a tall and a short bather are each positioned properly.
-
Step seat — a raised seat that doubles as the entry step into the spa.
-
Relax — jets across the shoulders and down the length of the back, with further coverage at the hips and knees.
-
Focus — jets running the length of the back with flow directed at the hips and thighs, in a fixed configuration.
-
Cool Down — a raised seat at the edge with lighter jet coverage along the back, for sitting up out of the water between sessions.
-
Intenso — the most intensive of the layouts fitted here, with concentrated jet coverage across the back and legs.

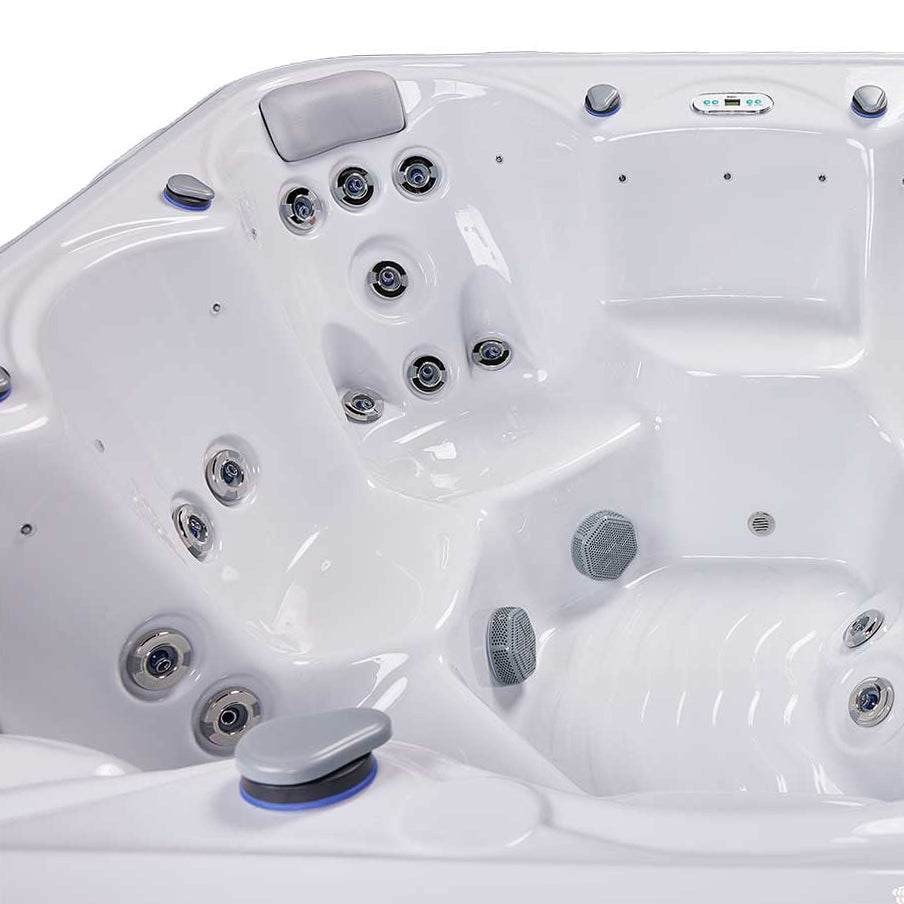

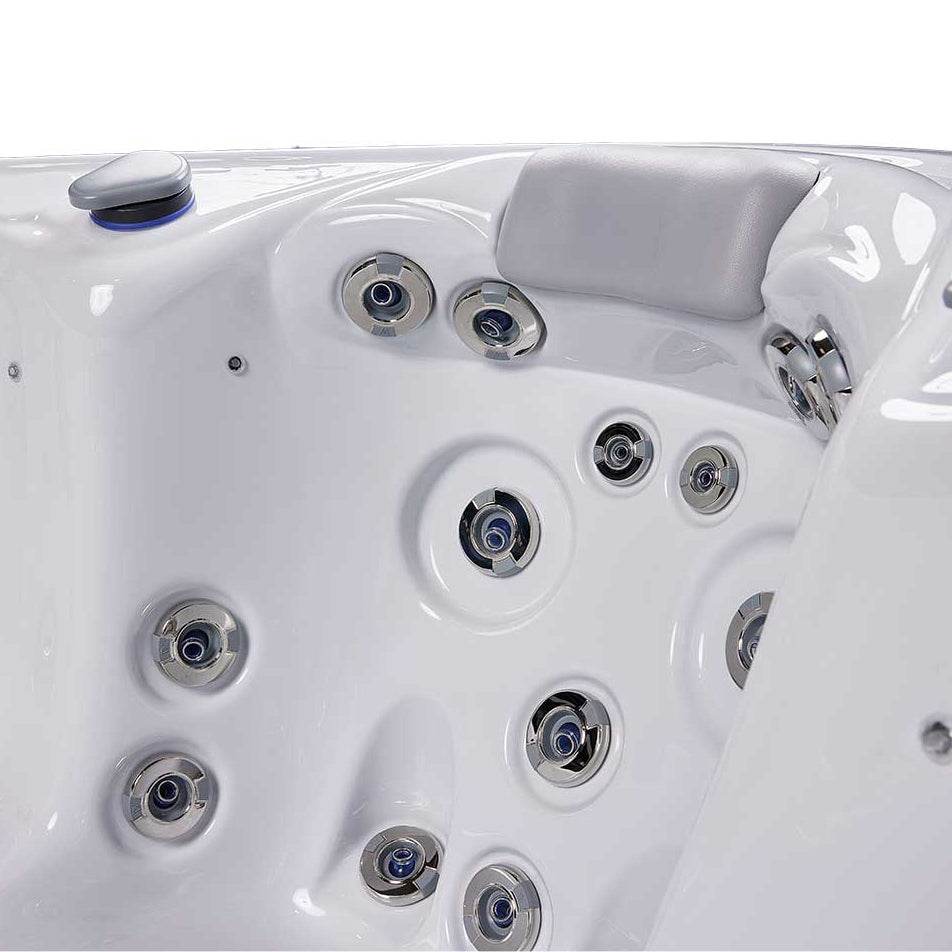

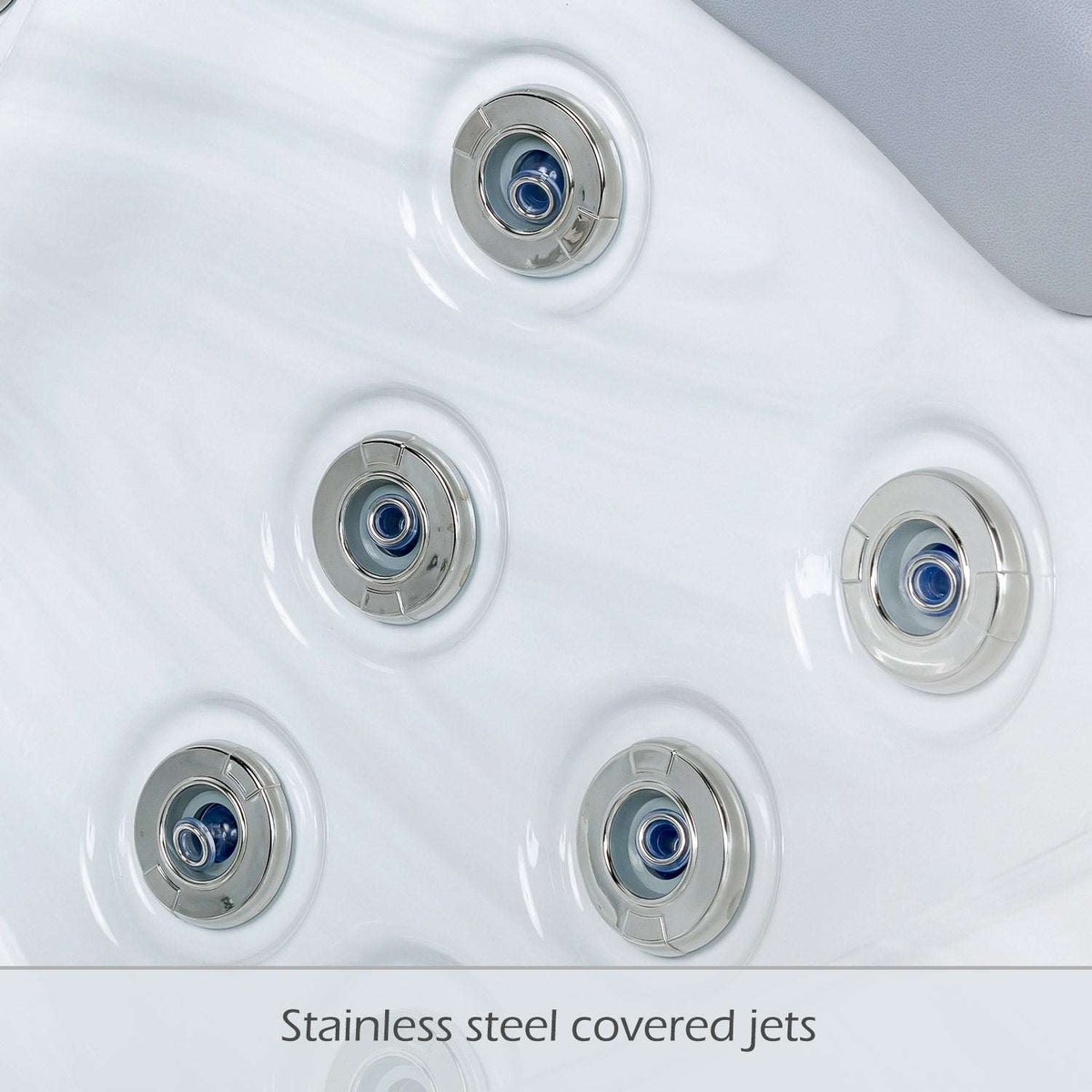

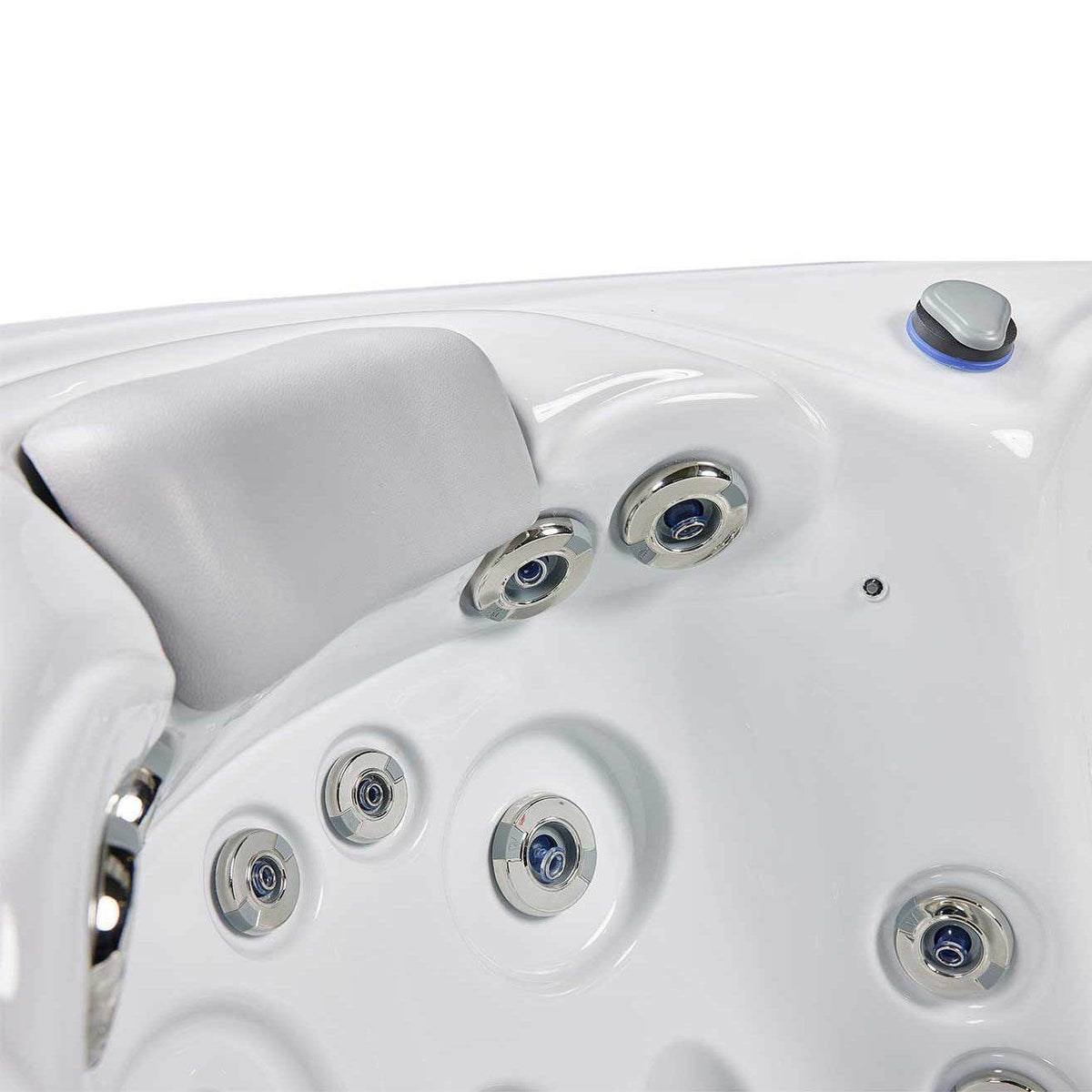

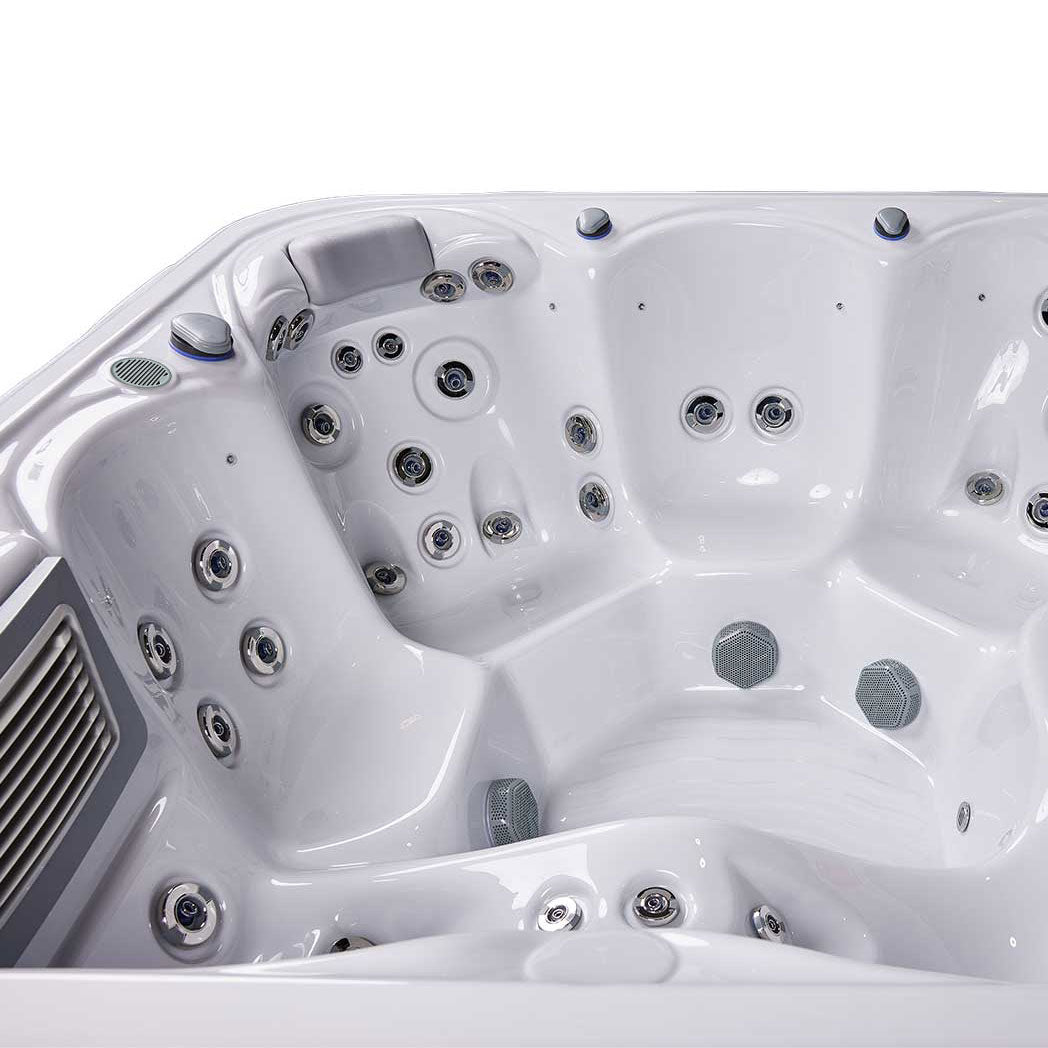

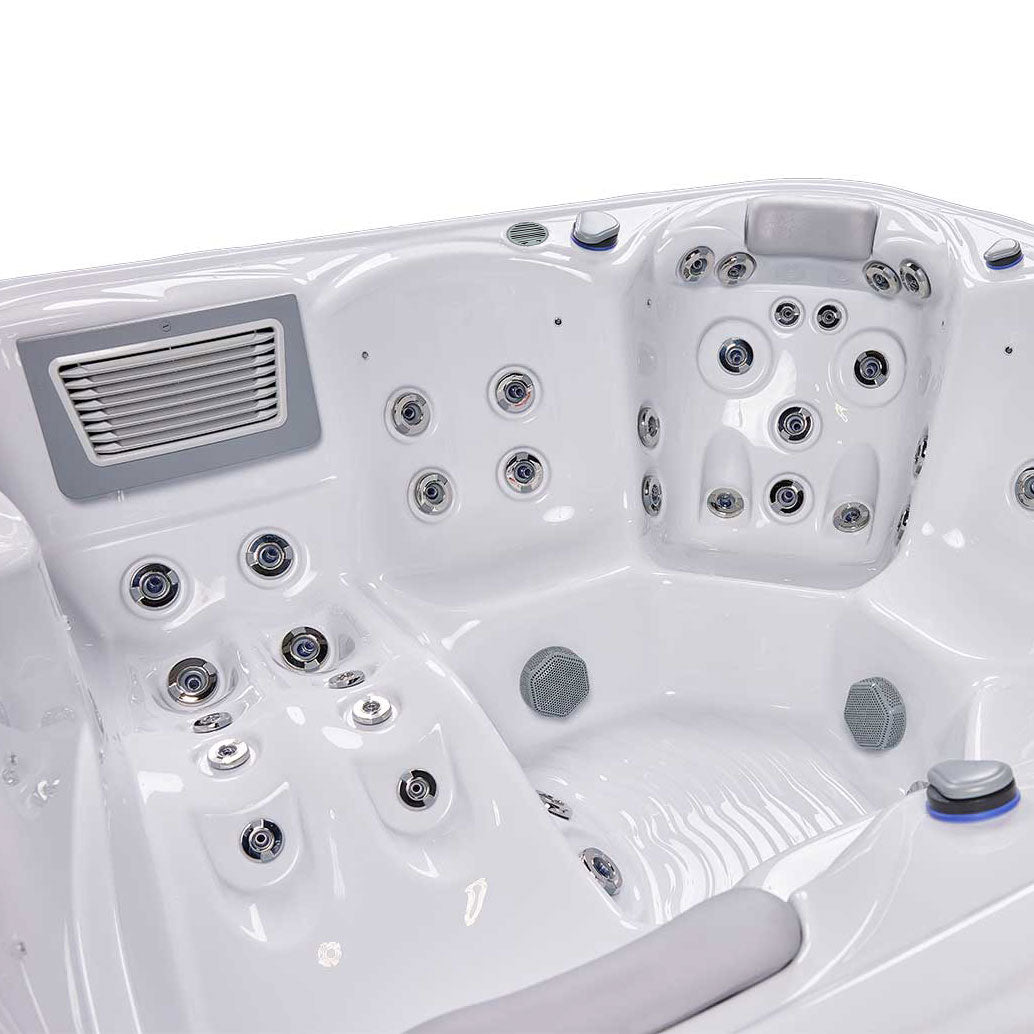

Neck and shoulder jets are positioned in each seat, and myHIP™ jets direct flow at the waist and hip area. Three headrests are fitted.
Equipment

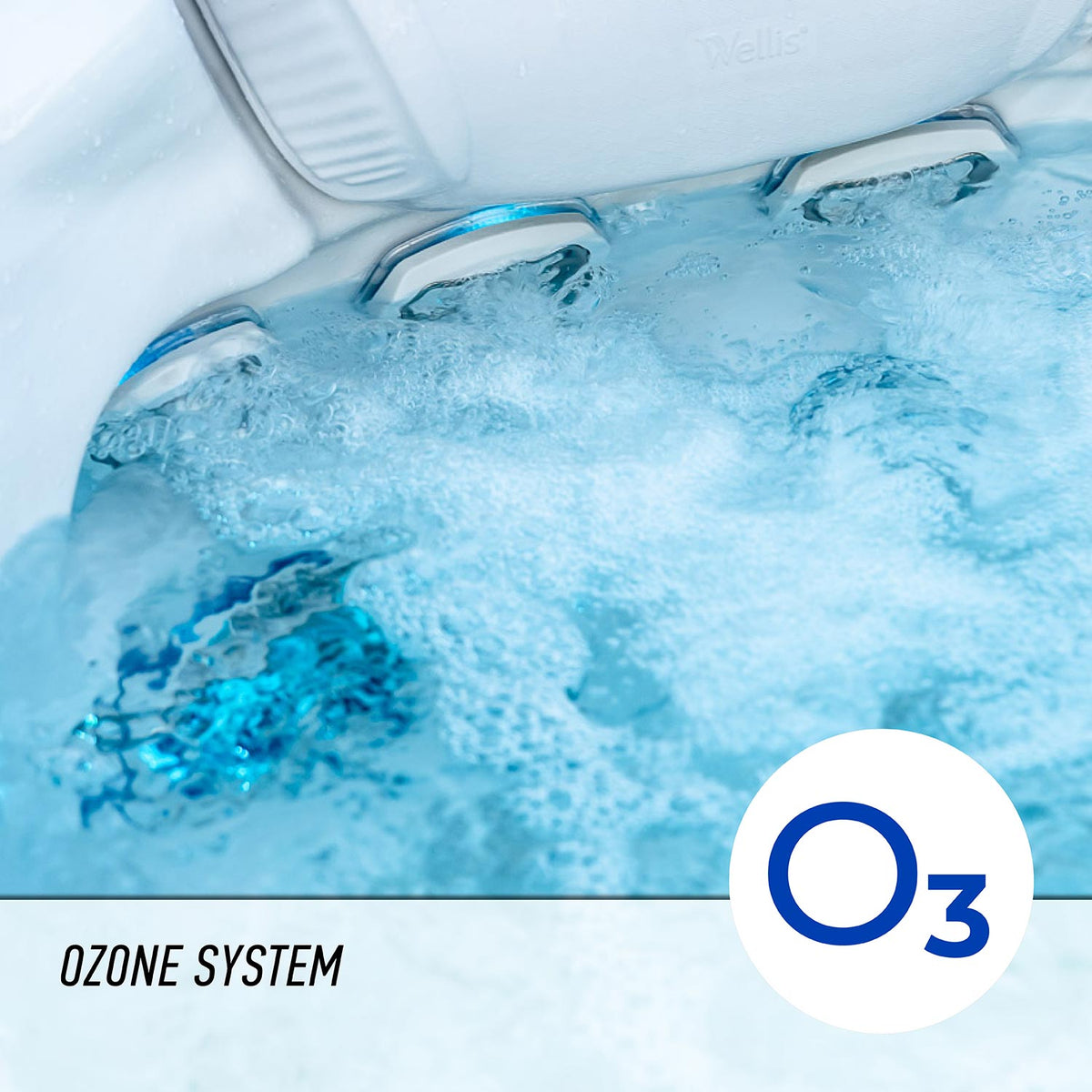

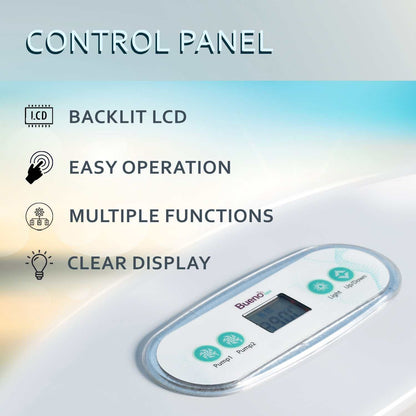

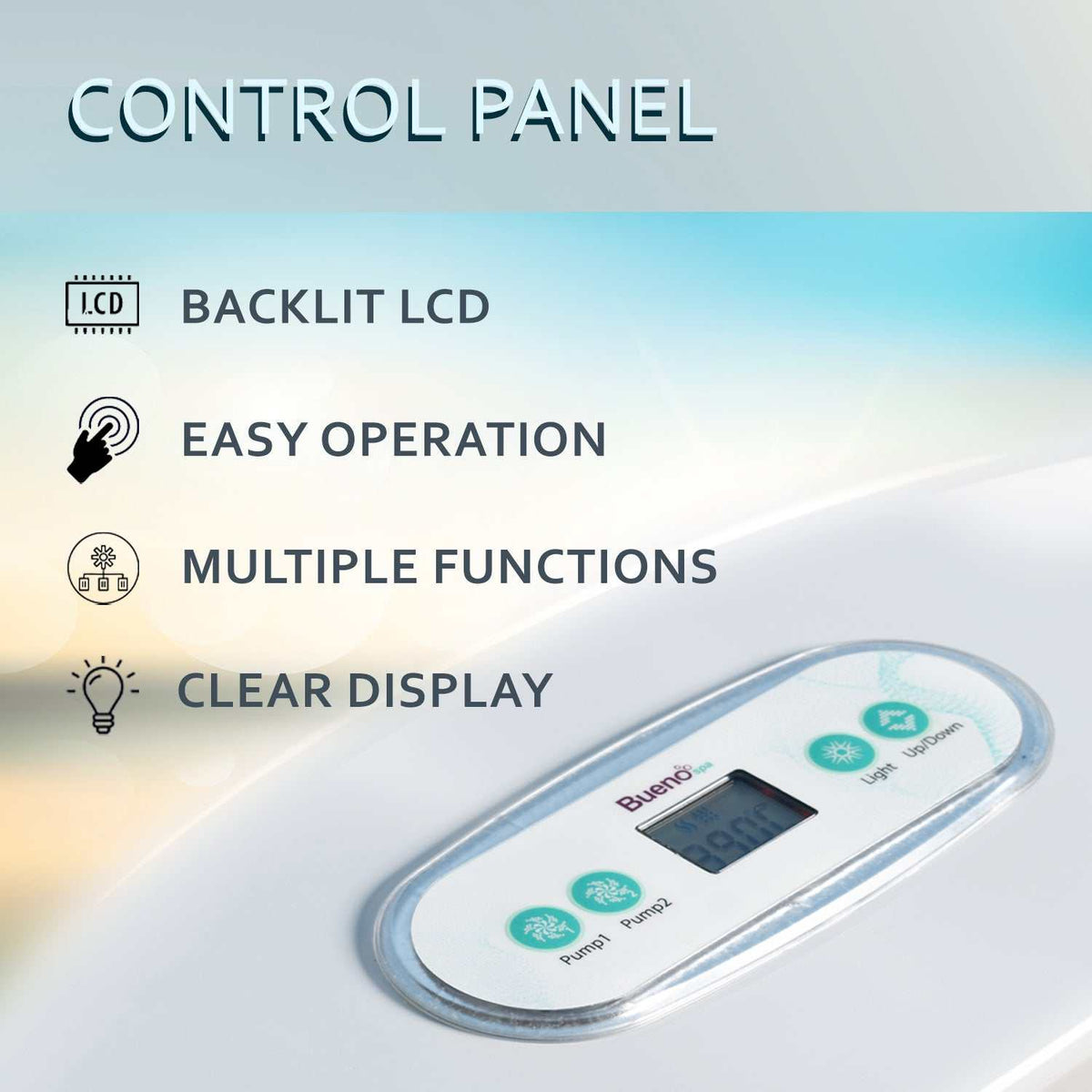

A Gecko in.yj-3 control pack runs the spa from an Easy 4 backlit LCD keypad — a straightforward multi-function panel readable in daylight and at night. Two pumps drive the jets: one 2 HP single-speed and one 2 HP dual-speed, the latter also handling continuous filtration and heating on its low setting. A 4 kW heater brings the water up, water passes through two Superfine paper cartridge filters, and an ozone system treats the circulating water. Eighteen LEDs light the shell and waterline. One drain.
Construction

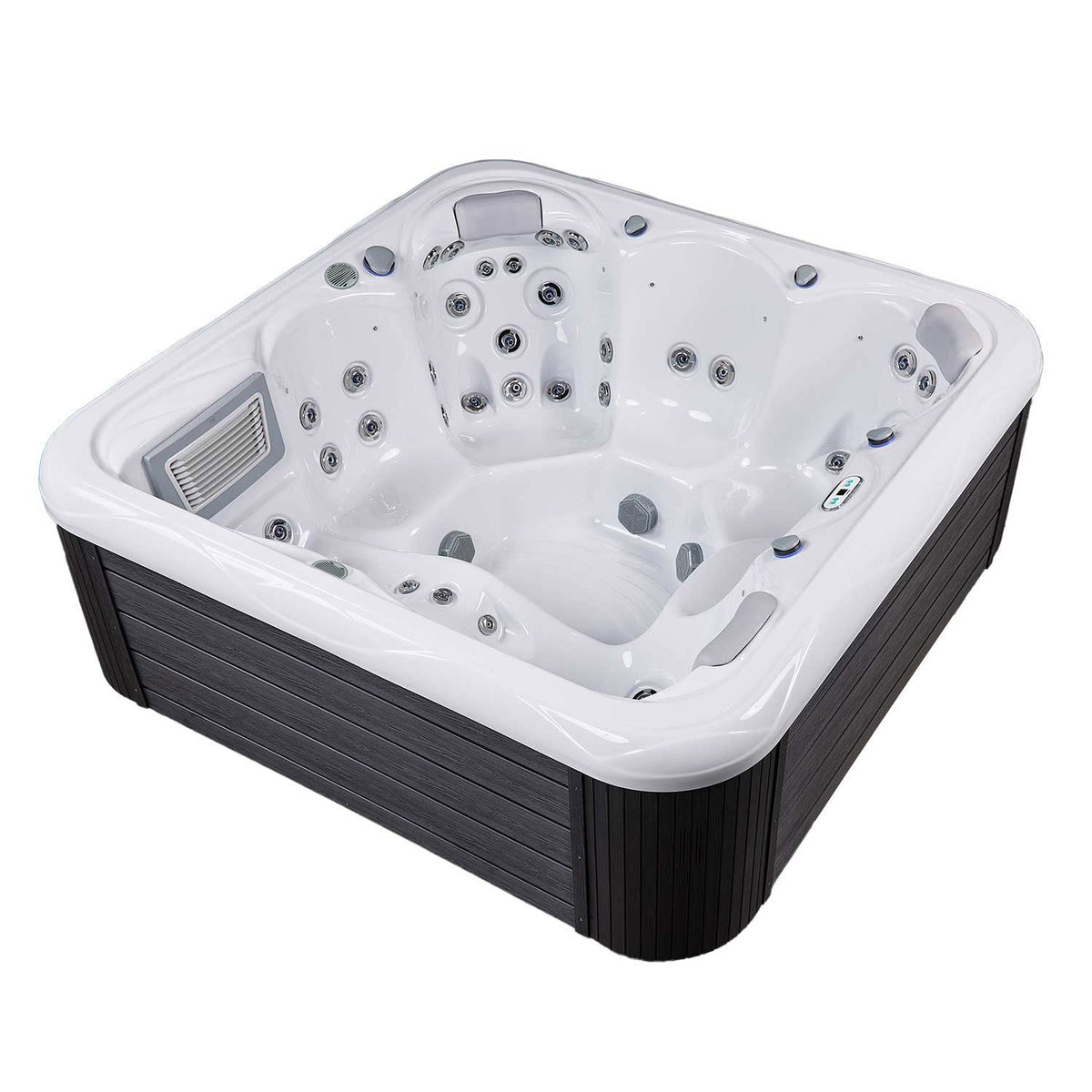

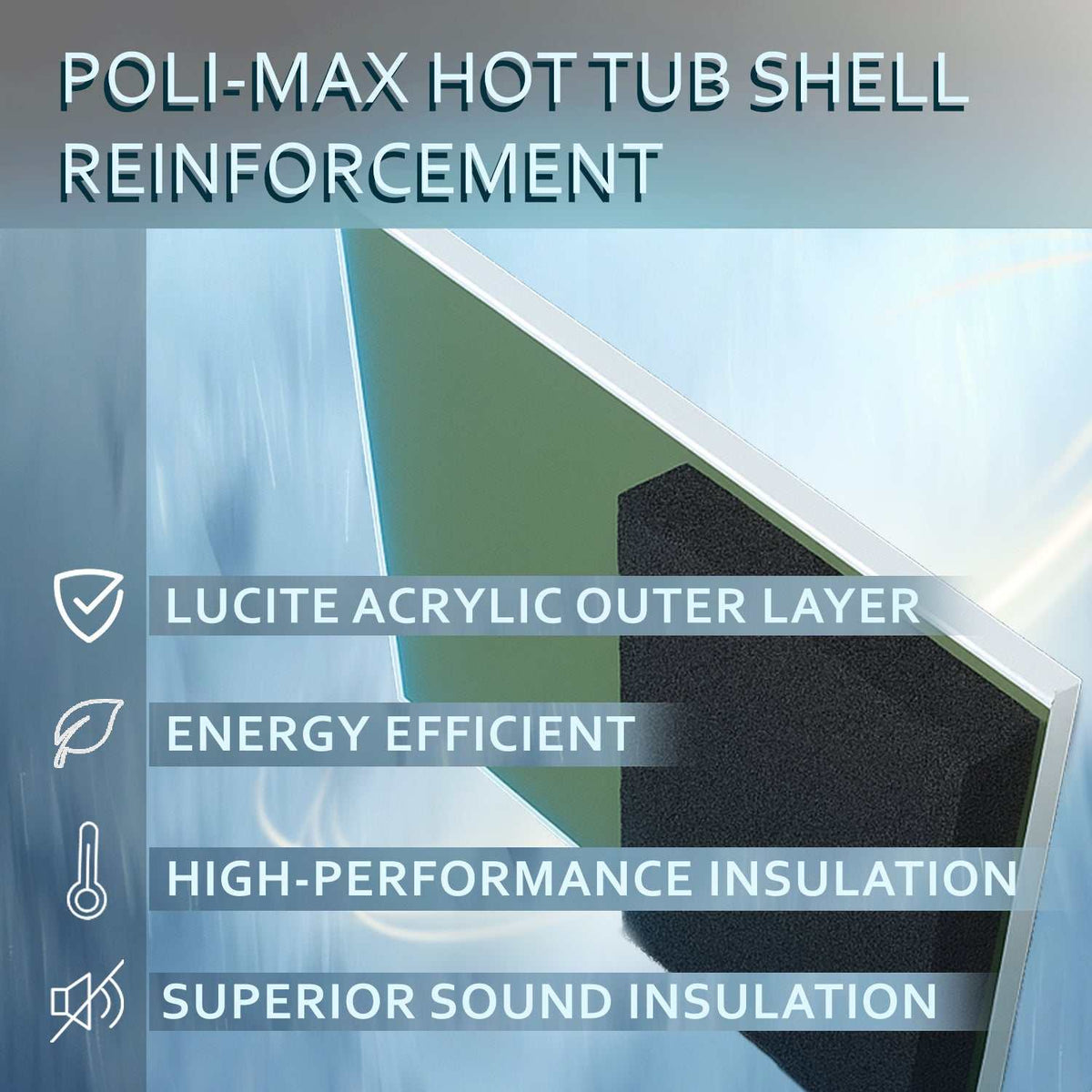

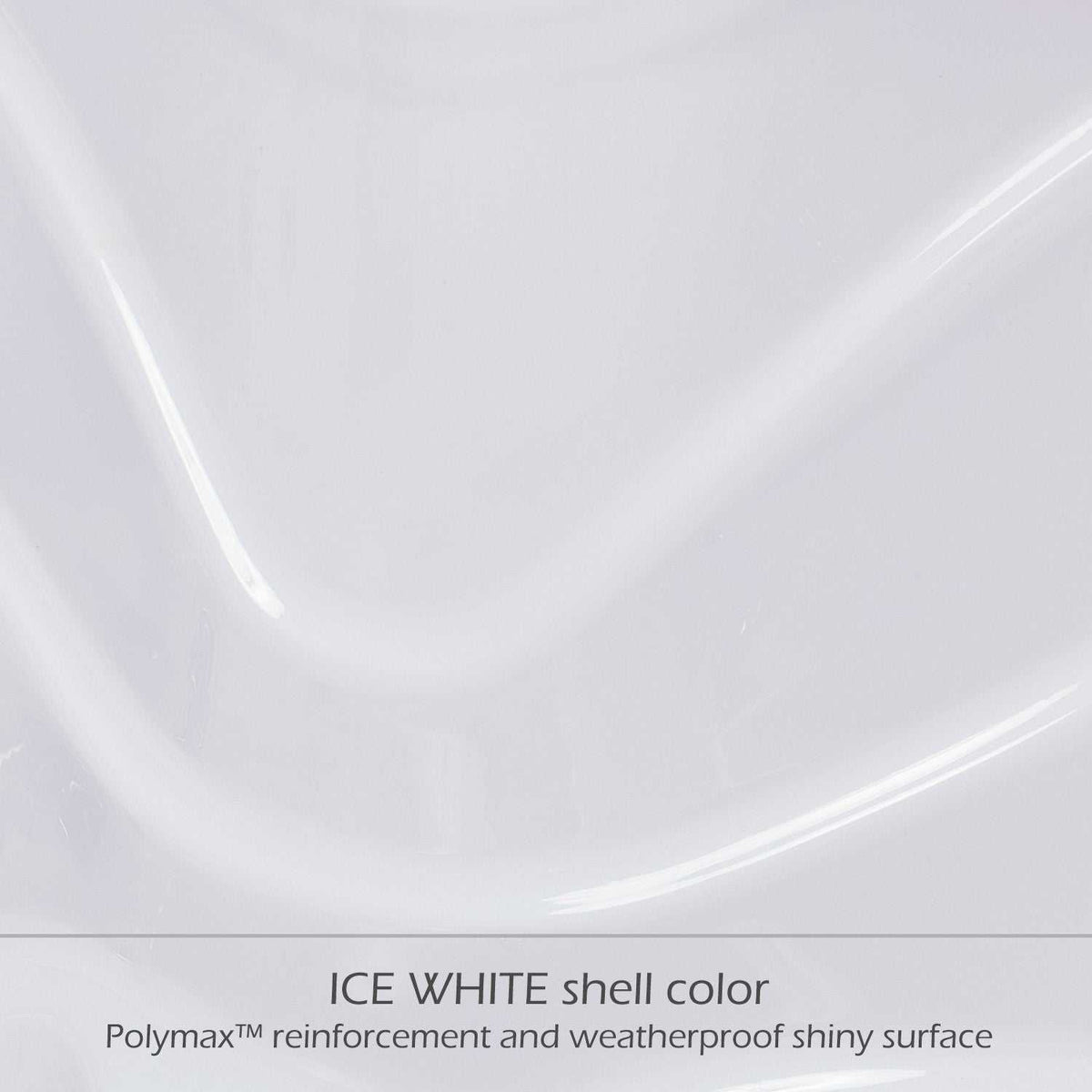

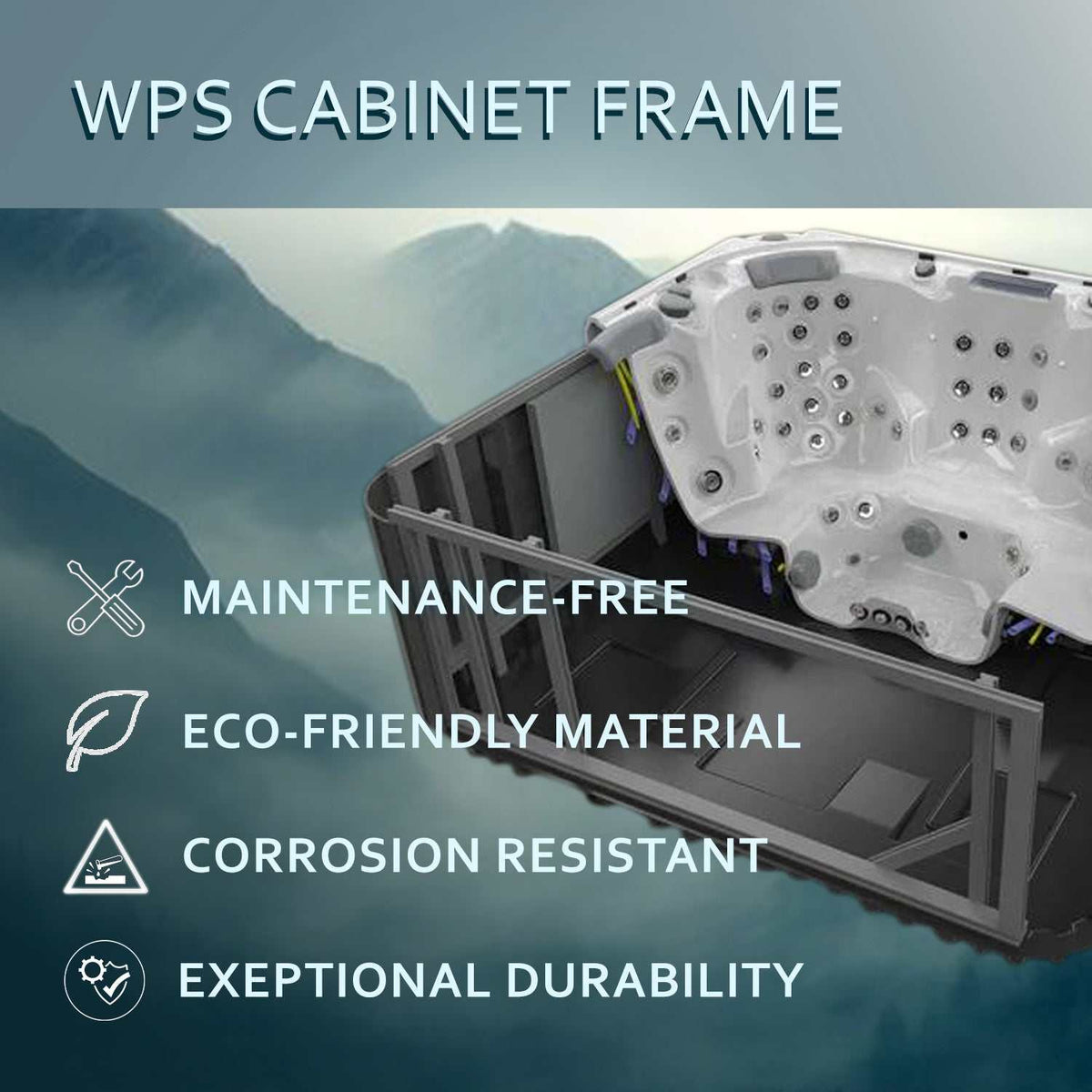

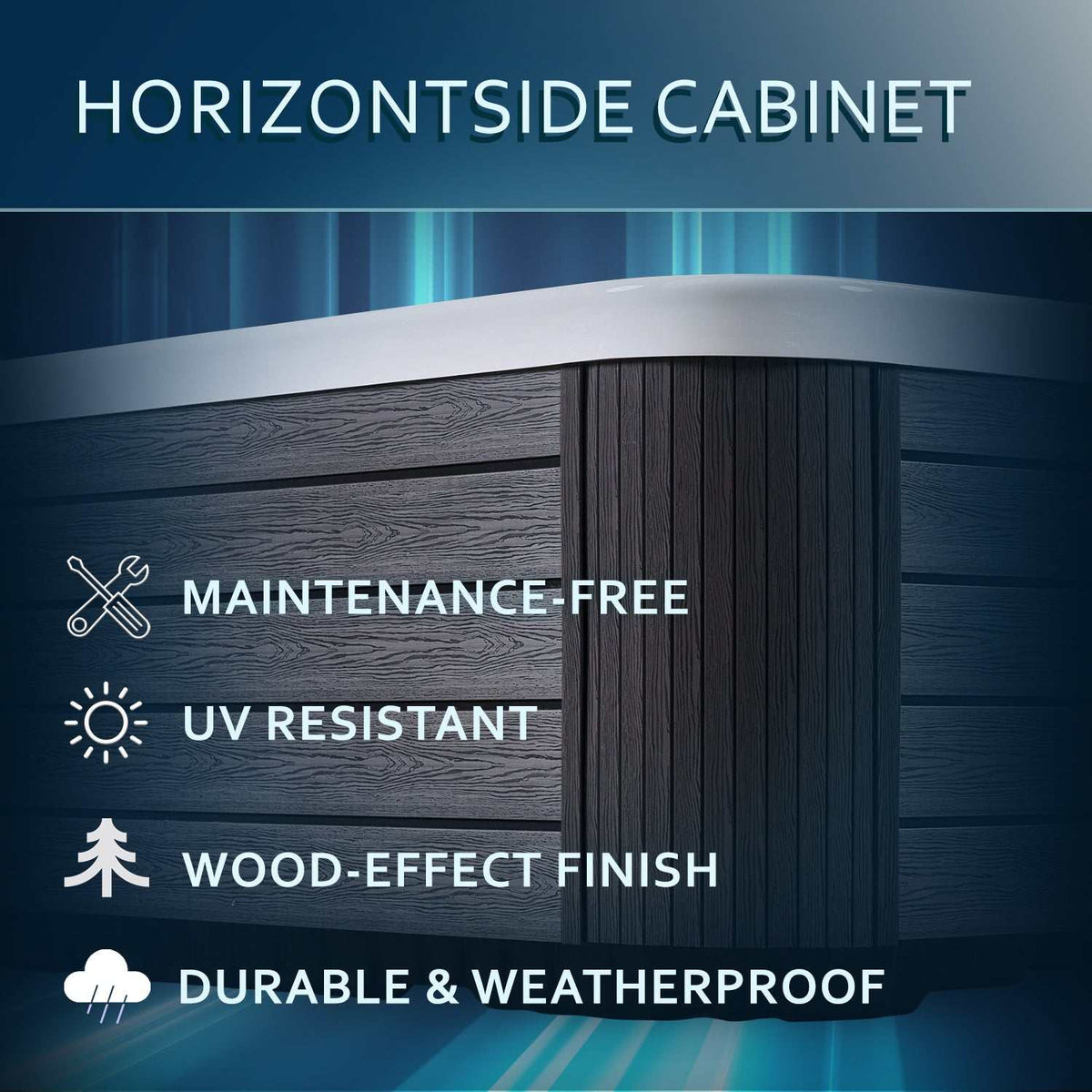

A WPS (Wellis PolyStyrol) frame reinforced with polyurethane, Polyfoam Scandinavian insulation, and a white acrylic shell. The base is a reinforced one-piece moulded ABS floor pan whose sides turn upward to seal the structure against ground moisture and insects, with a reflective barrier across the pan to stop heat being drawn out through the base by damp earth. The cabinet is grey with HorizontSide™ UV-proof, wood-textured panelling — it reads as timber but won't split, grey out or need refinishing.
Specifications
- Part number: WM00764
- Dimensions: 84.65" × 84.65" × 33.86"
- Seating: 1 reclining lounge + 5 bucket seats (6 people) · 3 headrests
- Water volume: 314 gallons · Dry weight: 595 lb
- Jets: 49
- Pumps: 1 × 2 HP single-speed, 1 × 2 HP dual-speed
- Heater: 4 kW
- Control: Gecko in.yj-3 pack with Easy 4 LCD keypad
- Filtration: 2 × Superfine paper cartridge filters
- Water care: ozone
- Lighting: 18 LEDs, including waterline lighting
- Frame: WPS · Reinforcement: polyurethane · Insulation: Polyfoam Scandinavian · Floor: reinforced moulded ABS pan with reflective barrier
- Shell: white acrylic · Cabinet: grey with HorizontSide™ UV-proof wood-textured panelling
- Drain: 1
- Power: 50 A / 240 V / 60 Hz, 6 AWG copper, 4-wire including ground — hard-wired
- Thermal cover: optional, sold separately (standard 5–3.5 in. taper)
Siting and delivery
Filled and occupied the spa weighs roughly 4,300 lb across about 50 square feet — around 86 lb per square foot. It needs a level base built to the owner's manual's specification; do not site it on a deck, balcony or raised structure without an engineer's assessment, and leave service access to the equipment bay. At 84.65 inches square it will not pass through a doorway or a standard gate, so confirm gate widths, corners and turning radius on the delivery route before ordering, and budget for a crane if the yard has no open access.
Please note
No thermal cover is included. A cover is strongly recommended: it is the main thing keeping heating costs down, and a locking cover is the standard safety barrier where children have access. Check your local requirements before installation.
Warranty and returns
Buenospa limited warranty: structure 5 years · shell 3 years · major components 2 years · plumbing 2 years · labour 1 year, to the original purchaser for residential use. 100-day return policy.
Who it's for
Groups of up to six who want one properly reclining seat in the mix rather than six upright buckets — and households that want the spa to look like a lit feature in the garden at night, not just a tub with a light in it.
Before you use it
Hot water immersion carries real risks. Keep the water at or below 104°F, limit soaks to 15–20 minutes, and get out if you feel dizzy, drowsy or nauseated. Do not use alcohol or drugs before or during a soak. Talk to your doctor first if you are pregnant or have a heart condition, high blood pressure, circulatory problems or diabetes. Children overheat much faster than adults: they should use the spa only under close adult supervision and for short periods. Keep the spa covered and secured whenever it is unattended — an uncovered spa is a drowning hazard. Never soak alone, and keep electrical appliances away from the water.
