Protocol⁴ P1 Light Therapy Panel, 6-Wavelength Blue, Green, Red and Near-Infrared LED Half-Cabin Panel, 12,312 LEDs, 450–940 nm, Rolling Stand with Vertical, Horizontal and 360-Degree Positioning, 110 V Plug-In

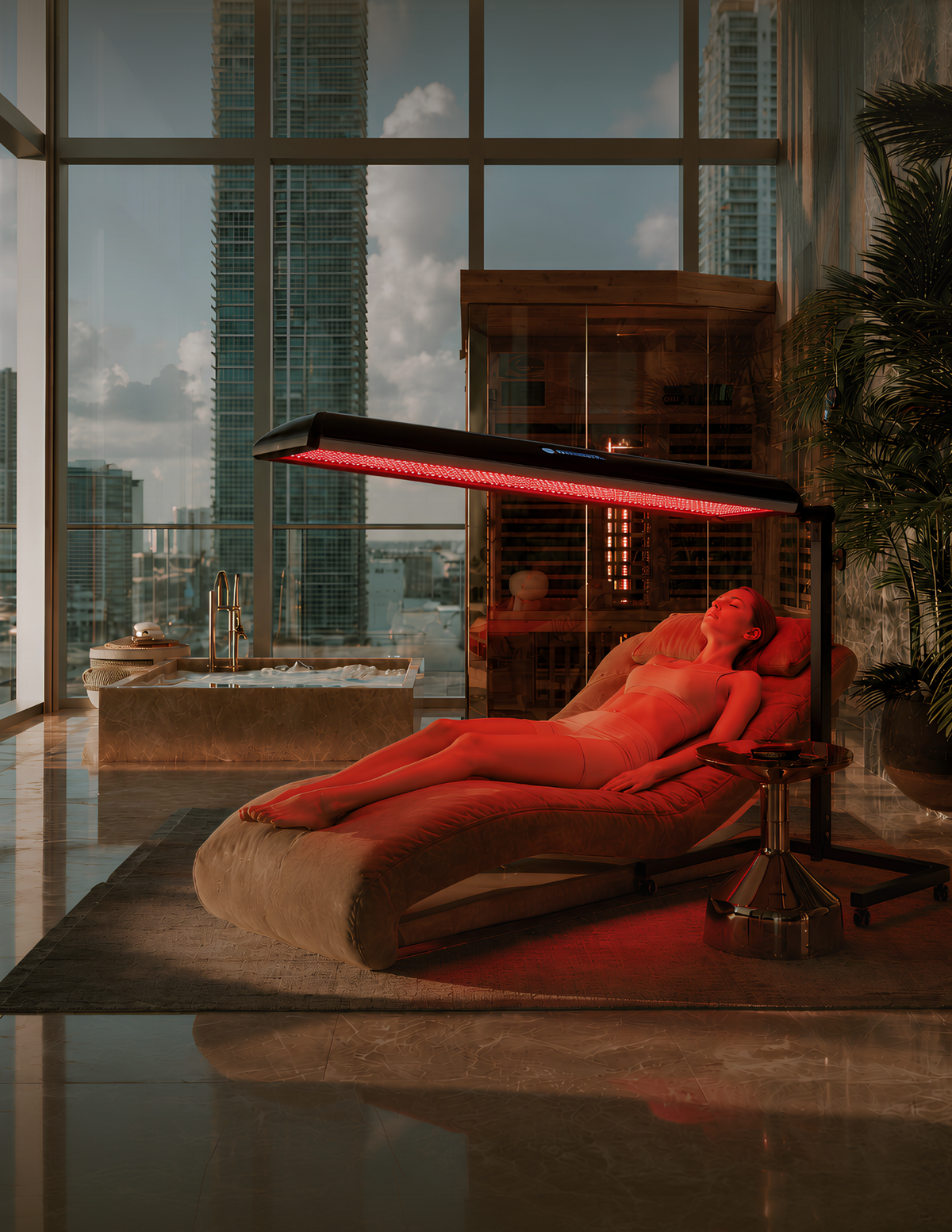

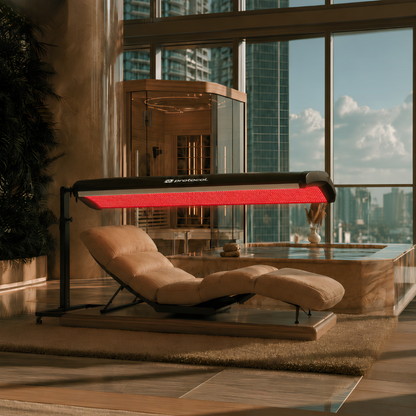

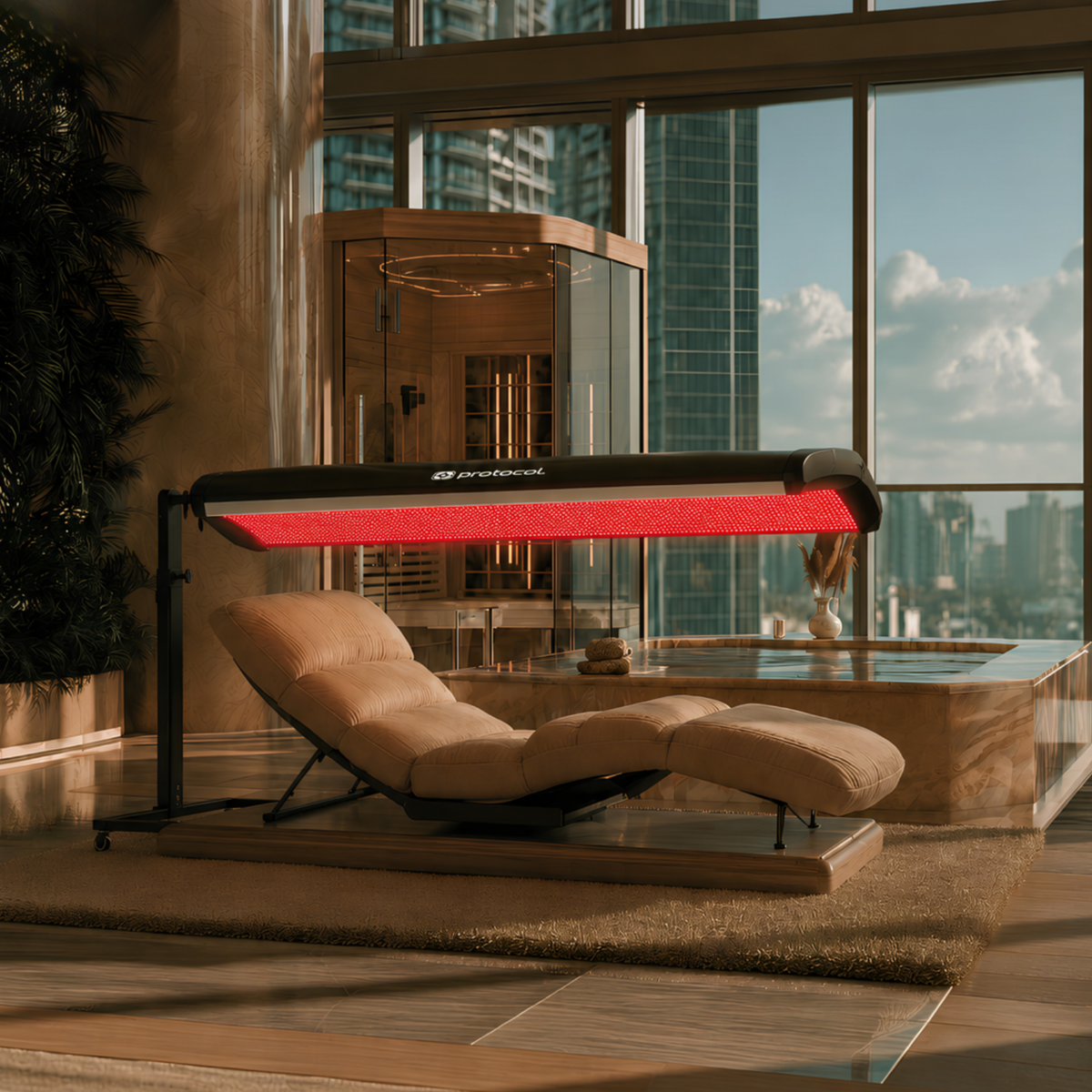

The P1 Light Therapy Panel is a curved half-cabin LED array on a rolling stand that wraps light around the body from a standing, seated, or lying position. Its 12,312 0.2 W 2835-package LEDs are arranged in 38 strips and emit six wavelengths together in every session: 450 nm blue, 525 nm green, 633 nm and 660 nm red, and 850 nm and 940 nm near-infrared, through 120-degree optics. The panel mounts on a vertical support with a wheeled base and locking casters; the mount rotates through 360 degrees so the panel can stand upright for a standing session, turn face-down over a bed or lounger, or stop at any angle in between, with about 7.9 inches of height adjustment. Three physical touch buttons on the housing start the session, and a timer runs up to 30 minutes with automatic shut-off; the LEDs reach full output in under three seconds. Dual forced-air fans on the rear housing keep the panel cool, and the IP53 rating protects against dust and light spray. The P1 draws 1,000 W at 110 V, 9 A and connects to a grounded U.S. outlet with the supplied cord, so no dedicated circuit or electrician is required. Overall dimensions on the stand are 33.5 x 30 x 77.8 inches; the panel weighs 99 lbs. Available in black or white. Wear eye protection throughout every session. Backed by a 1-year warranty.

• Six Wavelengths, All On Together: 450 nm blue, 525 nm green, 633 nm and 660 nm red, 850 nm and 940 nm near-infrared, delivered simultaneously through 12,312 LEDs. Blue, green, and red are visible; near-infrared is not.
• Half-Cabin Coverage: The curved panel wraps partly around the body so front and sides are lit from one position, with 120-degree LED optics spreading output across the face.
• Vertical, Horizontal, or Any Angle: The stand mount rotates 360 degrees and adjusts about 7.9 inches in height, so the panel works upright, face-down over a lounger, or tilted.
• Simple Controls: Three-button physical touch interface with adjustable session time up to 30 minutes and automatic shut-off. Full output in under three seconds.
• Active Cooling and IP53 Housing: Dual rear forced-air fans; dust- and spray-resistant enclosure rated for 32–158°F operating environments.
• Standard Outlet Power: 1,000 W rated, 110 V AC, 9 A, grounded U.S. plug and cord supplied. Use a dedicated, GFCI-protected outlet.
• Included: P1 panel with integrated LED array and controls, wheeled base with locking casters, vertical support, panel mount, hand knobs and fasteners, grounded power cord, user documentation.
• Specifications: SKU P661. 33.5 L x 30 W x 77.8 H inches on stand; 99 lbs net. Ships in one carton, 79.9 x 37 x 16.9 inches, 158.7 lbs. Black or white. Requires 12 inches of clearance from walls. 1-year warranty.
