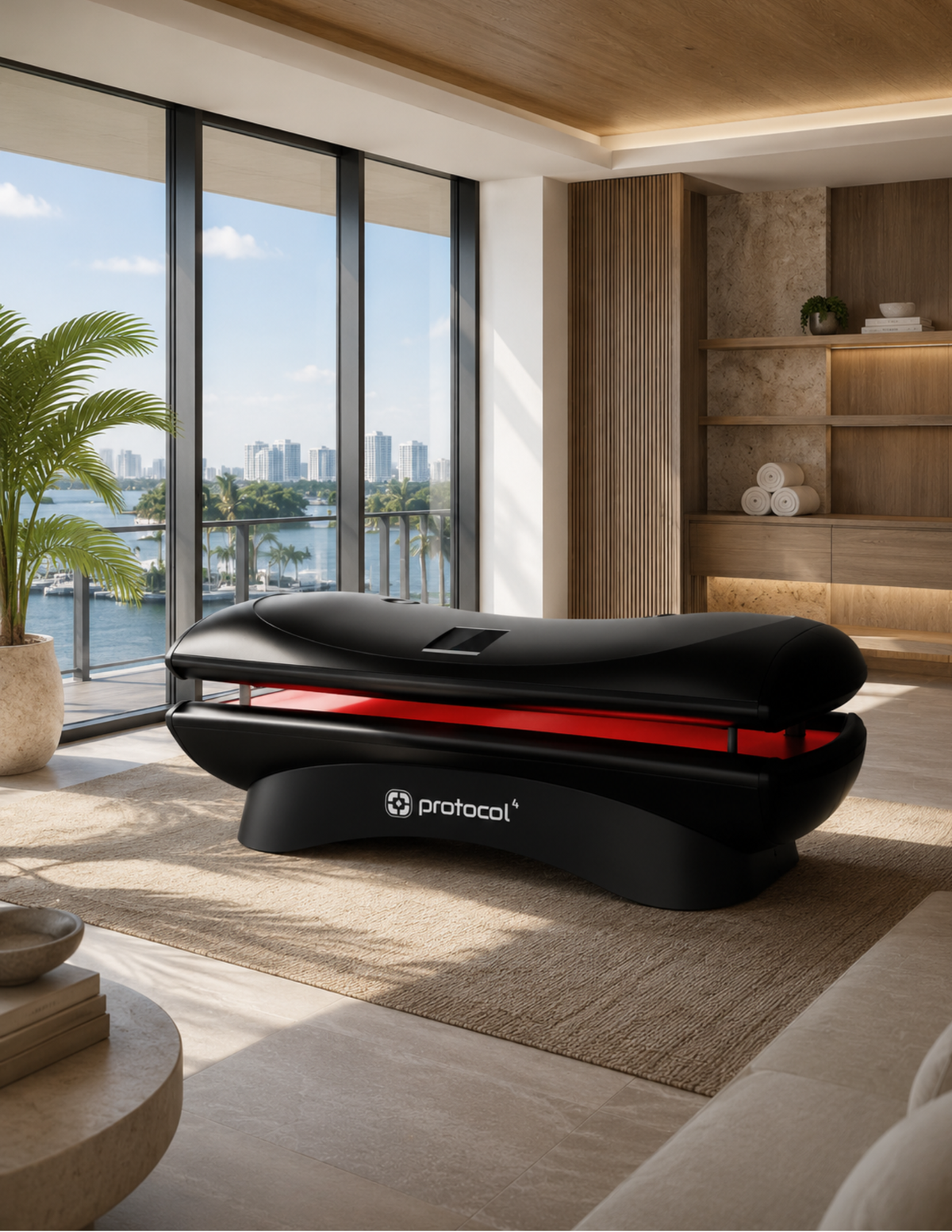

Protocol⁴ P4 Red Light Capsule, Full-Body 360-Degree Red and Near-Infrared LED Bed, 21,600 LEDs, 5 Wavelengths, Touchscreen with Pulse Control and Bluetooth Audio, 76 x 34 x 32 in.

The P4 Red Light Capsule (model P610) is a full-body clamshell LED bed from Protocol⁴ with powered light arrays in both the canopy and the bench, so red and near-infrared light reach the front, back, and sides of a reclining user at the same time. The capsule holds 21,600 0.2 W 2835-package LEDs split evenly across five wavelengths, 4,320 LEDs each, behind 120-degree lenses for wide, even coverage, and the arrays are driven by a constant-current power supply. A touchscreen in the canopy sets session time from 1 to 30 minutes in one-minute steps, selects one of six preset programs or a manual mode, and controls pulse frequency from 0 to 10,000 Hz with duty cycle from 0 to 100 percent, so light can run continuous or pulsed. The same screen handles pause, resume, and early stop, and keeps an on-board log of up to 999 session records. Hydraulic gas-strut rods hold the canopy open for entry and exit, a three-speed comfort fan inside the capsule keeps air moving over the user, and separate equipment fans cool the electronics with a programmable delayed shutoff after each session; automatic temperature protection pauses light output if internal temperature exceeds the alarm threshold and re-enables it once the unit cools. Two built-in Bluetooth speakers play audio from a paired phone or tablet, and a Wi-Fi connection supports an optional wireless control tablet or app. The reinforced shell with acrylic interior panels measures 76 x 34 x 32 inches (194 x 86 x 82 cm), weighs 287 lbs (130 kg), and supports users up to 331 lbs (150 kg). It draws 3,000 W at 220 V AC, 14 A, and connects with a factory NEMA L6-30P twist-lock plug to a dedicated 220 V, 30 A grounded circuit with a NEMA L6-30R receptacle installed by a qualified electrician. Installation is indoors on a level surface with at least 12 inches of wall clearance and 39 inches of service clearance. The capsule is delivered assembled, opaque eye protection is required during every session, and US-based technical support is available by phone and email. The P4 is a general wellness product and is not intended to diagnose, treat, cure, or prevent any disease. Backed by a 1-year limited manufacturer warranty.

• 21,600 LEDs, Five Wavelengths: 633 nm and 660 nm red; 810 nm, 850 nm, and 940 nm near-infrared, 4,320 LEDs per wavelength. Red is visible; near-infrared is not.
• 360-Degree Coverage: Upper and lower light arrays surround the reclining user so both sides are lit in one session without turning over.
• Touchscreen Control: 1 to 30 minute timer in one-minute steps with pause, resume, and early stop; six preset programs plus a manual mode; pulse frequency from 0 to 10,000 Hz and duty cycle from 0 to 100 percent for continuous or pulsed output; on-board log of up to 999 sessions.
• Comfort and Cooling: Three-speed user fan, automatic equipment cooling with programmable delayed shutoff, and automatic over-temperature protection with self-reset after cooling.
• Bluetooth Audio and Wi-Fi: Two integrated speakers for paired-device playback, one device at a time; Wi-Fi connection for the optional wireless control tablet or app.
• Hydraulic Canopy: Gas-strut supports hold the canopy open at its full position for entry and exit.
• Electrical: 3,000 W rated output, 220 V AC, 14 A, constant-current LED power supply, factory NEMA L6-30P locking plug. Requires a dedicated 220 V, 30 A grounded circuit with NEMA L6-30R receptacle installed by a qualified electrician; no adapters or extension cords.
• Installation: Indoor use on a level surface; 12 in. wall clearance and 39 in. service clearance; operating environment 59 to 95 °F, 0 to 75 percent humidity, non-condensing. Delivered assembled; installation and first-time setup by trained personnel.
• Specifications: Model P610. 76 L x 34 W x 32 H inches (194 x 86 x 82 cm), 287 lbs (130 kg), maximum user weight 331 lbs (150 kg), reinforced shell with acrylic interior, black finish. General wellness product. 1-year limited manufacturer warranty, original purchaser.
