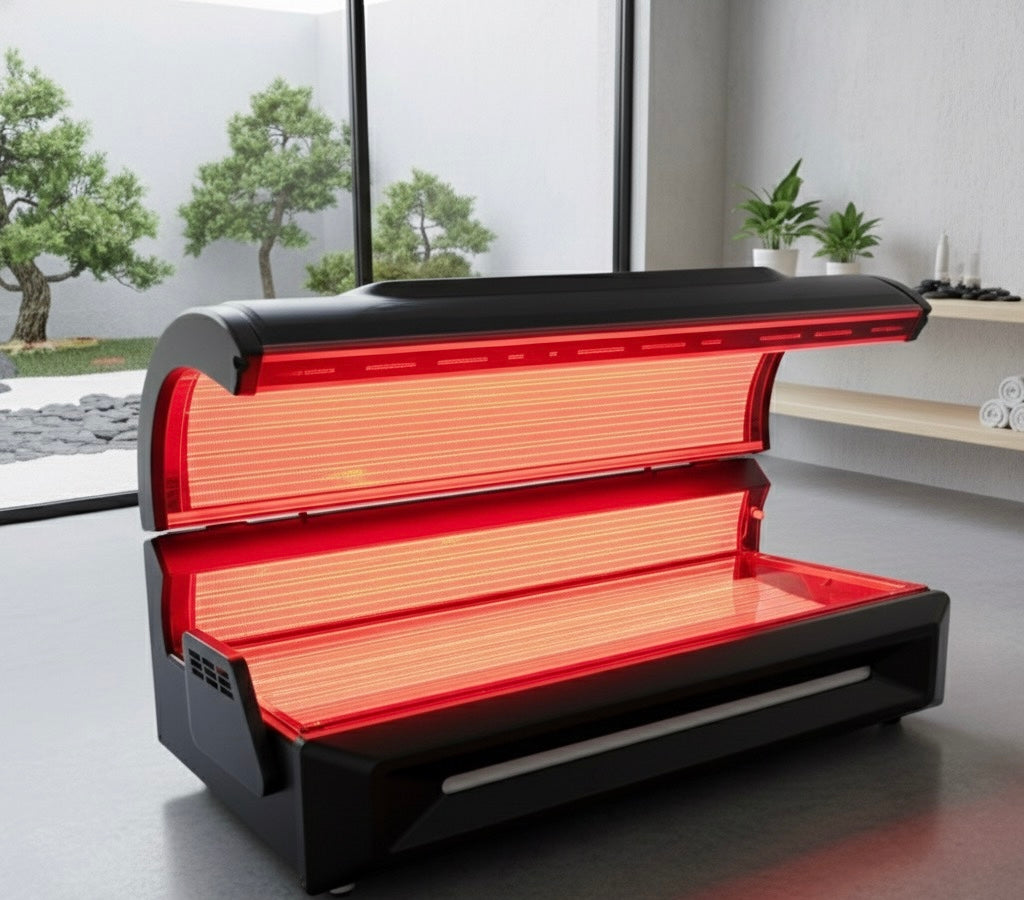

Protocol⁴ P6 Capsule Full-Body LED Light Bed, 41,600 LEDs, 6 Wavelengths 450–940 nm Blue, Green, Red and Near-Infrared with Independent Control, Touchscreen, Bluetooth Audio, 89.5 x 48.5 x 44 in.

The P6 Capsule is a full-body LED light bed with 41,600 0.2 W 2835-package LEDs arranged in a surrounding canopy and bench for 360-degree coverage of a reclining user. The LEDs are split evenly across six wavelengths — 450 nm blue, 525 nm green, 633 nm and 660 nm red, and 850 nm and 940 nm near-infrared, about 6,933 LEDs each — and every wavelength can be switched on individually or combined from the integrated touchscreen. Taiwan EPISTAR LED chips sit behind 120-degree optics and UK Lucite acrylic panels rated at 99 percent light transmittance, with a manufacturer-stated irradiance of 100 to 140 mW/cm² at the surface. The touchscreen sets session time from 1 to 30 minutes, selects preset or manual programs, and adjusts pulse frequency from 1 to 10,000 Hz with duty cycle from 1 to 100 percent, or runs continuous light at 100 percent; an optional wireless tablet provides the same controls externally. Adjustable user-facing fans keep air moving inside the 16.5-inch-tall interior, separate equipment fans cool the electronics, and two built-in Bluetooth speakers play audio from a paired phone. The reinforced housing sits on casters, measures 89.5 x 48.5 x 44 inches, weighs 882 lbs, and supports users up to 551 lbs. Total electrical input is 6,500 W with a 5,200 W rated LED output; the P6 connects hardwired or through a 50 A / 250 V receptacle on a dedicated 220 V, 30 A circuit with a two-pole 40 A breaker, installed by a licensed electrician. It ships crated at 93 x 55 x 47.5 inches and about 1,014 lbs for delivery by qualified freight handlers. Opaque eye protection is required during every session.

• 41,600 LEDs, Six Wavelengths: 450 nm blue, 525 nm green, 633 nm and 660 nm red, 850 nm and 940 nm near-infrared, in a 1:1:1:1:1:1 ratio. Blue, green, and red are visible; near-infrared is not.
• Independent Wavelength Control: Run any single wavelength or any combination from the touchscreen.
• 360-Degree Coverage: Canopy and bench arrays surround the reclining user so both sides are lit in one session.
• Touchscreen with Pulse Control: 1 to 30 minute timer; preset and manual modes; pulse 1 to 10,000 Hz, duty cycle 1 to 100 percent, or continuous output. Optional wireless tablet control.
• Optics and Materials: EPISTAR LED chips, 120-degree optics, Lucite acrylic panels at 99 percent transmittance, manufacturer-stated irradiance 100 to 140 mW/cm².
• Cooling and Audio: Adjustable user fans inside the capsule, active equipment cooling, and two Bluetooth speakers.
• Electrical: 6,500 W input, 5,200 W rated LED output, 220 V AC, 30 A load. Hardwired or 50 A / 250 V connector on a dedicated circuit with two-pole 40 A breaker, installed by a licensed electrician. No standard wall outlet connection.
• Specifications: 89.5 L x 48.5 W x 44 H inches, 16.5 inch interior height, 882 lbs, maximum user weight 551 lbs, casters, black housing. Crated 93 x 55 x 47.5 inches, approximately 1,014 lbs. Requires 12 inches of clearance on all sides.
