Mueller REVIVE M4 Gear Pack — Full Leg Air Compression Boots with M4 Bluetooth Console, Large
Mueller REVIVE M4 Gear Pack — Full Leg Air Compression Boots with M4 Bluetooth Console, Large
Couldn't load pickup availability
Share
The REVIVE M4 Gear Pack pairs Mueller's full-leg air compression boots with the M4 console — a pneumatic compression system for home use, from a family-owned sports medicine company that has been making braces, supports and recovery products since 1959.
The pressure range is the specification to look at first. The M4 delivers 20 to 100 mmHg in 5 mmHg steps, which covers the full span from gentle to firm and lets pressure be set precisely rather than chosen from a few presets.
Each boot has four overlapping chambers. In the default sequential mode they inflate from the foot upward, one after another, then release fully between cycles. Three further inflation patterns — ISO, which isolates user-selected chamber pairs; Wave; and Flow — run at an adjustable frequency from 1 to 8.
Five programs run from the console: Recover, Warm-up, Isolation, Interval and a fully Custom program. Session time is adjustable from 10 to 90 minutes, with a Stay On continuous mode and Interval programs configurable up to 8 hours total.

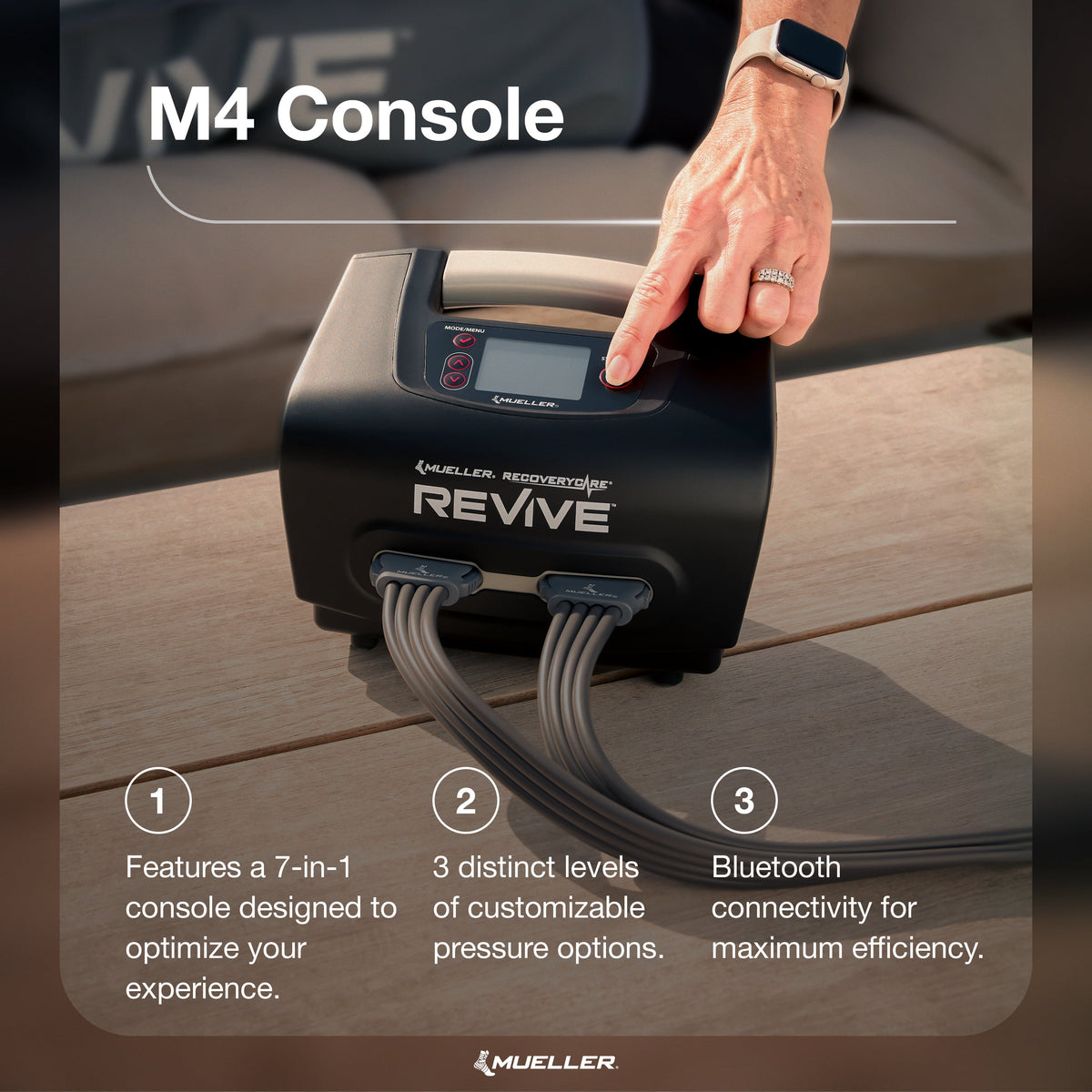

The console is portable and cordless. An internal 11.1 V, 5,000 mAh battery runs up to eight hours on a charge, so sessions aren't tethered to an outlet, and the unit weighs 3.3 lb. Bluetooth 4.2 connects it to the REVIVE app on iOS and Android, where treatment parameters can be set and usage tracked session by session.
The boots wipe clean and never need submerging.
Mueller's stated indication: the REVIVE M4 is indicated for the temporary relief of minor muscle aches and pains, and for temporary increase in circulation to the treated areas, in people who are in good health.

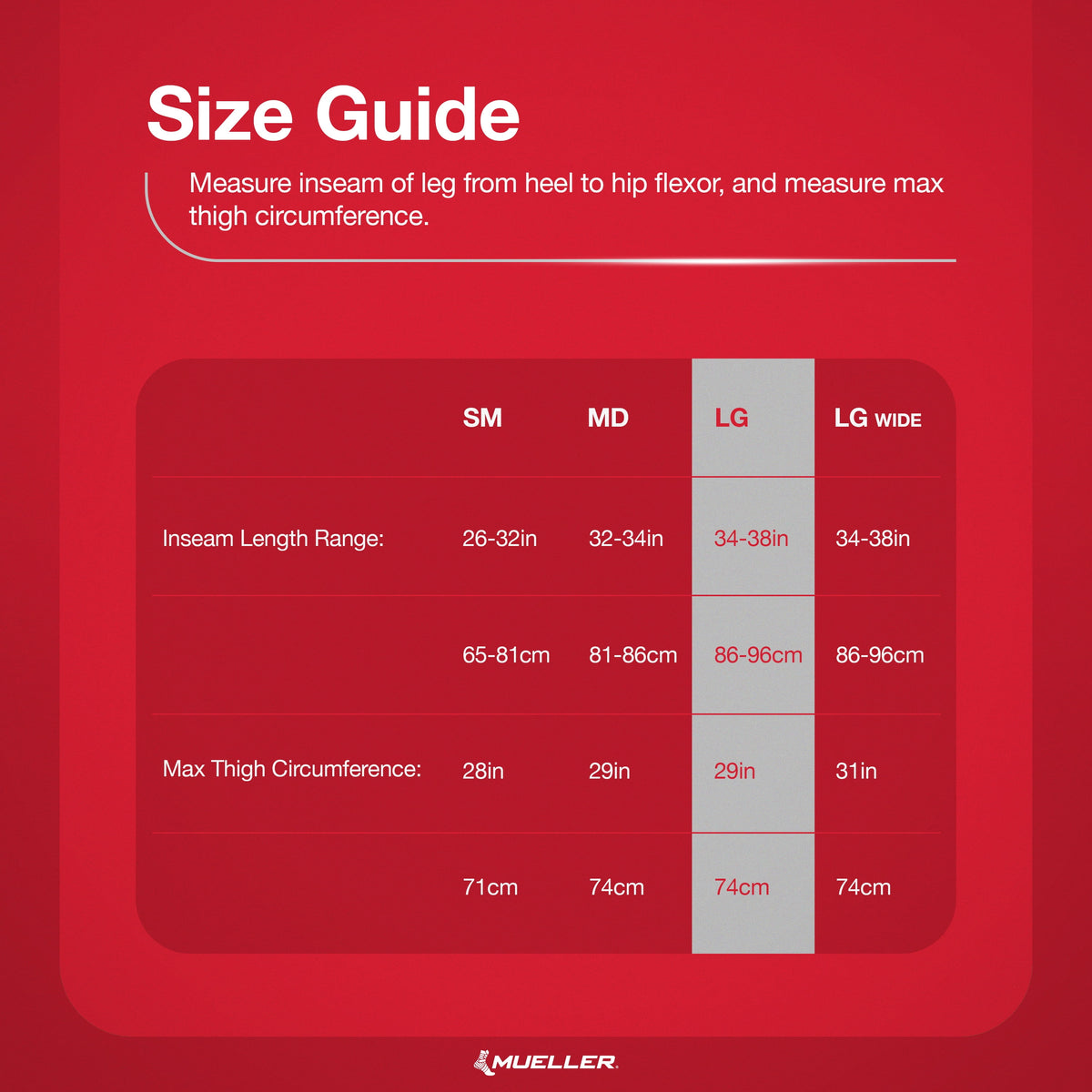

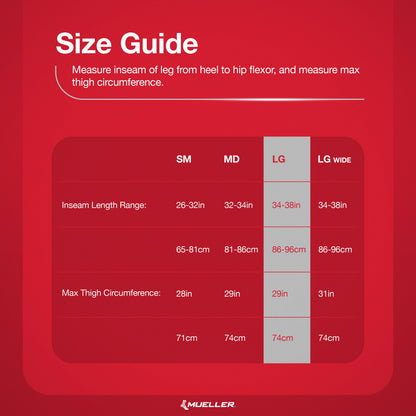

Sizing — Full Leg Boots
| Size | Inseam | Maximum thigh circumference |
|---|---|---|
| Small | 26–32" (65–81 cm) | 28" (71 cm) |
| Medium | 32–34" (81–86 cm) | 29" (74 cm) |
| Large | 34–38" (86–96 cm) | 29" (74 cm) |
| Large Wide | 34–38" (86–96 cm) | 31" (78 cm) |
This listing is the Large. Measure both inseam and thigh circumference — if the inseam fits Large but the thigh exceeds 29", order Large Wide.
Key Specifications
| Brand | Mueller Sports Medicine |
| Model | REVIVE M4 Gear Pack, Full Leg — M4RG200 |
| Pressure range | 20–100 mmHg, adjustable in 5 mmHg steps |
| Chambers | 4 per boot, overlapping |
| Inflation modes | Sequential (foot upward), ISO, Wave, Flow — frequency 1–8 |
| Programs | Recover, Warm-up, Isolation, Interval, Custom |
| Session time | 10–90 minutes; Stay On continuous mode; Interval up to 8 hours total |
| Battery | 11.1 V, 5,000 mAh internal; up to 8 hours runtime; up to 8 hours to charge |
| Power adapter | 100–240 VAC, 50–60 Hz input; 12 VDC 3 A output |
| Connectivity | Bluetooth 4.2 Low Energy, 3 m range |
| App | REVIVE mobile app, iOS and Android — parameter control and usage tracking |
| Console dimensions | 22 × 17 × 13 cm (8.6" × 6.7" × 5.1") |
| Console weight | 1.5 kg (3.3 lb) |
| Cleaning | Wipe with soft cloth, warm water not exceeding 100 °F, mild detergent; never submerge |

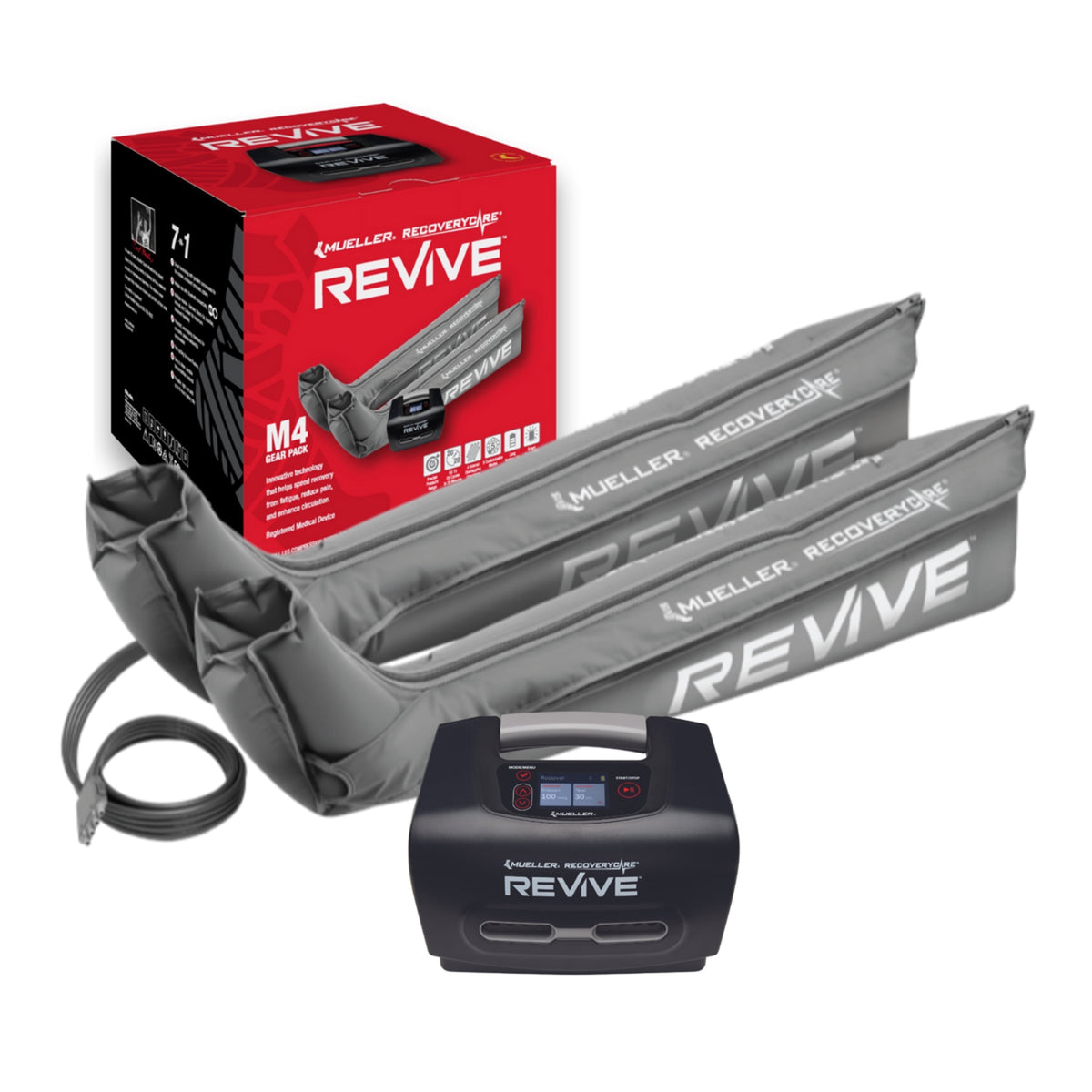

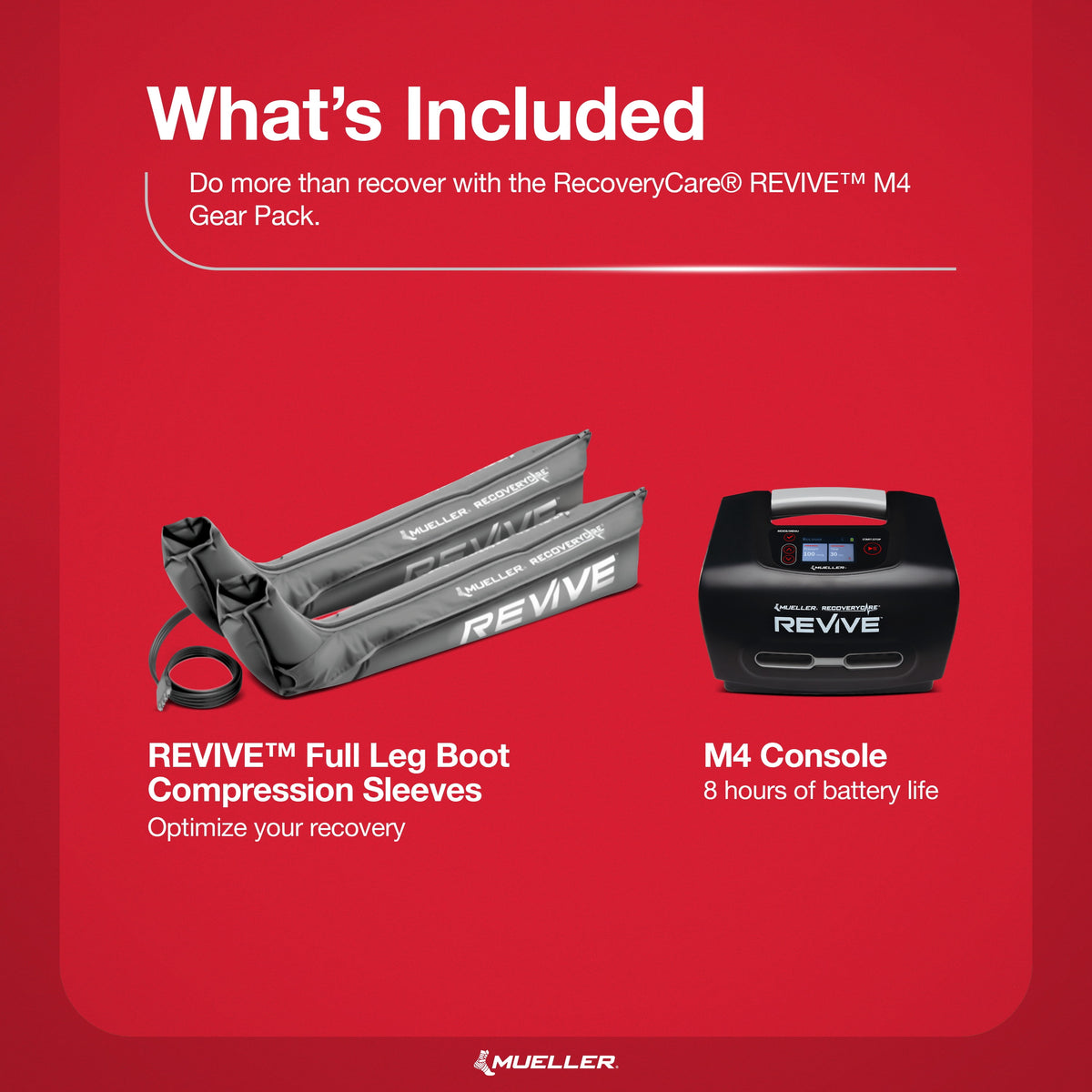

| Included | Full leg compression boots (pair), M4 console, power adapter |
| Warranty | 24 months on console; 12 months on garments |
| Expected service life | 5 years with correct use and maintenance |
| Indication | Temporary relief of minor muscle aches and pains, and temporary increase in circulation to treated areas, in people in good health |
Features
- 20–100 mmHg pressure range in 5 mmHg steps
- Four overlapping chambers per boot with full release between cycles
- Sequential, ISO, Wave and Flow inflation modes
- Five programs including a fully custom mode
- 10–90 minute sessions, continuous mode, and interval programming
- Up to 8 hours cordless operation on the internal battery
- Bluetooth 4.2 with app control and session tracking on iOS and Android
- 3.3 lb console — portable between rooms or in luggage
- Wipe-clean boots
- Four sizes by inseam and thigh circumference
- 24-month console warranty, 12-month garment warranty
- From a family-owned sports medicine manufacturer established 1959
Before You Buy
Measure before ordering. Fit is by inseam and thigh circumference. The Large fits a 34–38" inseam up to a 29" thigh; above that, order Large Wide.
Read the contraindications below before purchase, not after. Several common reasons people look at compression boots — swelling, poor circulation, unexplained leg pain — are conditions the manufacturer says the device must not be used with. If any apply, consult a physician first.
Do not stand or walk while wearing the garments. Sessions are seated or reclined.
Charging takes up to 8 hours for a full 8-hour runtime. Plan charging around use.
Garment pressure limits differ. If you add other REVIVE garments to this console, note the manufacturer's caps: Half Jacket and Core garment 50 mmHg maximum; Impact Pants abdominal 40 mmHg maximum.
Contraindications and Warnings
Per the manufacturer's user manual:
- Do not use if pregnant.
- Do not use if diagnosed with blood clots, deep vein thrombosis or phlebitis.
- Do not use over swollen or inflamed areas, or over skin eruptions.
- Do not use over insensitive, numb or poorly circulating areas.
- Do not use in the presence of unexplained calf pain.
- Do not use in the presence of flammable anaesthetics.
- Do not stand or walk while wearing the garments.
Required Disclosure
This device is indicated for the temporary relief of minor muscle aches and pains, and for temporary increase in circulation to the treated areas, in people who are in good health. It is not intended to diagnose, treat, cure or prevent any disease. Consult a physician before use if you have any circulatory, cardiovascular or clotting condition, or if you experience leg swelling or unexplained pain.
