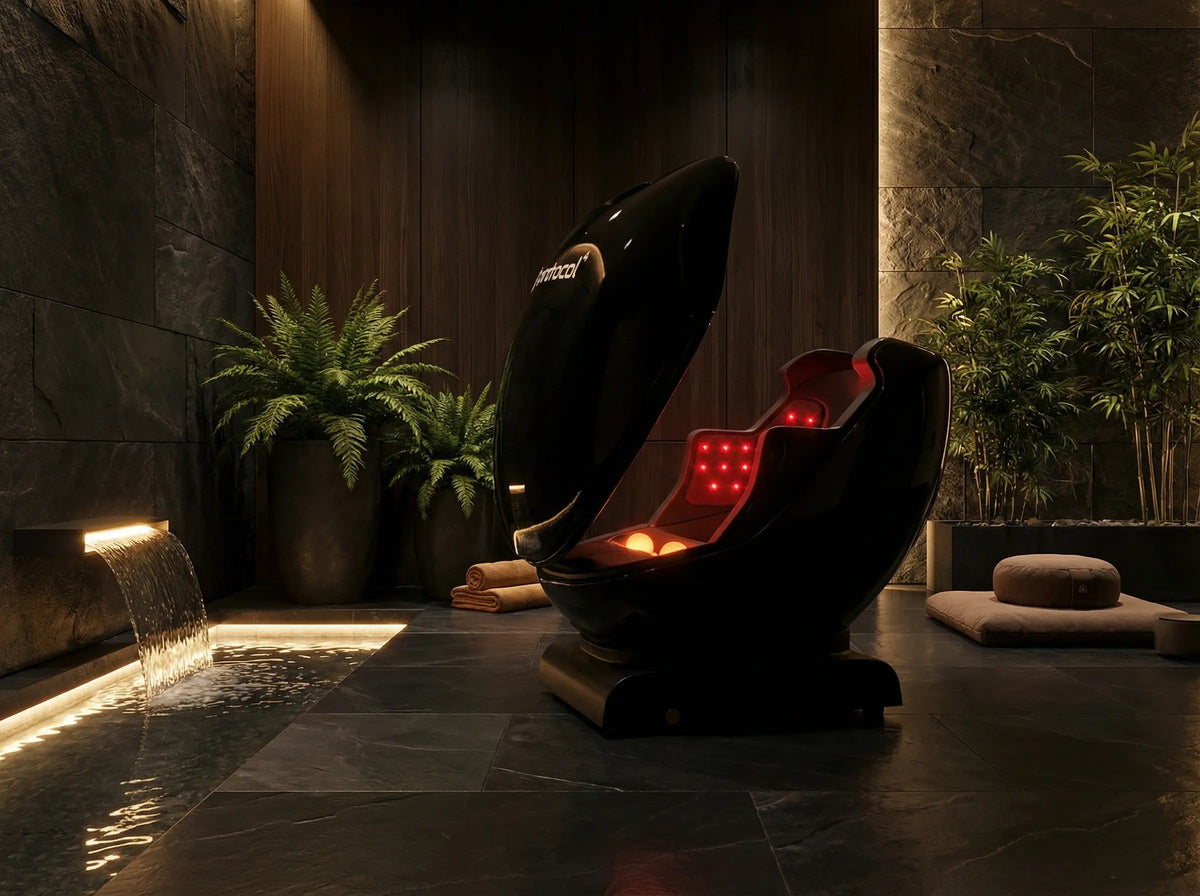

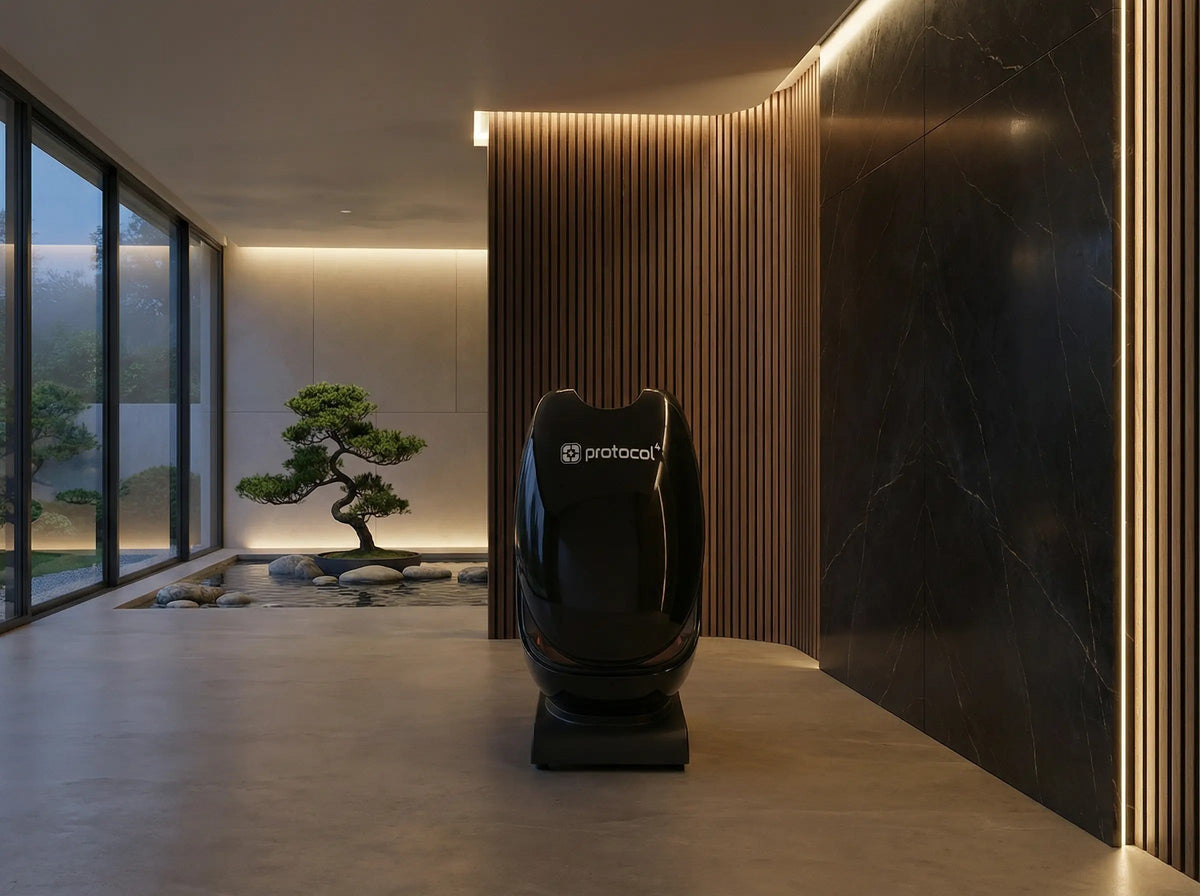

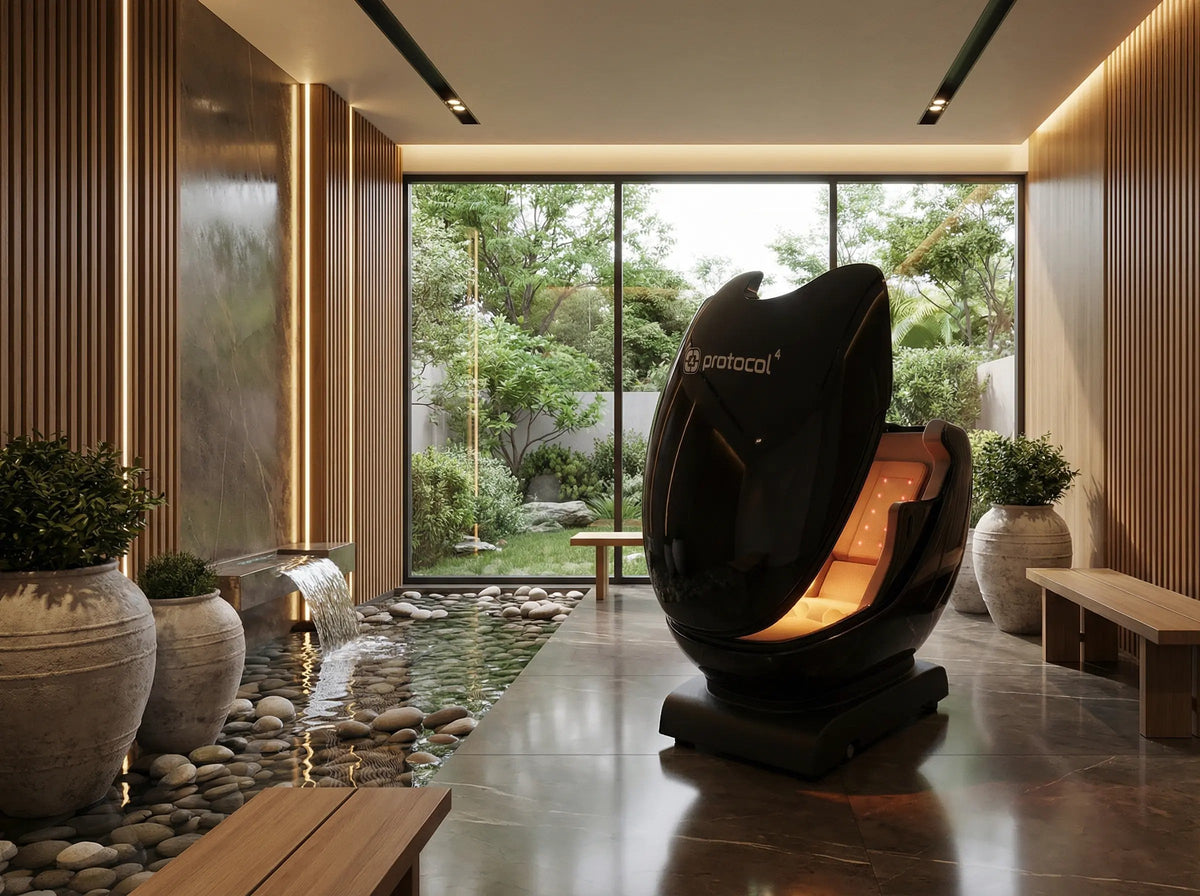

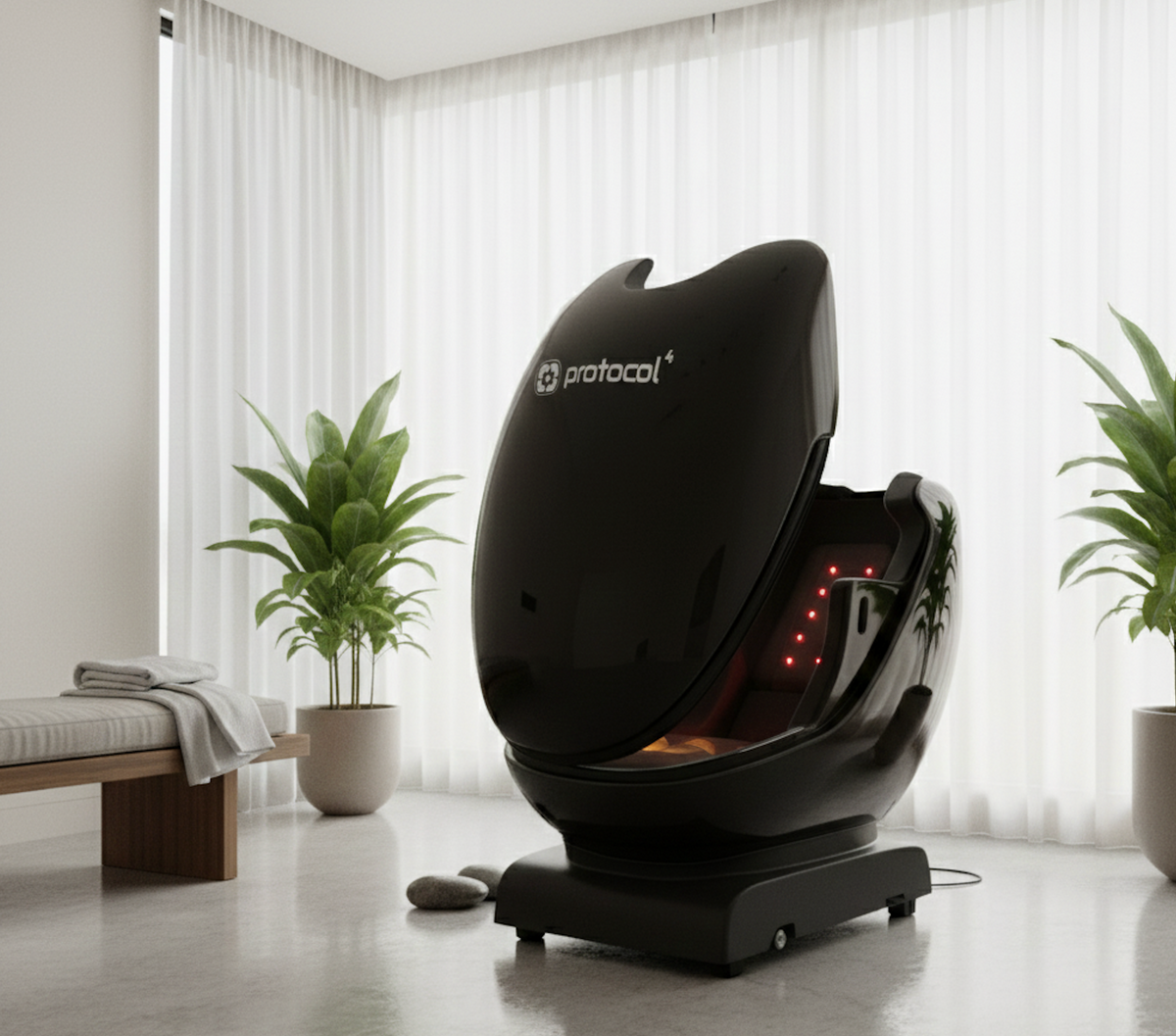

Protocol⁴ The Cocoon P200 Seated Wellness Pod, Dual-Zone Far Infrared Heat, Full-Body Red Light and PEMF with Bluetooth Audio, 63 x 30 x 51 in., 220 V

The Cocoon (model P200) is a seated, fully enclosed wellness pod from Protocol⁴ that runs three technologies in a single session: dual-zone far infrared heat, full-body red and near-infrared light, and pulsed electromagnetic field (PEMF). The user sits inside the reinforced fiberglass shell on a contoured acrylic interior, the canopy closes, and a digital control interface inside the pod sets session time and cabin temperature. Two far infrared heating zones warm the cabin while 18 LED modules line the interior around the seated body. Each module carries two 660 nm red chips and one 850 nm near-infrared chip, for 54 chips in total (36 at 660 nm and 18 at 850 nm) at an irradiance of 33–35 mW/cm². The PEMF system is built into the seat mattress and operates at 8–30 Gauss, and a separate large rotating magnetic unit mounted at the rear of the pod reaches up to 8,000 Gauss. A large-capacity airflow circulation system and internal cooling fans keep air moving so the cabin stays comfortable at temperature, and built-in Bluetooth speakers play audio from a paired phone or tablet. Between users, a built-in ozone sanitation cycle runs with the pod empty. The unit measures 63 x 30 x 51 inches, occupies about 13 square feet of floor space, weighs approximately 220 lbs, and supports users up to approximately 400 lbs. It draws about 1500 W on a 220 V supply and is suited to home, studio, and clinic installation, including use as the warm phase of a contrast routine alongside a cold-therapy unit. Backed by a 1-year limited manufacturer warranty.

• Three Integrated Technologies: Dual-zone far infrared (FIR) heating, full-body 660 nm red and 850 nm near-infrared LED light, and PEMF operate together in one enclosed session.
• LED Light System: 18 LED modules with 54 chips in total (36 x 660 nm red, 18 x 850 nm near-infrared) delivering 33–35 mW/cm² irradiance around the seated body.
• Dual PEMF and Magnetic Output: PEMF integrated into the seat mattress at 8–30 Gauss, plus a large rotating rear magnetic unit rated up to 8,000 Gauss.
• Seated Capsule Design: The egg-shaped fiberglass shell closes around a seated user, with a contoured acrylic interior and a base on casters for positioning.
• Adjustable Sessions: A digital control interface inside the pod sets session length and cabin temperature.
• Airflow and Cooling: Large-capacity air circulation and internal cooling fans maintain airflow throughout the session.
• Bluetooth Audio: Integrated speakers pair with a phone or tablet.
• Ozone Sanitation Cycle: A built-in ozone cycle sanitizes the interior between sessions. For unoccupied use only.
• Specifications: Model P200. 63 L x 30 W x 51 H inches; approximately 13 sq ft installed footprint; approximately 220 lbs net, 240 lbs shipping; maximum user weight approximately 400 lbs; approximately 1500 W at 220 V; reinforced fiberglass shell with acrylic interior. 1-year limited warranty.
