TimeCapsule Vision C900+ – Hard-Shell Monoplace Hyperbaric Chamber, up to 2.0 ATA

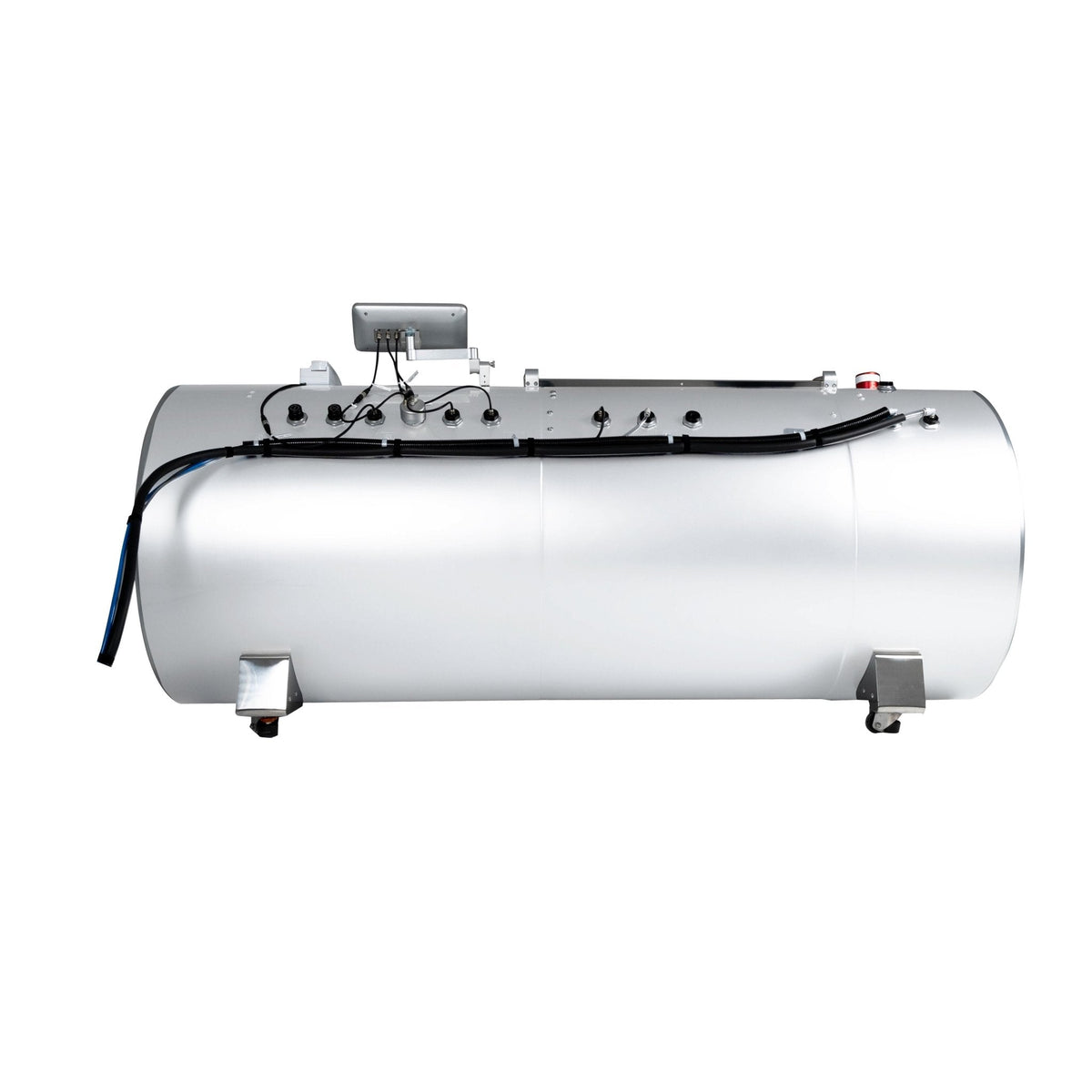

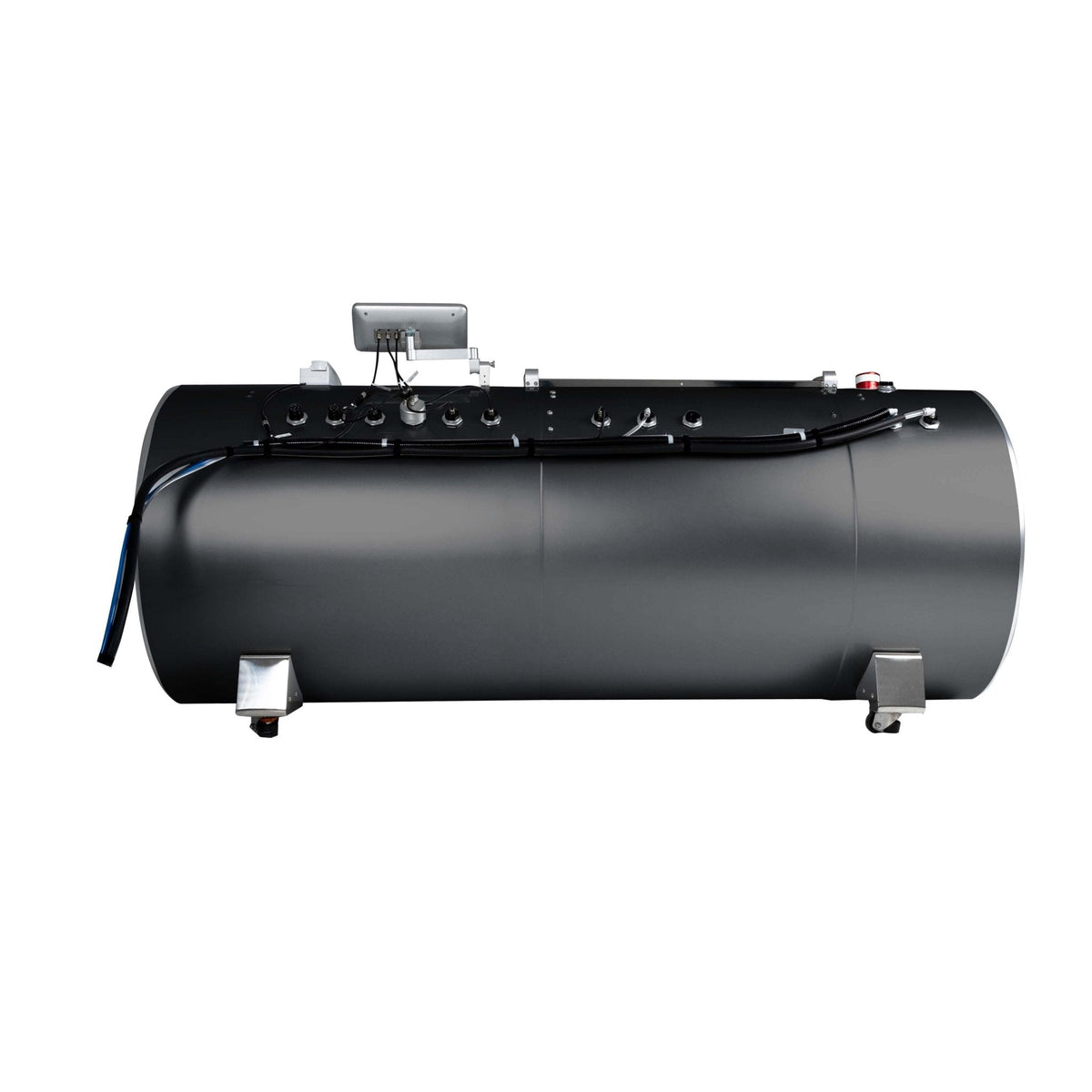

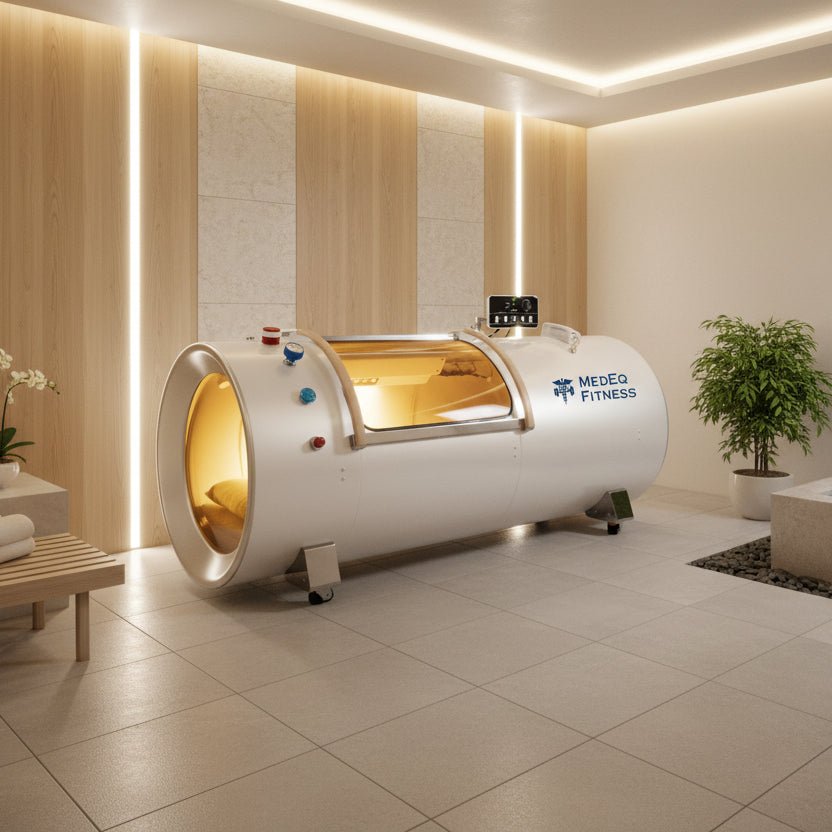

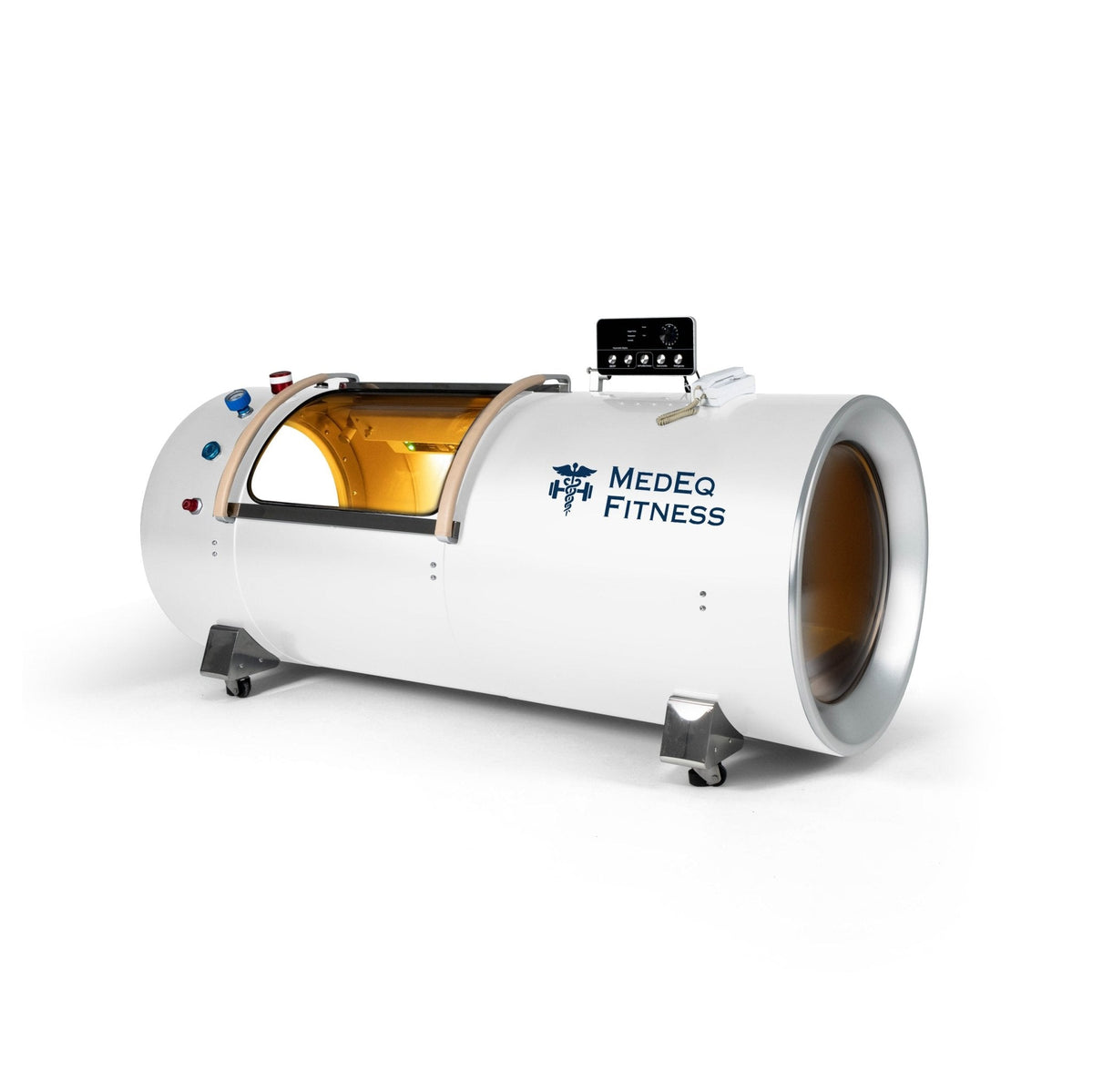

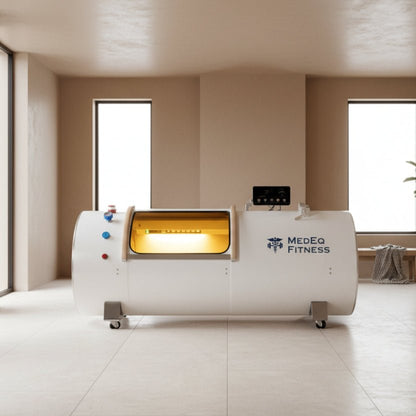

The TimeCapsule Vision C900+ is a hard-shell monoplace hyperbaric chamber built by OxyPrime/OxyRevo from reinforced stainless steel and rated for pressures up to 2.0 ATA. It is the wider chamber in the Vision line, with a 36-inch internal diameter and an 89-inch length, and it is intended for general wellness use in dedicated home installations and wellness facilities.

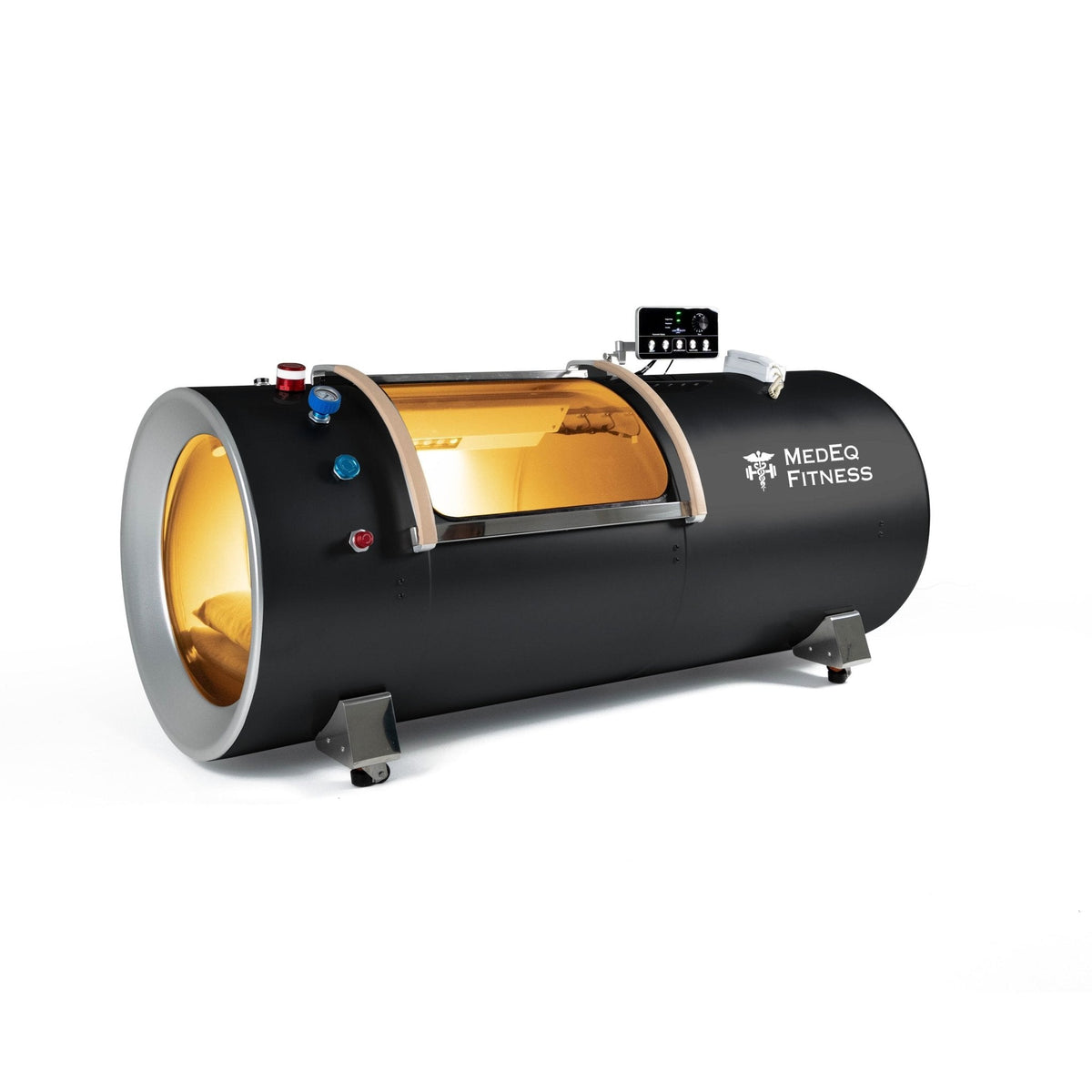

Transparent windows at both the head and foot of the chamber are the defining feature of the design. They open up the interior, give the user a view out in both directions rather than a single porthole, and let anyone outside see the user clearly for the length of a session. Dual internal and external control panels mean the chamber can be run by the person inside it or by someone assisting from outside.
Key Features
Panoramic end-cap windows — transparent at both ends
- Two large transparent windows, one at the head and one at the foot.
- A wide field of view in both directions rather than a single side window.
- The user stays visible from outside for the whole session.
- Multi-layer transparent window construction.
Reinforced stainless steel pressure vessel
- Hard-shell stainless steel construction rather than a fabric shell.
- Rigid vessel holds its shape and internal volume regardless of pressure.
- Operating pressure up to 2.0 ATA, depending on configuration.
- Built for repeated daily pressurization cycles.
Dual control panels and digital monitoring
- Separate control panels inside and outside the chamber.
- The chamber can be operated independently by the user or by an attendant.
- Live displays for session conditions such as temperature, humidity and oxygen concentration, where fitted.
- Two-way communication system between inside and outside.
Door sensor and safety interlock
- Sensor confirms the door is closed and sealed before the chamber will pressurize.
- Prevents the compressor from running against an improperly secured door.
- Door status is confirmed on the control display.
Integrated climate control and air filtration
- Cooling modules manage interior temperature during longer sessions.
- Humidity management keeps the interior from becoming close.
- Filtration and air-quality modules, depending on configuration.
Optional Built-In Breathing System (BIBS)
- Mask-based system that delivers concentrated oxygen directly to the user.
- Because oxygen goes to the mask rather than into the chamber, cabin oxygen stays near ambient levels, which is the safer arrangement in a pressurized steel vessel.
- Dedicated exhaust pathway carries exhaled gas out of the chamber.
- Available as an upgrade at the time of order.
Specifications
| Chamber type | Hard-shell monoplace hyperbaric chamber |
| Working pressure | 1.5 ATA, 1.6 ATA, or up to 2.0 ATA depending on configuration |
| Length | 220 cm (89 in) |
| Internal diameter | 90 cm (36 in) |
| Weight | 260 kg (563 lb) |
| Material | Reinforced stainless steel |
| Windows | 2 transparent end-cap windows, multi-layer construction |
| Oxygen supply | Concentrator output of 90–97% purity, delivered to the user by mask or by the optional BIBS |
| Chamber colour | White or black; custom colour available |
| Manufacturer | OxyPrime / OxyRevo |
What's Included
| Chamber system | Internal and external controls; display screens; communication system; pressure relief and deflation valves; LED lighting; mobility wheels |

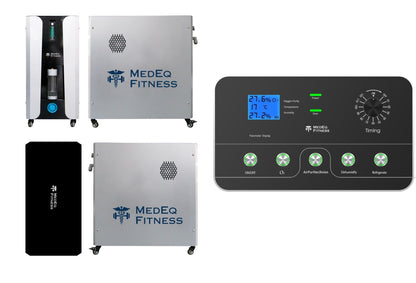

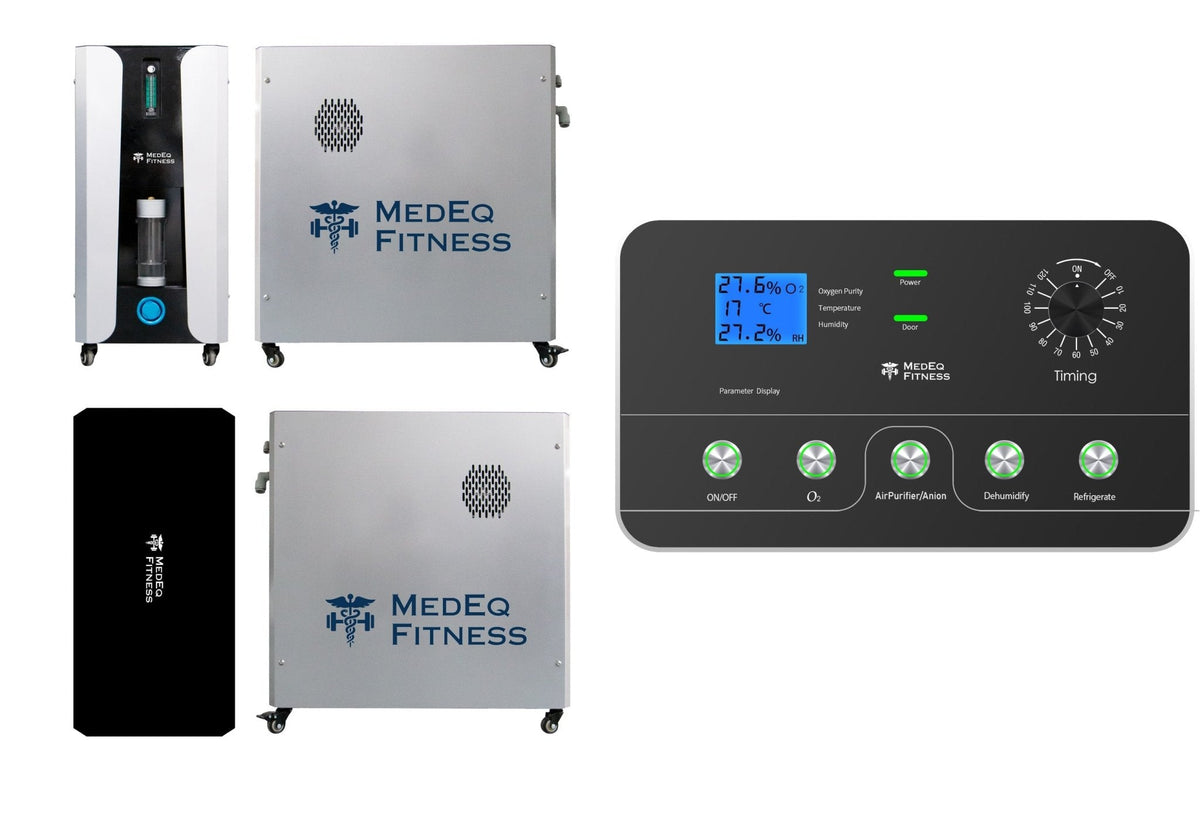

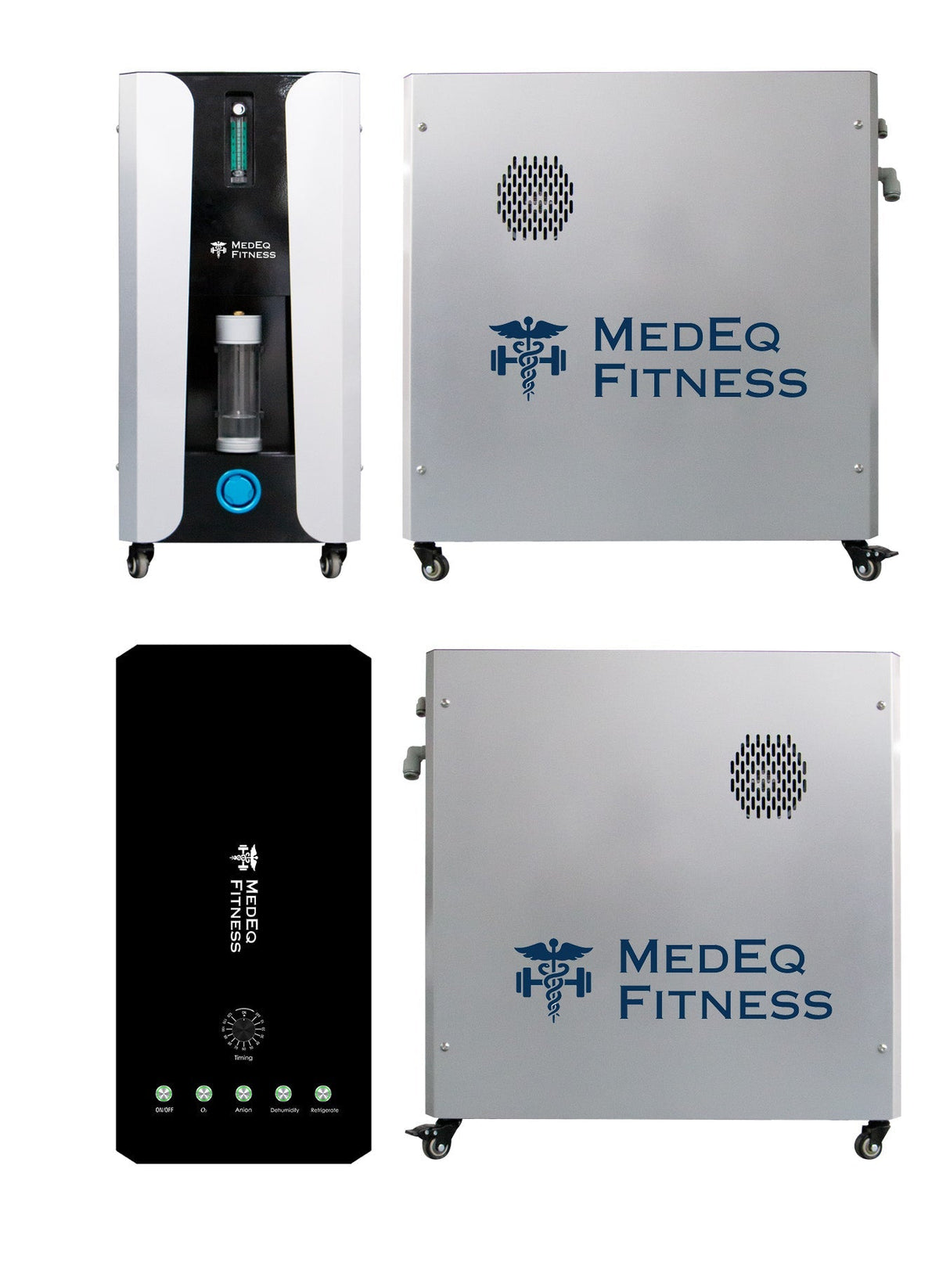

| All-in-one operating unit | Oil-free air compressor; oxygen concentrator; cooling modules; filtration and humidity management; air-quality modules, depending on configuration |
| Accessories | Oxygen mask; tubing; spare filters and fuses; power cable |

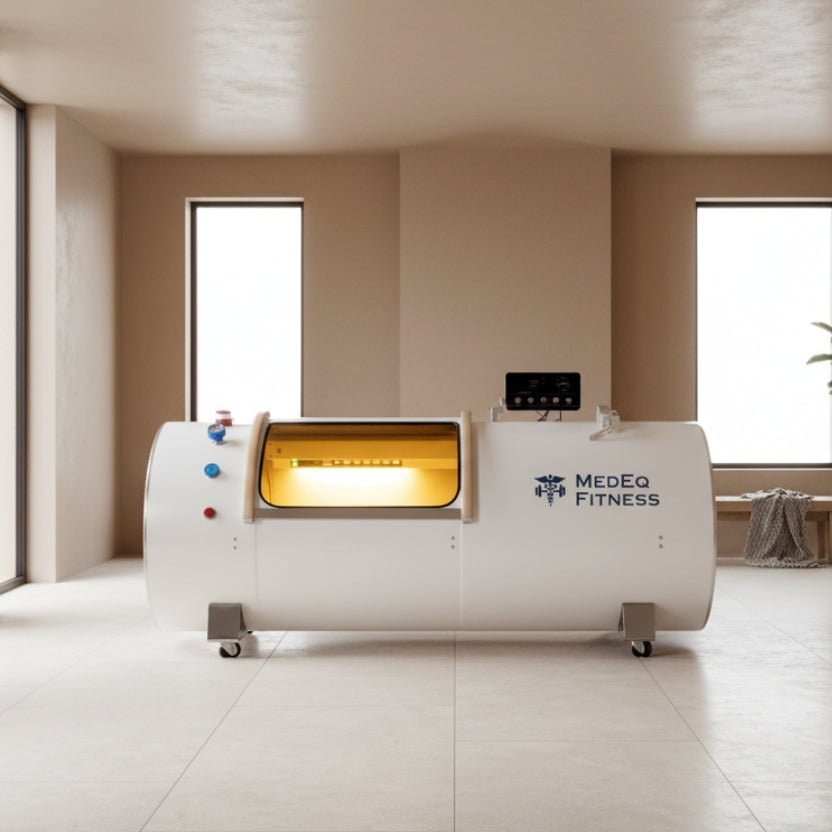

Installation and Siting
- At 260 kg (563 lb) and 220 cm (89 in) long, the chamber needs a prepared location and a clear delivery path; mobility wheels are for positioning once it is in the room, not for moving it between floors.
- Confirm floor loading, doorway and corridor clearances, and electrical supply before ordering.
- Allow clearance at both ends so the end-cap windows stay unobstructed and the door has room to open fully.
Important Information
This chamber is not cleared or approved by the U.S. Food and Drug Administration, and it is sold for general wellness and relaxation use only. It is not intended to diagnose, treat, cure or prevent any disease or medical condition, and it is not a substitute for medical care. Hyperbaric oxygen therapy is a distinct medical treatment that the FDA has cleared for specific indications, delivered under medical supervision using cleared devices; this product is not offered for those indications and no such use is claimed or supported.
Consult a qualified physician before using a hyperbaric chamber, particularly if you are pregnant or have an ear, sinus, lung, cardiac or seizure condition. A pressurized oxygen environment carries fire risk: read the user manual in full and follow all operating and safety instructions, including the restriction on bringing ignition sources, aerosols, oils, hand warmers or electronic devices into the chamber. This chamber should be installed and commissioned by qualified personnel.
