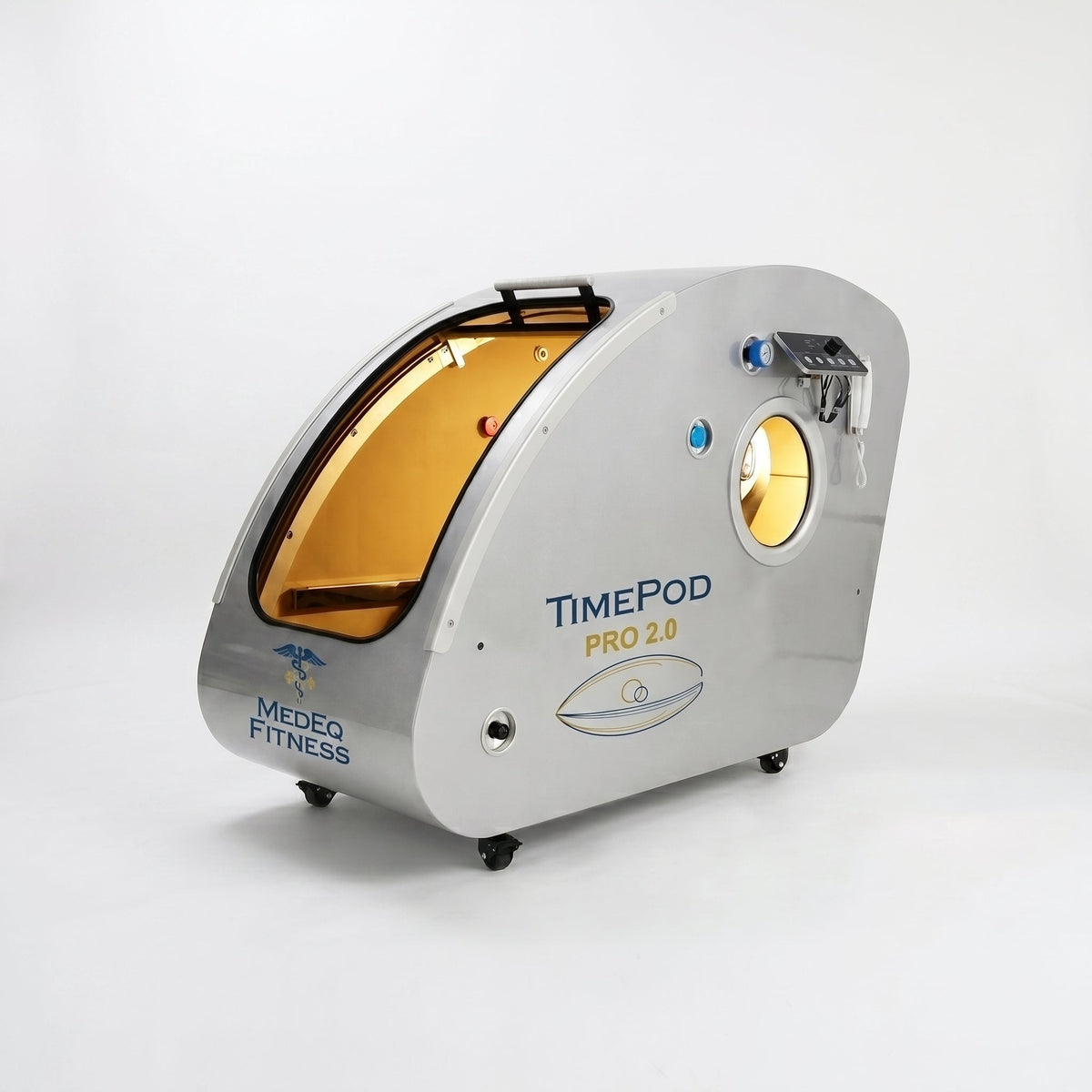

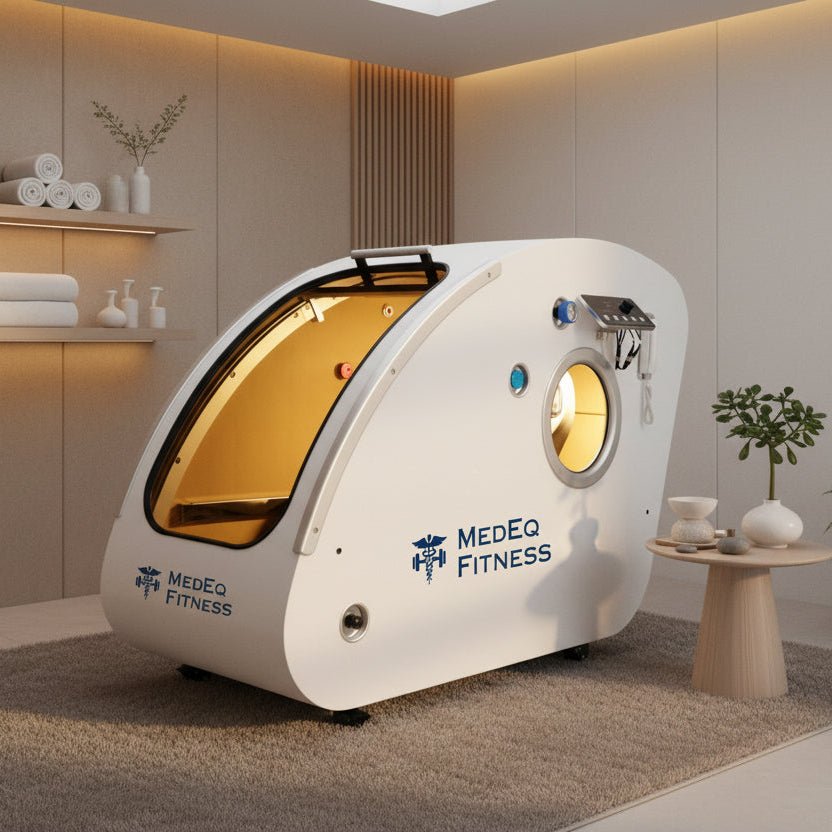

TimePod 2 – Triangular Hard-Shell Monoplace Hyperbaric Chamber, 1.3–2.0 ATA

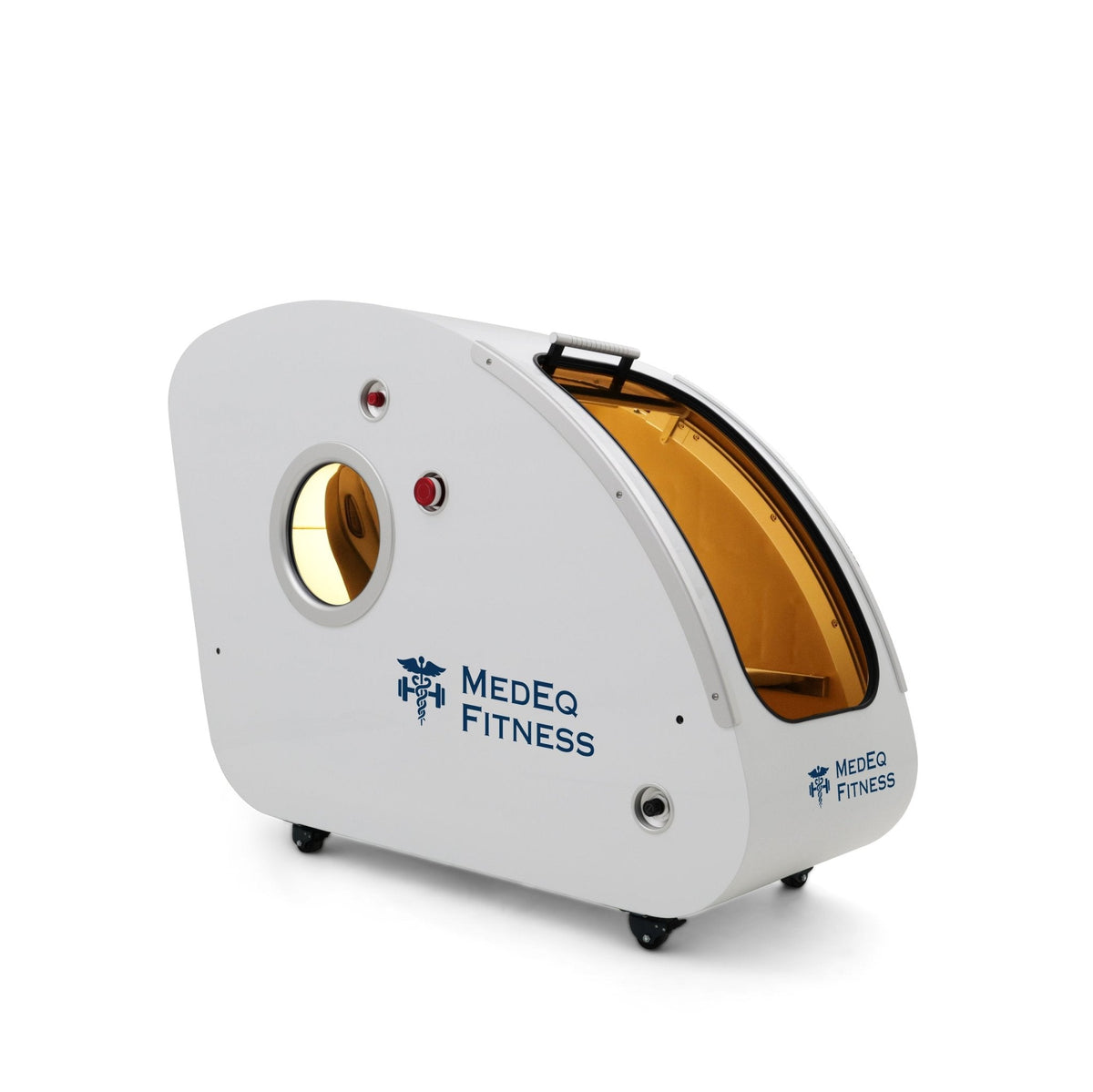

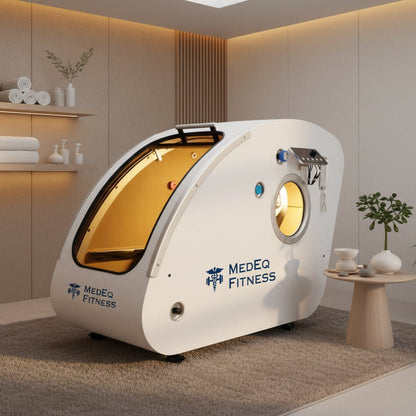

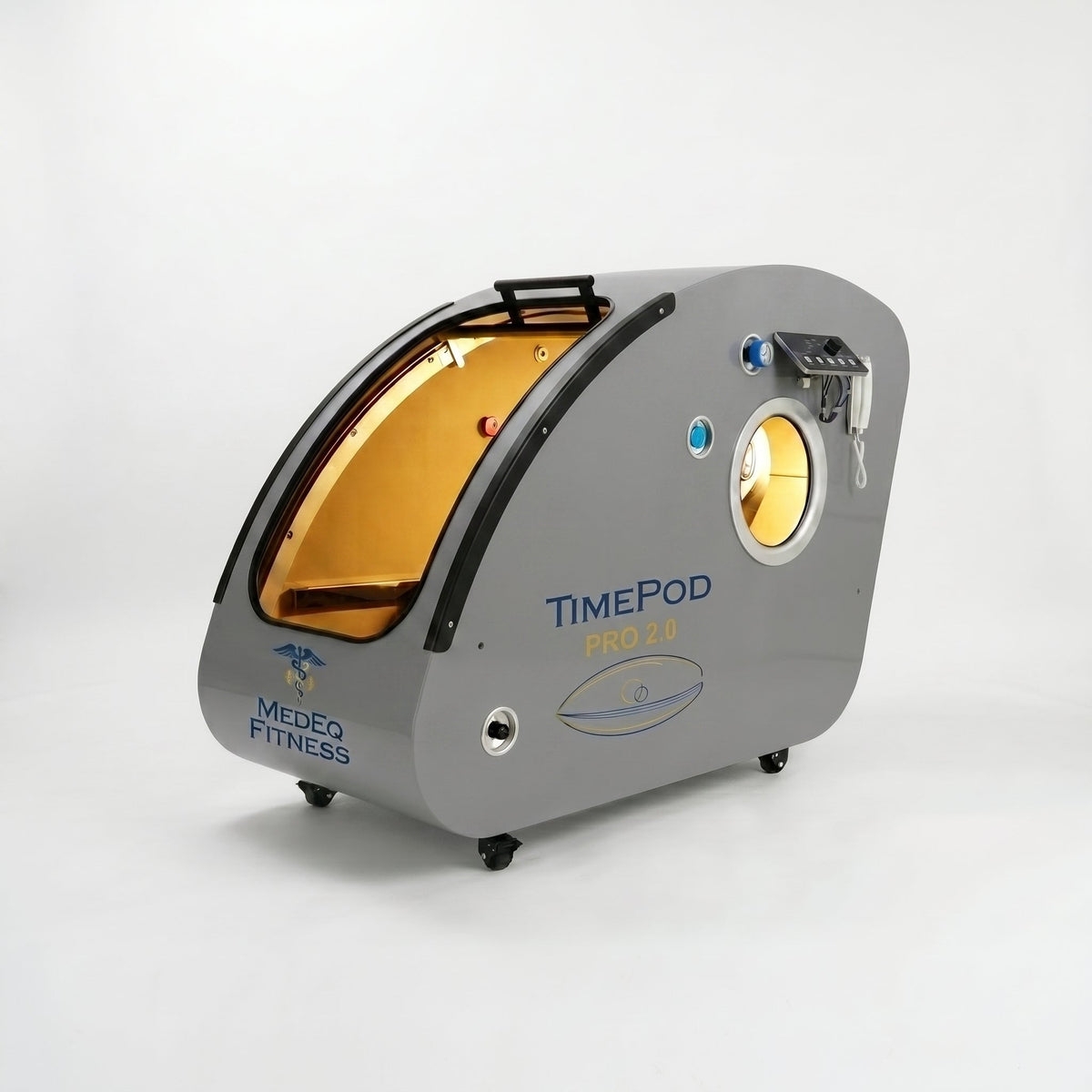

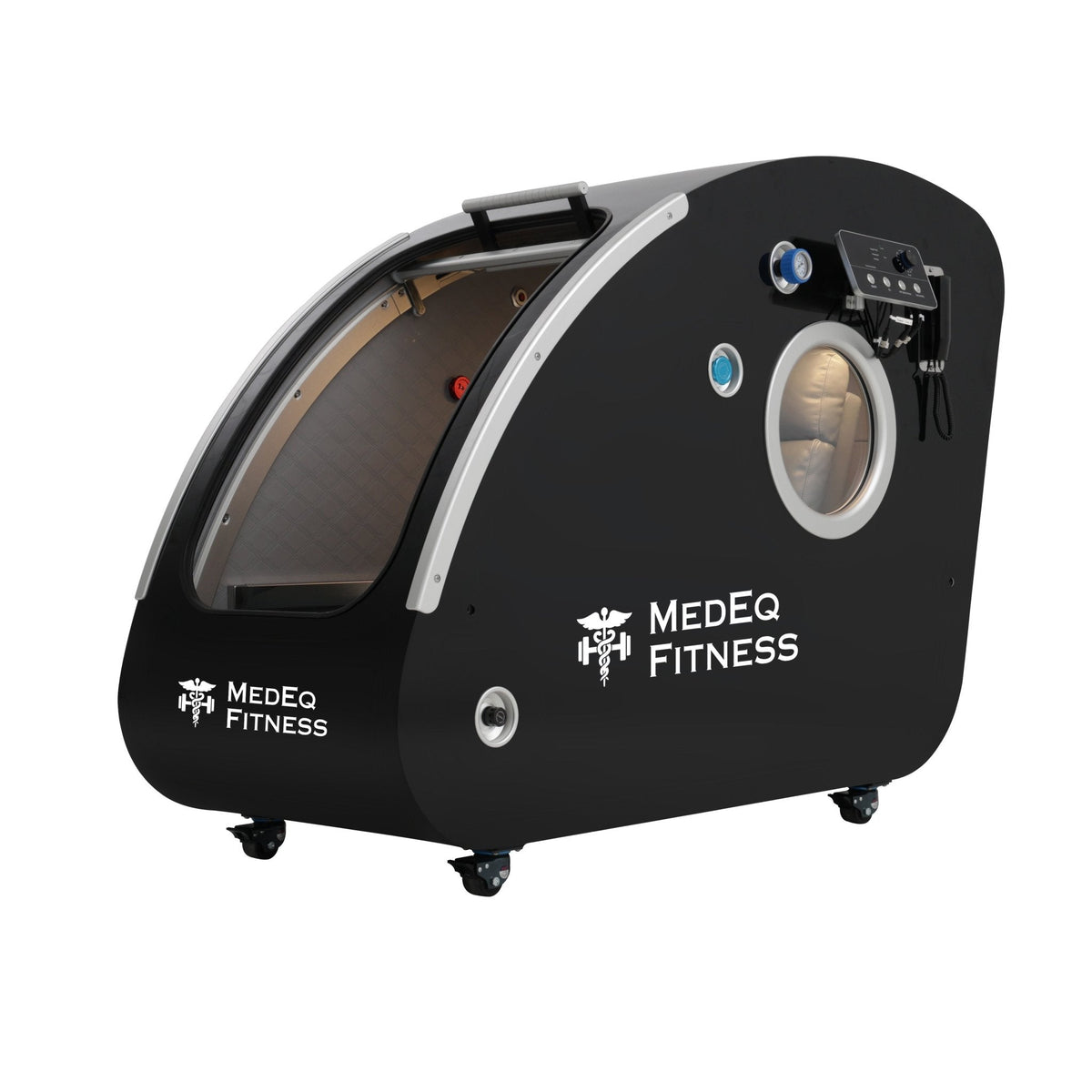

The TimePod 2 is a hard-shell monoplace hyperbaric chamber built by OxyPrime/OxyRevo around a triangular cabin. The geometry is the point: the triangular cross-section holds usable internal volume while occupying roughly 1.62 m² of floor, so the chamber fits rooms that will not take a full cylindrical vessel of equivalent capacity.
Pressure is adjustable from 1.3 to 2.0 ATA. The chamber pairs with the same integrated host console used on the TimePod 01, which combines oxygen generation, air management and climate control in one unit rather than several separate machines. A mask-based Built-In Breathing System and an internal light panel are available as upgrades at the time of order.
Key Features
Triangular cabin geometry — volume without the floor space
- Triangular cross-section occupies approximately 1.62 m² of floor.
- Smaller occupied footprint than a cylindrical chamber of comparable internal volume.
- Fits rooms where a traditional cylinder will not, including converted home gyms and spare rooms.
- Sliding door entry, revised on this generation.
Adjustable pressure, 1.3 to 2.0 ATA
- Configurations available at 1.3, 1.5, 1.7 and 2.0 ATA.
- A single chamber covers the low-pressure range and the 2.0 ATA range.
- Set points let a new user start low and step up as they get comfortable equalizing.
Nickel-steel alloy pressure shell
- Pressure-rated nickel-steel alloy shell, corrosion resistant.
- Built for repeated pressurization cycles at the top of its range.
- Powder-coated exterior finish, selected to minimize off-gassing into the cabin.
- Reinforced seams and hardware throughout.

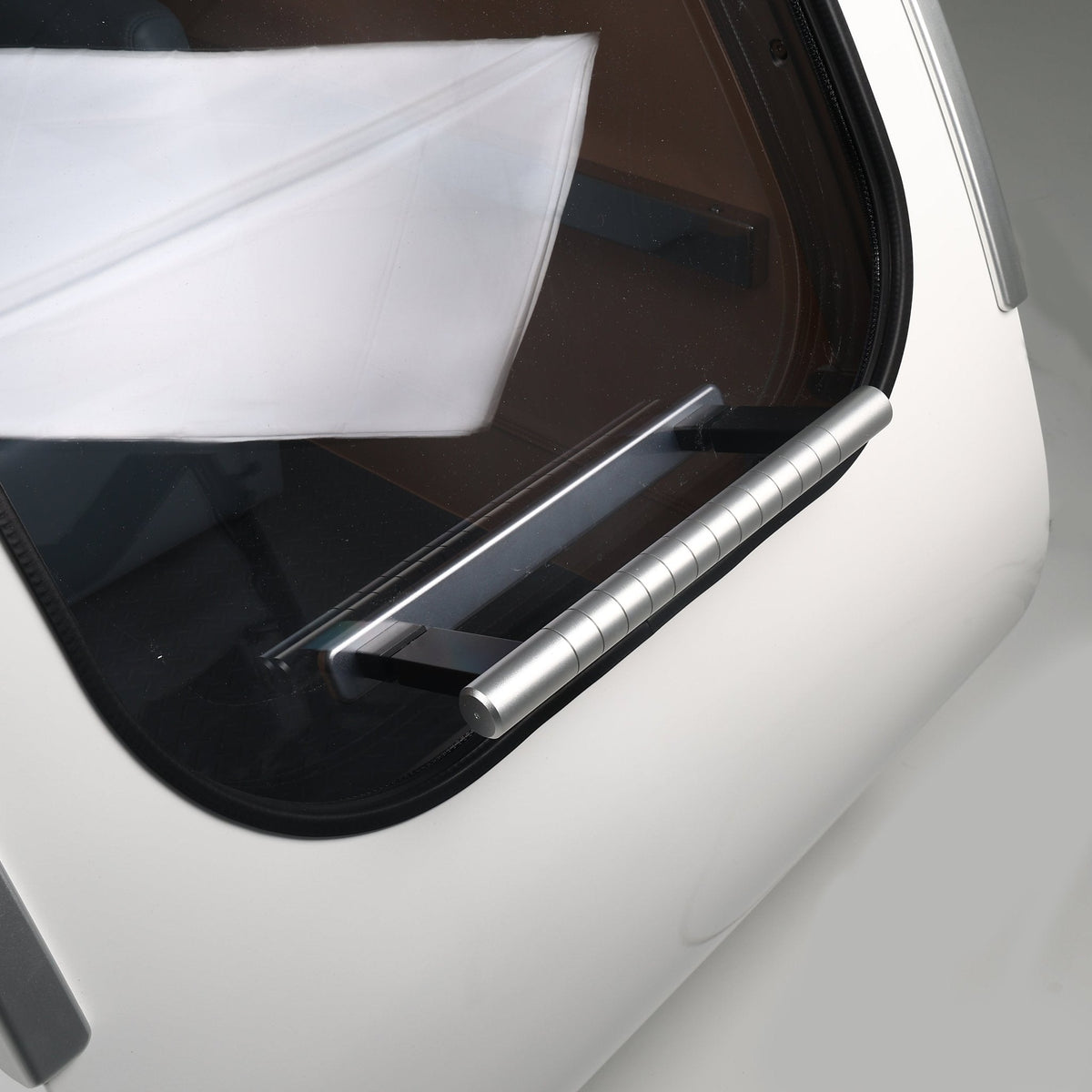

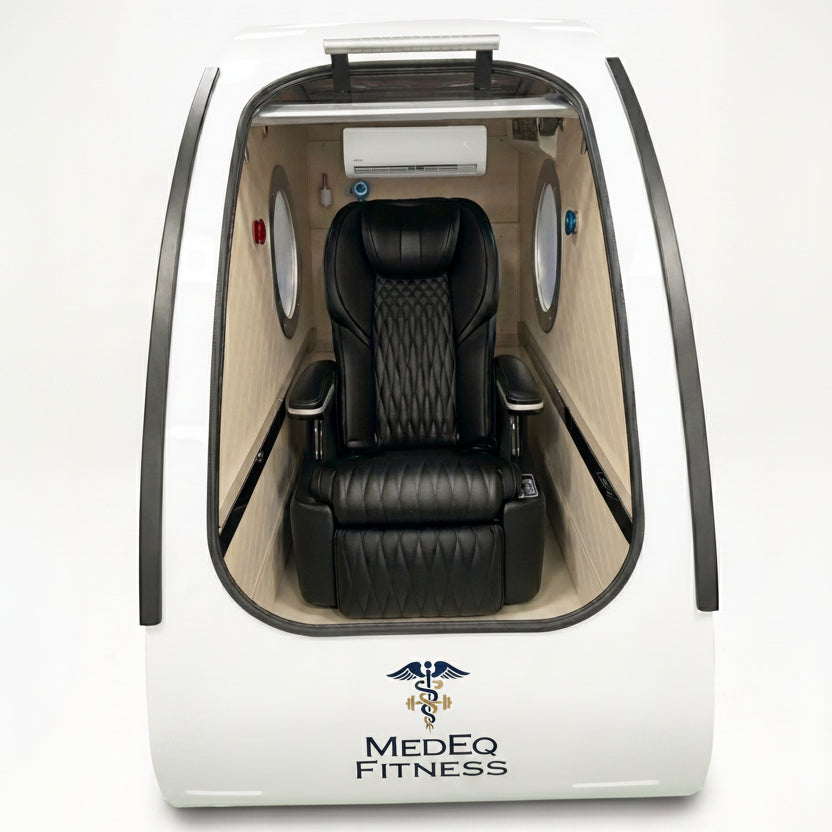

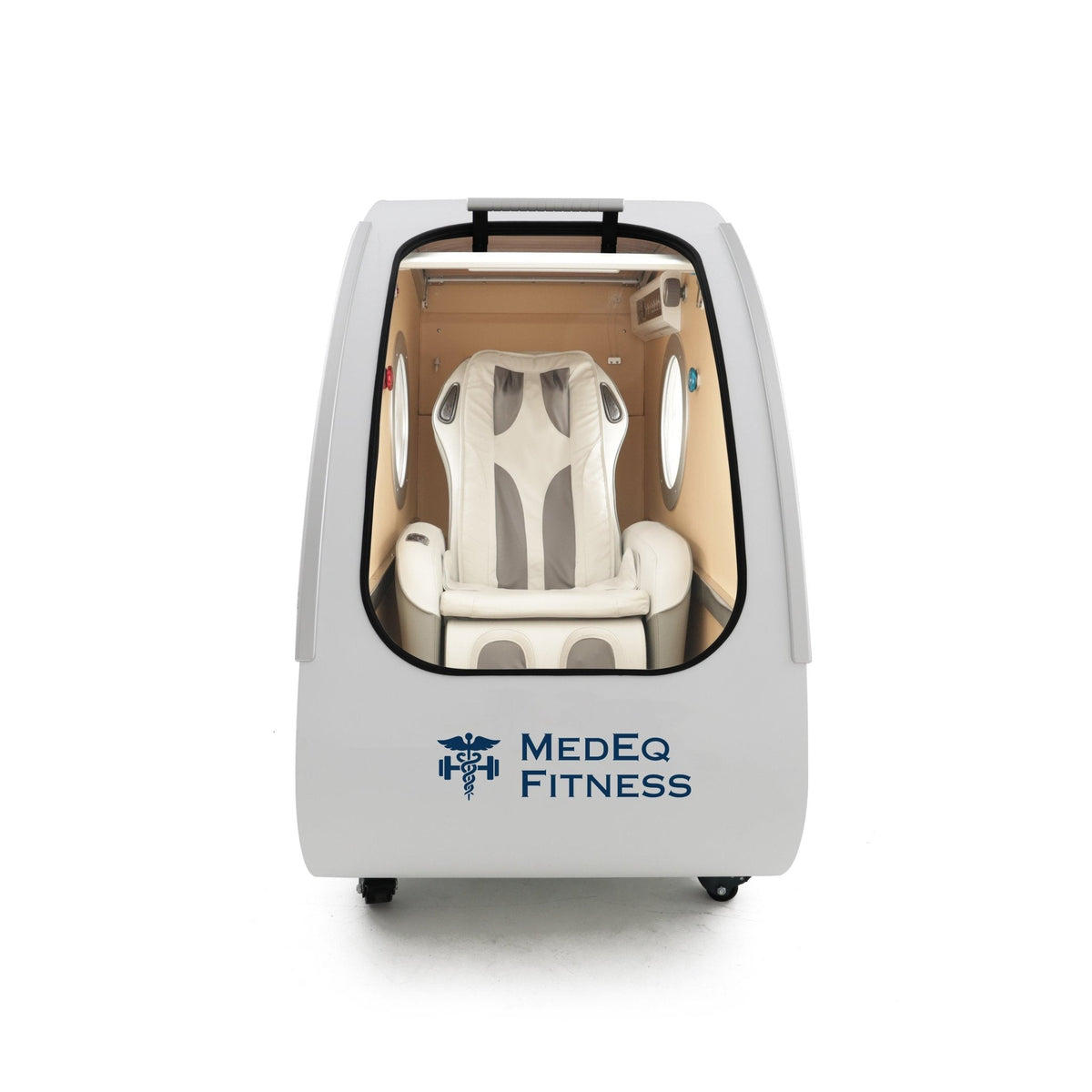

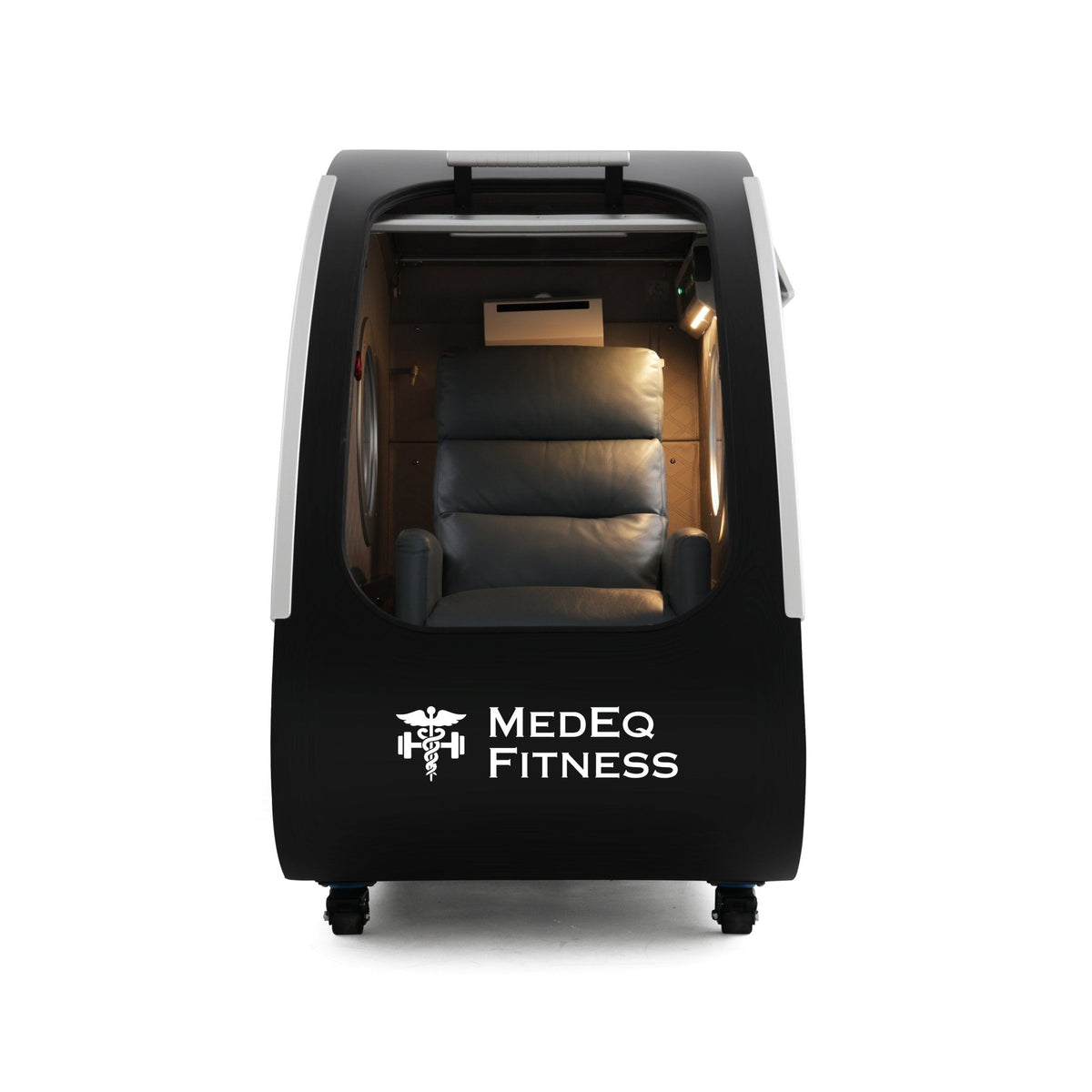

High-transparency lift-up door
- Lift-up door with a large high-transparency panel.
- Opens wide for entry and exit without the user having to duck through a narrow hatch.
- The user stays visible from outside for the whole session.
- Safety interlocks and an emergency release.

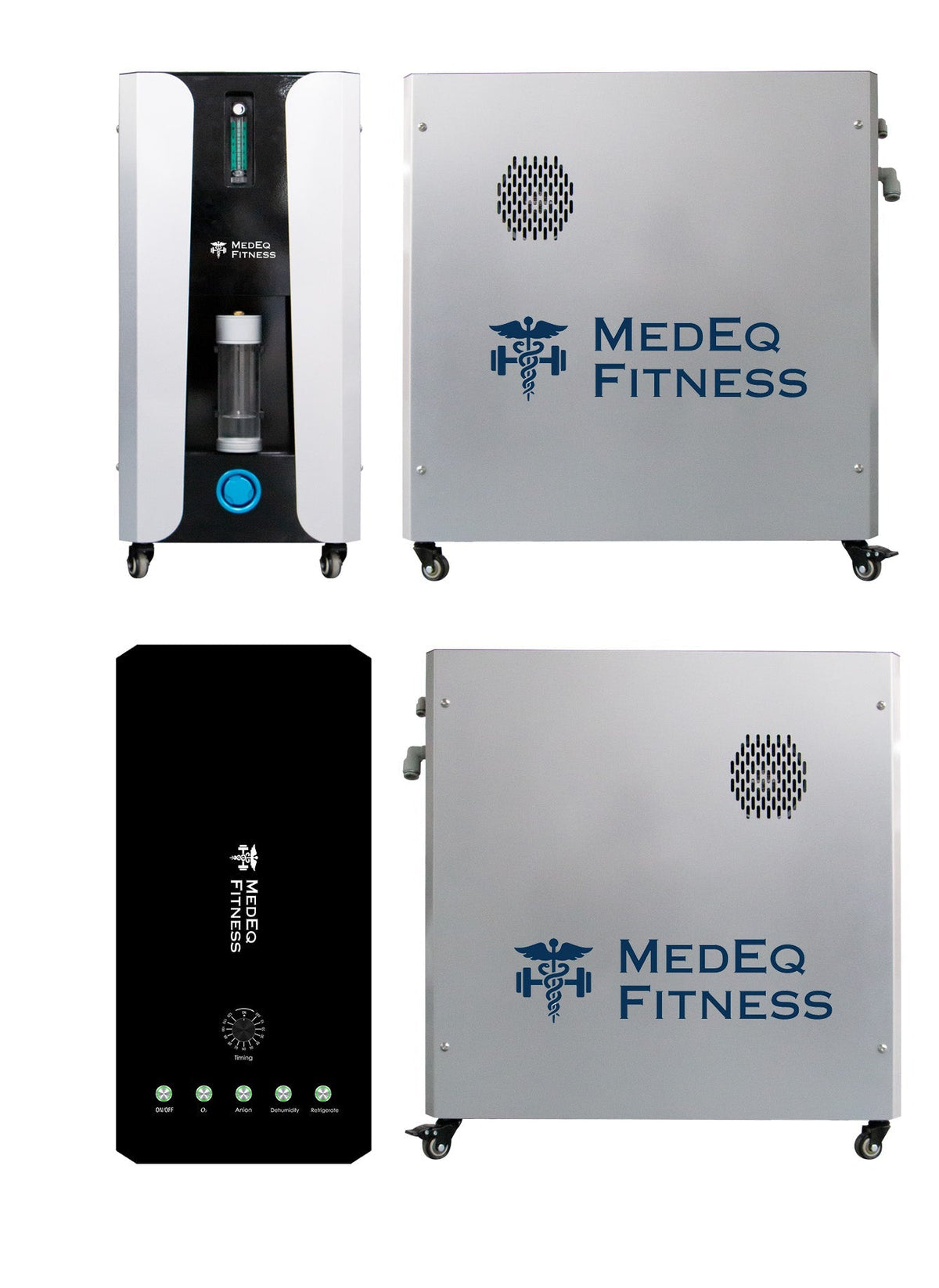

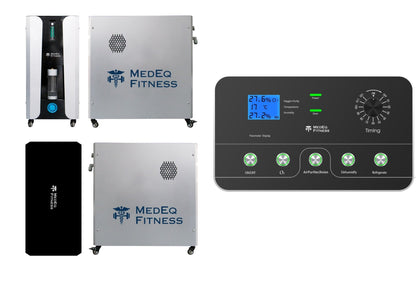

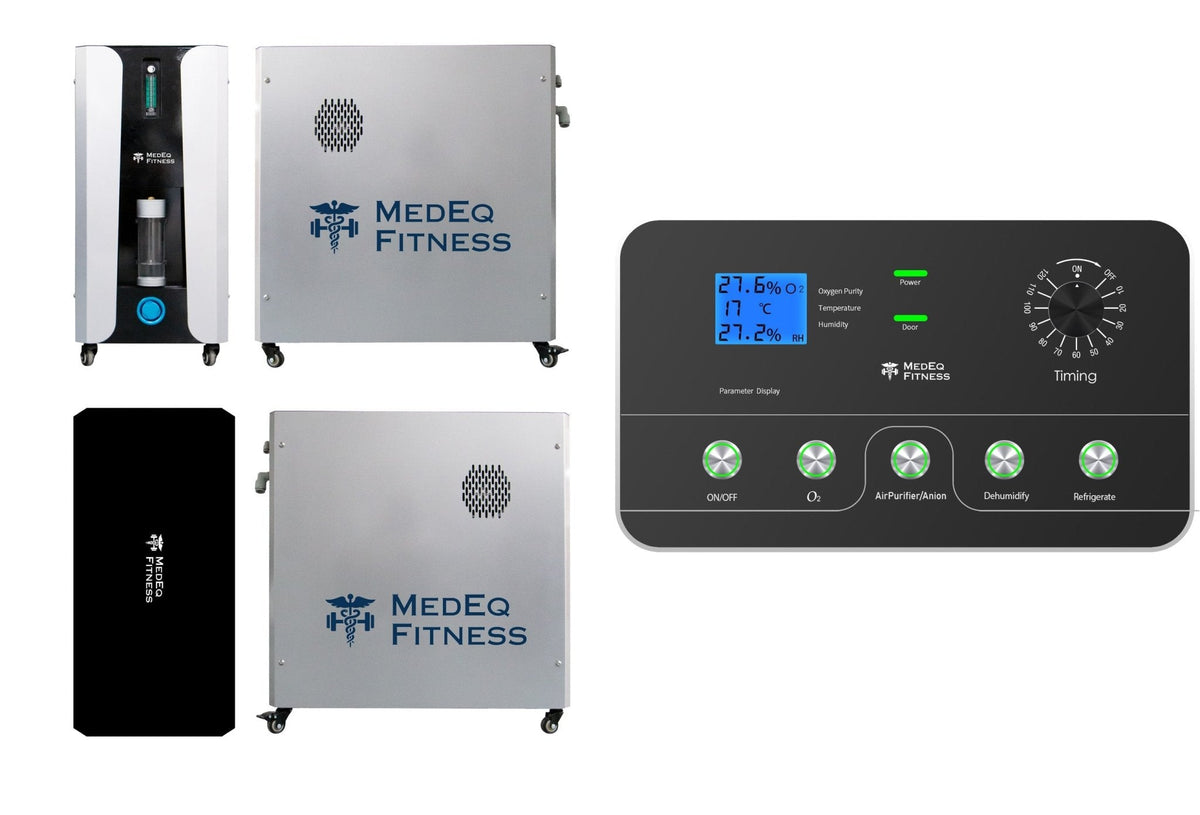

Integrated host console — air, oxygen and climate in one unit
- Single console handles chamber pressurization, oxygen supply and climate control.
- PSA oxygen generation produces oxygen continuously, so there are no tanks to refill or store.
- Cooling and dehumidification keep the cabin comfortable at higher pressures, where heat and humidity build up fastest.
- Shares the host architecture used on the TimePod 01.
Cabin air handling
- Filtration and air treatment modules, depending on configuration.
- Air is conditioned continuously rather than only between sessions.
- Filters are serviceable from the host unit.
Quiet operation with live readouts
- Cabin and host tuned to a target of 50 dB or below in normal operation.

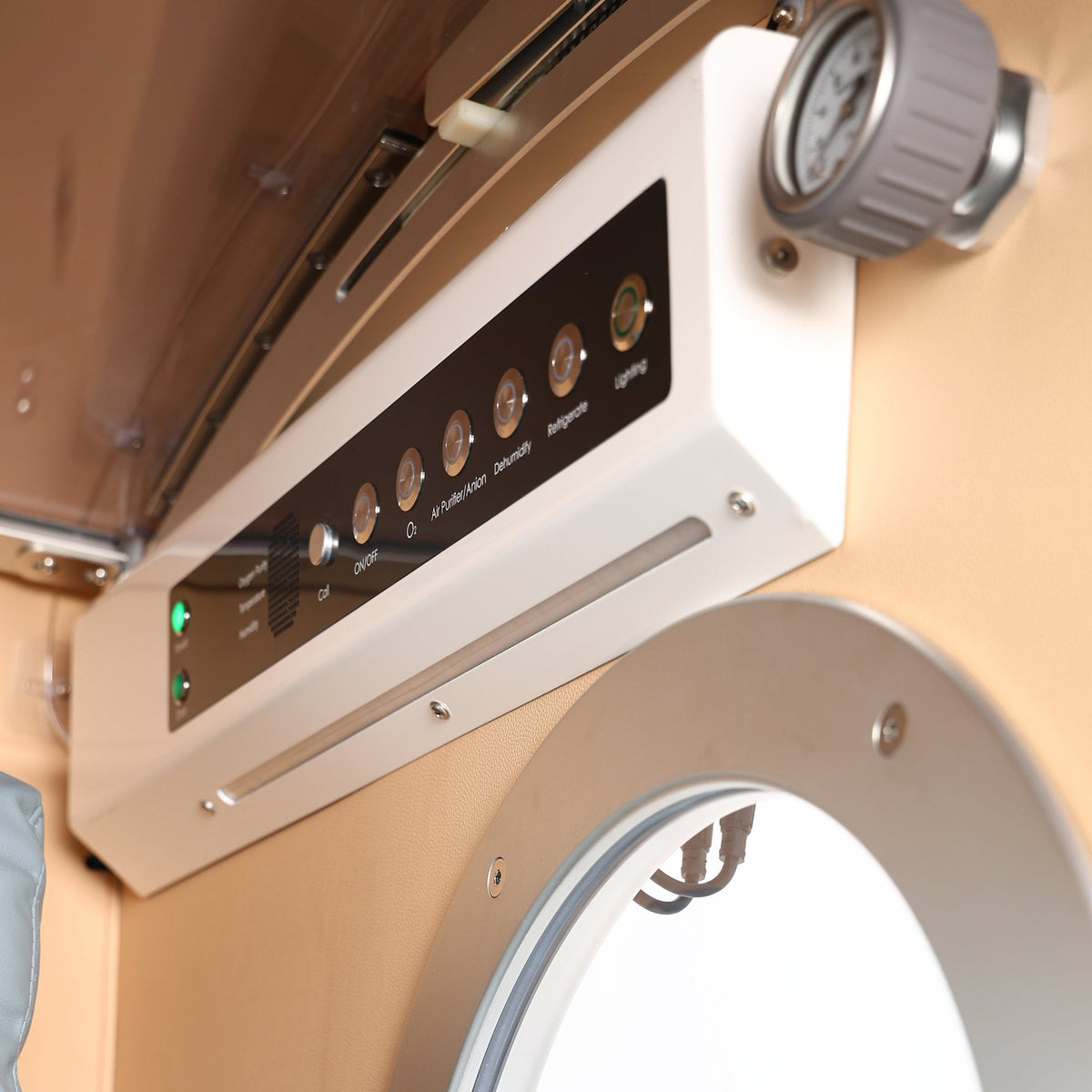

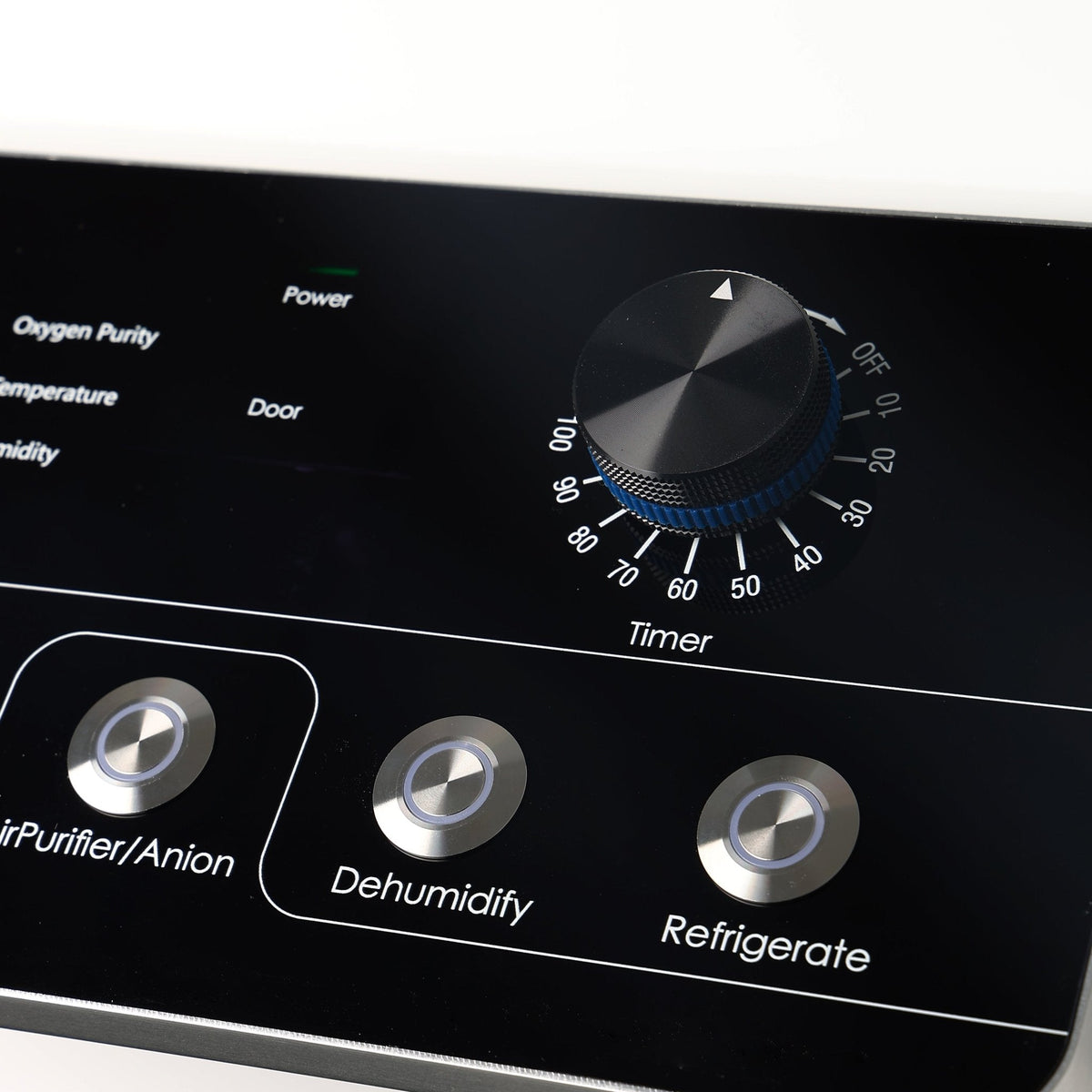

- Internal and external displays show pressure, oxygen and, where configured, temperature and humidity.
- The user inside and anyone outside see the same operating data.

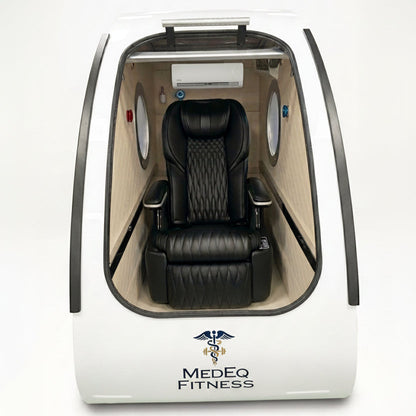

Monoplace cabin — one adult per session
- Single-occupant chamber with finished interior surfaces.
- Castors under the base allow repositioning during a room build-out.

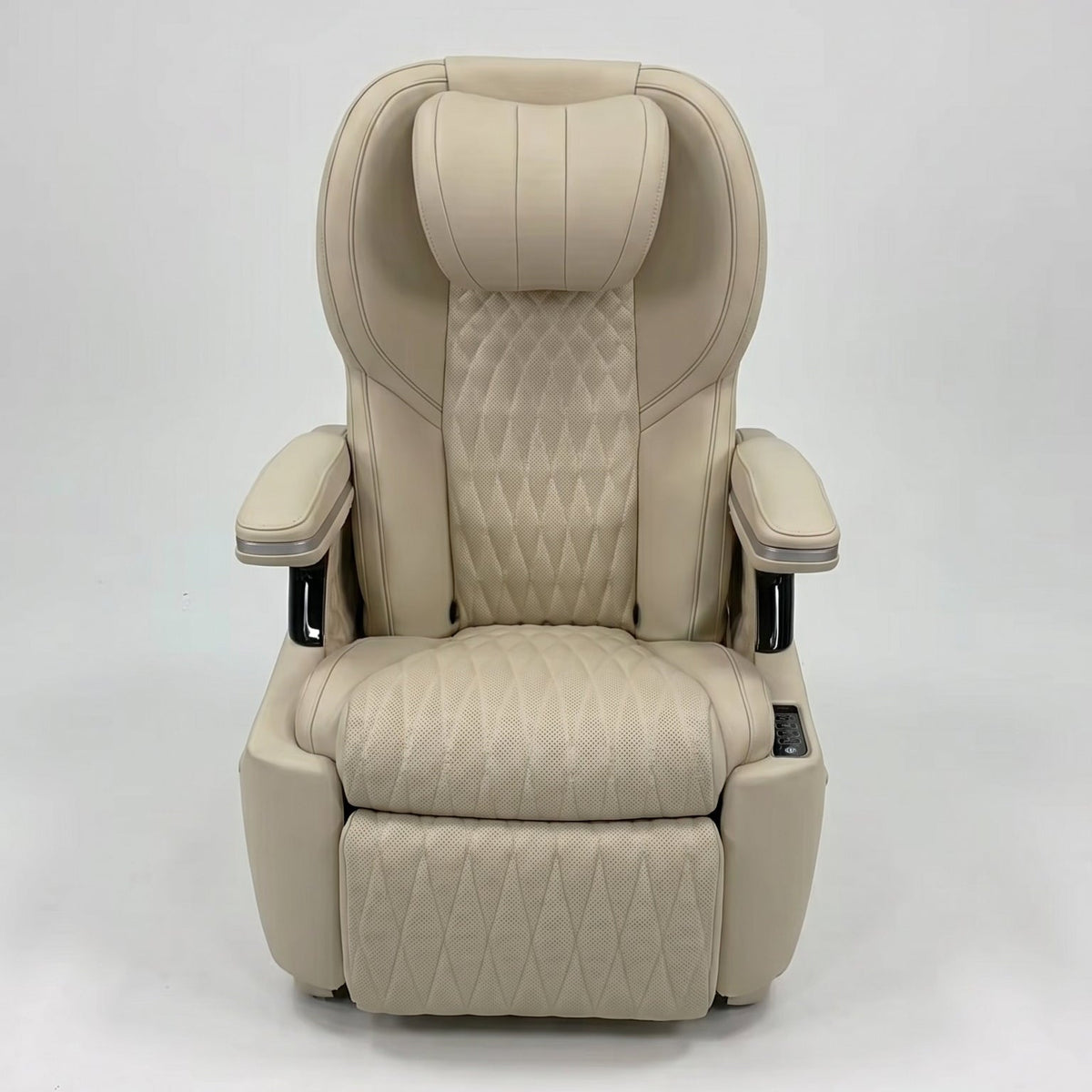

- Interior upholstery, cushions and colour accents available as options.
Chamber Specifications
| Chamber type | Triangular hard-shell monoplace hyperbaric chamber |

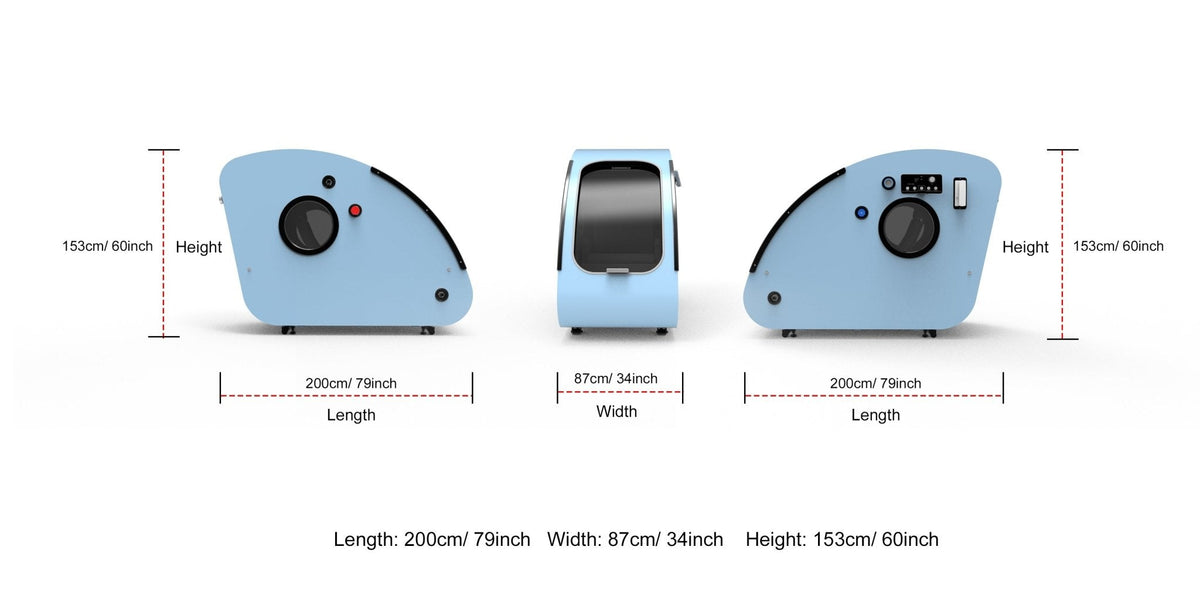

| External dimensions | Approx. 200 × 87 × 153 cm (79 × 34 × 60 in), L × W × H |
| Weight | 600 kg (1,325 lb) |
| Occupied floor space | Approx. 1.62 m², triangular footprint |
| Material | Nickel-steel alloy pressure shell, powder-coated exterior; composite and TPU-based interior finishes |
| Operating pressure | Adjustable 1.3–2.0 ATA; configurations at 1.3 / 1.5 / 1.7 / 2.0 ATA |
| Capacity | 1 adult (monoplace) |
| Noise level | Target 50 dB or below in normal operation |
| Power supply | AC 110 V 60 Hz or 220 V 50 Hz, model dependent |

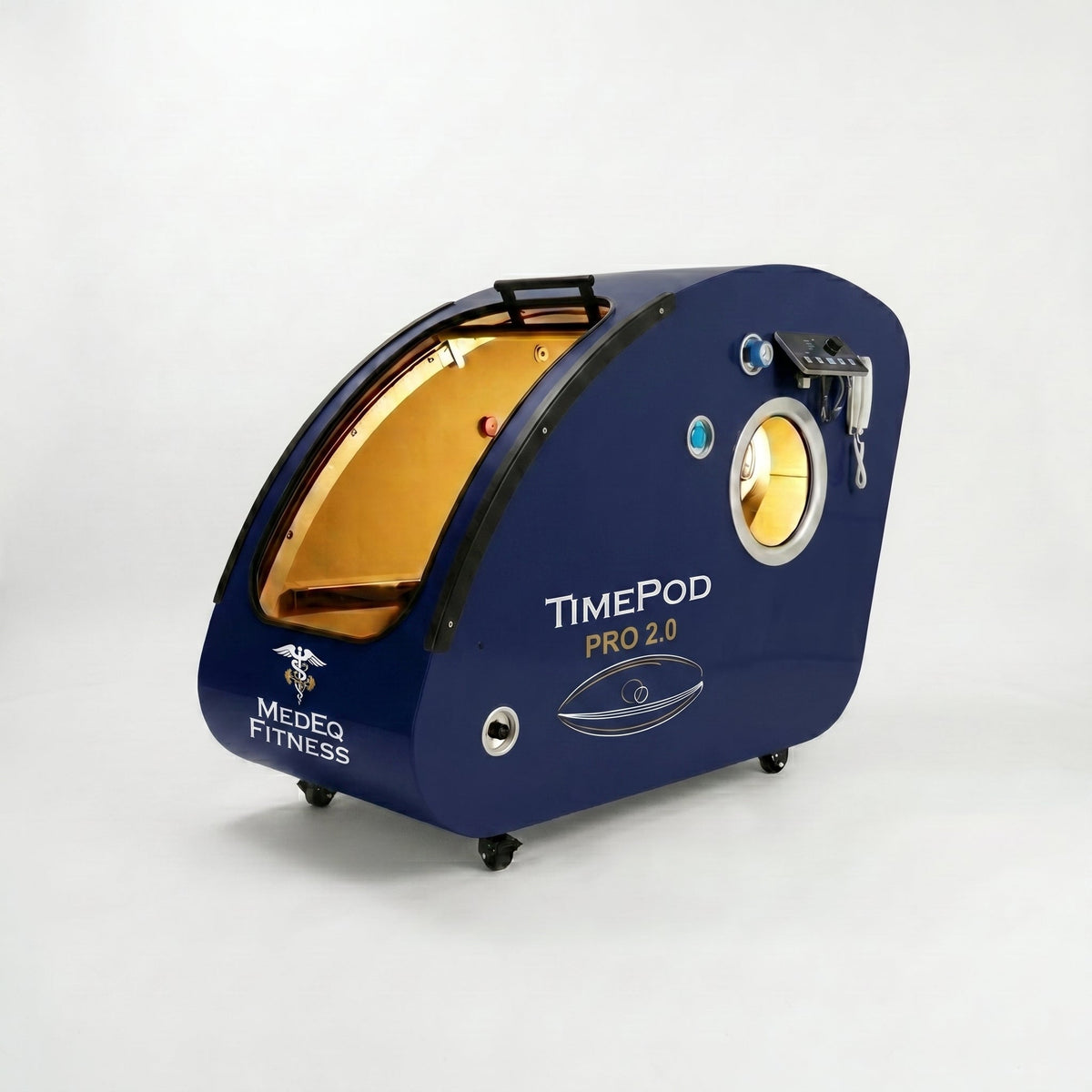

| Exterior colour | White, black, blue, grey or silver |
| Manufacturer | OxyPrime / OxyRevo |
Oxygen and Climate System
| Oxygen supply | High-flow PSA oxygen generation, approx. 10–15 L/min, sized for operation up to 2.0 ATA |
| Oxygen concentration | 90% or above at the oxygen outlet, configuration dependent; delivered to the user by mask, not into the cabin |
| Air and pressurization | Air compressor and chamber control integrated into the host console |
| Cooling and dehumidification | Maintains cabin temperature and humidity at elevated pressure |
| Air treatment | Filtration and ionization modules, configuration dependent |
Safety and Controls

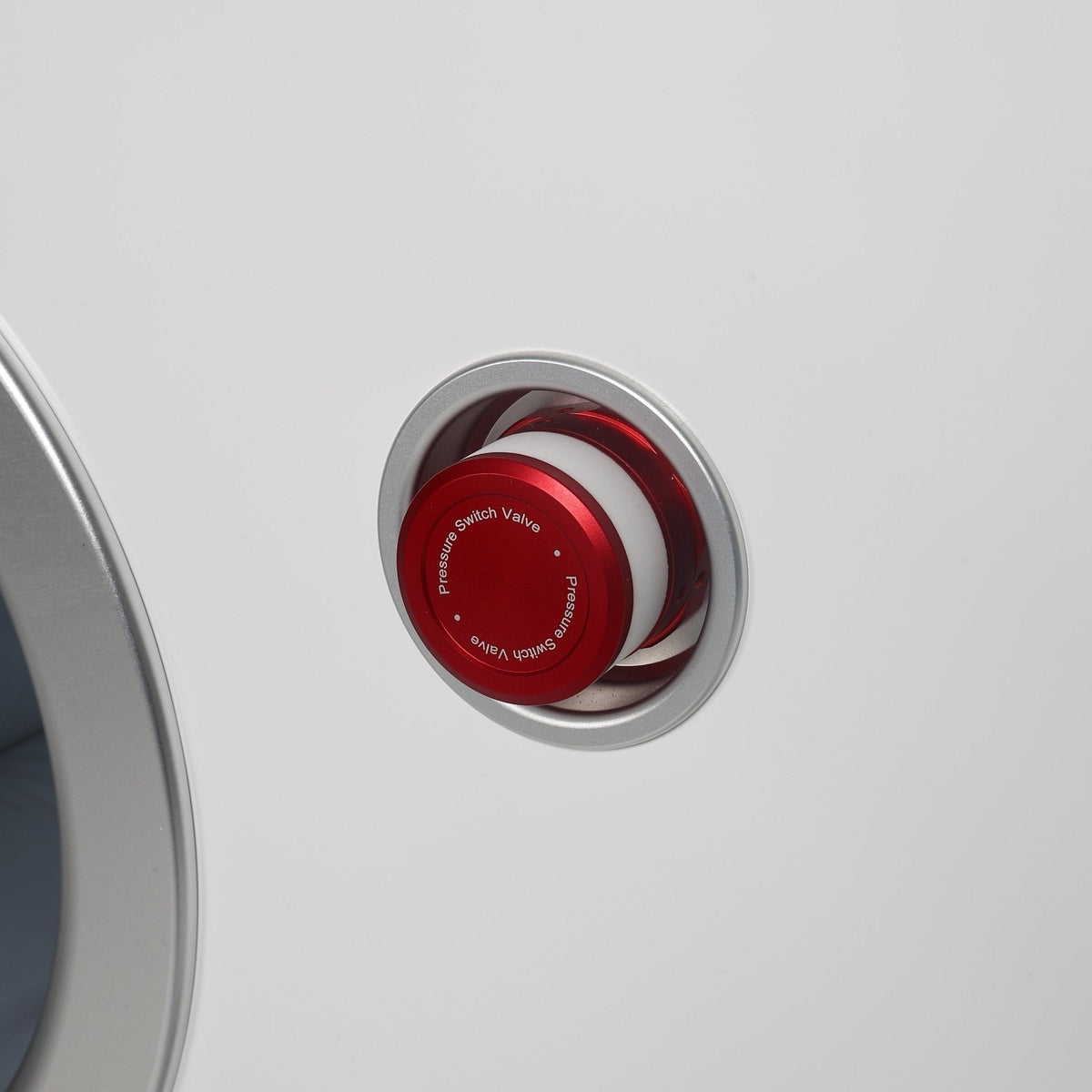

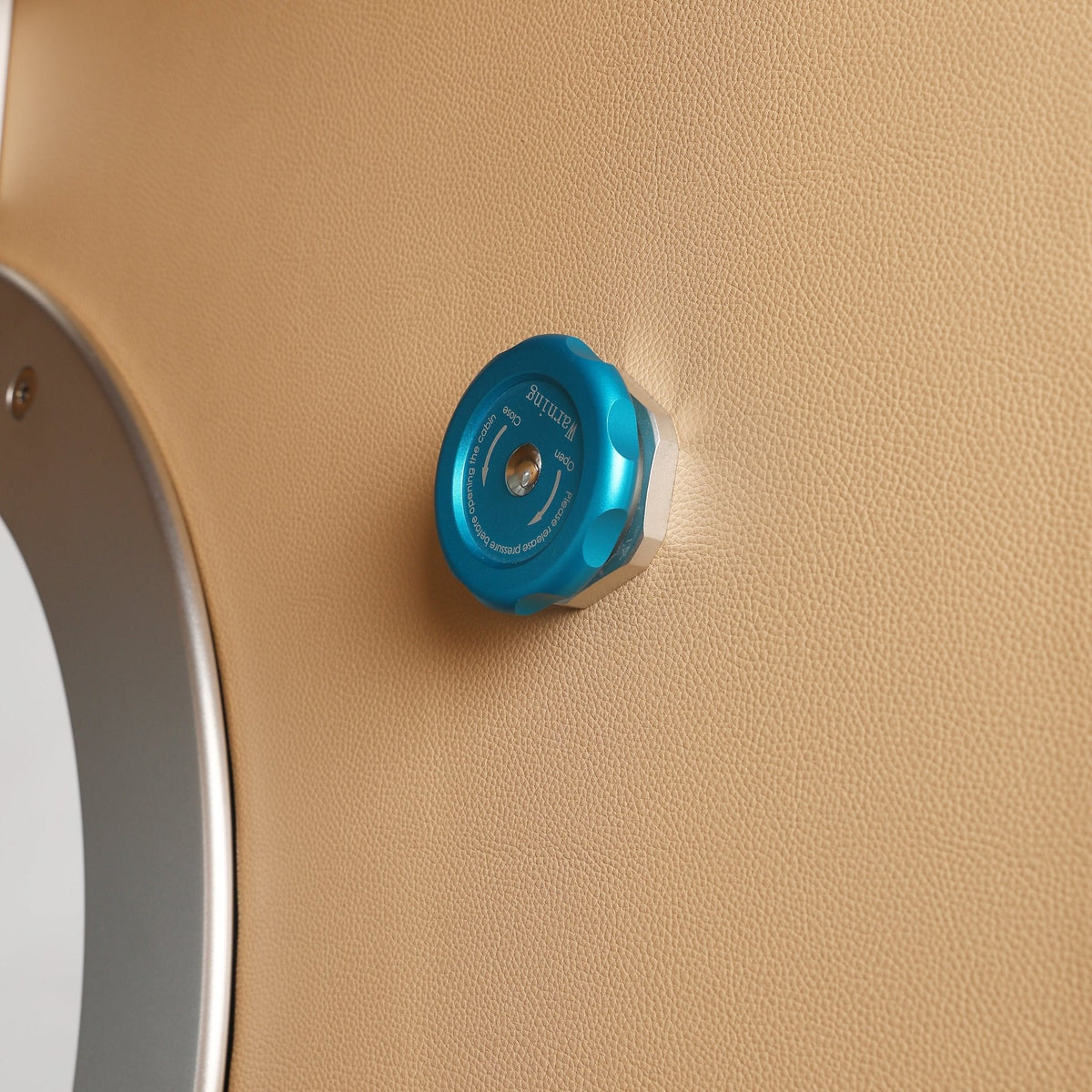

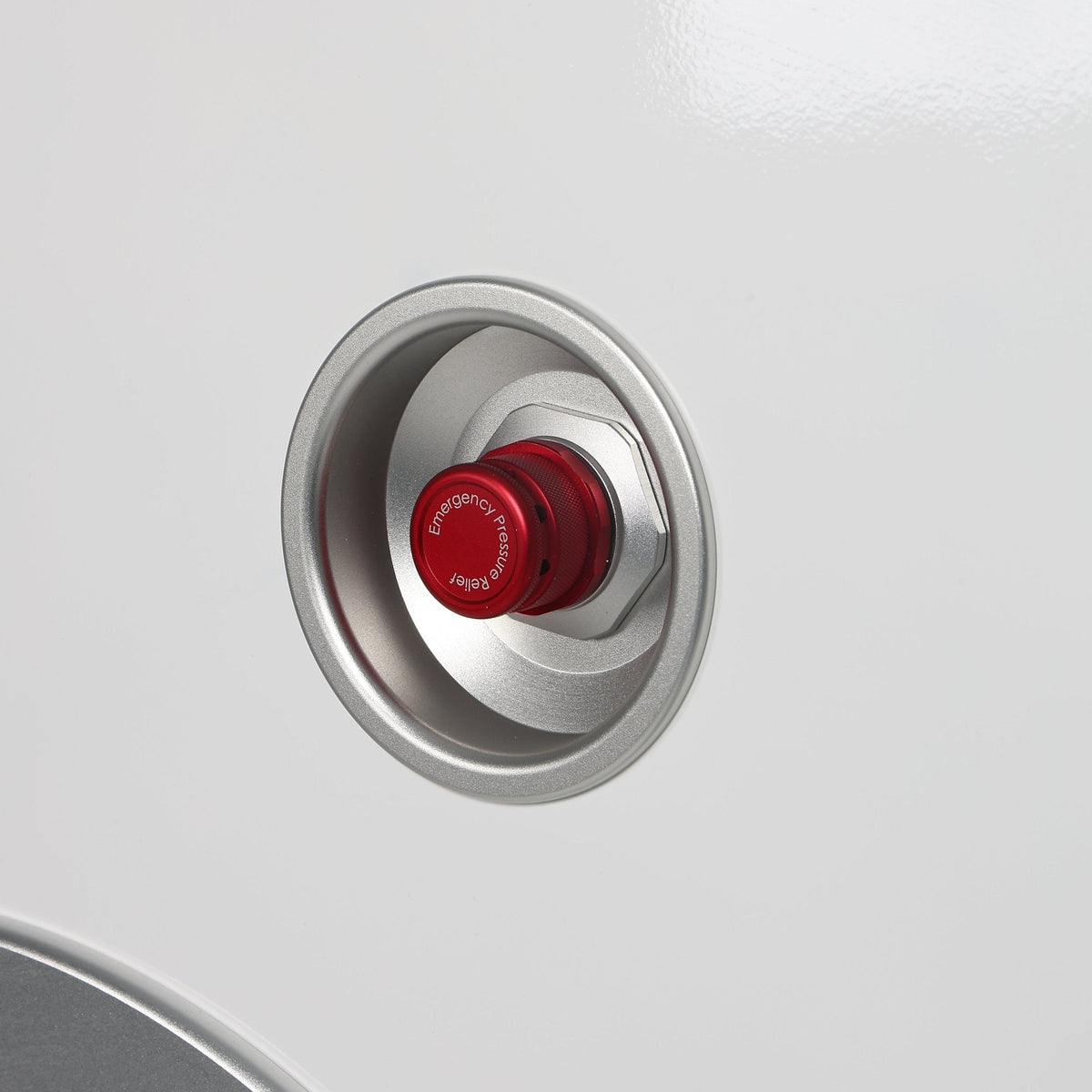

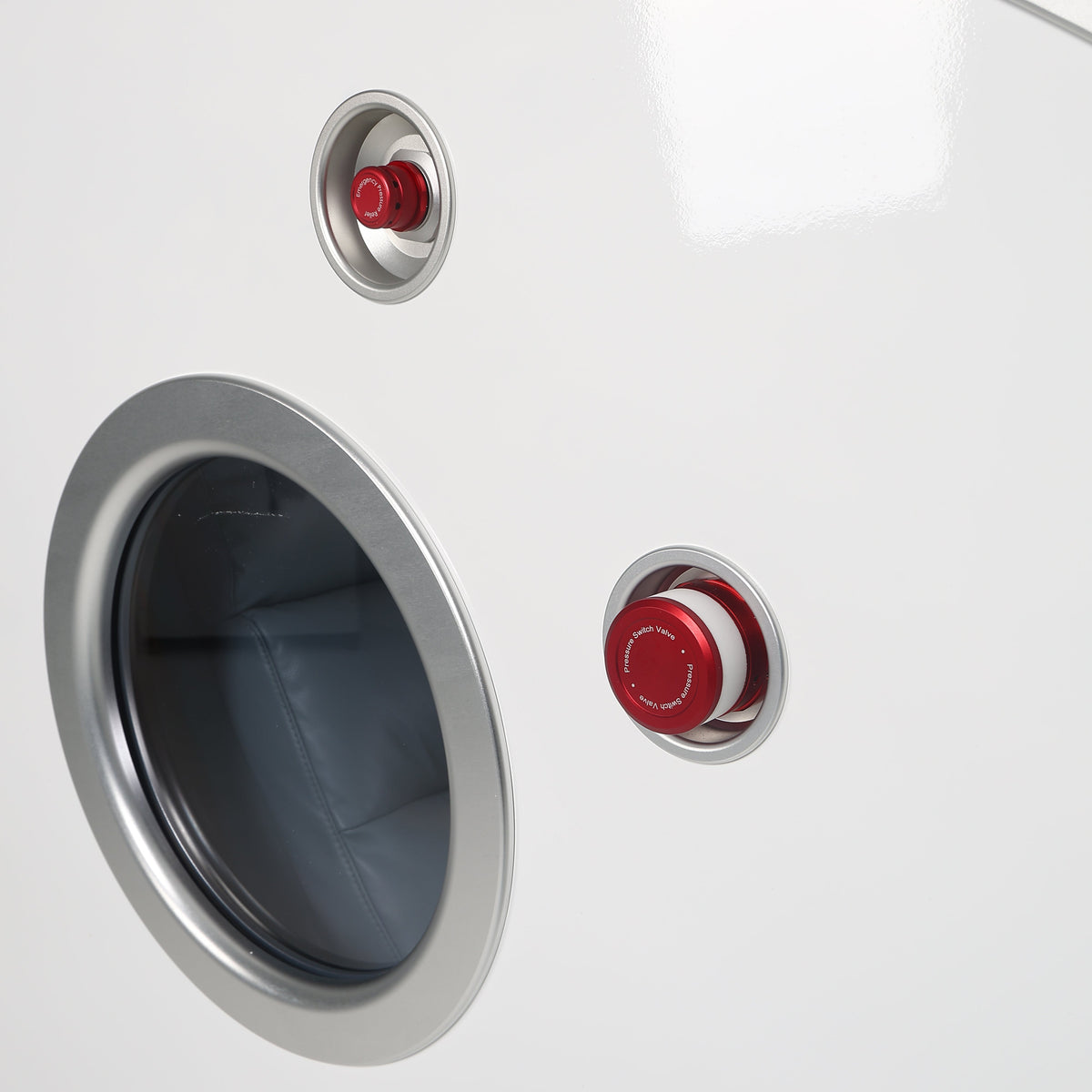

| Pressure safety | Multi-layer pressure protection with automatic and manual pressure relief valves |

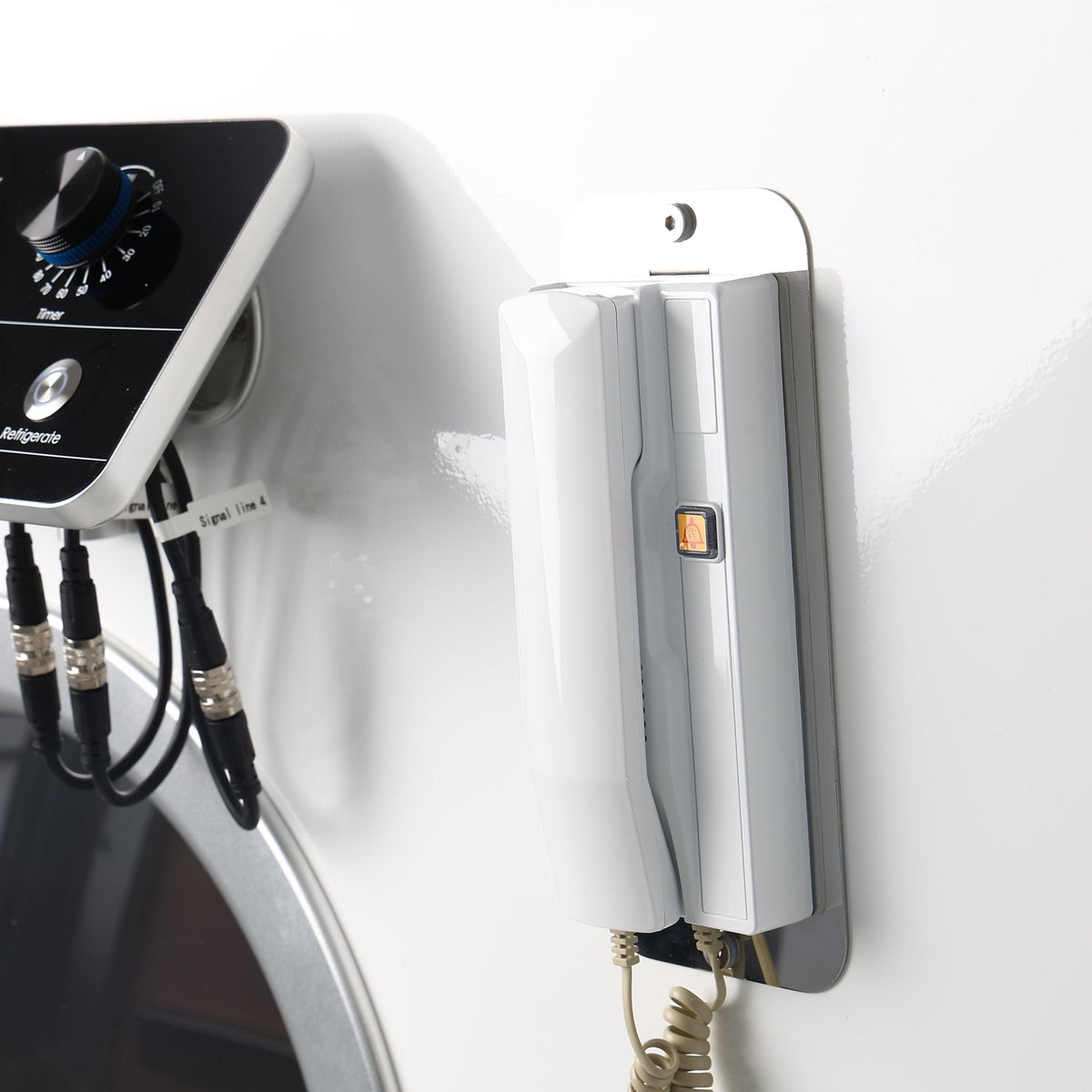

| Control interfaces | Internal and external duplex control screens with emergency stop, model dependent |

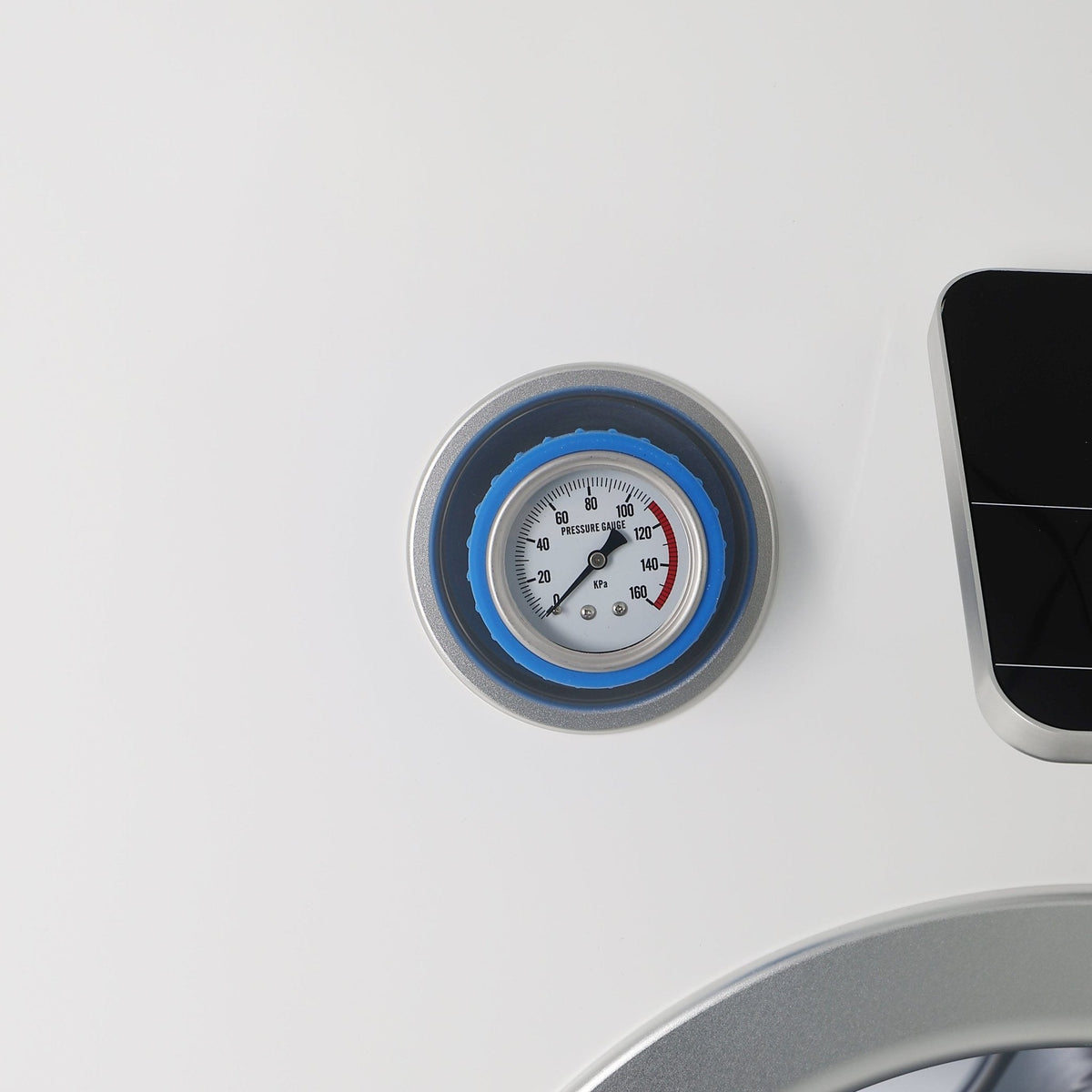

| Monitoring | External host displays operating parameters; internal gauges show chamber pressure to the user |
| Entry and exit | High-transparency lift-up door with safety interlocks and emergency release |
Optional Upgrades
| BIBS oxygen system | Mask-based Built-In Breathing System delivering higher-concentration oxygen directly to the user. Because oxygen goes to the mask rather than into the cabin, chamber oxygen stays near ambient levels, which is the safer arrangement at higher pressure. Shares the BIBS architecture used on the TimePod 01 host. |
| Internal light panel | Internal LED panel at wavelengths commonly used in wellness lighting, typically 630–660 nm and 850 nm. Low heat output and positioned for even coverage without direct eye glare when lying in the chamber. |
| Interior finishing | Optional upholstery, cushions and colour accents. |
| Exterior customization | Exterior colour and graphic treatments available. |
Installation and Siting
- At 600 kg (1,325 lb), the chamber needs confirmed floor loading and a clear delivery path. The castors are for positioning within a room, not for moving the unit between floors or over thresholds.
- Confirm doorway and corridor clearances, ceiling height and electrical supply before ordering.
- Allow clearance above the chamber for the lift-up door to open fully, and access to the host console for servicing.
Care and Maintenance
- After each use: wipe interior surfaces, cushions and contact points with a mild, non-abrasive disinfectant compatible with the chamber materials.
- Weekly: inspect door seals, gauges, valves, hoses and host-unit filters for wear, leaks or abnormal noise, and check that the door opens and closes smoothly.
- Annually: schedule a full system check and host-unit service per the manufacturer's guidelines, including compressor and oxygen system maintenance.
Warranty
- Chamber body, frame and lift-up door assembly: two-year limited warranty.
- Host unit: limited warranty on compressor, oxygen system and control electronics.
- Accessories and upgrades: warranty on BIBS components, light panel, cushions and ancillary accessories per the accessory policy.
Shipping and Installation
- Each chamber is manufactured under ISO-based quality systems and pressure-tested before shipment.
- Standard sea freight and optional air freight are available; transit times vary by destination and customs processing.
- Chamber and host unit ship crated. White-glove delivery and in-room placement may be available in select regions.
- Remote onboarding and training resources are provided. On-site installation and staff training are available on request.
Important Information
This chamber is not cleared or approved by the U.S. Food and Drug Administration, and it is sold for general wellness and relaxation use only. It is not intended to diagnose, treat, cure or prevent any disease or medical condition, and it is not a substitute for medical care. ISO and CE certifications held by the manufacturer relate to quality systems and to European conformity requirements; they are not FDA clearance and do not authorize any medical use. Hyperbaric oxygen therapy is a distinct medical treatment that the FDA has cleared for specific indications, delivered under medical supervision using cleared devices; this product is not offered for those indications and no such use is claimed or supported.
Consult a qualified physician before using a hyperbaric chamber, particularly if you are pregnant or have an ear, sinus, lung, cardiac or seizure condition. A pressurized oxygen environment carries fire risk: read the user manual in full and follow all operating and safety instructions, including the restriction on bringing ignition sources, aerosols, oils, hand warmers or electronic devices into the chamber. This chamber should be installed and commissioned by qualified personnel.
