TimePod Air Wheelchair – Wheelchair-Accessible Soft-Shell Hyperbaric Chamber, 1.2–1.4 ATA

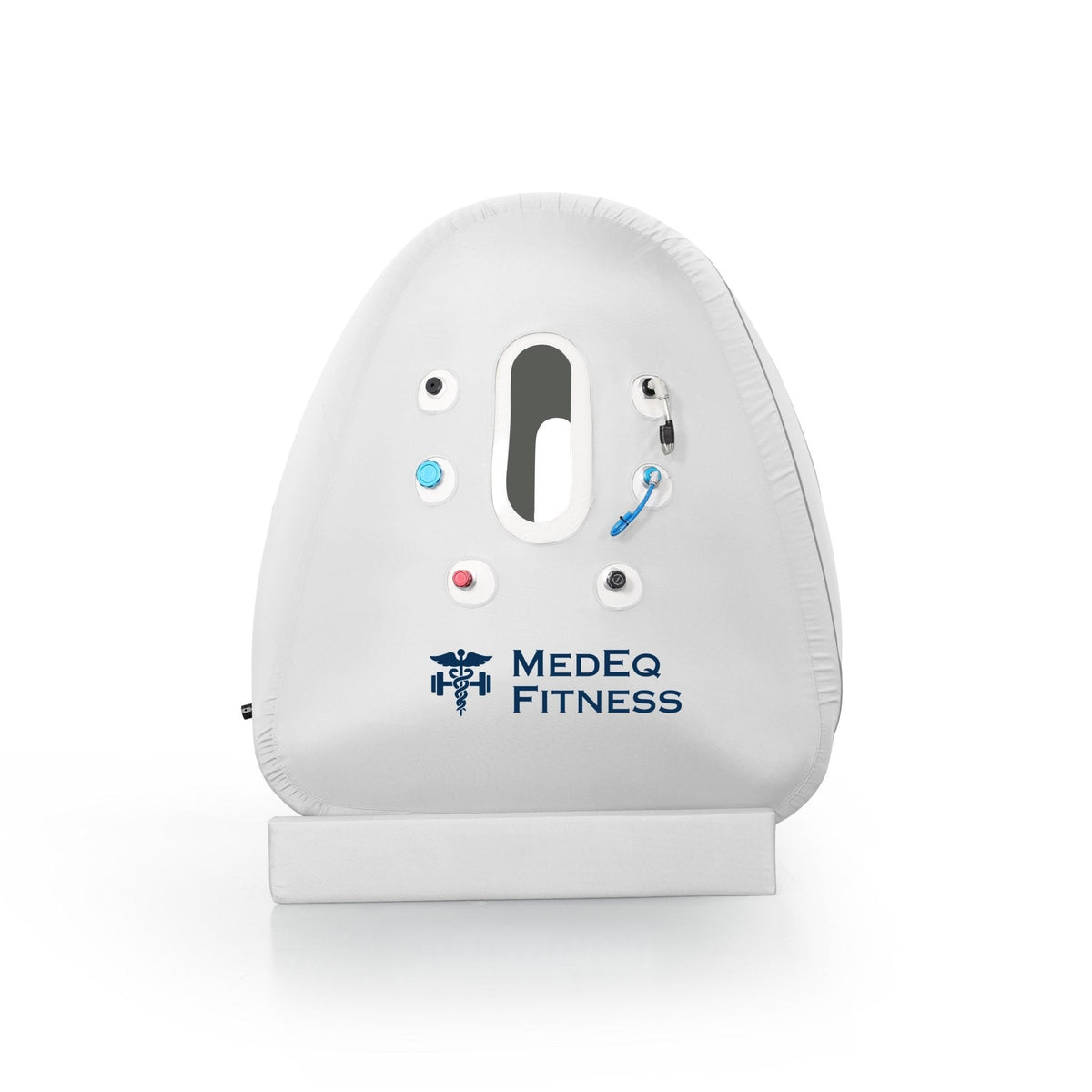

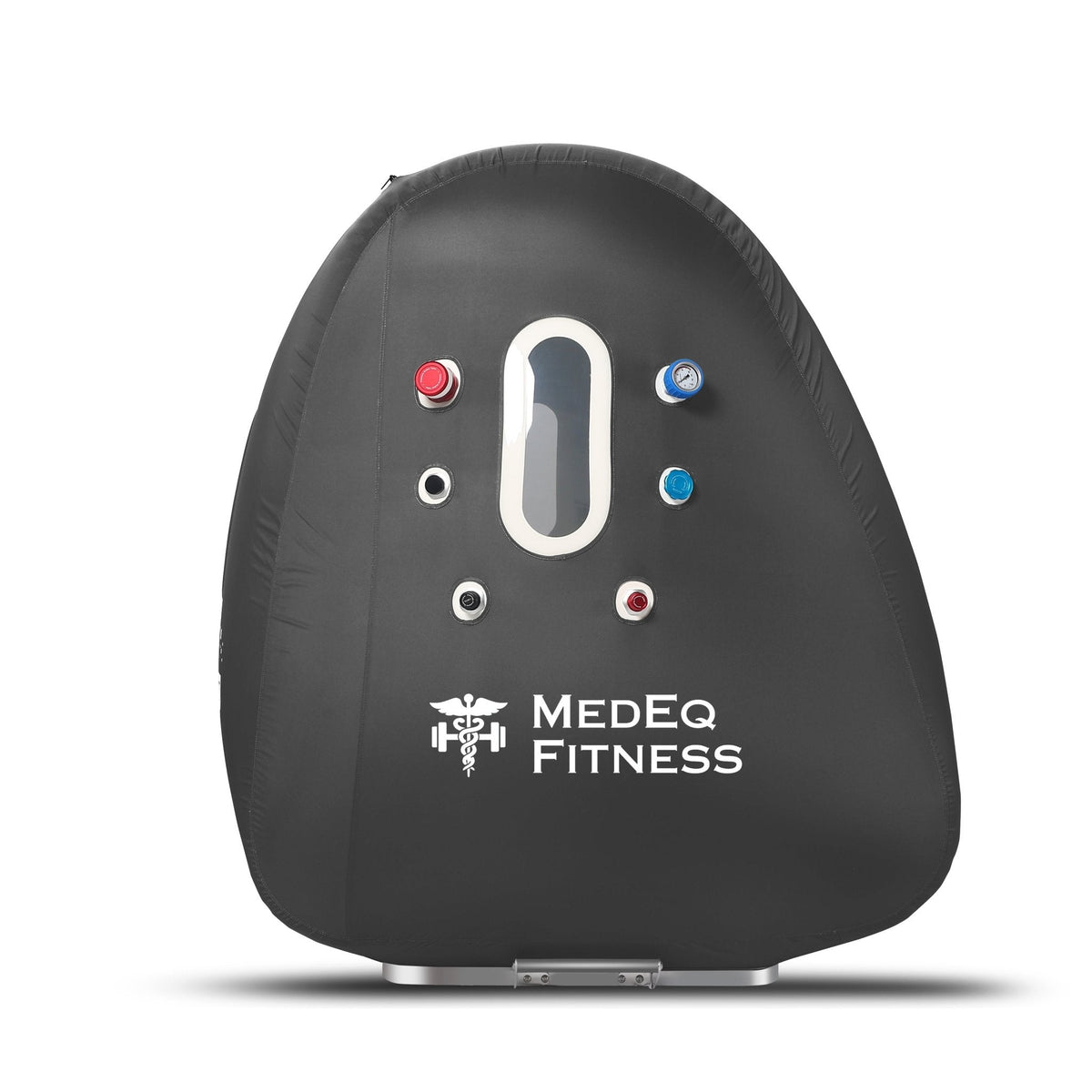

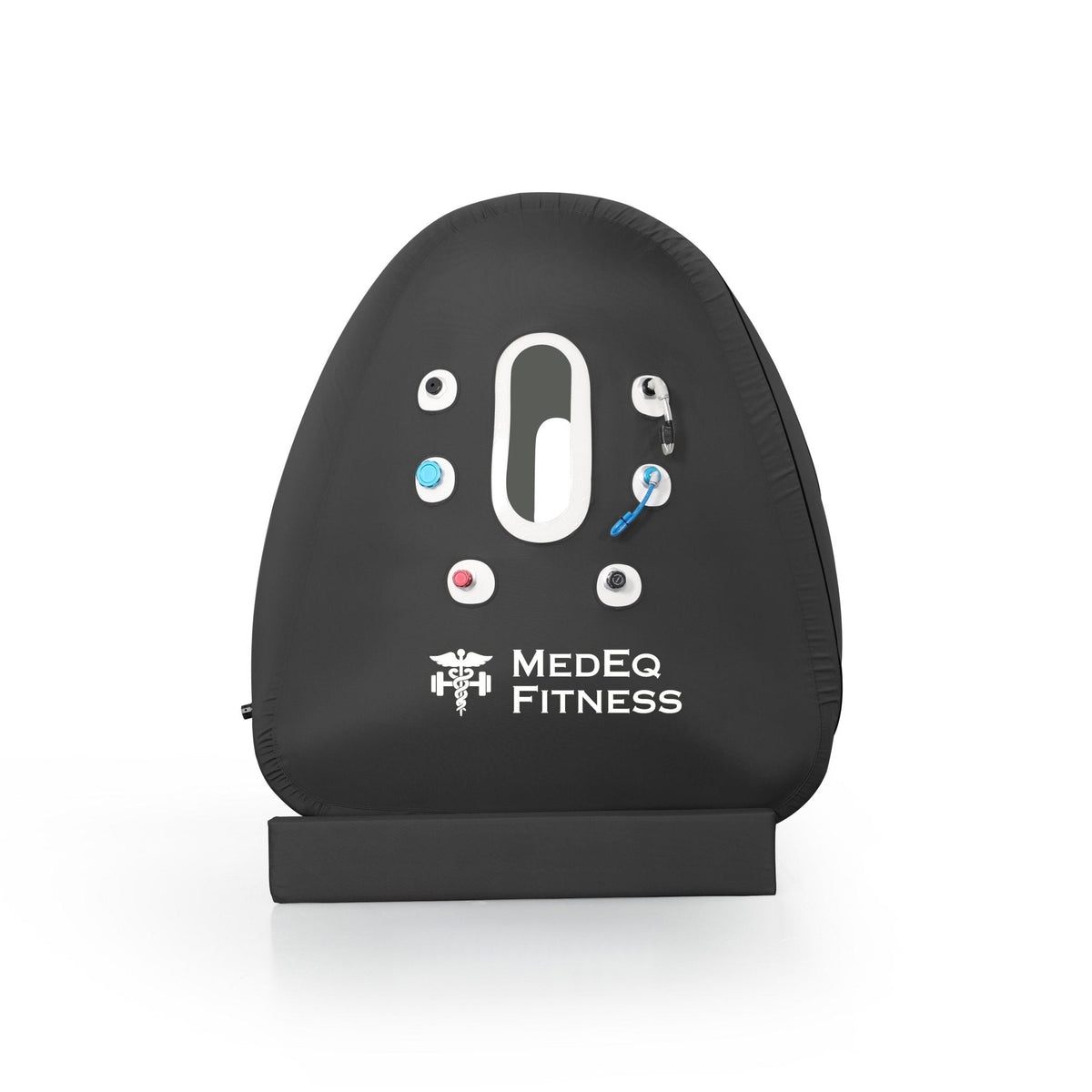

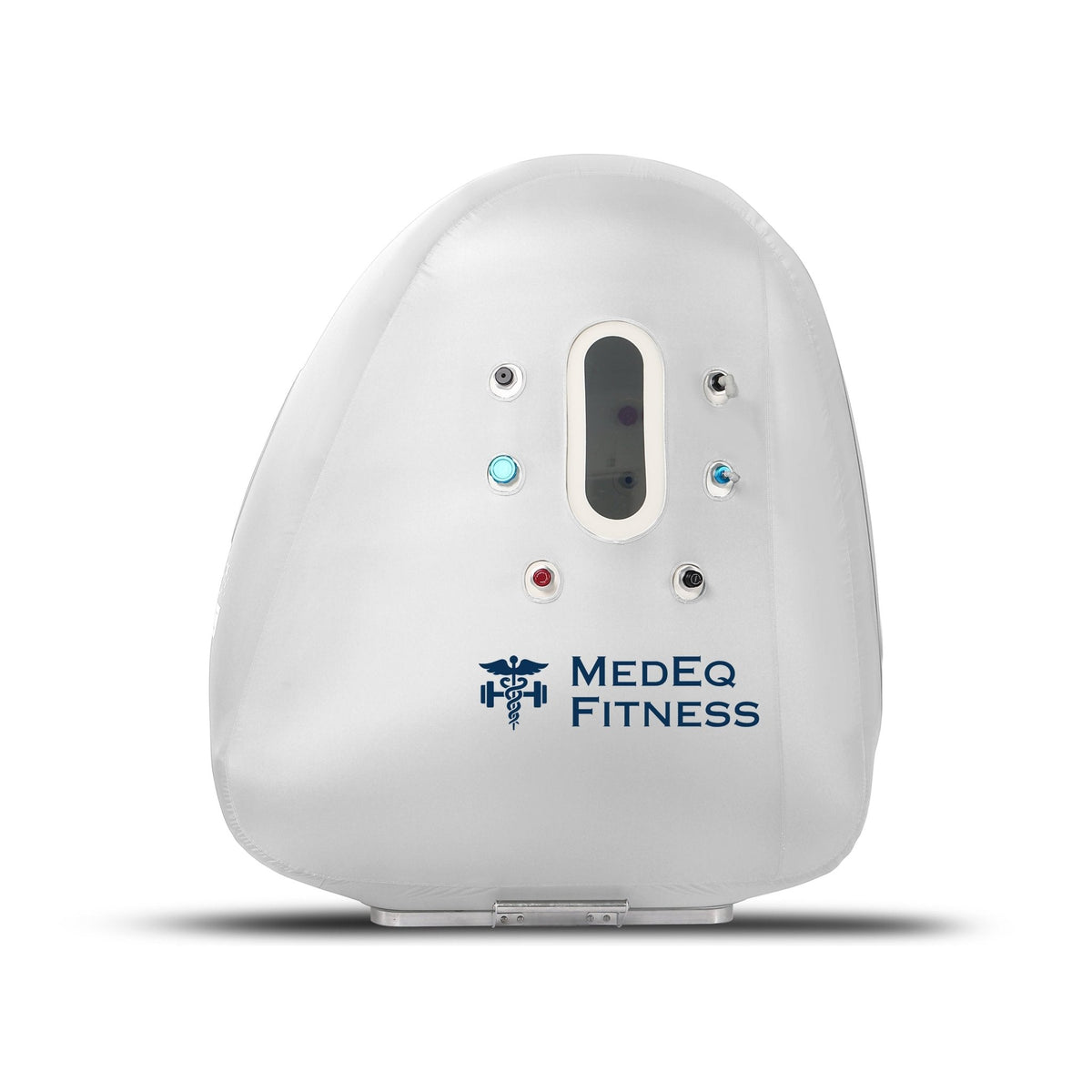

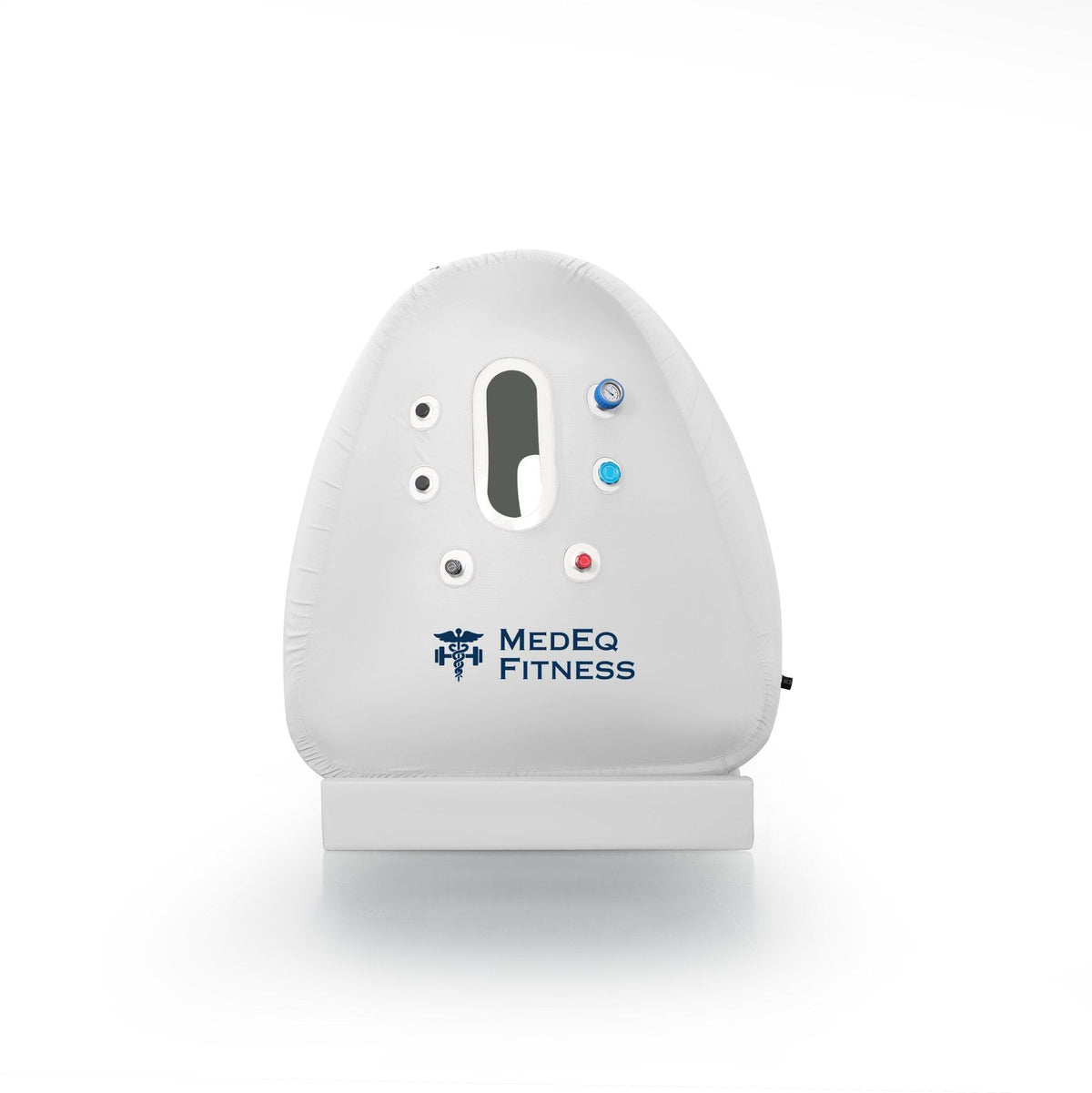

The TimePod Air Wheelchair is a soft-shell hyperbaric chamber built around wheelchair access. Based on the OxyPrime III / OxyRevo Heal 40 design, it sits on a rigid aluminum base with an integrated ramp, so a user can roll in and out without transferring first, and a companion or caregiver can assist from outside without the chamber shifting underfoot.
The interior is sized for a wheelchair or a standard chair, giving a seated, upright session rather than a lying-down one. Pressure is adjustable in stages between 1.2 and 1.4 ATA, and pressure can be read and released from either inside or outside the chamber, which makes the chamber workable both for independent solo use and for assisted use.
Key Features
Wheelchair-accessible entry on a rigid aluminum base
- Interior footprint sized around wheelchair or chair placement.
- Aluminum base is connected to the chamber body, so the floor stays rigid instead of flexing like an inflated base.
- Integrated ramp allows roll-in and roll-out without a separate transfer.
- Also accepts a standard chair for seated use.

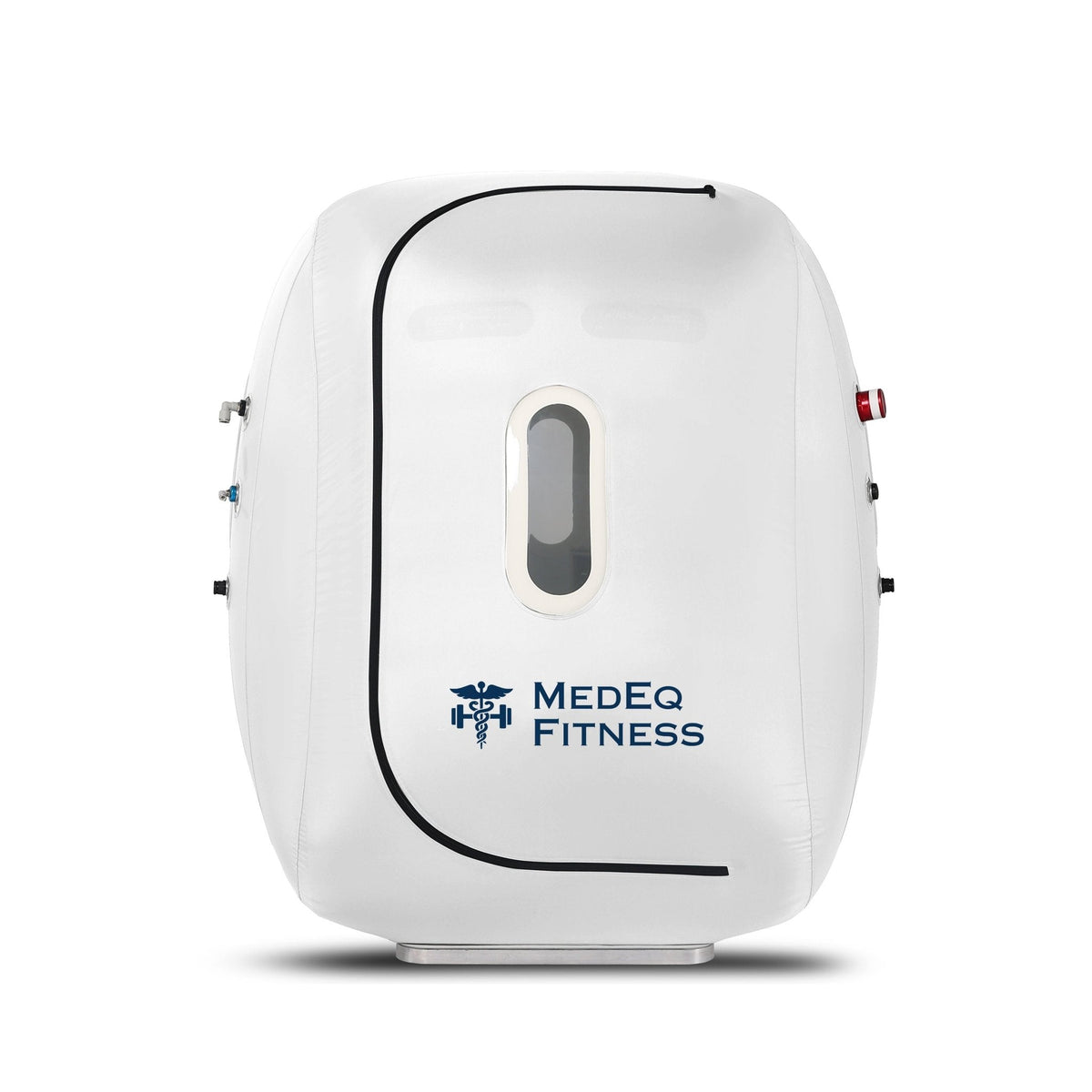

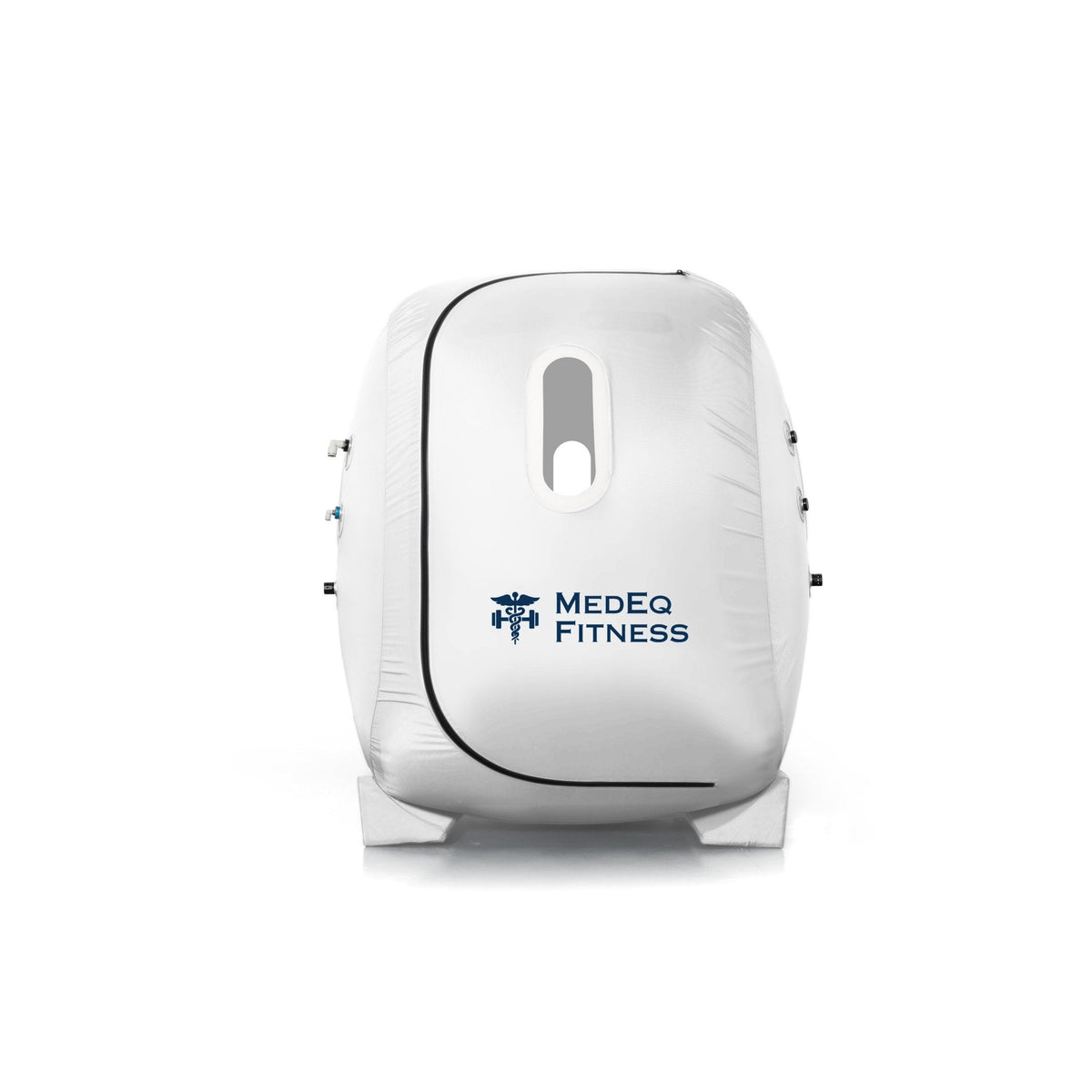

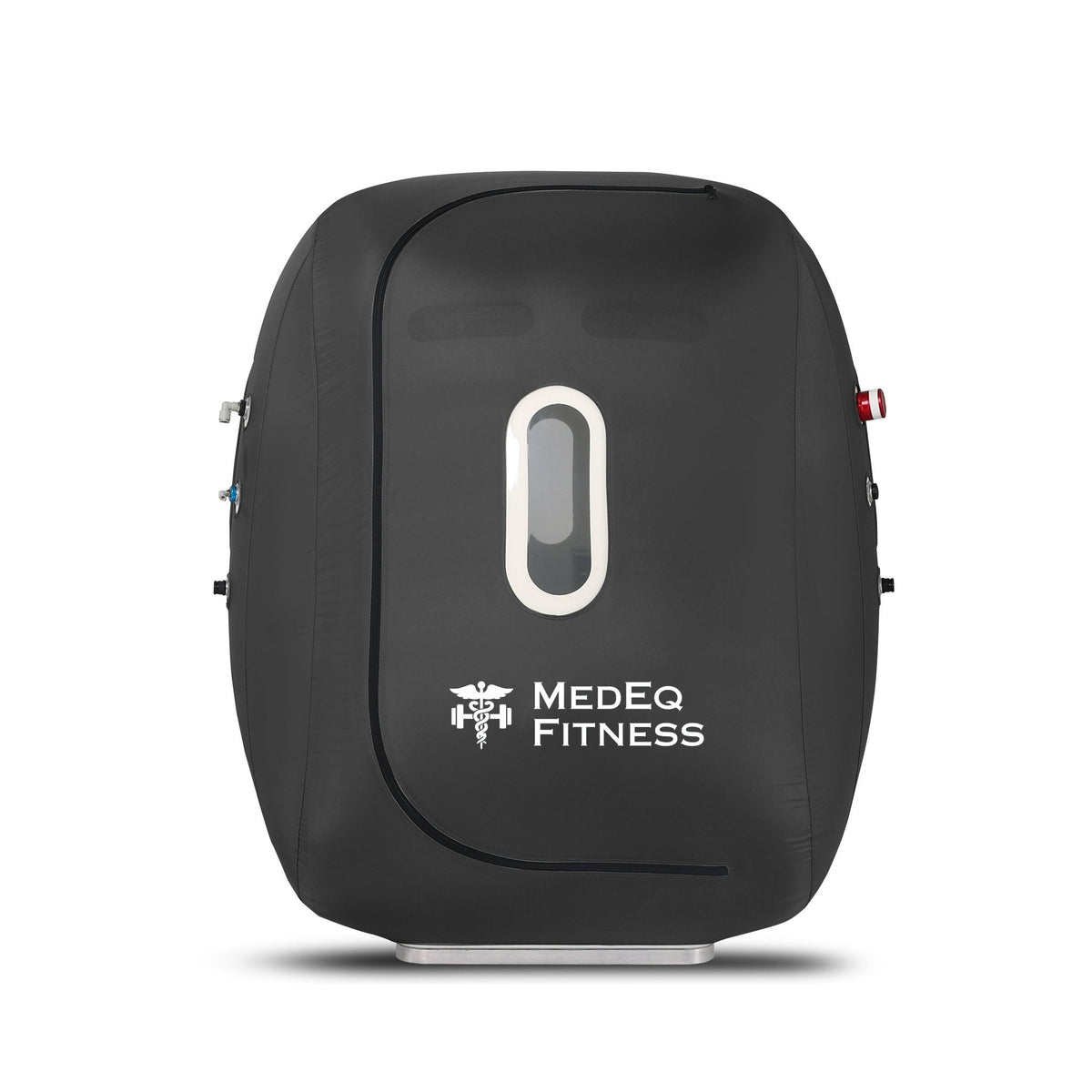

Curved zipper entry system — smoother opening and closing
- Curved zipper geometry uses gravity to separate the zipper from the sealing strip as it opens.
- Less friction between zipper and seal, which matters on a chamber opened and closed daily.
- Silicone seal strip specified for easier zipper travel.
- Dual YKK zippers, operable from inside and outside.
Staged pressure control — 1.2, 1.3 or 1.4 ATA
- Working pressure up to 1.4 ATA.
- Pressure converter supports three set points: 1.2, 1.3 and 1.4 ATA.
- Stepping up gradually lets a new user find the pressure they are comfortable equalizing at.

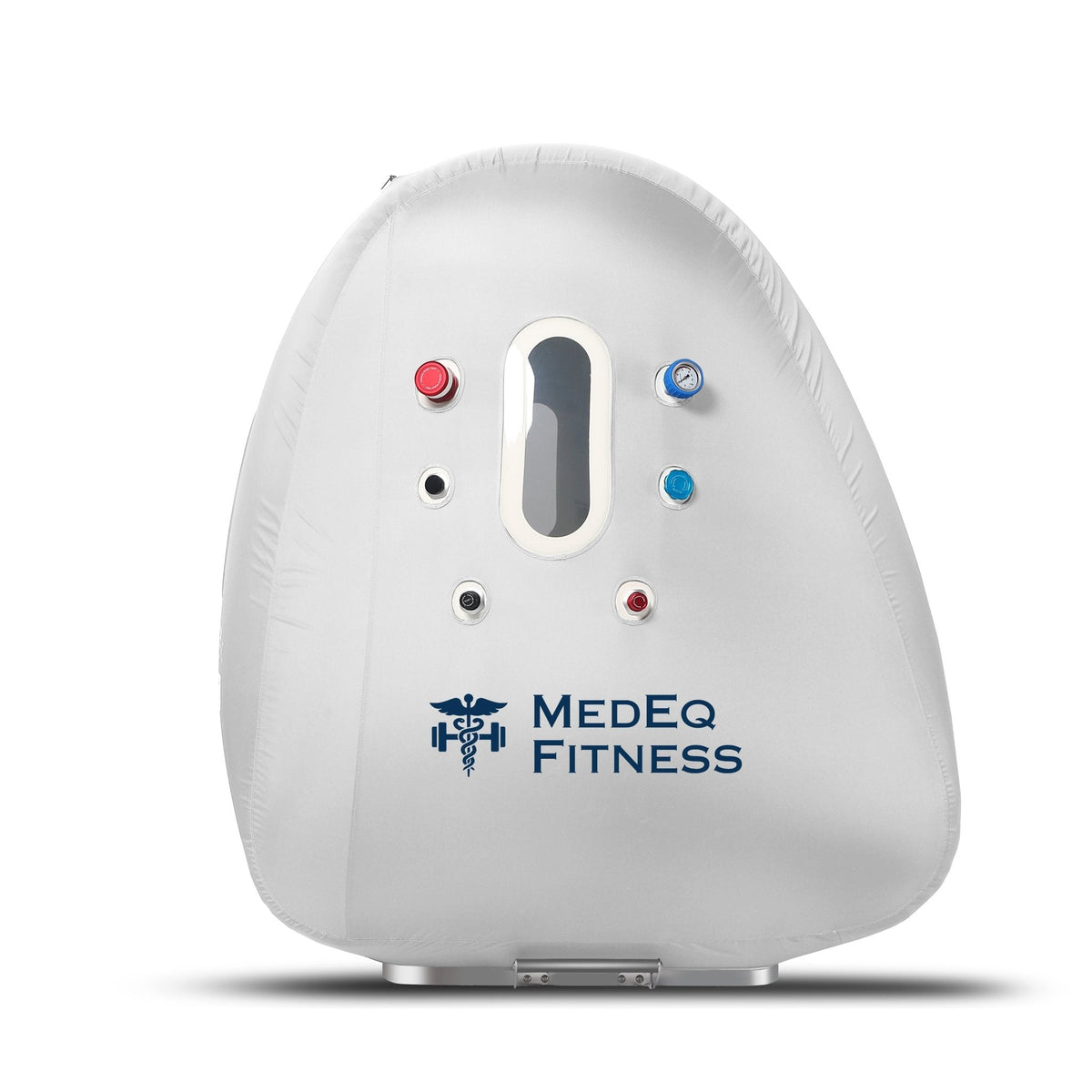

Dual pressure displays, inside and outside
- Two pressure gauges, one visible from inside the chamber and one from outside.
- The user and anyone assisting see the same reading at the same time.
- No need to rely on a single external gauge or call out readings through the shell.
Emergency valve and quiet relief valves
- Emergency pressure-release valve for rapid depressurization and exit.
- Pressure release is operable from inside as well as outside.
- Automatic relief valves are designed to vent evenly rather than in sudden loud bursts.

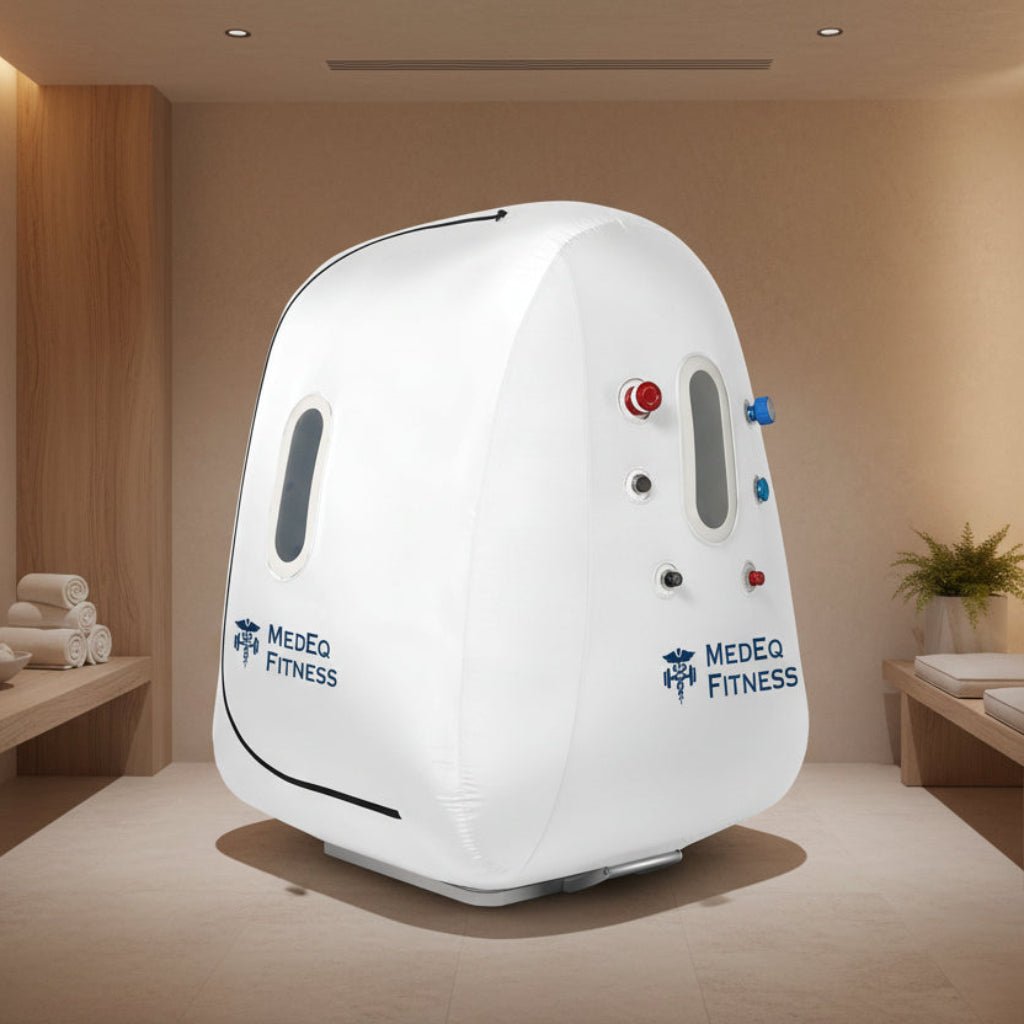

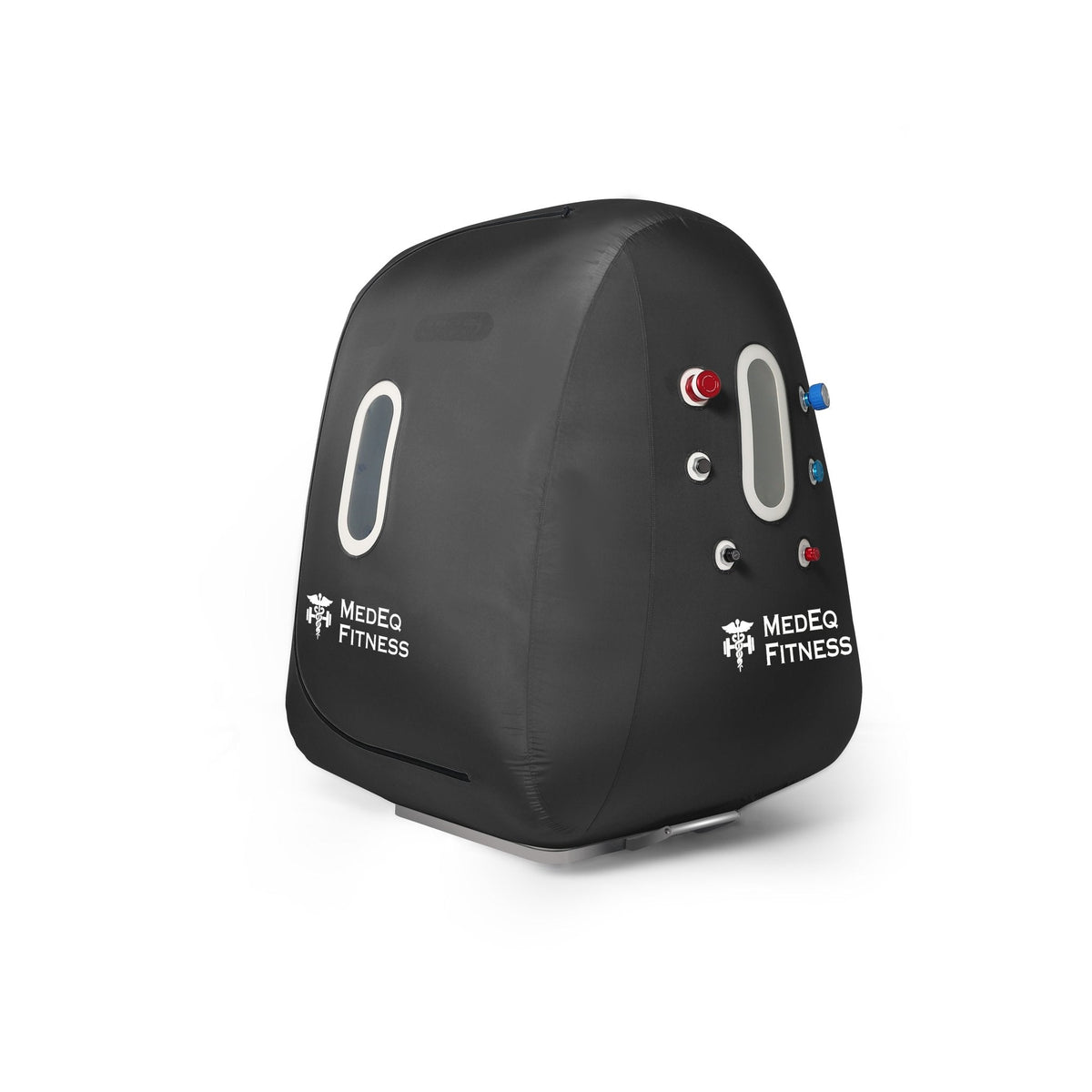

Four double-layer viewing windows
- Four large windows, each double-layered.
- Wide transparent panels bring ambient light into the chamber.
- Clear sightlines in both directions for the duration of a session.
Internal frame with heat-welded seams
- Internal frame holds the chamber's shape before and during inflation.
- Seams joined by high-frequency heat welding rather than sewing or adhesive.
- No glues used in seam construction.

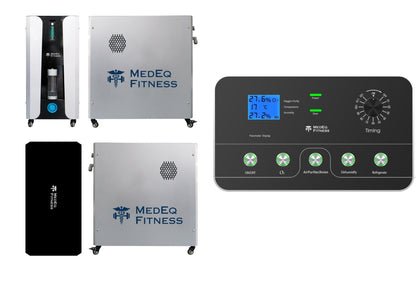

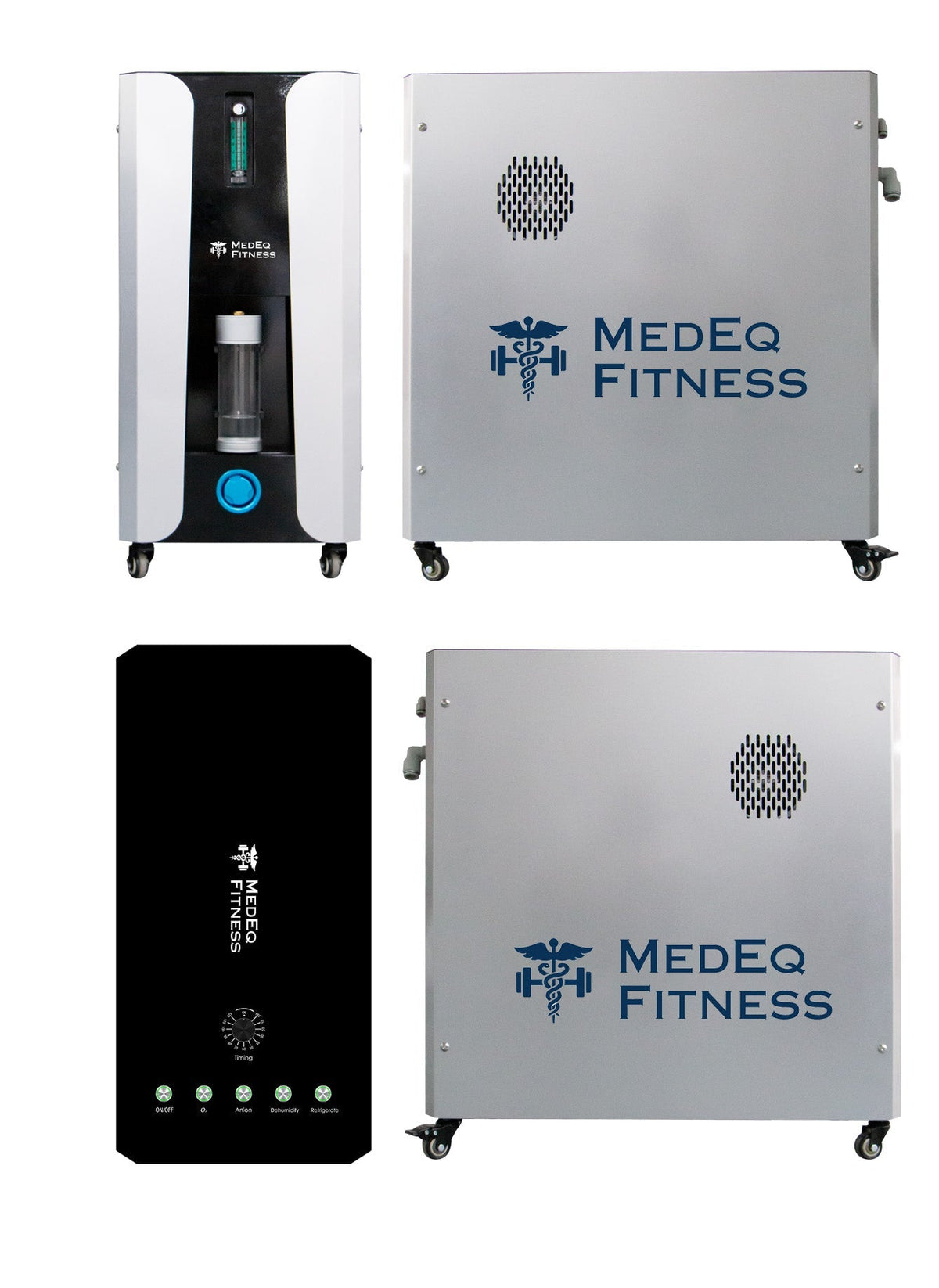

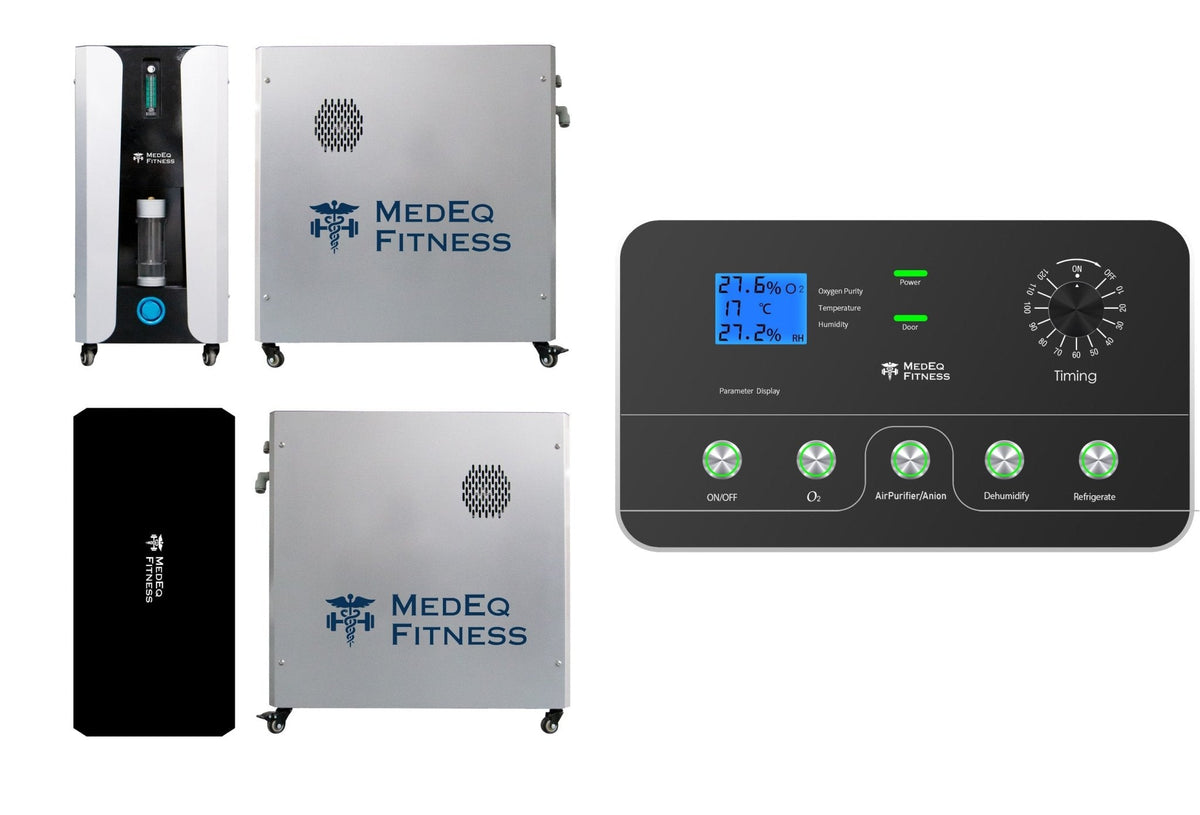

10 L oxygen concentrator — 90–97% output purity
- 10 L capacity oxygen concentrator.
- Output purity of 90–97% per the manufacturer's specification.
- Oxygen is delivered to the user through a mask or cannula, not released into the chamber body.
Dual PM2.5 air filters
- Two filters covering air moving into and out of the chamber.
- Rated to capture PM2.5 particulates.
- Filters are user-checkable and replaceable on a monthly schedule.
Slow-rebound comfort mattress
- Slow-rebound support layer that contours rather than springing back.
- High-density foam specified for durability under repeated use.
- Adds a supported surface for users who prefer to recline rather than sit.
Chamber Specifications
| Chamber type | Soft-shell wheelchair-accessible hyperbaric chamber, seated configuration |
| Working pressure | Up to 1.4 ATA, adjustable to 1.2 / 1.3 / 1.4 ATA |
| External dimensions | L 170 cm × W 160 cm × H 190 cm (approx. 67 in × 62 in × 75 in) |
| Weight | 43 kg (95 lb) |
| Windows | 4 large double-layer viewing windows |
| Sound level | 50 dB or below, per the manufacturer's specification |
| Base and access | Rigid aluminum base with integrated ramp for wheelchair entry and exit |
| Zippers | Dual YKK zippers, curved geometry, silicone seal strip |
| Controls | Dual pressure displays and dual pressure release, inside and outside |
| Air filtration | Dual PM2.5 air filters, intake and exhaust |
| Oxygen system | 10 L oxygen concentrator, 90–97% output purity per the manufacturer's specification, delivered by mask or cannula |
| Cover colour | Grey; custom colours available on request |
| Design basis | OxyPrime III / OxyRevo Heal 40 |
Safety and Comfort Systems
| Emergency valve | Emergency pressure-release valve for rapid depressurization and exit |
| Dual monitoring | Pressure gauges readable from inside and outside simultaneously |
| Dual release control | Pressure can be released from either side of the shell |
| Low-noise design | Quiet relief valve design with a 50 dB or lower sound level target |
| Stable base | Aluminum base connected to the chamber, reducing movement compared with an inflated base |
| Comfort mattress | Slow-rebound support layer |
What's Included
| Chamber system | Wheelchair-accessible soft chamber; aluminum base and ramp; internal frame components; slow-rebound mattress |
| Visibility and access | 4 double-layer viewing windows; curved zipper entry; dual YKK zippers |
| Monitoring and control | Dual pressure gauges, inside and outside; dual pressure release control; safety valves per chamber configuration |
| Air and oxygen | Dual PM2.5 air filters; 10 L oxygen concentrator, subject to model and configuration |
| Documentation | User manual; quick-start guide; maintenance guidance |
Included components vary by configuration and power standard (110 V / 220 V). Your exact build sheet is confirmed before shipment.
Care and Maintenance
- After each use: wipe interior surfaces, the mattress cover and the window panels with a mild, non-abrasive disinfectant suitable for TPU.
- Weekly: inspect the curved zipper track and seal strip, check valves and gauges, and verify base and ramp stability and fasteners.
- Monthly: check the dual PM2.5 filters and clean or replace them per the manufacturer's guidance; verify the pressure converter operates across all three set points.
- Annually: complete a full system inspection and have the oxygen concentrator and compressor serviced on the manufacturer's schedule.
Warranty and Support
- Warranty terms for the chamber shell and zippers vary by configuration and are confirmed on your invoice and build sheet.
- Warranty terms for the oxygen concentrator and compressor vary by the machine package and power standard included, and are confirmed at purchase.
- U.S.-based support and parts guidance.
Shipping
- Standard shipping (sea freight): typically 4–8 weeks, plus customs clearance.
- Express shipping (air freight): typically 1–2 weeks at additional cost.
- Tracking is provided once the unit is transferred to the carrier, and shows an approximate location rather than live updates.
Important Information
This chamber is intended for general wellness and recreational use. It is not intended to diagnose, treat, cure or prevent any disease or medical condition, and it is not a substitute for medical care or rehabilitation. Consult a qualified physician before use, particularly if you are pregnant or have an ear, sinus, lung, cardiac or seizure condition. Users with limited mobility should have a companion present who can operate the external controls. Read the user manual in full and follow all operating and safety instructions, including the restriction on bringing ignition sources, aerosols, oils or electronic devices into the chamber.
