RLT Home Total Spectrum COMPACT Red Light Therapy Panel, 7 Wavelengths, 216 LEDs

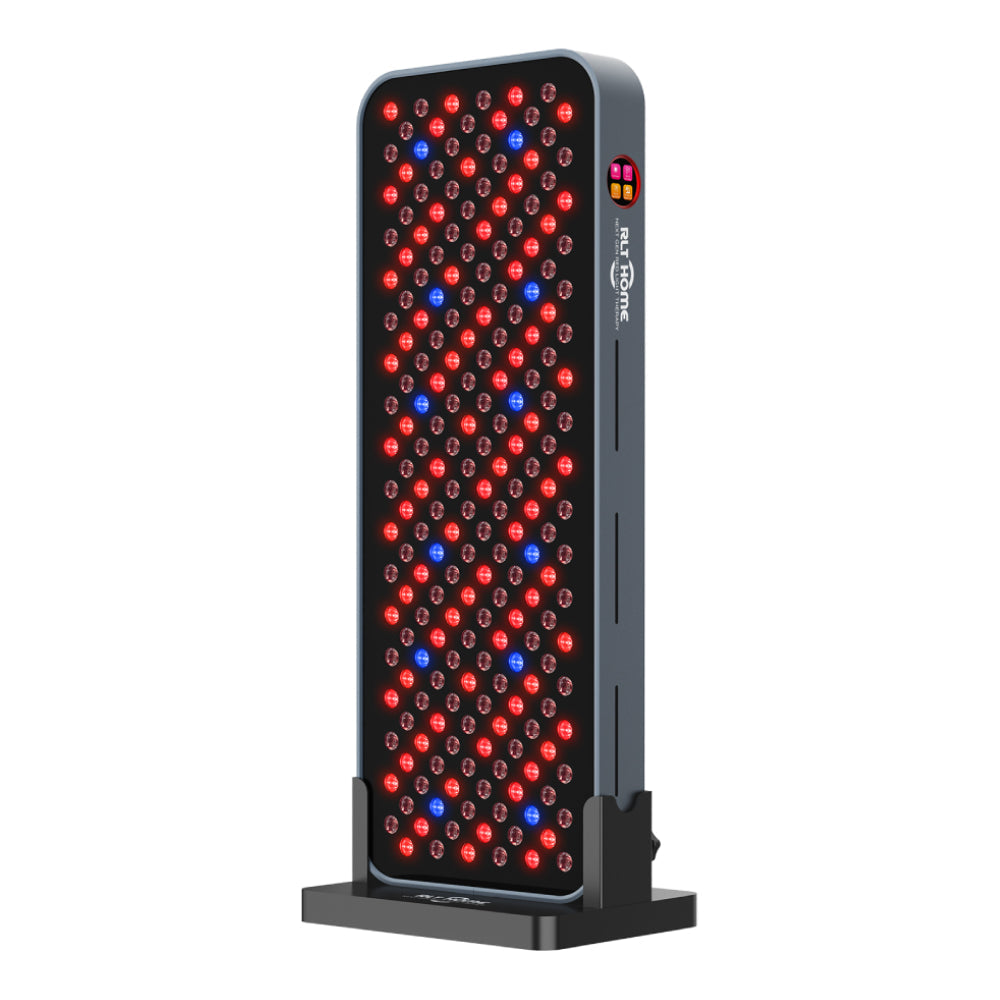

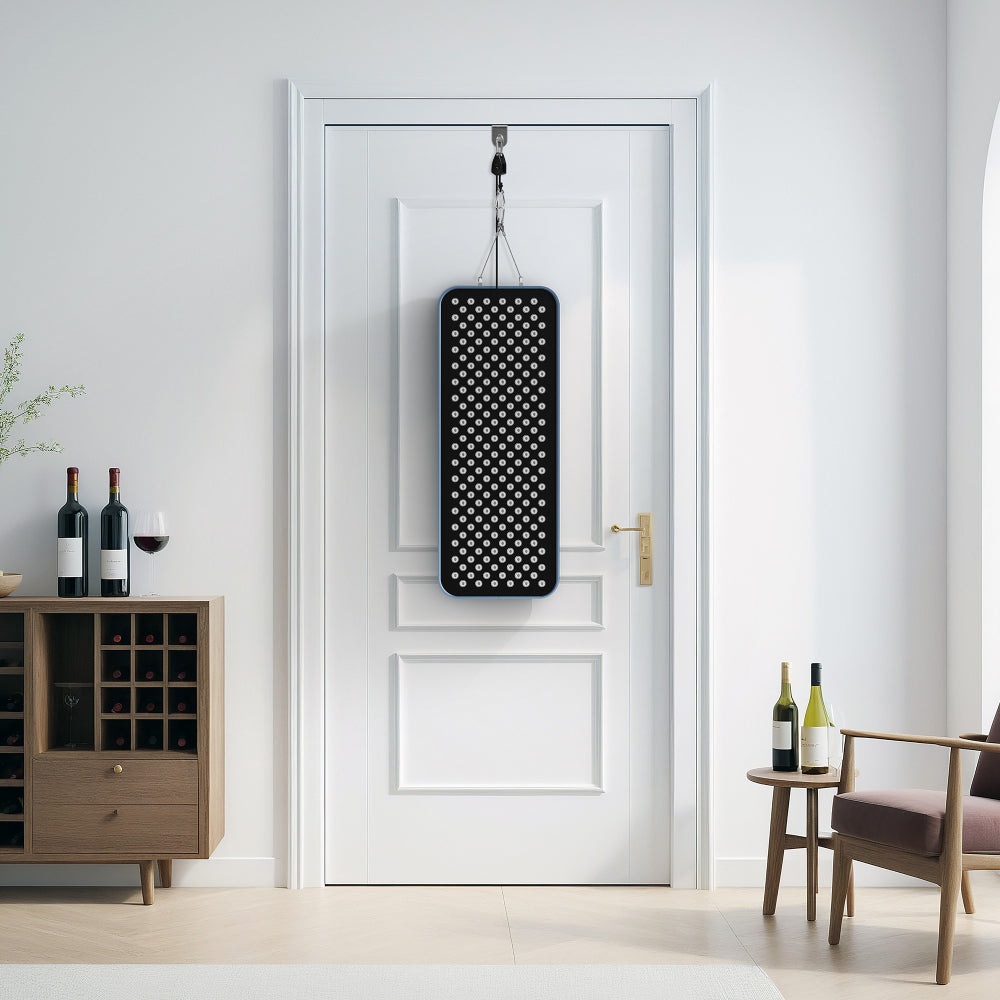

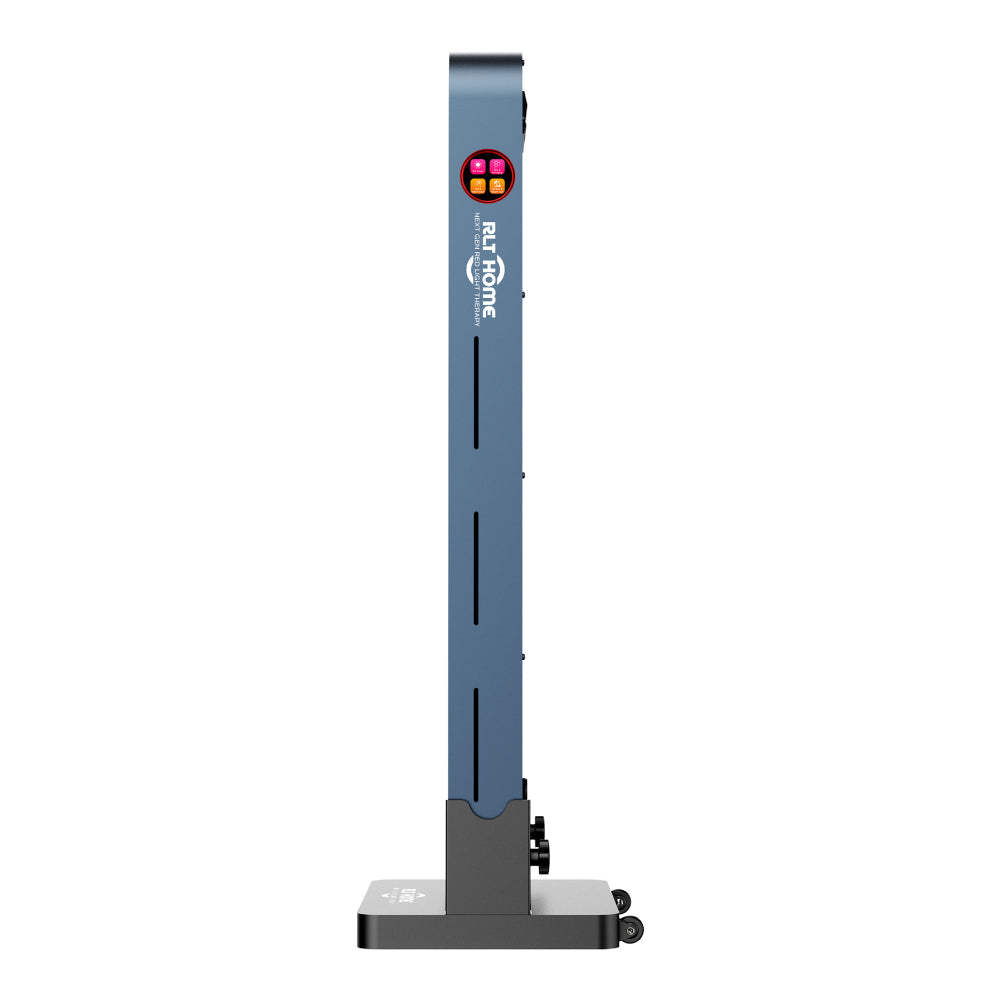

The Total Spectrum COMPACT is RLT Home's mid-size panel: a 30.3" x 11.8" array of 216 LEDs that covers the back, shoulders, hips, or the length of a leg in one session, with a footprint small enough to live in a bedroom, home office, or gym corner. It comes with a rolling floor stand for upright use while standing or seated, and a door-hanging kit for a zero-footprint setup, so it moves easily between rooms and plugs into any standard outlet.

All 216 LEDs feed RLT Home's seven-wavelength engine. Blue 480 nm and red 630/660 nm act at the skin's surface, near-infrared 810, 830, and 850 nm reach deeper into muscle and joint tissue, and 1064 nm provides the deepest penetration in the lineup. The COMPACT is an FDA-registered Class II general-use infrared lamp intended for temporary relief of minor muscle and joint pain and stiffness, relaxation of muscle tissue, and a temporary increase in local blood circulation. RLT Home publishes third-party irradiance tests for the panel: 172 mW/cm² at 8 inches (solar power meter) and 99.0 mW/cm² at 6 inches (spectrometer). A 30-degree beam angle keeps output concentrated on the body at the recommended 6-8 inch distance.

Choose from nine preset programs or build your own. Custom mode sets intensity and pulsing independently for each of four channels (red, blue, near-infrared, and 1064 nm), with a pulsing range from 0 to 5,000 Hz. Control everything from the touch panel on the device or from across the room with the included remote. The LEDs are flicker-free, and the panel measures approximately 0.0 μT of EMF at 6 inches or more, verified with a Cornet EMF meter. Protective reading glasses and blackout goggles are included for eye comfort.

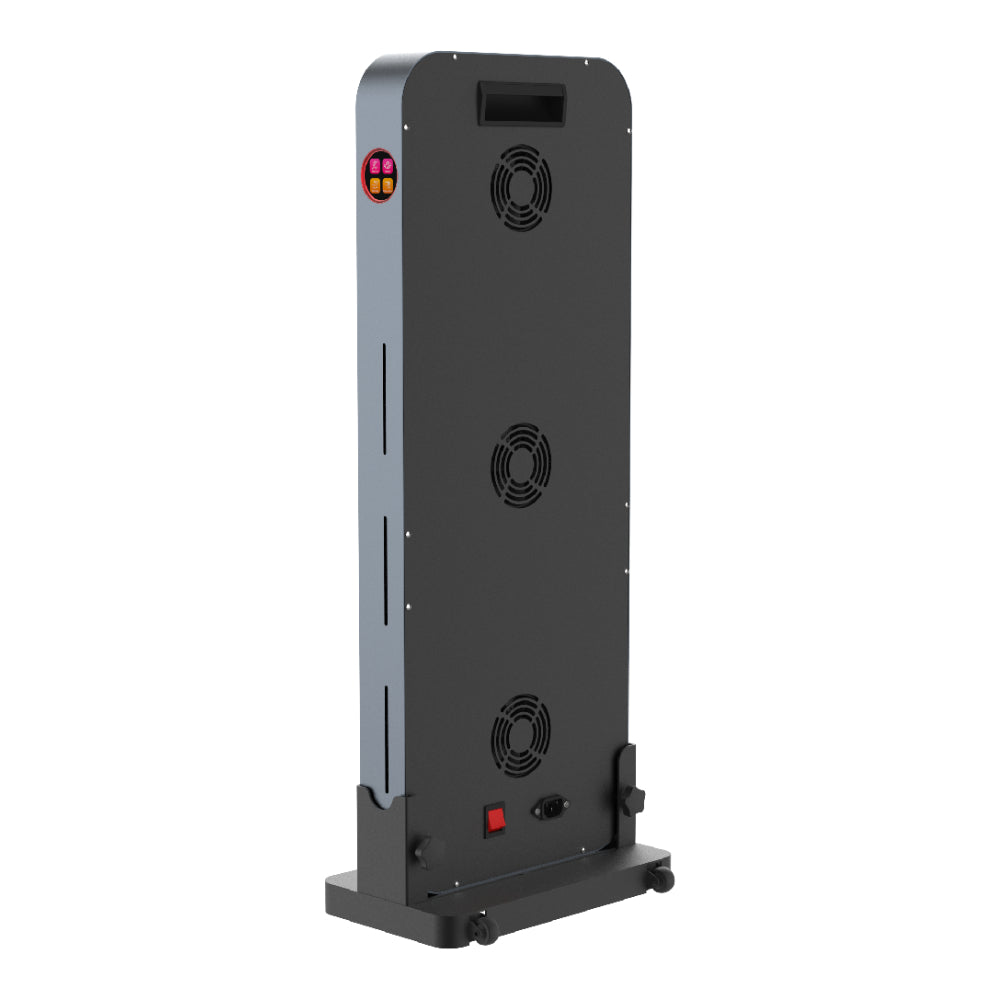

The aluminum housing dissipates heat and keeps the 22 lb panel rigid on its stand. LEDs are rated for 100,000 hours, roughly 11 years of continuous use. Power draw is 280 watts on any 100-240V outlet, so the COMPACT runs on a standard household circuit with no special wiring and travels internationally with a plug adapter. RLT Home backs the panel with a 3-year warranty, and the device operates fully offline with no app or account required.

Key Features:

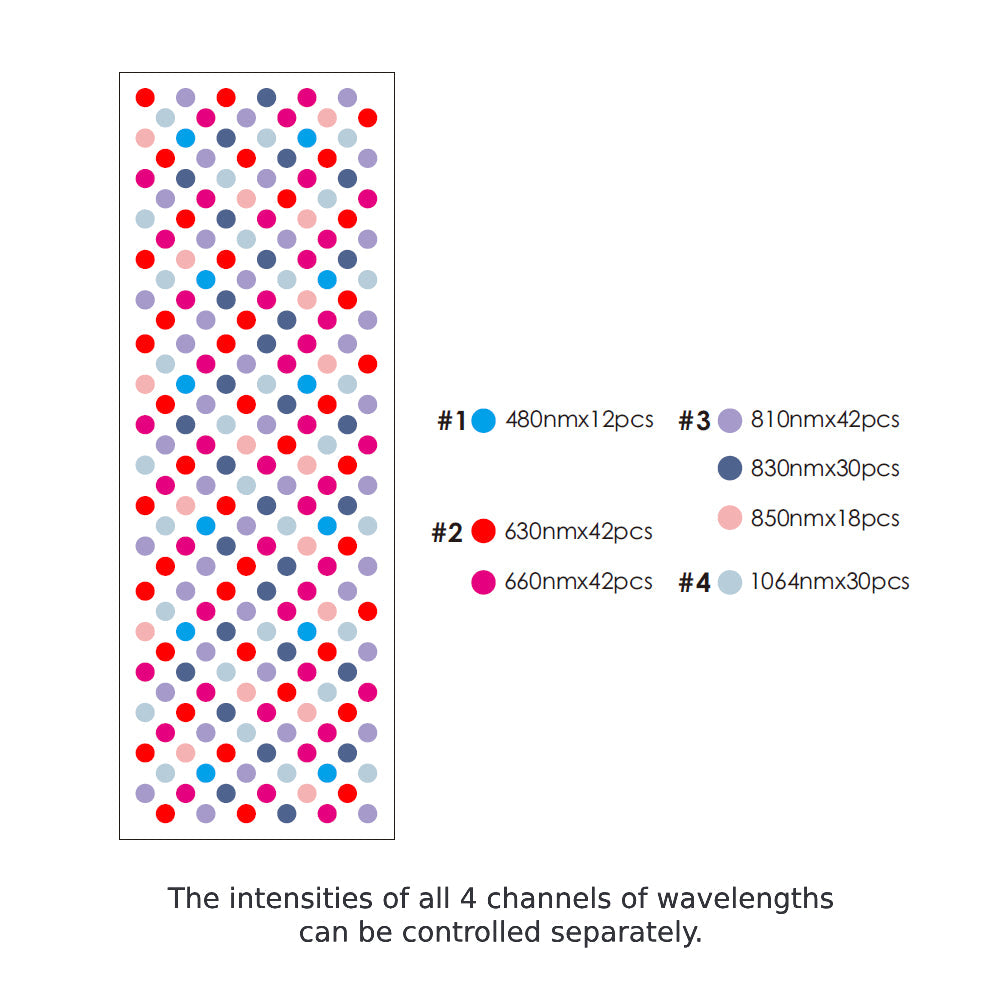

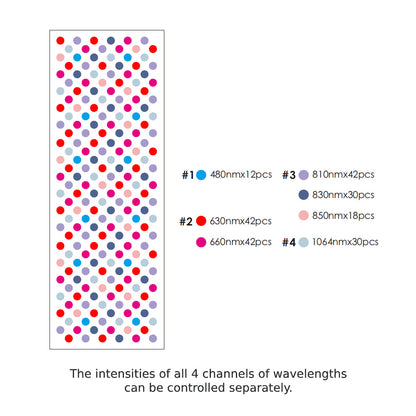

• 216 LEDs, 7 wavelengths: 480 nm blue (6%), 630 nm and 660 nm red (19% each), 810 nm (19%), 830 nm (14%), 850 nm (9%) near-infrared, and 1064 nm infrared (14%)
• Mid-size coverage: 30.3" tall panel for back, shoulders, hips, or legs
• FDA-registered Class II general-use infrared lamp (product code ILY, 21 CFR 890.5500), 510(k)-exempt
• Irradiance: 172 mW/cm² at 8 in (solar power meter); 99.0 mW/cm² at 6 in (spectrometer); third-party test results published by RLT Home
• 30-degree beam angle for focused coverage
• 9 preset programs plus custom mode with independent intensity and pulsing for 4 channels
• Pulsing range 0 to 5,000 Hz
• Touch interface on device and included remote control

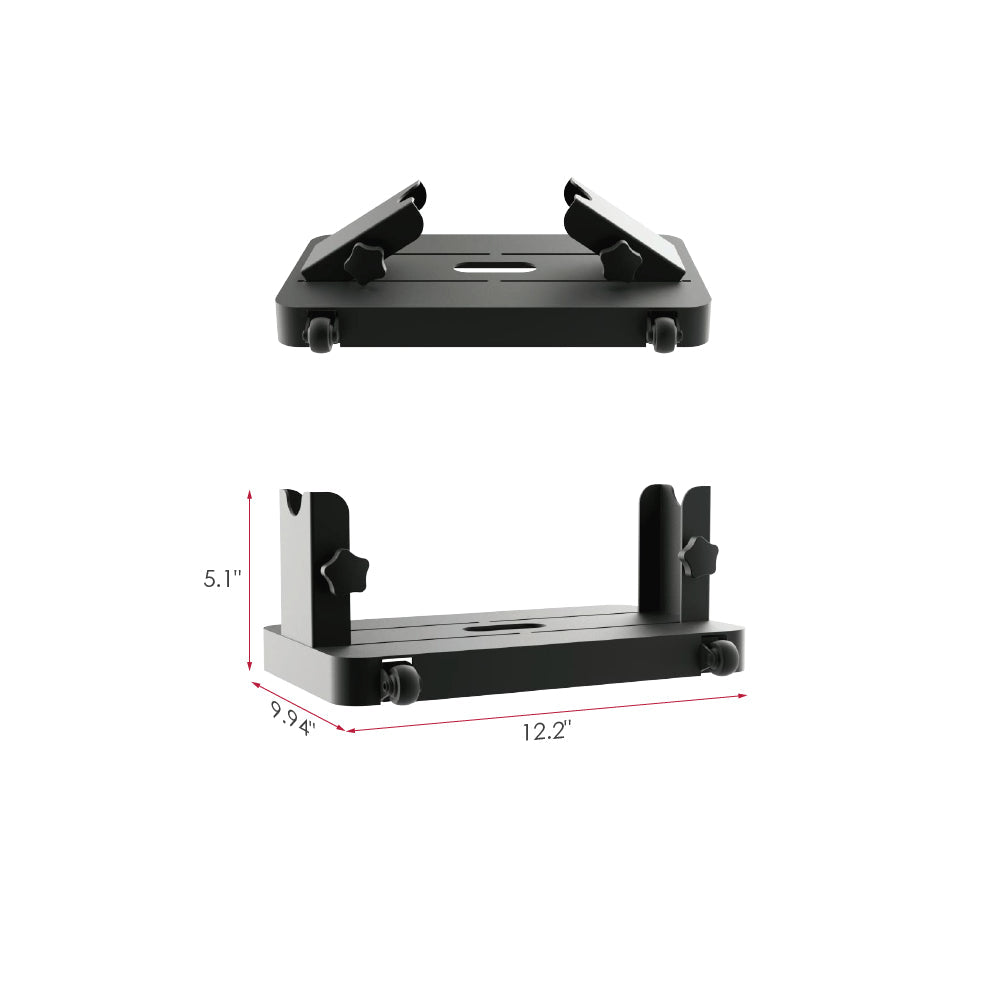

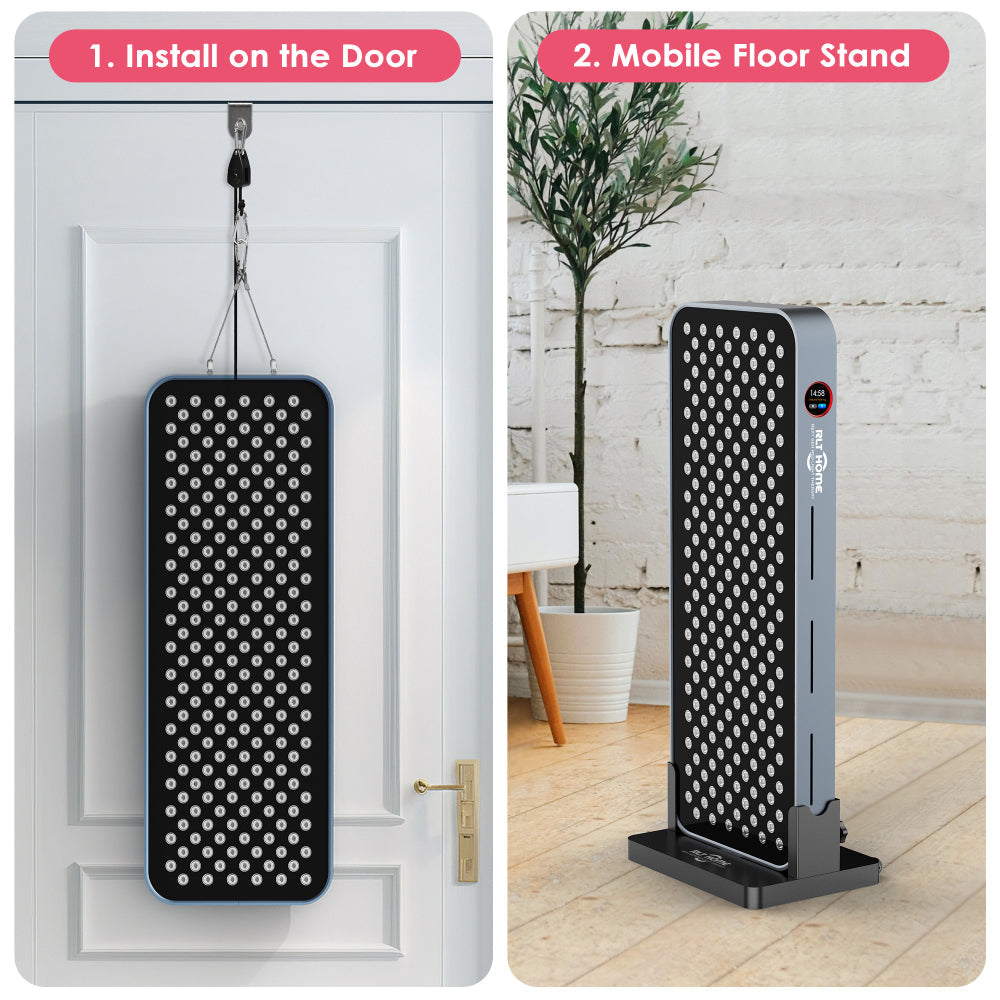

• Rolling floor stand and door-hanging kit included
• Flicker-free LEDs; approximately 0.0 μT EMF at 6 in or greater (Cornet EMF meter)
• No app, account, or data sharing required
• Aluminum housing; 3535 LEDs (5 W each) rated 100,000 hours
• 280 W power draw; AC 100-240V universal input, standard household outlet

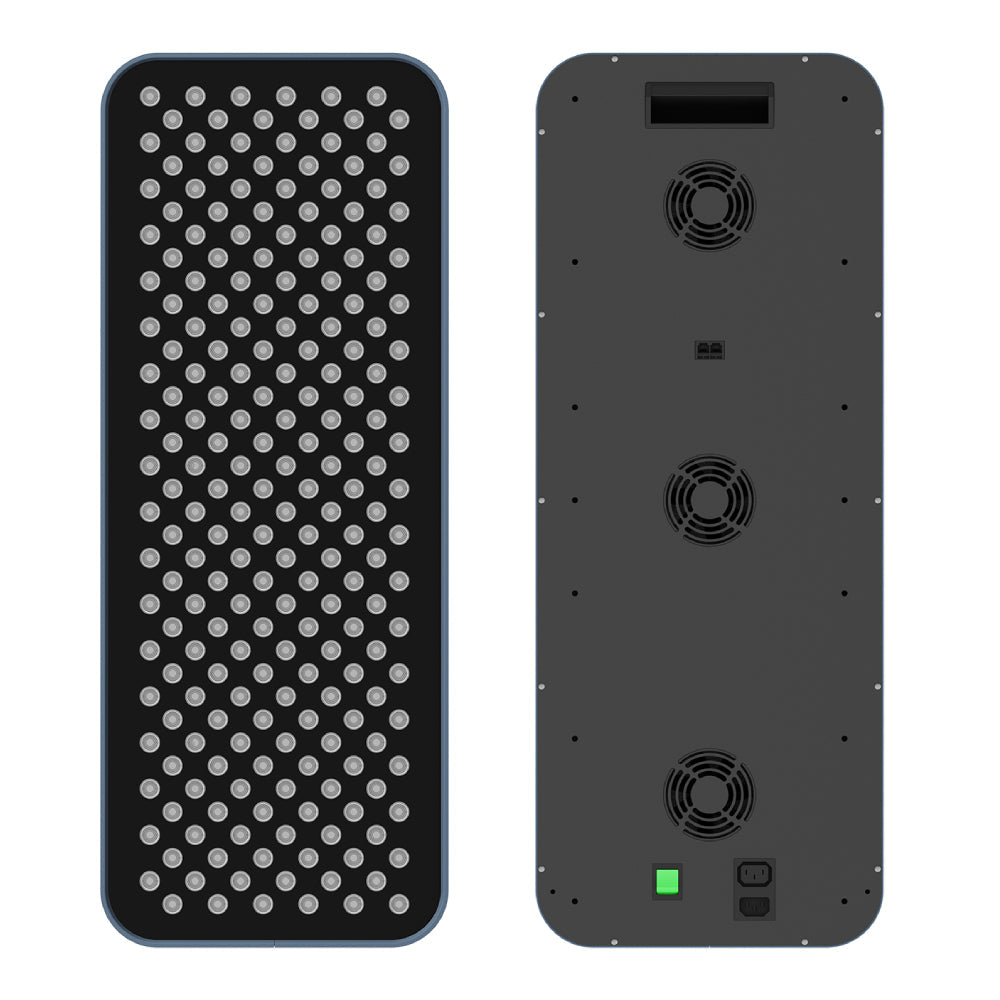

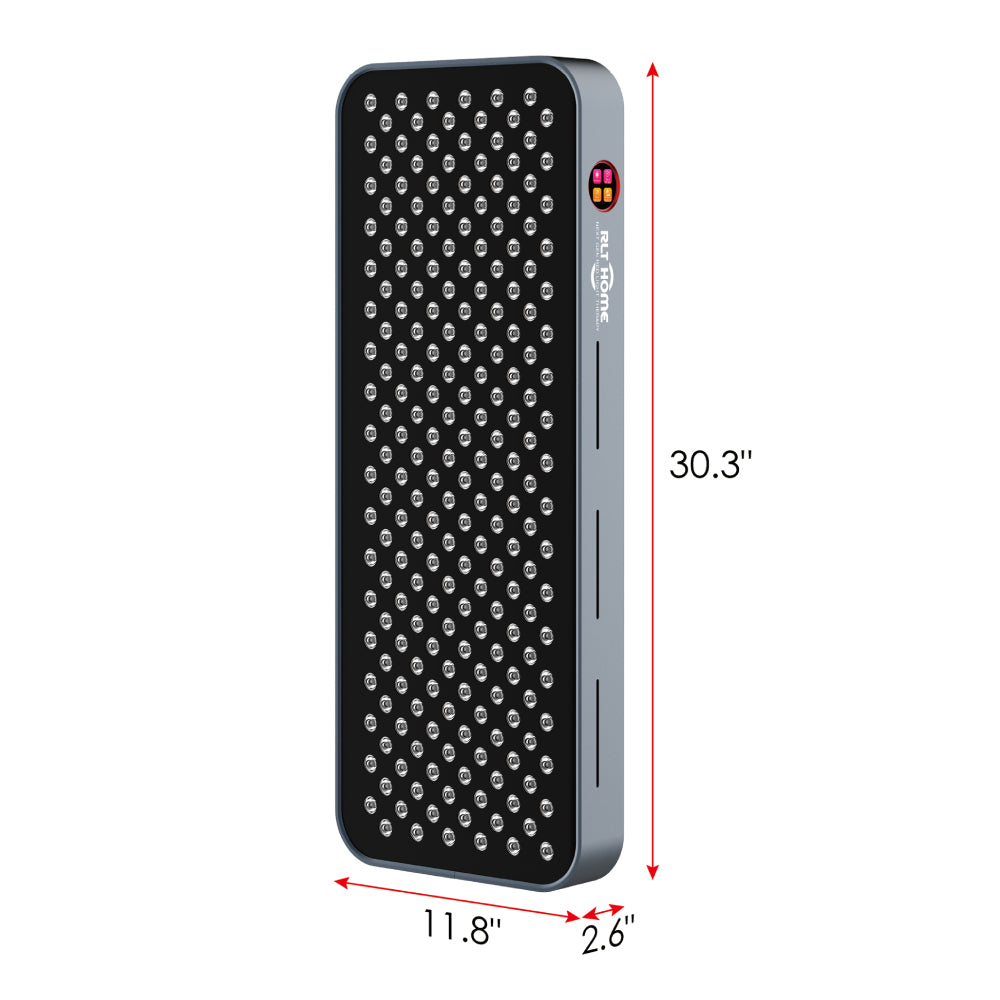

• Device: 30.3" x 11.8" x 2.6" (770 x 300 x 65 mm), 22 lb (10 kg)
• Shipping box: 33" x 15" x 7" (850 x 380 x 180 mm), 26.5 lb (12 kg)
• RoHS certified; CE certified under the Low Voltage Directive and Electromagnetic Compatibility Directive
• 3-year manufacturer warranty

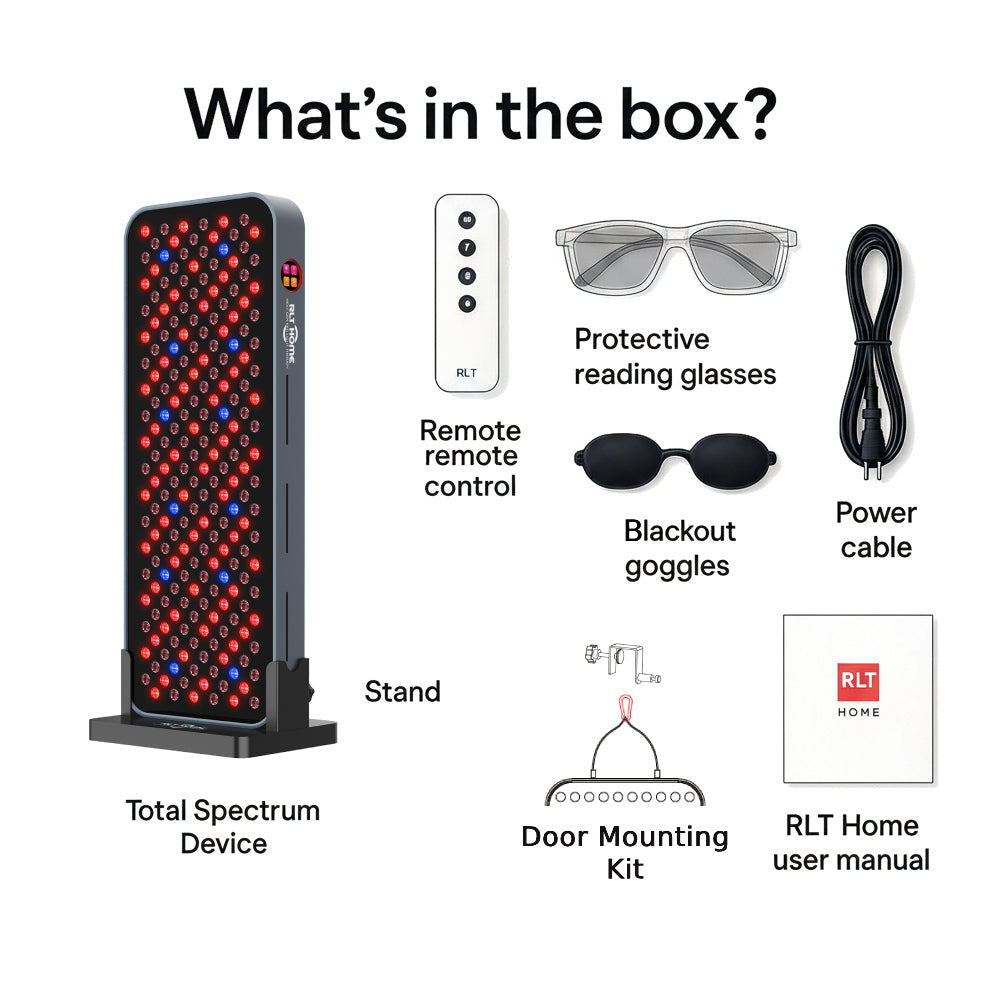

• In the box: Total Spectrum COMPACT panel, rolling floor stand, remote control, protective reading glasses, blackout goggles, door hanging kit, power cable, user manual
• Brand: RLT Home (Red Light Therapy Home)
