RLT Home Total Spectrum ELITE Full-Body Red Light Therapy Panel with Electric Stand, 7 Wavelengths, 864 LEDs

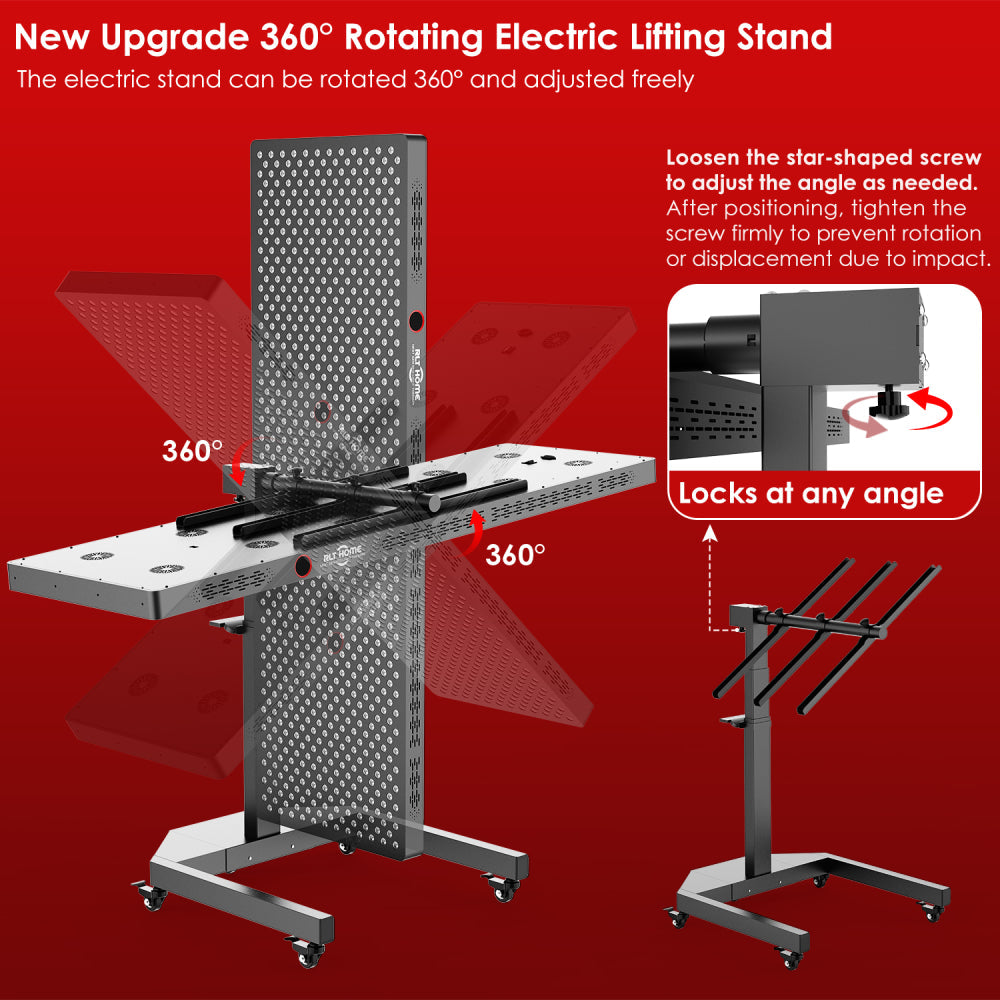

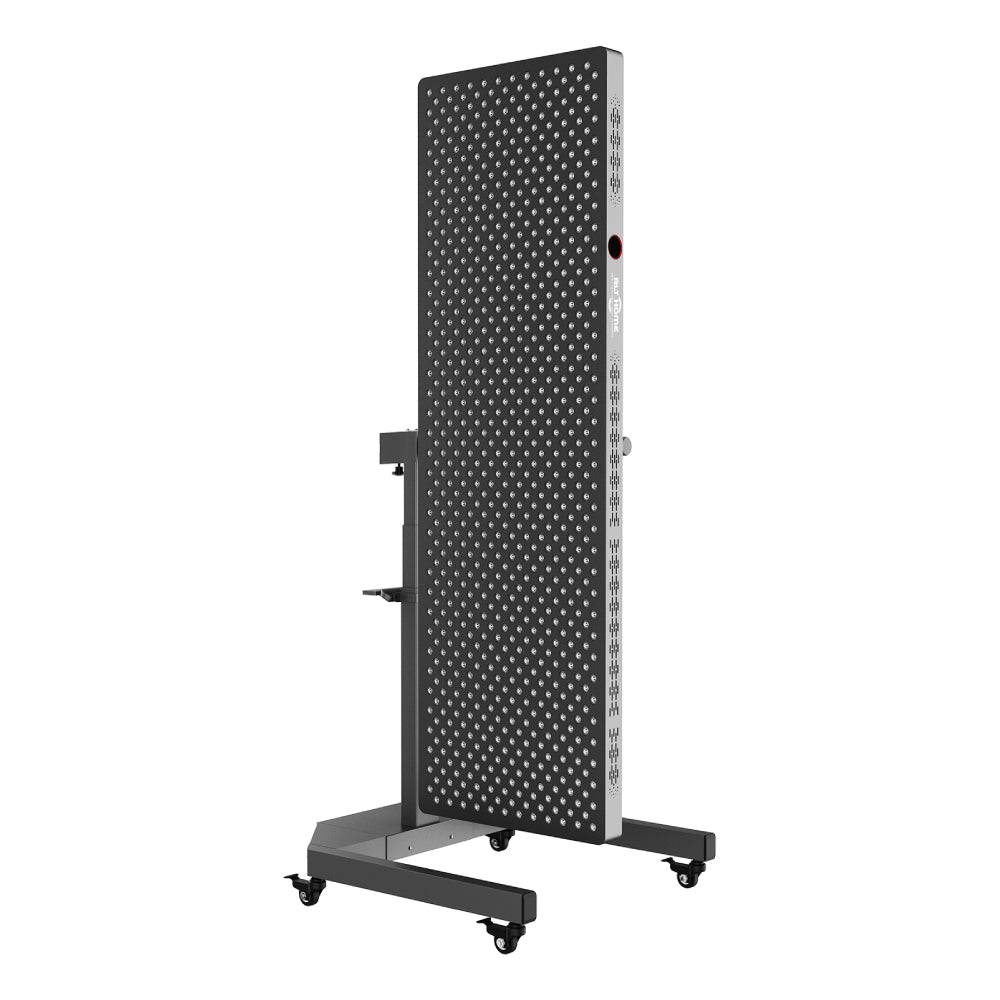

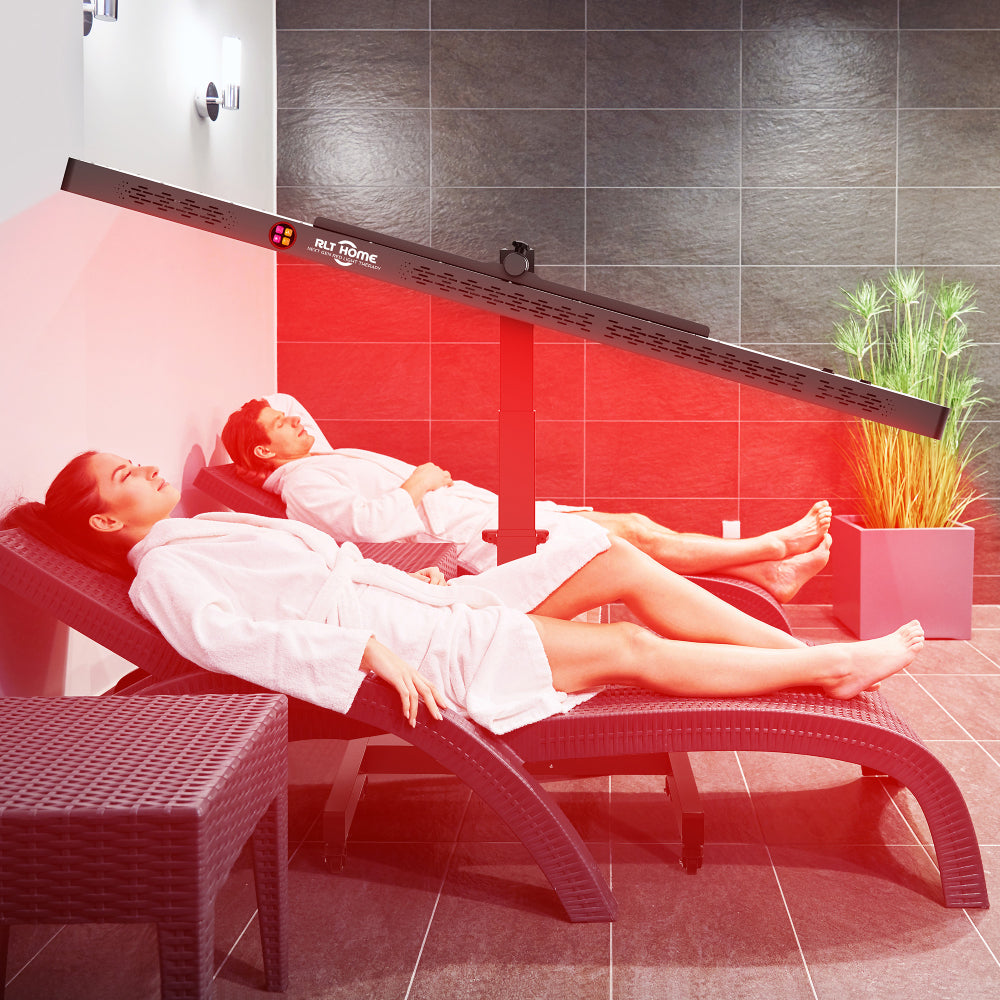

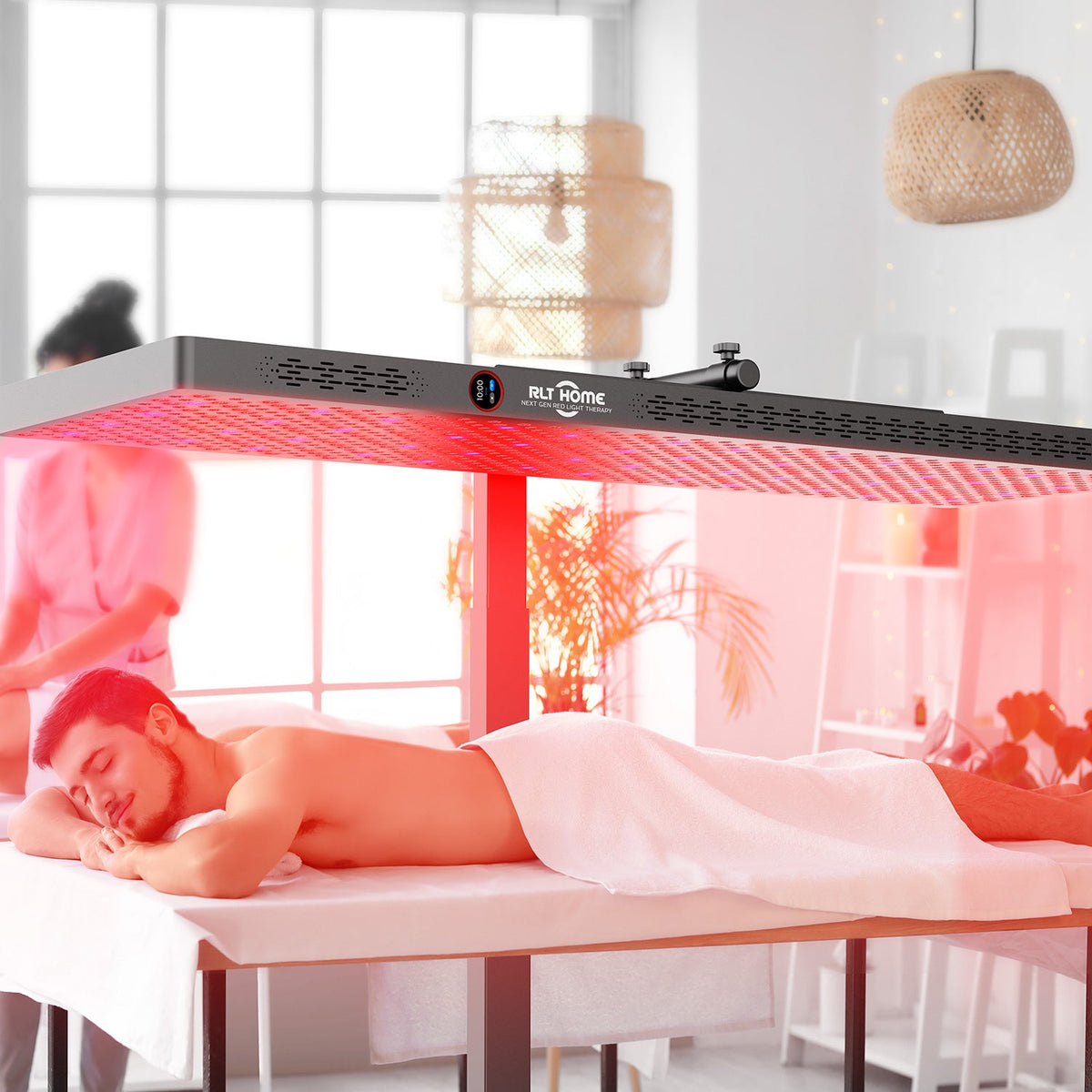

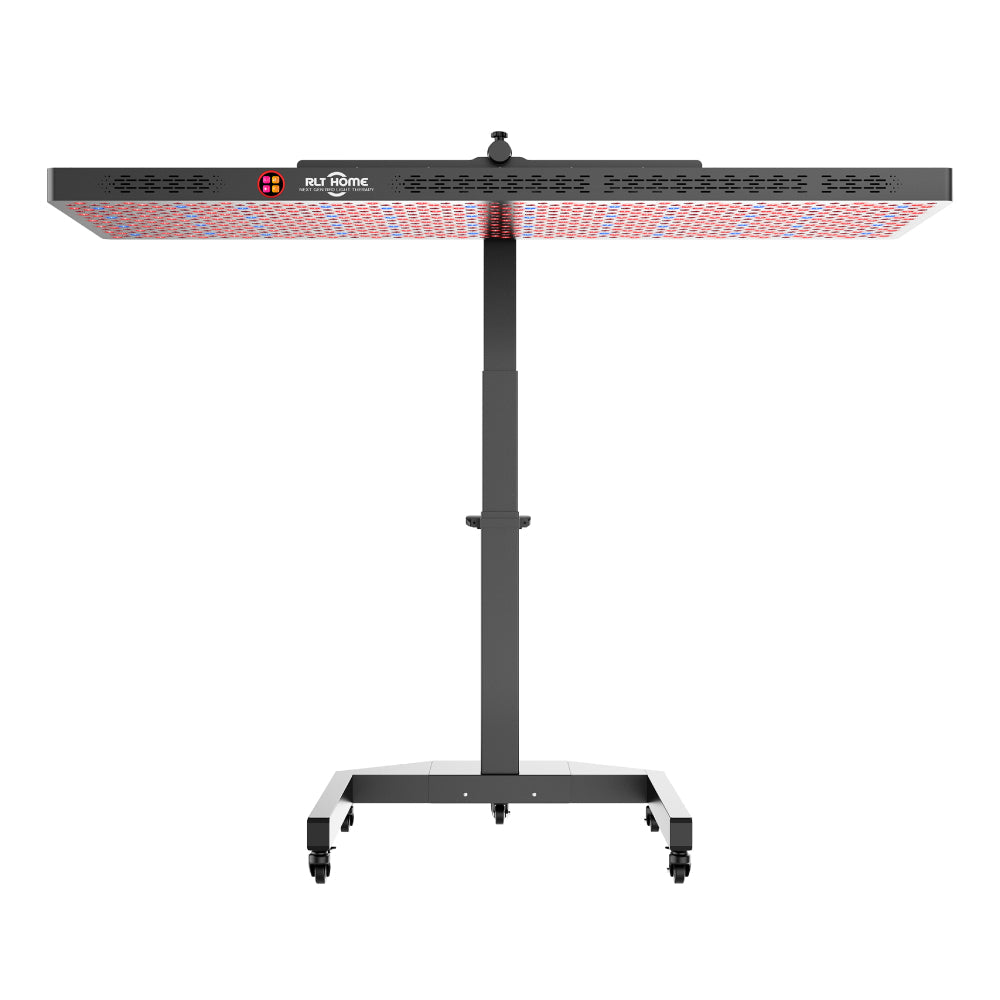

The Total Spectrum ELITE is the largest panel in RLT Home's lineup: 864 LEDs across a 65" x 20.5" array, nearly twice the width of the ULTRA, so it covers the full height and width of an adult body in one session without repositioning. It ships with RLT Home's motorized stand, which raises the panel from 29" to 64", rotates it from vertical to horizontal, and rolls under a bed or massage table on a low-profile base, so you can use the ELITE standing, seated, or lying flat.

All 864 LEDs feed RLT Home's seven-wavelength engine. Blue 480 nm and red 630/660 nm act at the skin's surface, near-infrared 810, 830, and 850 nm reach deeper into muscle and joint tissue, and 1064 nm short-wave infrared provides the deepest penetration in the lineup; with 14% of 864 LEDs dedicated to 1064 nm, the ELITE carries roughly 120 short-wave infrared emitters, the most of any Total Spectrum panel. The ELITE is an FDA-registered Class II general-use infrared lamp intended for temporary relief of minor muscle and joint pain and stiffness, relaxation of muscle tissue, and a temporary increase in local blood circulation. RLT Home publishes third-party irradiance tests for the panel: 179 mW/cm² at 8 inches (solar power meter) and 121.62 mW/cm² at 6 inches (spectrometer), the highest figures in the Total Spectrum range.

Choose from nine preset programs or build your own. Custom mode sets intensity and pulsing independently for each of four channels (red, blue, near-infrared, and 1064 nm), with a pulsing range from 0 to 5,000 Hz. Control everything from the touch panel on the device or from across the room with the included remote. A 30-degree beam angle keeps output concentrated on the body at the recommended 6-8 inch distance. The LEDs are flicker-free, and the panel measures approximately 0.0 μT of EMF at 6 inches or more, verified with a Cornet EMF meter. Protective reading glasses and blackout goggles are included for eye comfort.

The 86 lb iron-housed panel and 53 lb stand are built for a fixed installation in a dedicated space, a home gym, or a treatment room. LEDs are rated for 100,000 hours, roughly 11 years of continuous use. Power draw is 1,540 watts on any 100-240V outlet; on a 120V circuit that is about 13 amps, so the ELITE runs on a standard household outlet, ideally on its own circuit. RLT Home backs the system with a 3-year warranty, and the device operates fully offline with no app or account required. The panel and stand ship in two separate cartons.

Key Features:

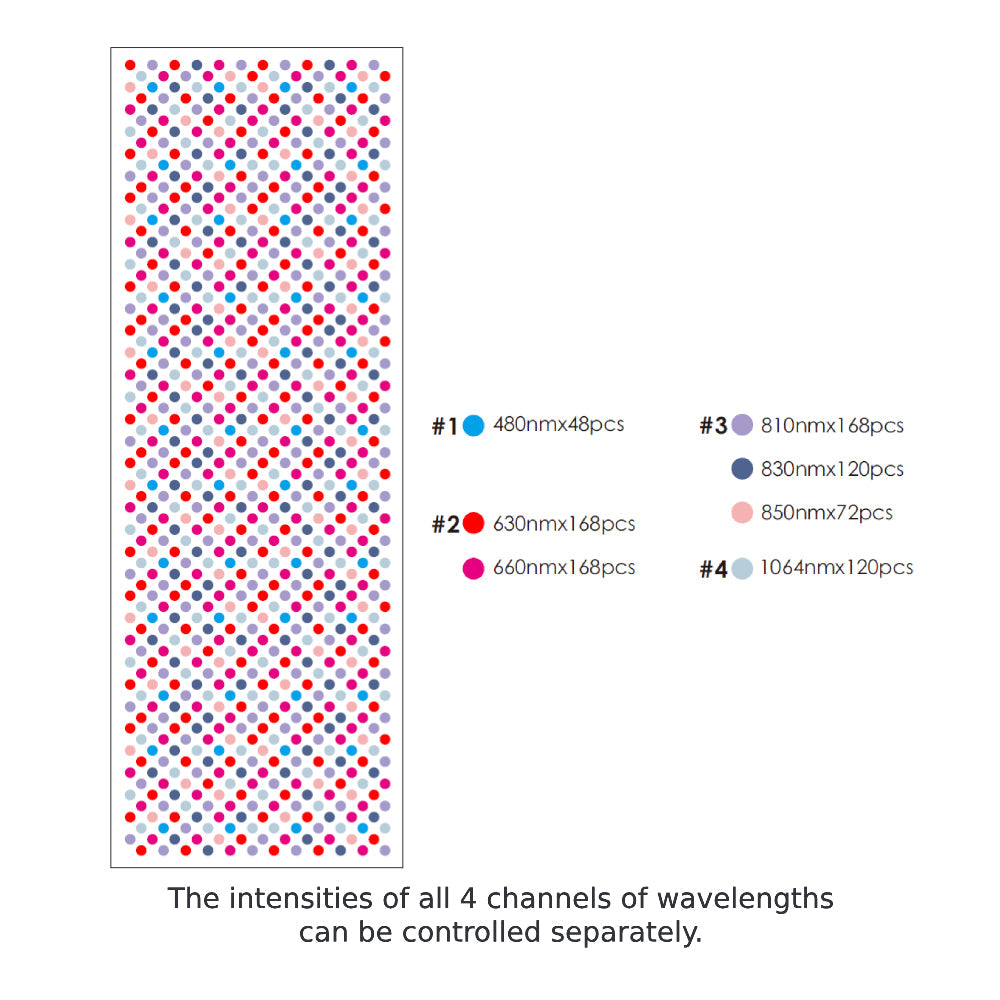

• 864 LEDs, 7 wavelengths: 480 nm blue (6%), 630 nm and 660 nm red (19% each), 810 nm (19%), 830 nm (14%), 850 nm (9%) near-infrared, and 1064 nm infrared (14%)
• Full-body coverage: 65" x 20.5" panel, the widest in the Total Spectrum range

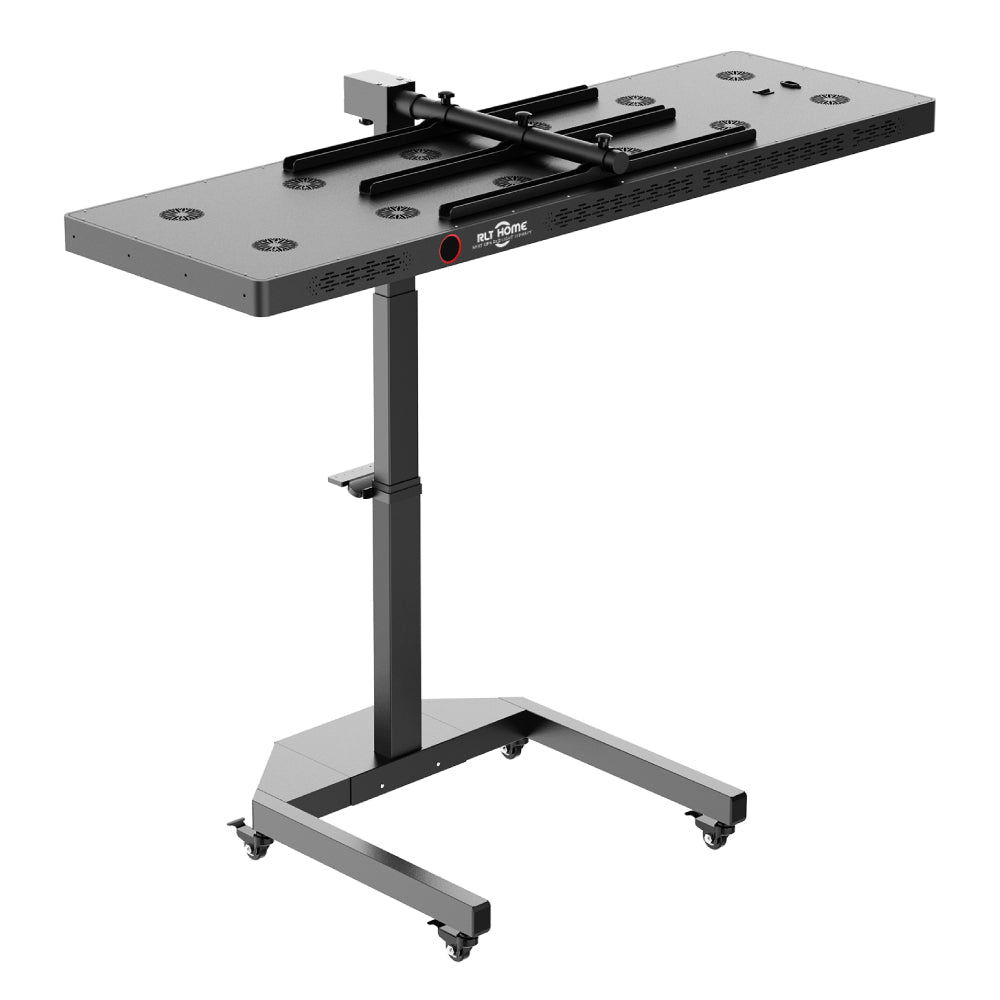

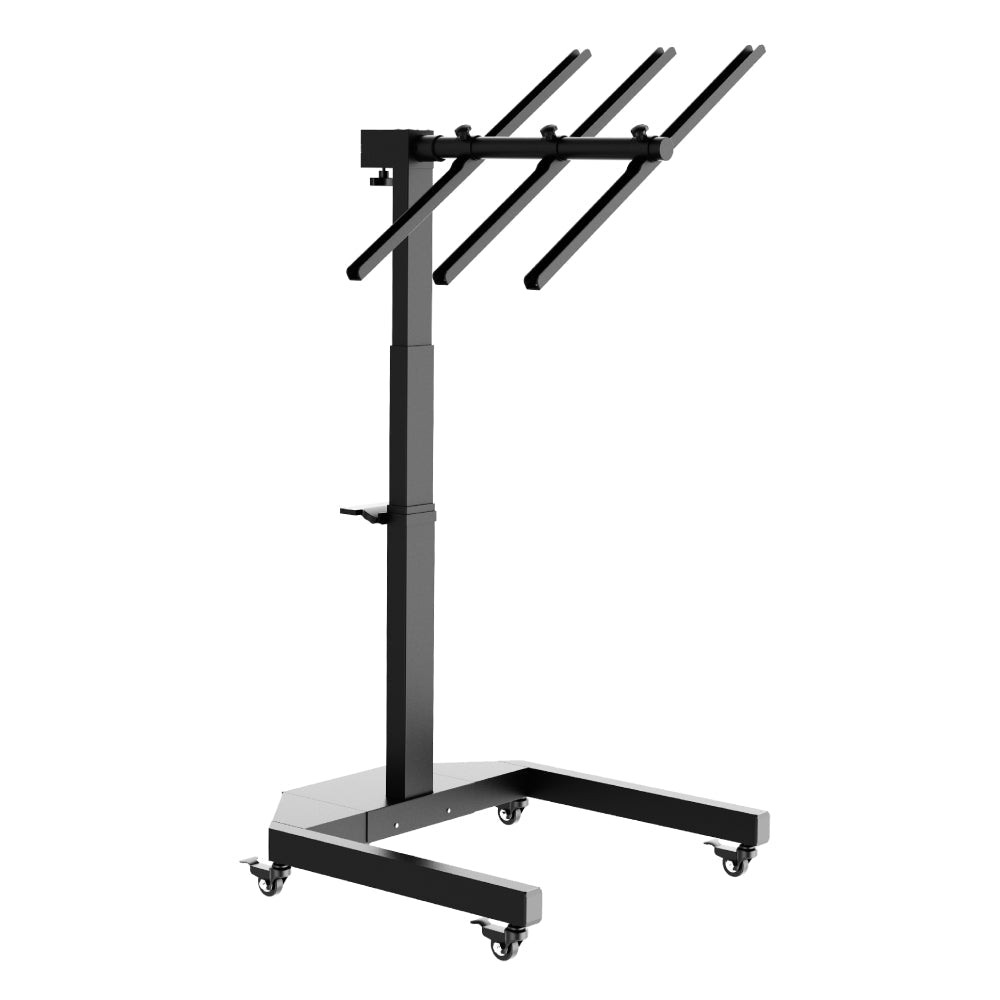

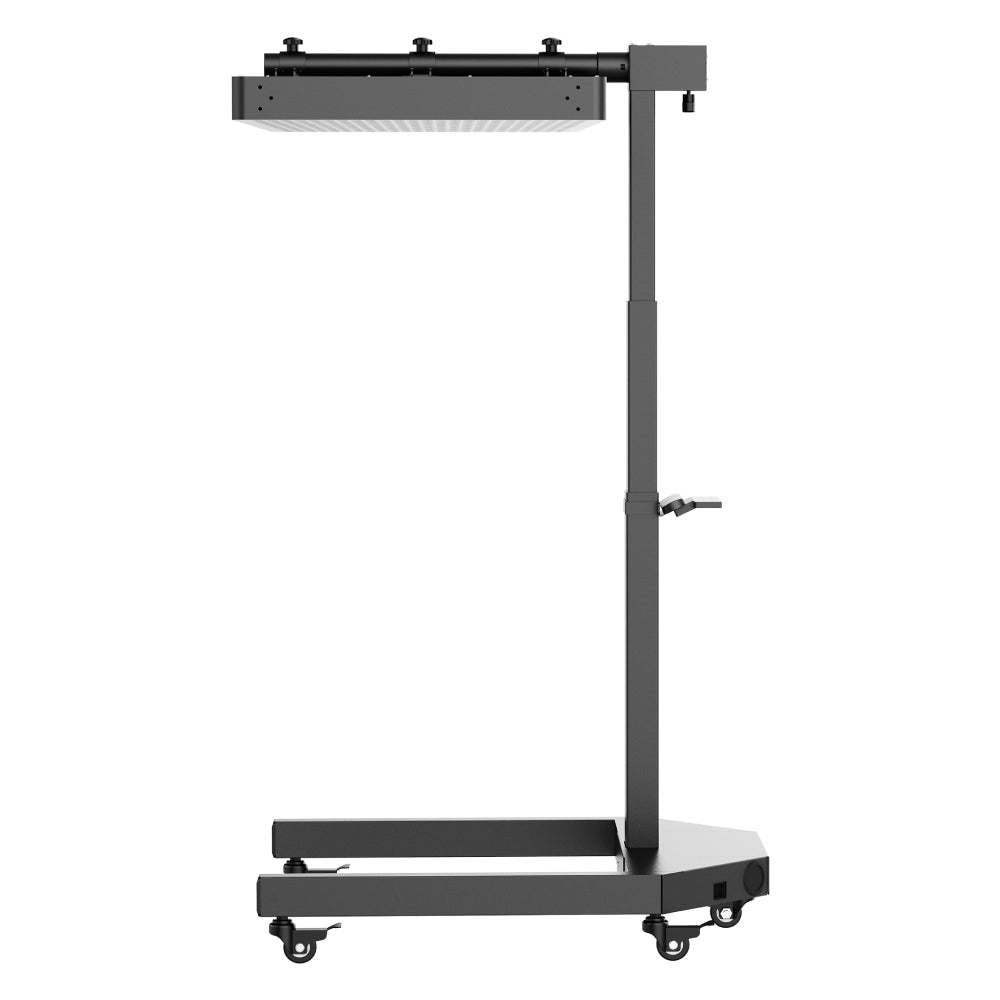

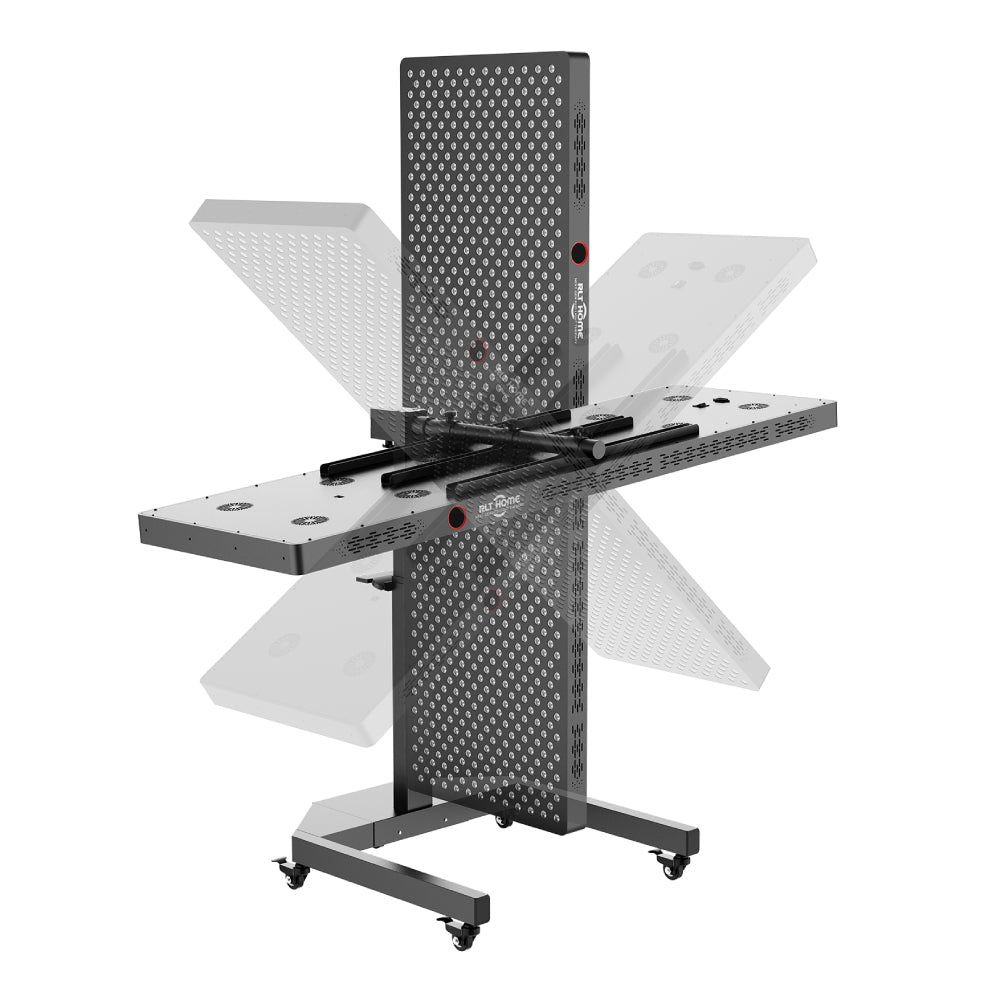

• Motorized electric stand included: height adjustable 29" to 64", rotates from vertical to horizontal for lying-down sessions
• Stand footprint approximately 3 ft x 3 ft; 5.5" under-bed clearance with wheels (3" without)
• FDA-registered Class II general-use infrared lamp (product code ILY, 21 CFR 890.5500), 510(k)-exempt
• Irradiance: 179 mW/cm² at 8 in (solar power meter); 121.62 mW/cm² at 6 in (spectrometer); third-party test results published by RLT Home
• 30-degree beam angle for focused coverage
• 9 preset programs plus custom mode with independent intensity and pulsing for 4 channels
• Pulsing range 0 to 5,000 Hz
• Touch interface on device and included remote control
• Flicker-free LEDs; approximately 0.0 μT EMF at 6 in or greater (Cornet EMF meter)
• No app, account, or data sharing required
• Iron housing; 3535 LEDs rated 100,000 hours
• 1,540 W power draw; AC 100-240V universal input; standard household outlet, dedicated circuit recommended

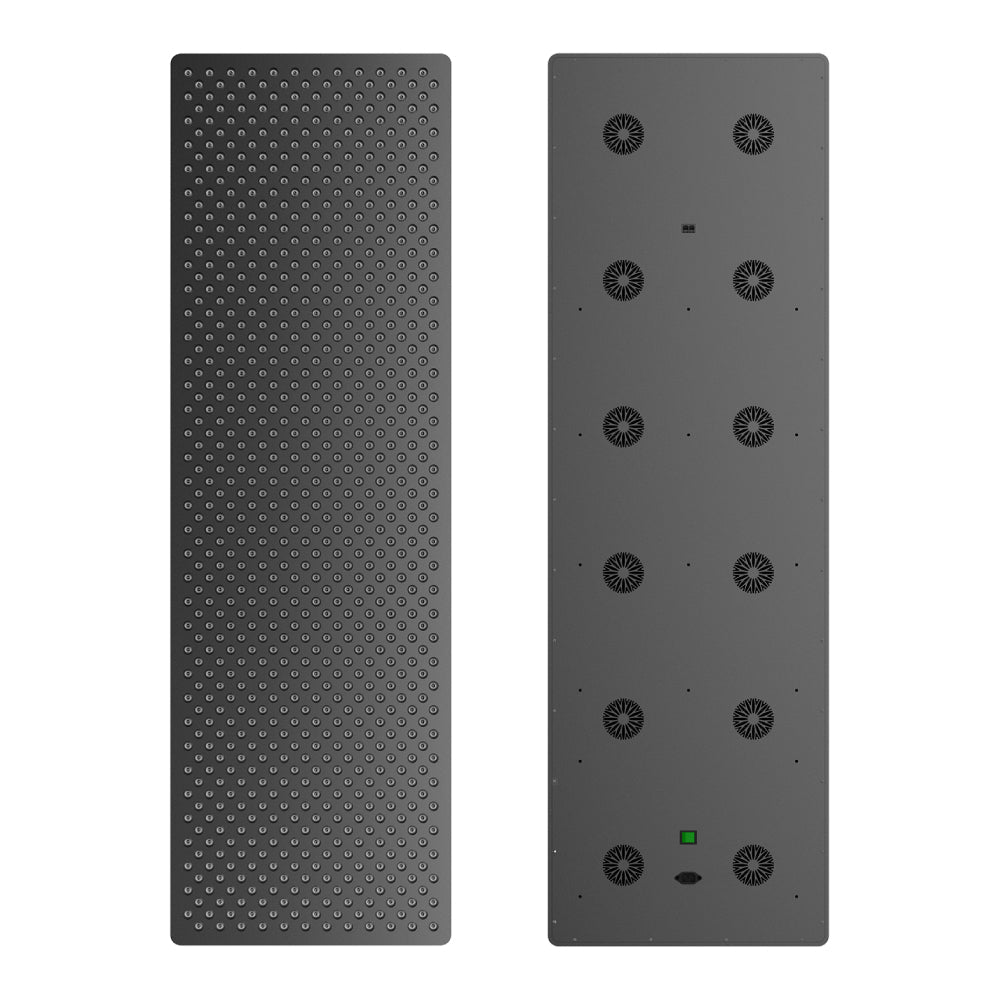

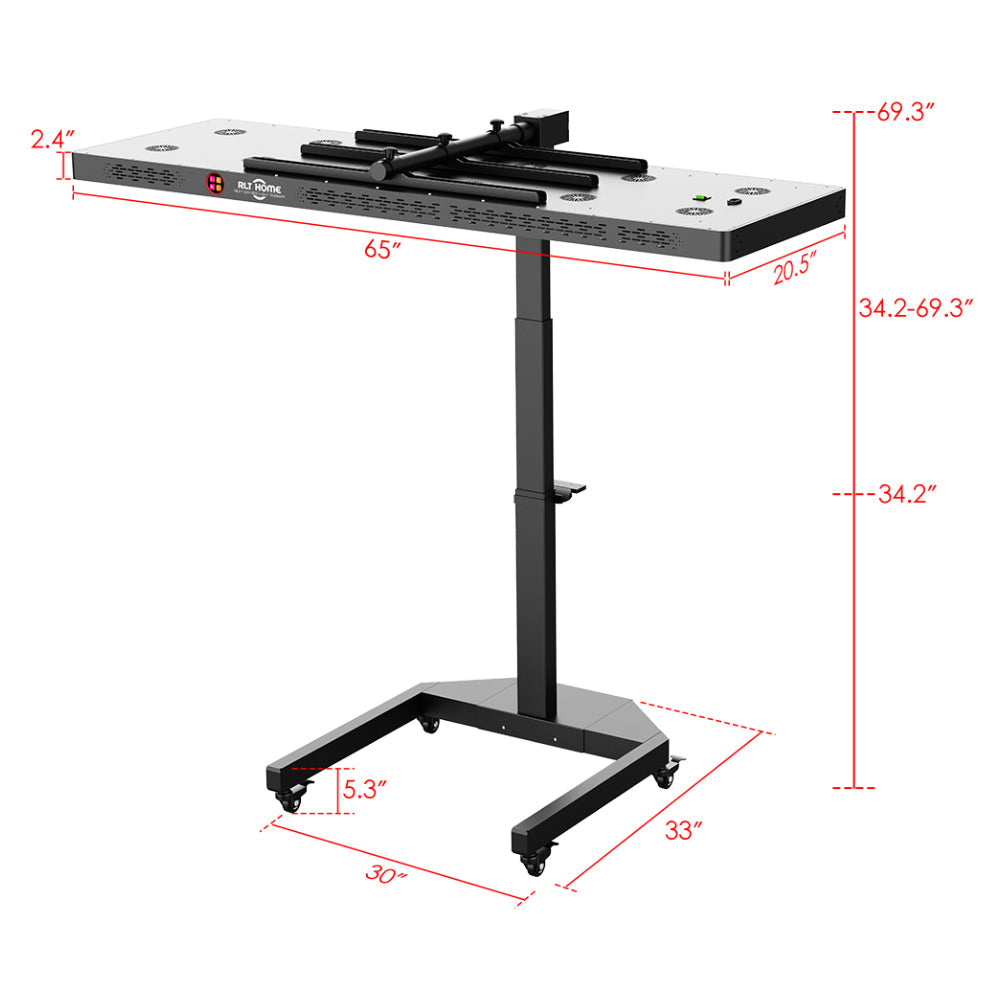

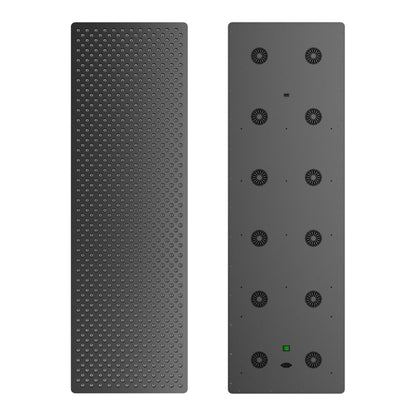

• Panel: 65" x 20.5" x 2.4" (1650 x 520 x 60 mm), 86 lb (39 kg)
• Stand: 33" x 28" x 5" (838 x 711 x 127 mm), 53 lb (24 kg)
• Ships in 2 cartons: panel box 68" x 24" x 7", 92.6 lb; stand box 33" x 29" x 6", 59.5 lb
• RoHS certified; CE certified under the Low Voltage Directive and Electromagnetic Compatibility Directive
• 3-year manufacturer warranty

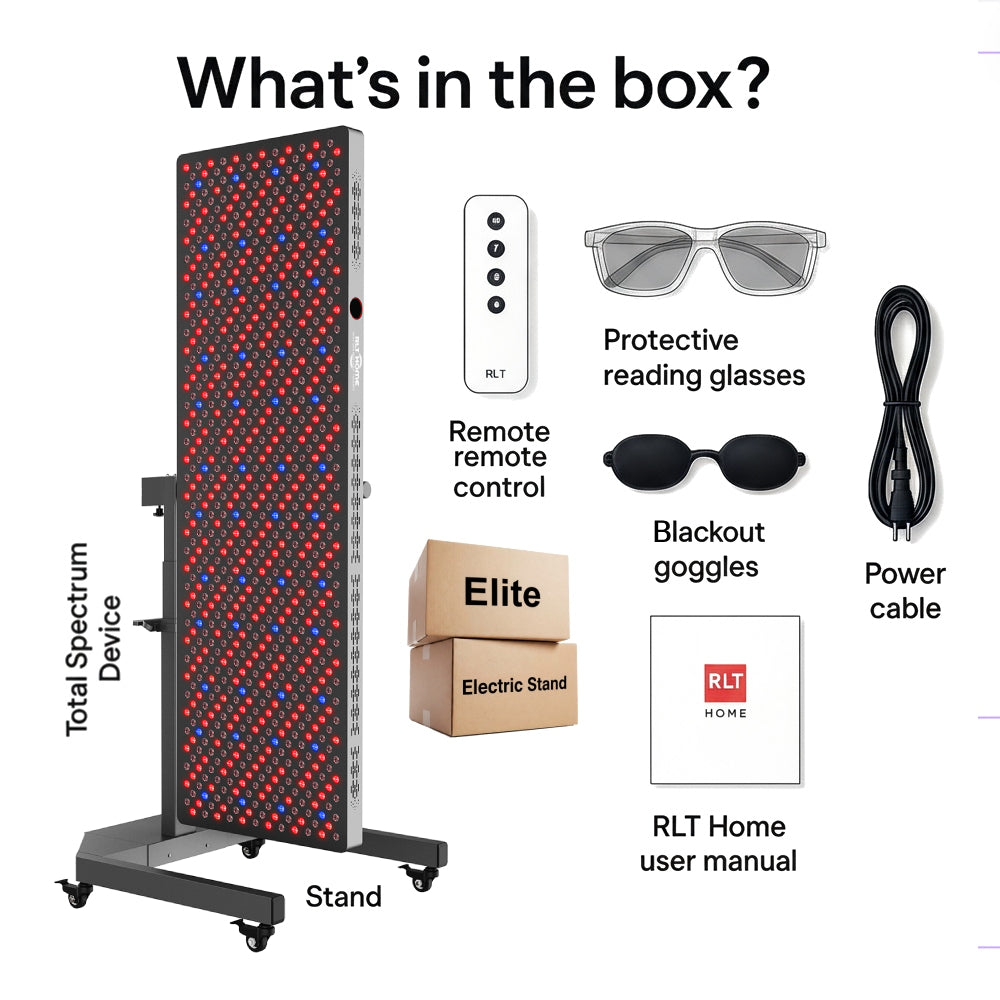

• In the box: Total Spectrum ELITE panel, adjustable electric stand, remote control, protective reading glasses, blackout goggles, power cable, user manual
• Brand: RLT Home (Red Light Therapy Home)
