RLT Home Total Spectrum MAX Red Light Therapy Panel, 7 Wavelengths, 360 LEDs

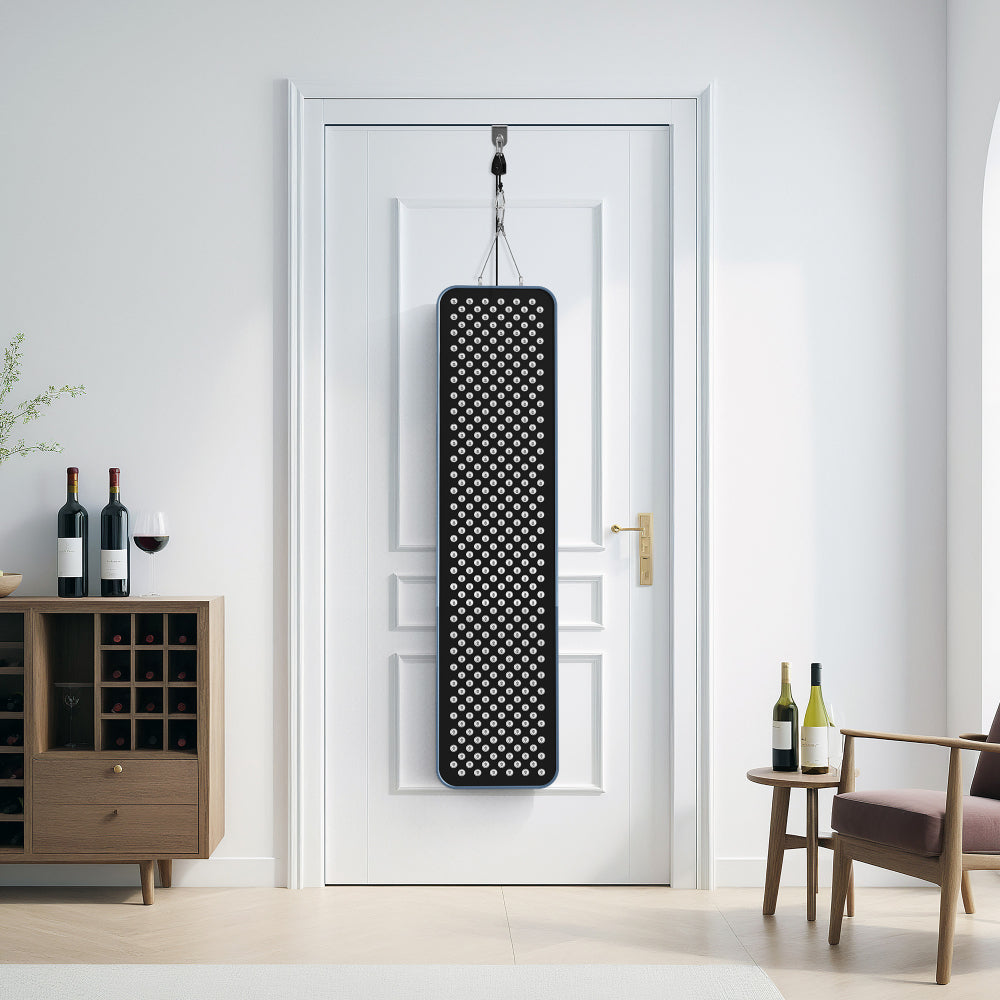

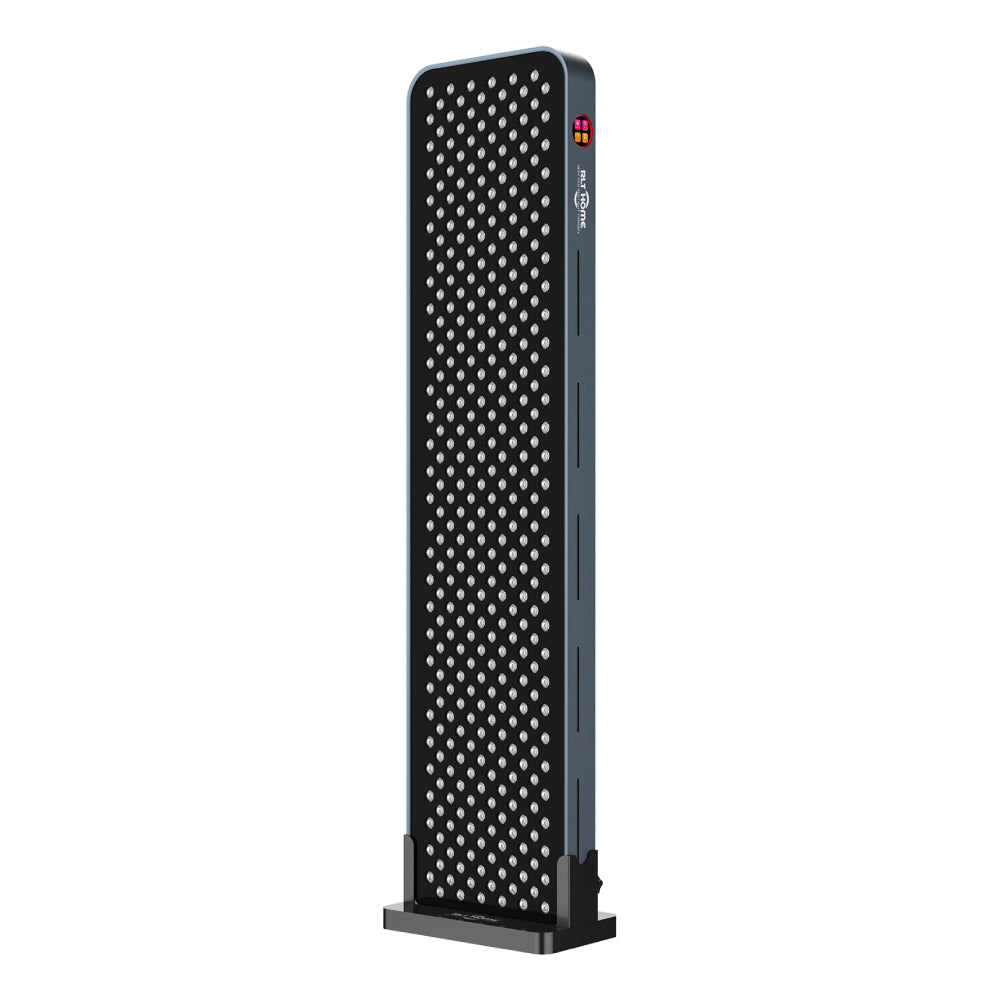

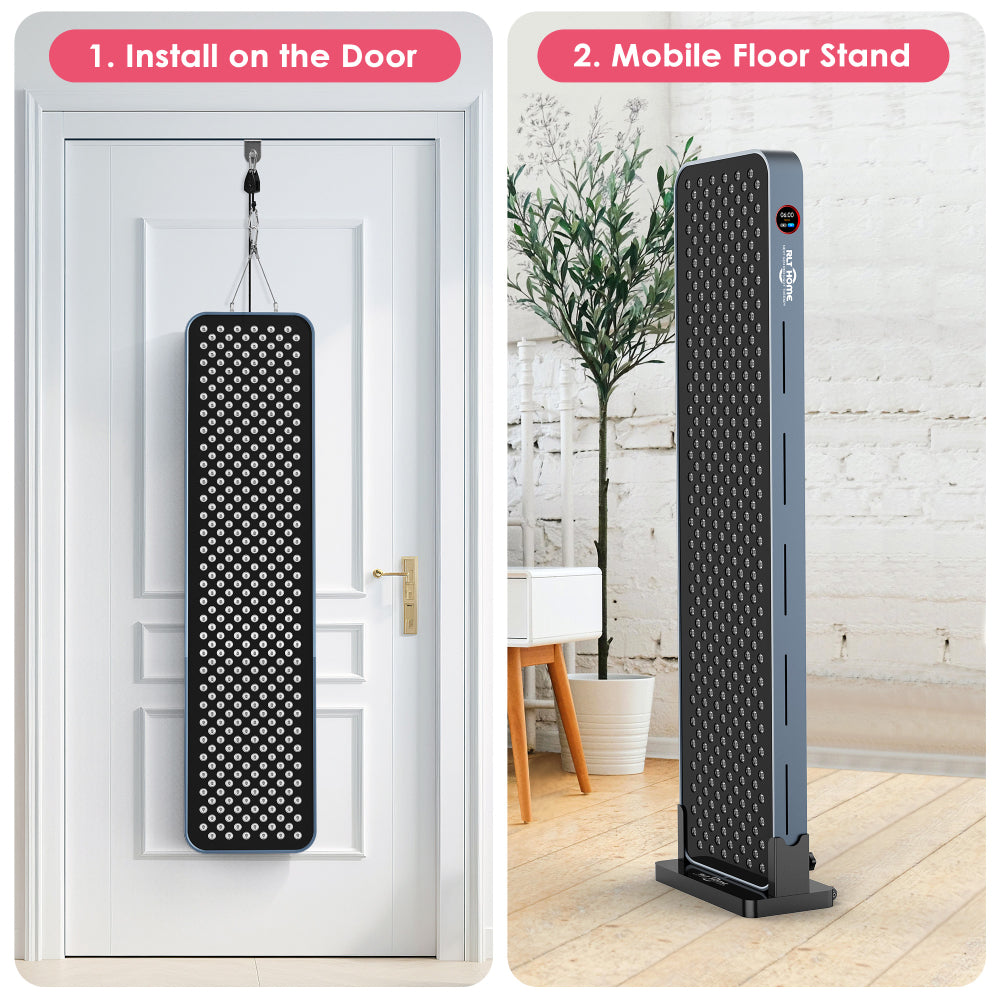

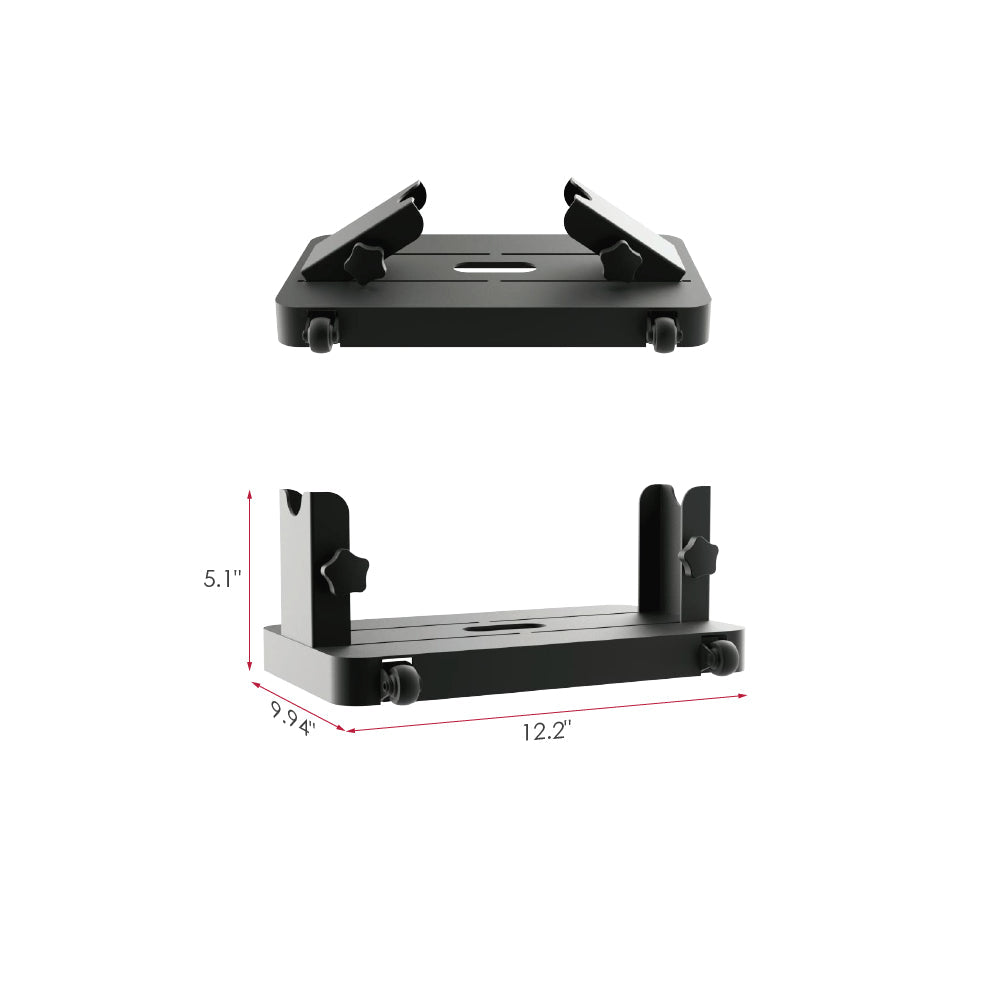

The Total Spectrum MAX is RLT Home's half-body panel: a 49.2" x 11.8" aluminum array of 360 LEDs that covers the torso, back, hips, and thighs in a single session. Stand it upright on the included rolling floor stand to treat the front or back of the body while standing or seated, or hang it from a door with the included kit to save floor space. The MAX's four-foot height and 30-degree beam angle deliver even, focused coverage from head to knee at the recommended 6-8 inch distance, so a session takes minutes rather than a series of repositioned exposures.

All 360 LEDs contribute to RLT Home's seven-wavelength engine. Blue 480 nm and red 630/660 nm act at the skin's surface, near-infrared 810, 830, and 850 nm reach deeper into muscle and joint tissue, and 1064 nm provides the deepest penetration in the lineup. The MAX is an FDA-registered Class II general-use infrared lamp intended for temporary relief of minor muscle and joint pain and stiffness, relaxation of muscle tissue, and a temporary increase in local blood circulation. RLT Home publishes third-party irradiance tests for the panel: 172 mW/cm² at 8 inches (solar power meter) and 100.53 mW/cm² at 6 inches (spectrometer).

Choose from nine preset programs or build your own. Custom mode sets intensity and pulsing independently for each of four channels (red, blue, near-infrared, and 1064 nm), with a pulsing range from 0 to 5,000 Hz. Control everything from the touch panel on the device or from across the room with the included remote. The LEDs are flicker-free, and the panel measures approximately 0.0 μT of EMF at 6 inches or more, verified with a Cornet EMF meter. Protective reading glasses and blackout goggles are included for eye comfort.

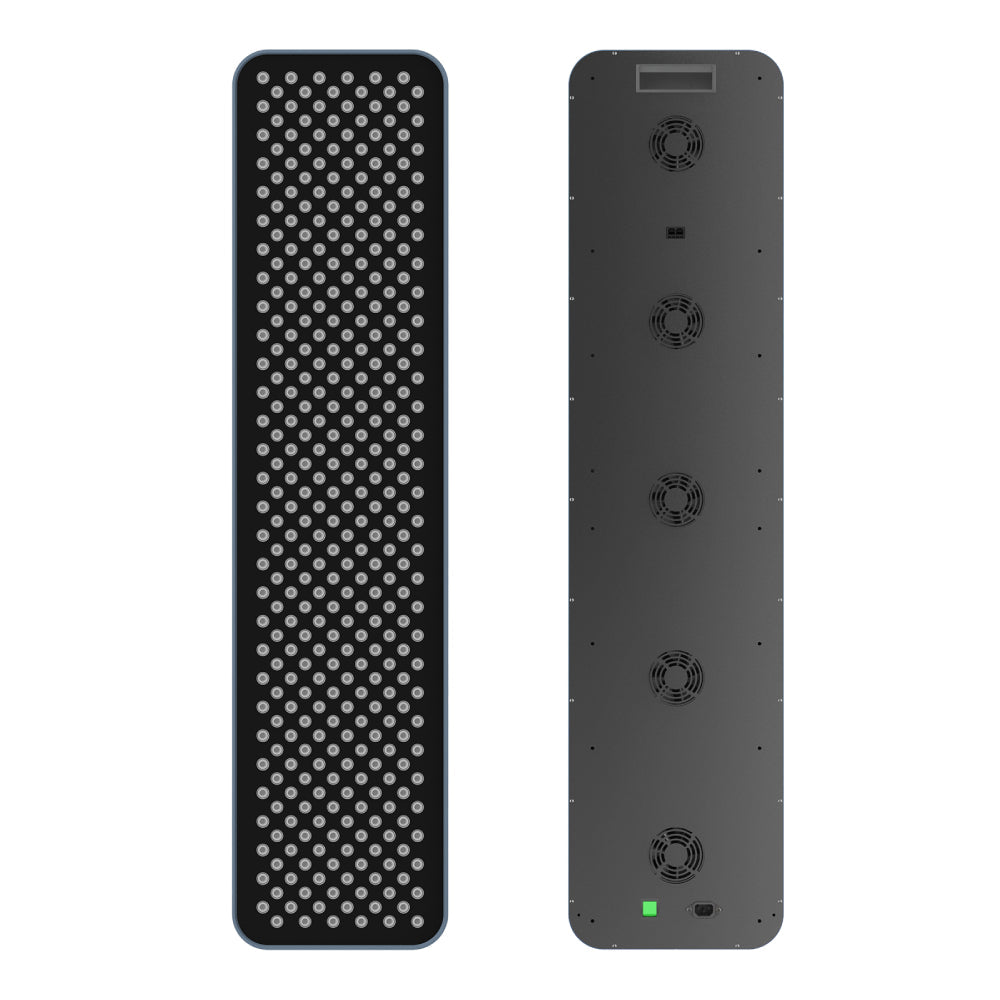

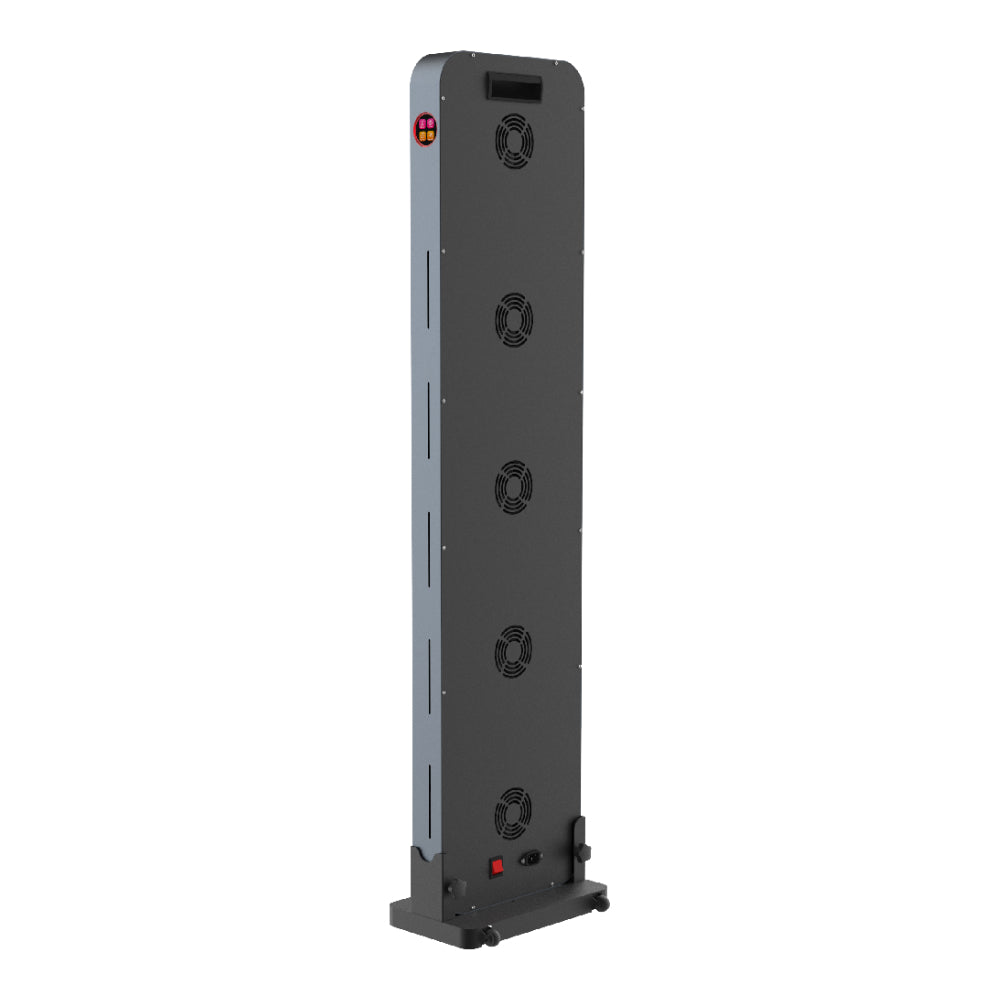

The aluminum housing dissipates heat across the panel's full length and keeps the 30.8 lb unit rigid on its stand. LEDs are rated for 100,000 hours, roughly 11 years of continuous use. Power draw is 550 watts on any 100-240V outlet, so the MAX plugs into a standard household circuit with no special wiring. RLT Home backs the panel with a 3-year warranty, and the device operates fully offline with no app or account required. An optional motorized stand (sold separately) adds horizontal and lay-down positioning.

Key Features:

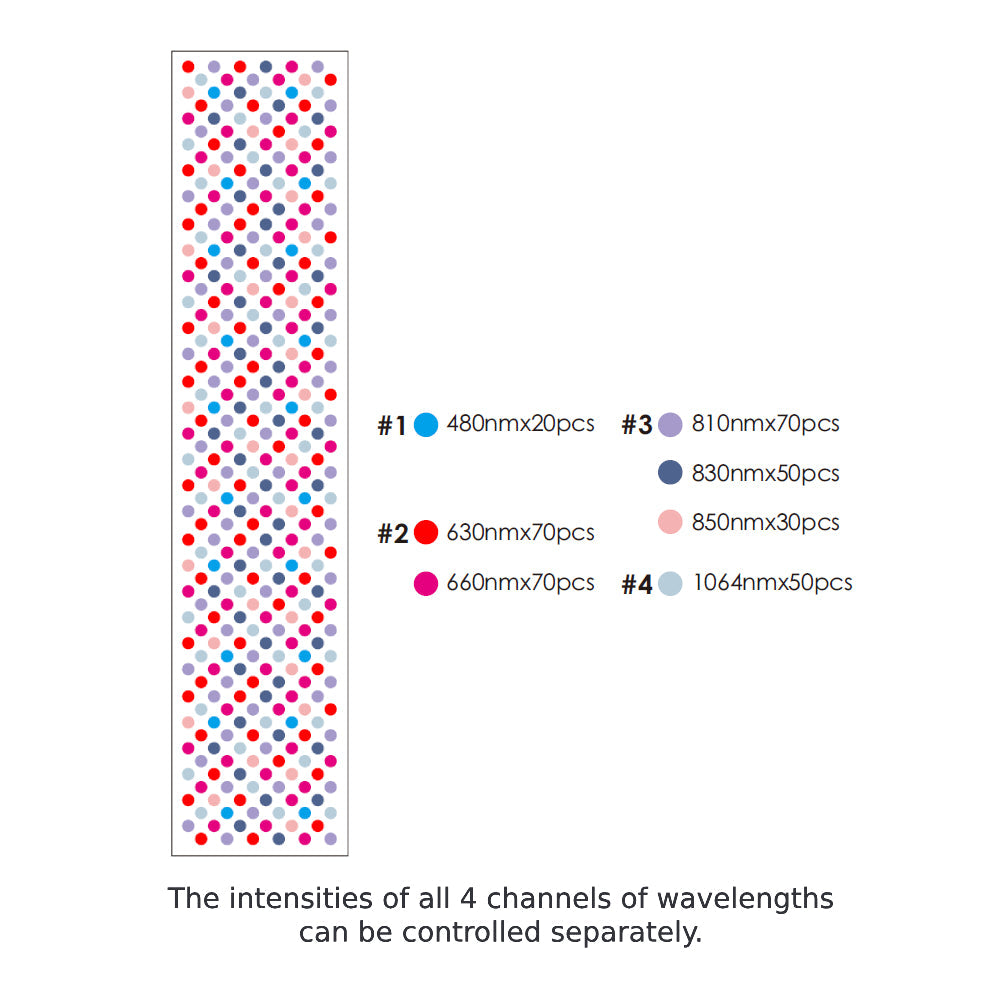

• 360 LEDs, 7 wavelengths: 480 nm blue (6%), 630 nm and 660 nm red (19% each), 810 nm (19%), 830 nm (14%), 850 nm (9%) near-infrared, and 1064 nm infrared (14%)
• Half-body coverage: 49.2" tall panel for torso, back, hips, and thighs
• FDA-registered Class II general-use infrared lamp (product code ILY, 21 CFR 890.5500), 510(k)-exempt
• Irradiance: 172 mW/cm² at 8 in (solar power meter); 100.53 mW/cm² at 6 in (spectrometer); third-party test results published by RLT Home
• 30-degree beam angle for focused, even coverage
• 9 preset programs plus custom mode with independent intensity and pulsing for 4 channels
• Pulsing range 0 to 5,000 Hz
• Flicker-free LEDs; approximately 0.0 μT EMF at 6 in or greater (Cornet EMF meter)
• Touch interface on device and included remote control
• No app, account, or data sharing required
• Aluminum housing; LED lifespan rated 100,000 hours
• 550 W power draw; AC 100-240V universal input, standard household outlet

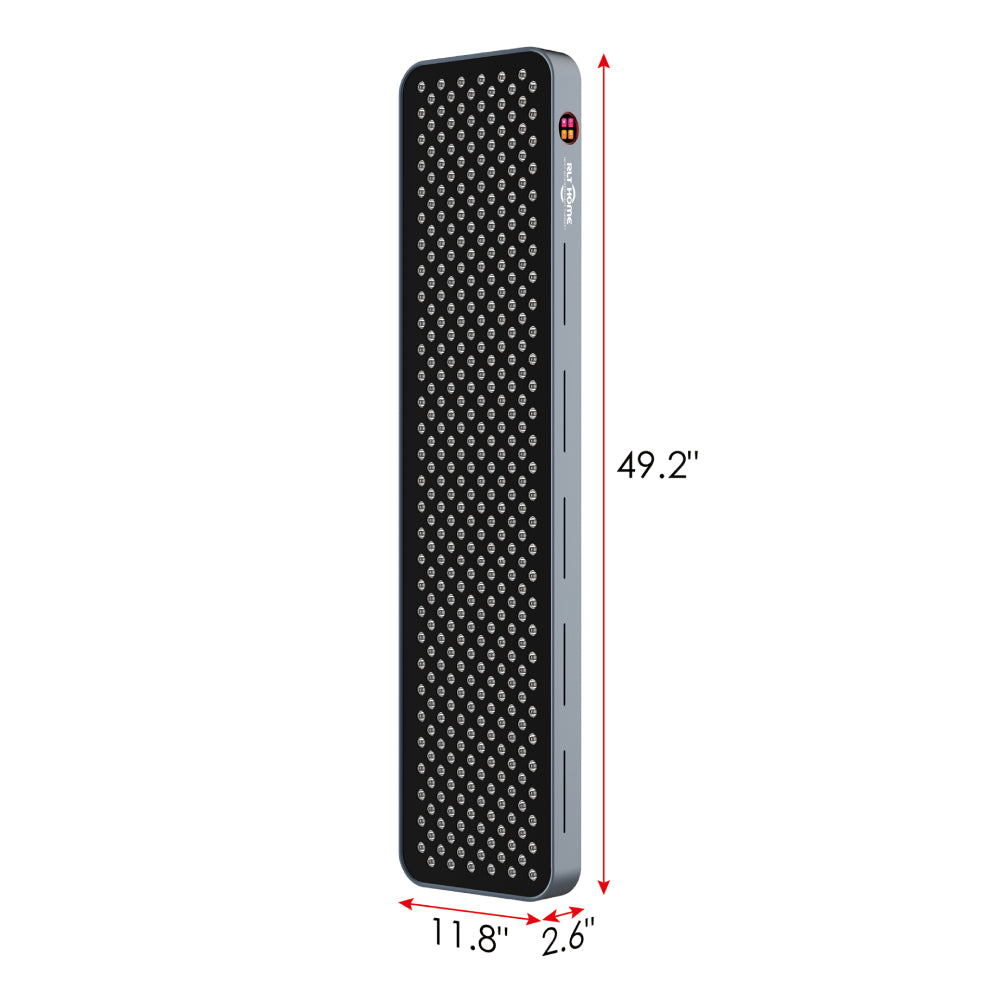

• Device: 49.2" x 11.8" x 2.6" (1250 x 300 x 65 mm), 30.8 lb (14 kg)
• Shipping box: 52" x 15" x 7" (1325 x 380 x 180 mm), 38.6 lb (17.5 kg)
• RoHS certified; CE certified under the Low Voltage Directive and Electromagnetic Compatibility Directive
• 3-year manufacturer warranty

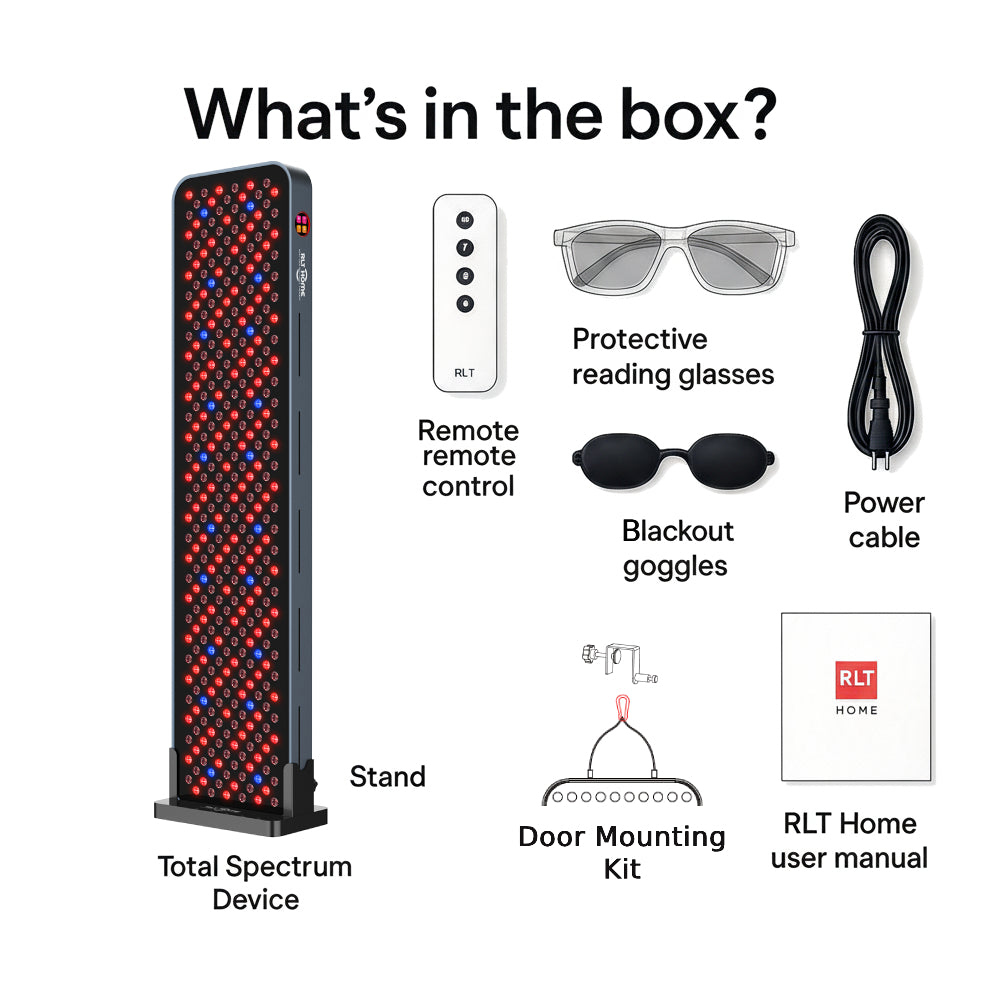

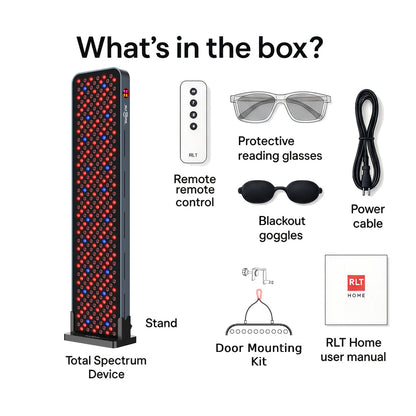

• In the box: Total Spectrum MAX panel, rolling floor stand, remote control, protective reading glasses, blackout goggles, door hanging kit, power cable, user manual
• Compatible with optional RLT Home motorized stand (sold separately)
• Brand: RLT Home (Red Light Therapy Home)
