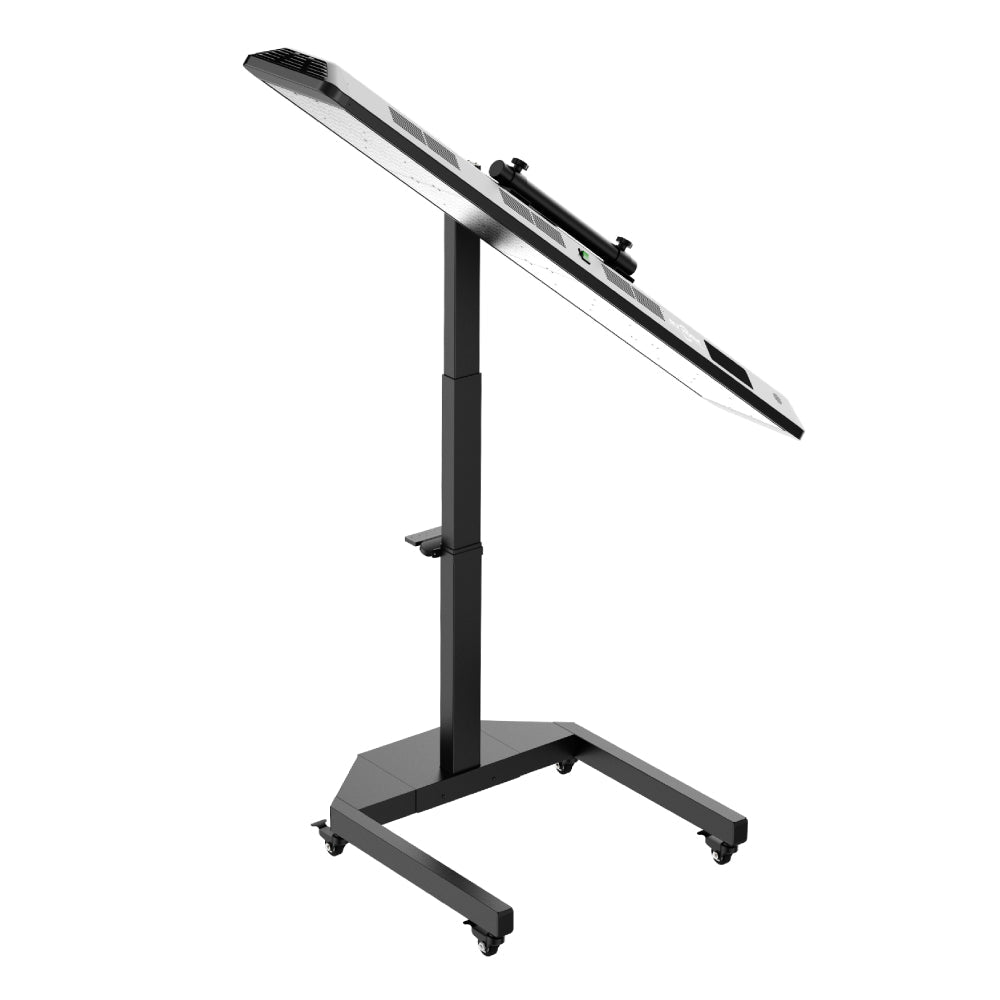

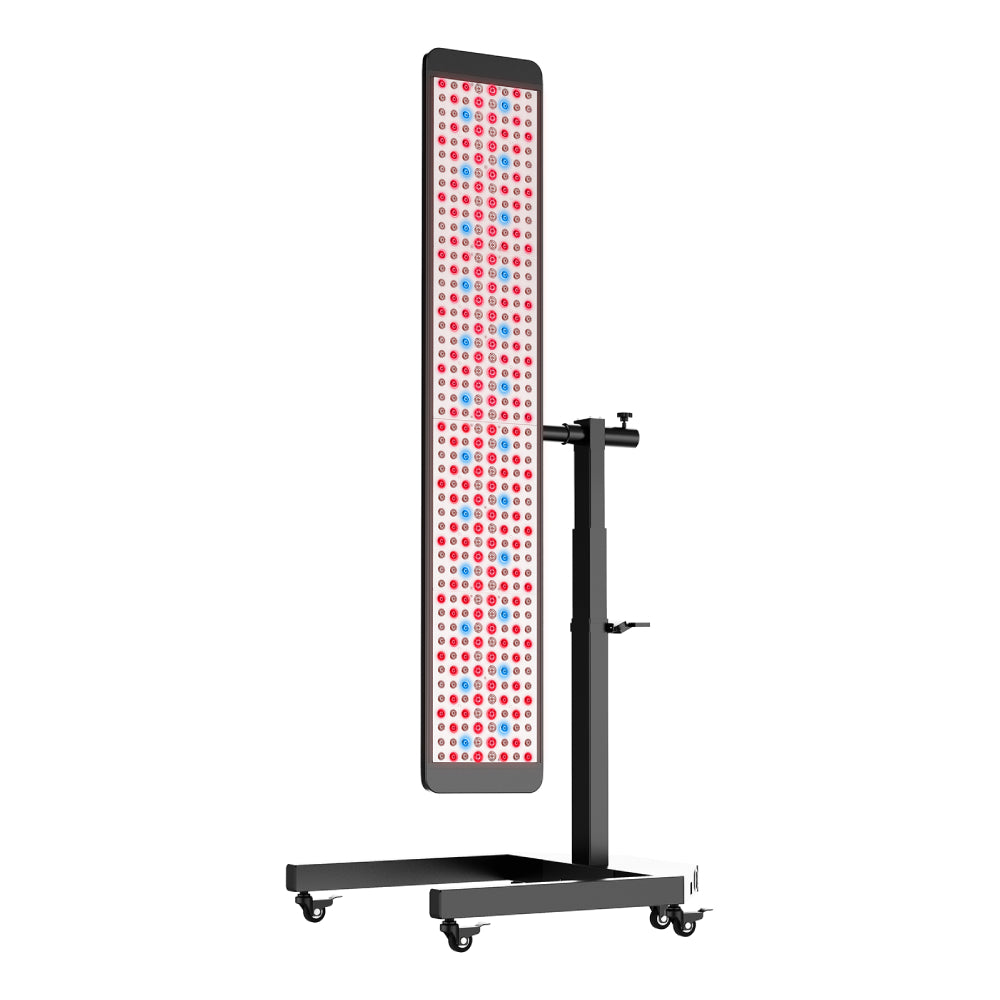

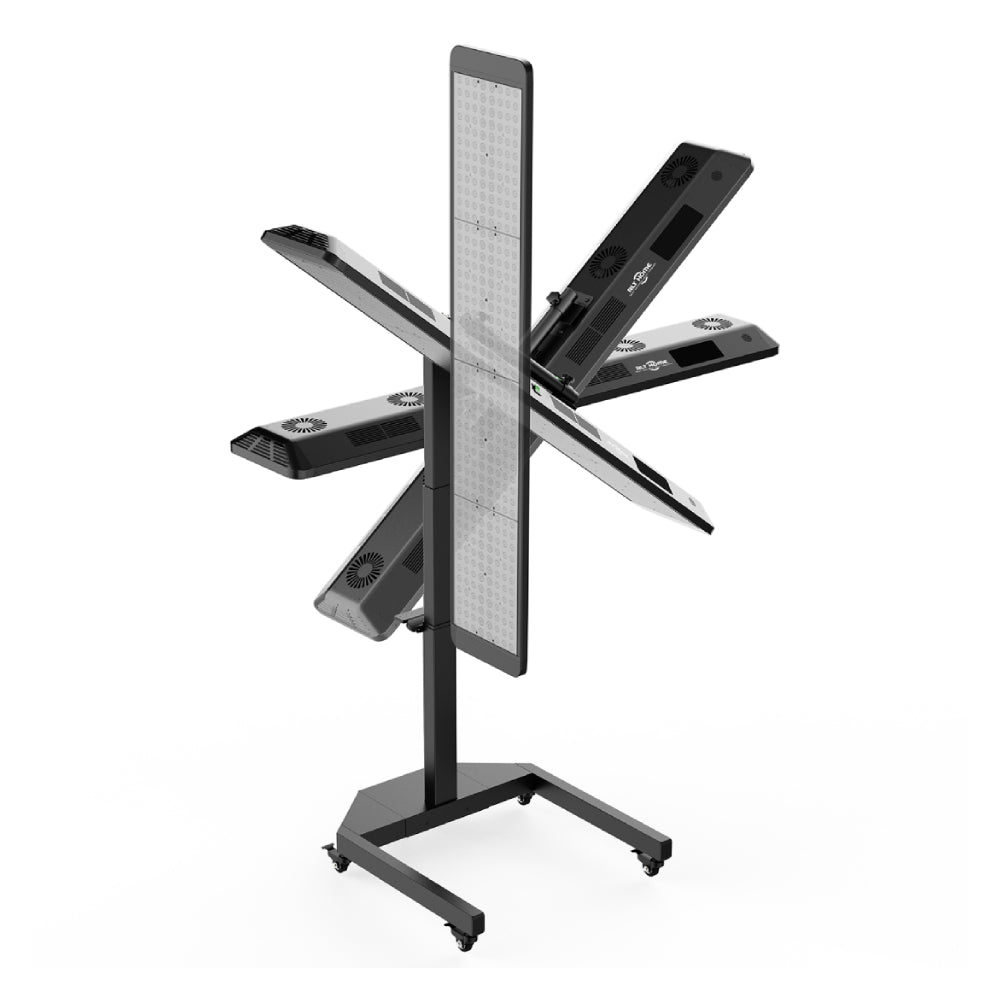

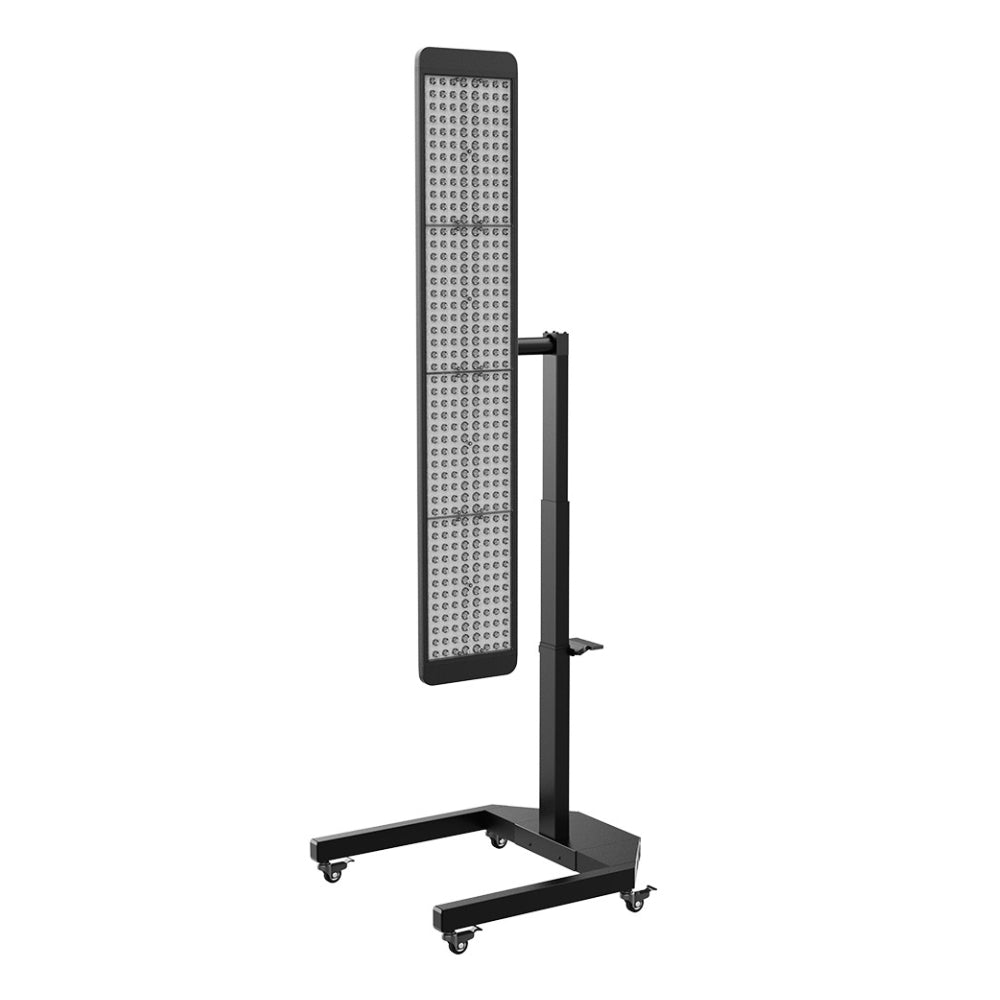

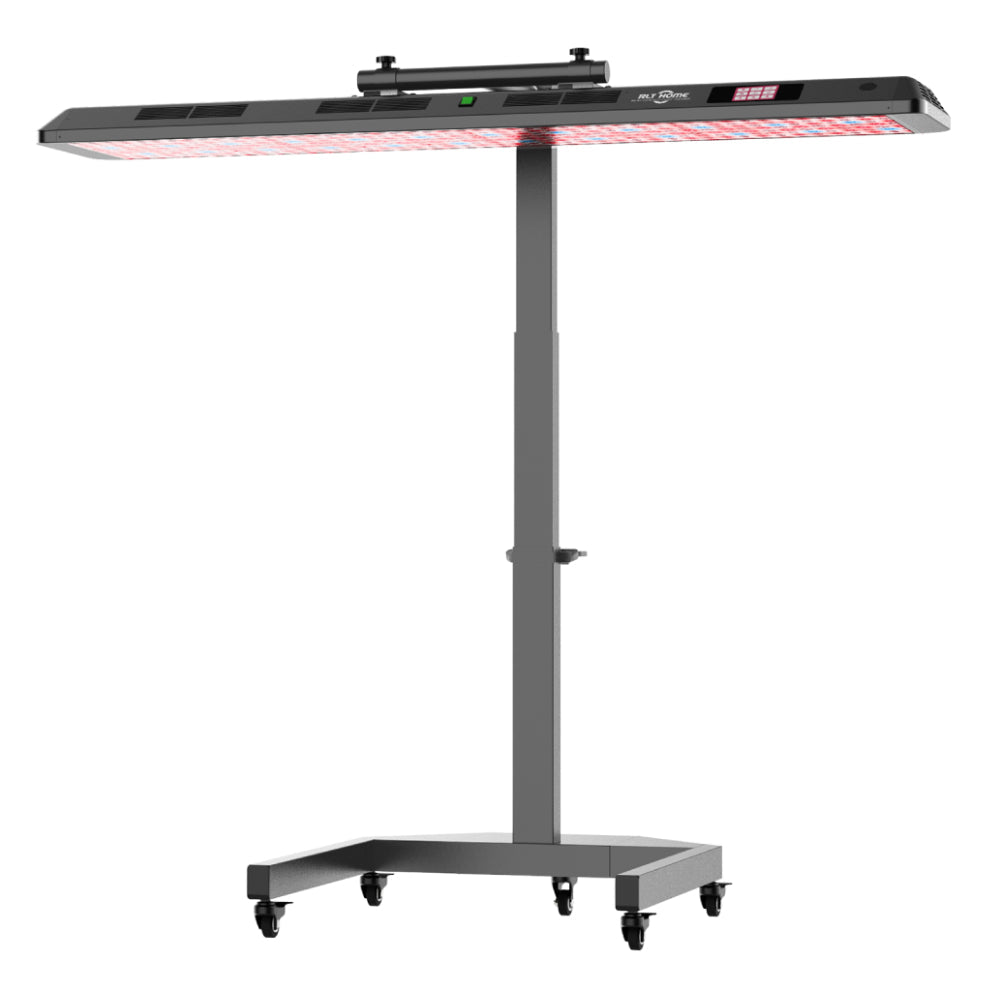

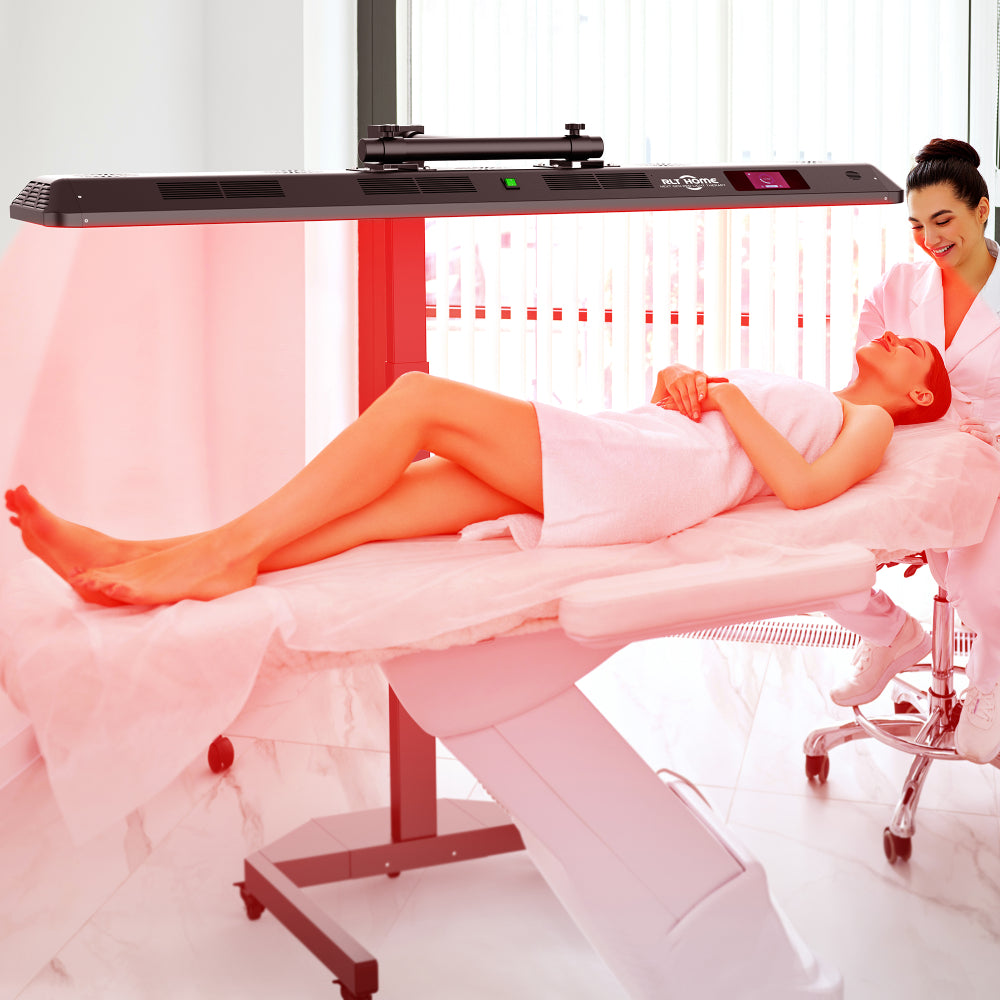

The Total Spectrum ULTRA is RLT Home's full-body system: a 64.3" panel of 480 LEDs paired with a motorized stand that raises, lowers, and tilts the panel so you can use it standing, seated, or lying flat on a bed or massage table. At full height the panel covers an adult from head to toe in a single session; lowered to 29" and swung horizontal, it floats above a bed for a lie-down session with the stand's low-profile base sliding underneath on wheels. No remote is needed: the ULTRA responds to touch controls on the panel and to voice commands, and a built-in Bluetooth speaker lets you stream music from your phone while you relax.

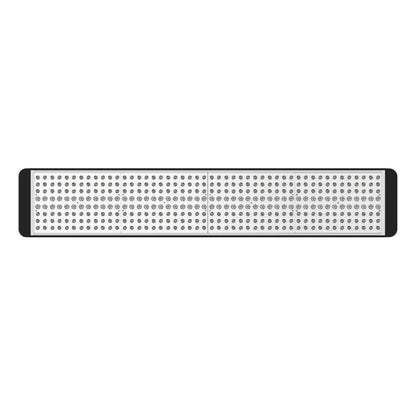

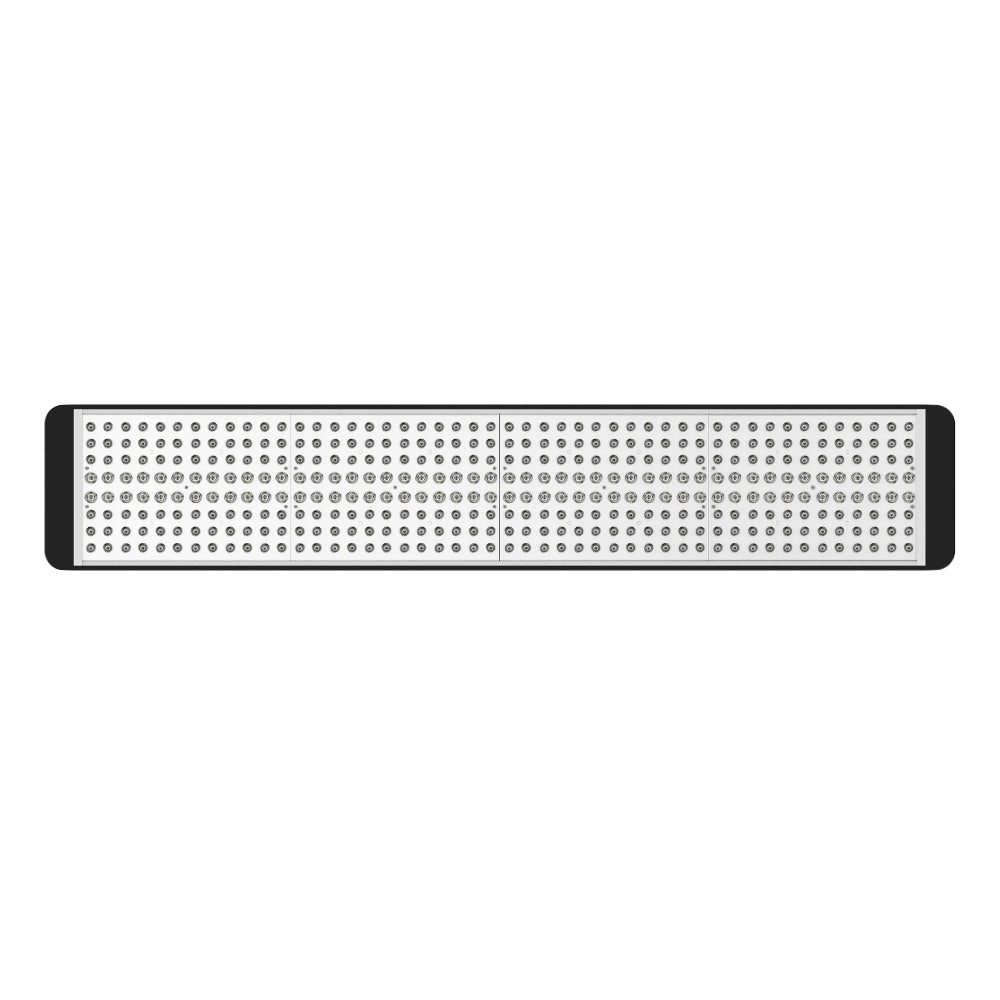

All 480 LEDs feed RLT Home's seven-wavelength engine. Blue 480 nm and red 630/660 nm act at the skin's surface, near-infrared 810, 830, and 850 nm reach deeper into muscle and joint tissue, and 1064 nm provides the deepest penetration in the lineup. The ULTRA is an FDA-registered Class II general-use infrared lamp intended for temporary relief of minor muscle and joint pain and stiffness, relaxation of muscle tissue, and a temporary increase in local blood circulation. RLT Home publishes third-party irradiance tests for the panel: 174 mW/cm² at 8 inches (solar power meter) and 119.28 mW/cm² at 6 inches (spectrometer), the highest in the Total Spectrum range.

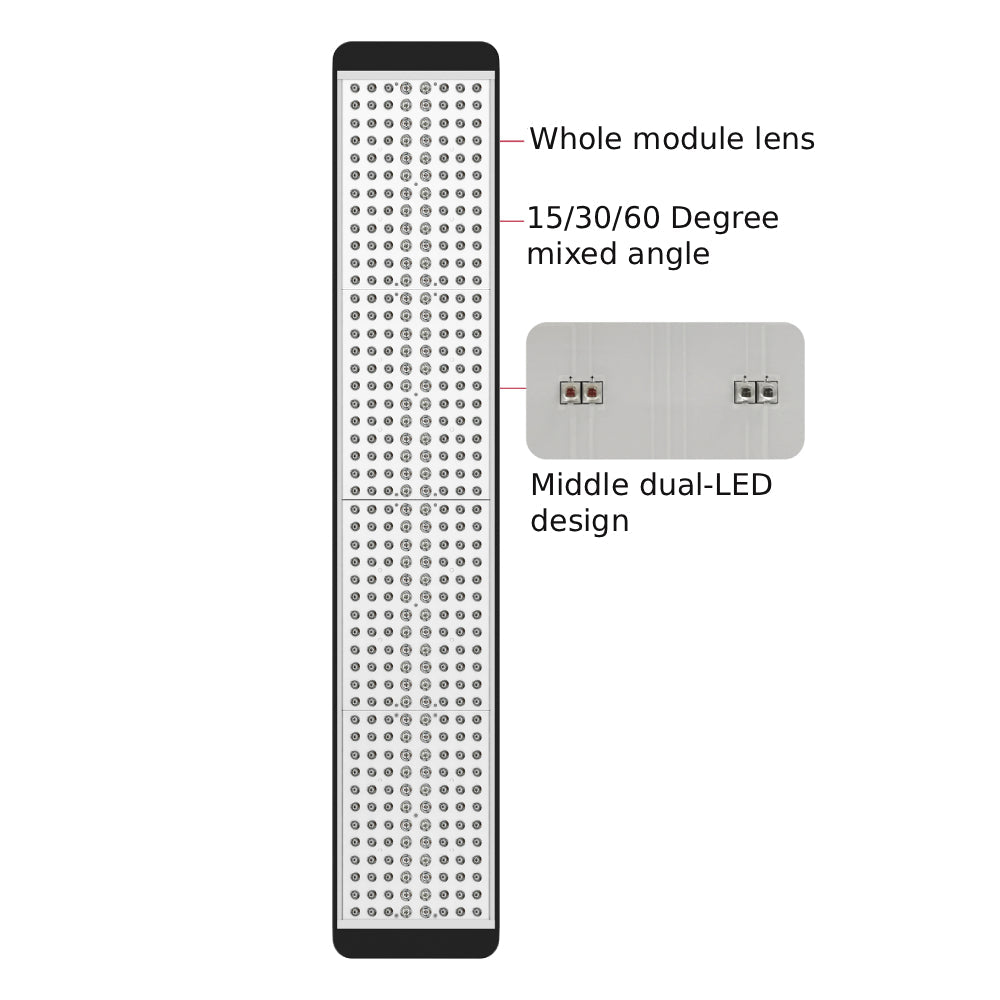

What sets the ULTRA apart optically is its three-angle lens system. A 30-degree core concentrates output on the center of the body, 60-degree inner lenses spread light evenly edge to edge, and 15-degree outer lenses keep light at the panel's ends aimed at you rather than the wall. The combination gives full-body coverage without the fall-off in intensity that a single wide-angle lens produces.

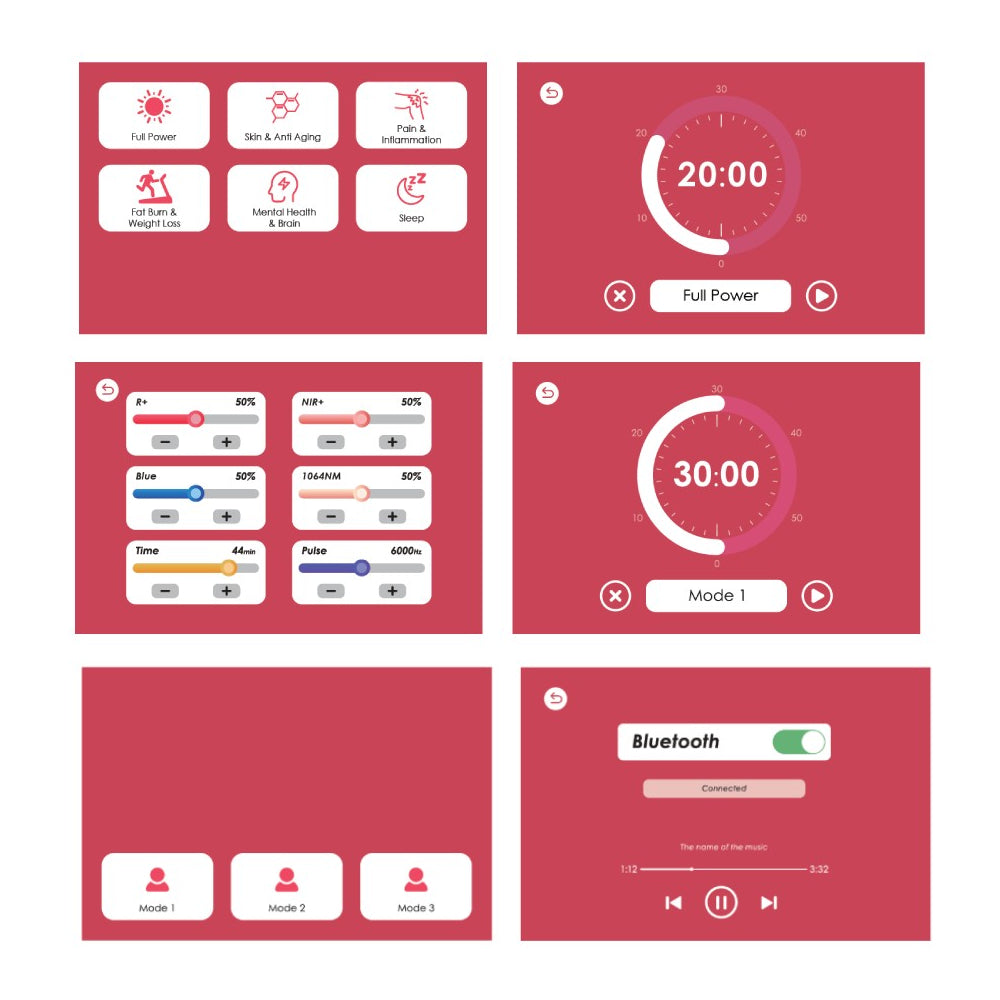

Choose from nine preset programs or build your own. Custom mode sets intensity and pulsing independently for each of four channels (red, blue, near-infrared, and 1064 nm), with a pulsing range from 0 to 5,000 Hz. The LEDs are flicker-free, and the panel measures approximately 0.0 μT of EMF at 6 inches or more, verified with a Cornet EMF meter. Protective reading glasses and blackout goggles are included for eye comfort.

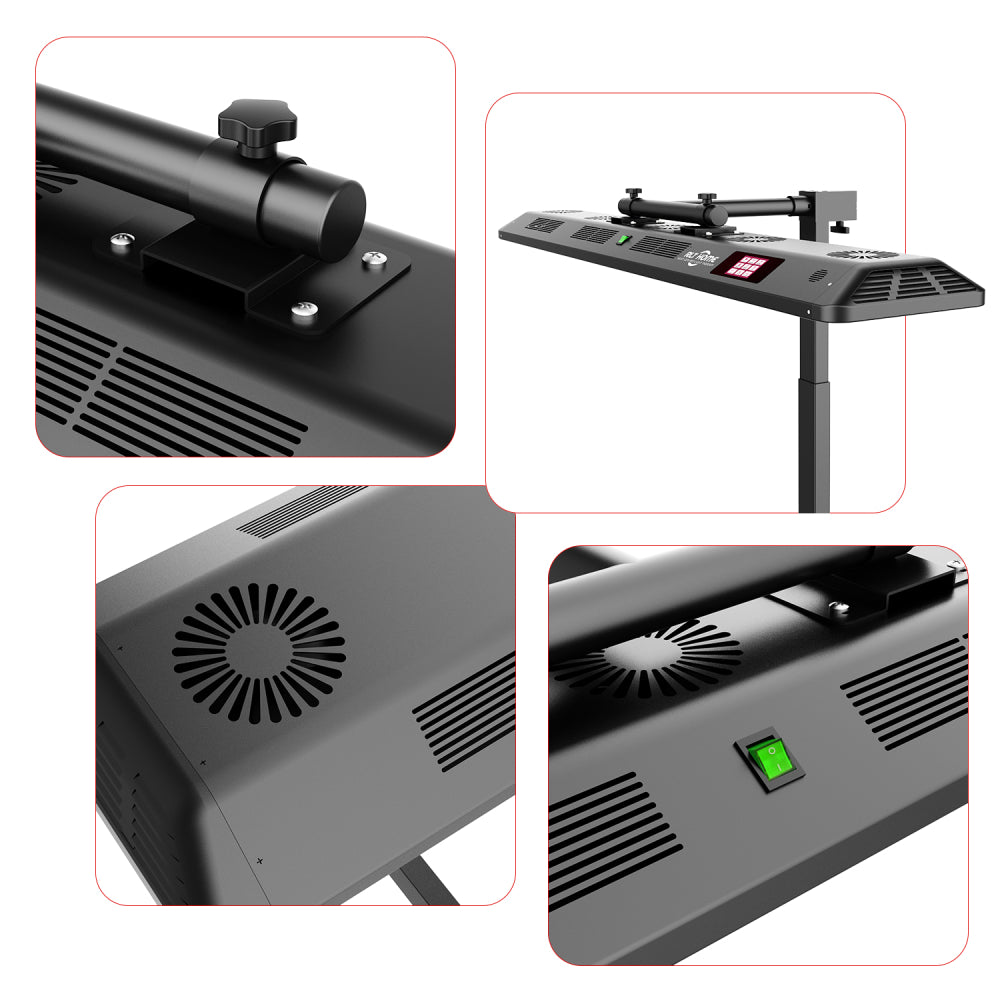

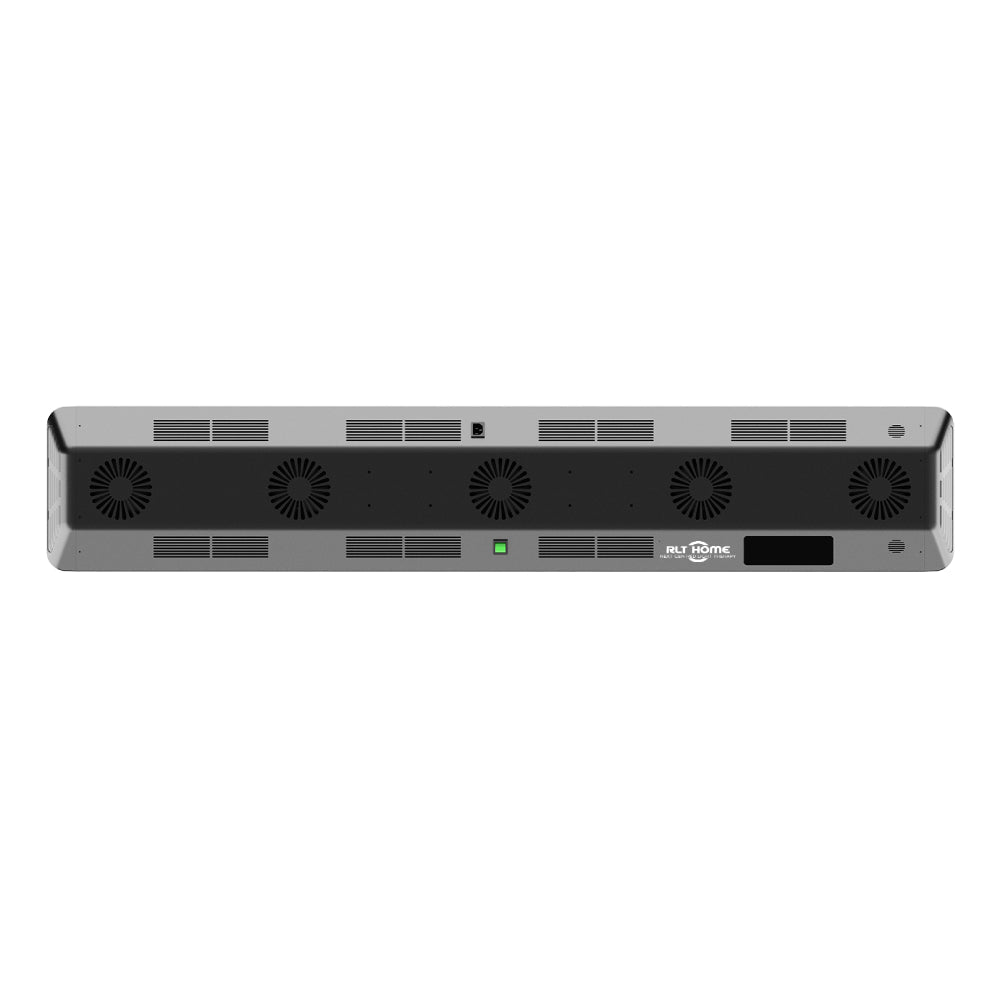

The panel's iron housing and the 53 lb steel stand give the system the mass to stay planted at full extension. LEDs are rated for 100,000 hours, roughly 11 years of continuous use. Power draw is 850 watts on any 100-240V outlet, so the ULTRA plugs into a standard household circuit with no special wiring. RLT Home backs the system with a 3-year warranty, and the device operates fully offline with no app or account required. The panel and stand ship in two separate cartons.
Key Features:

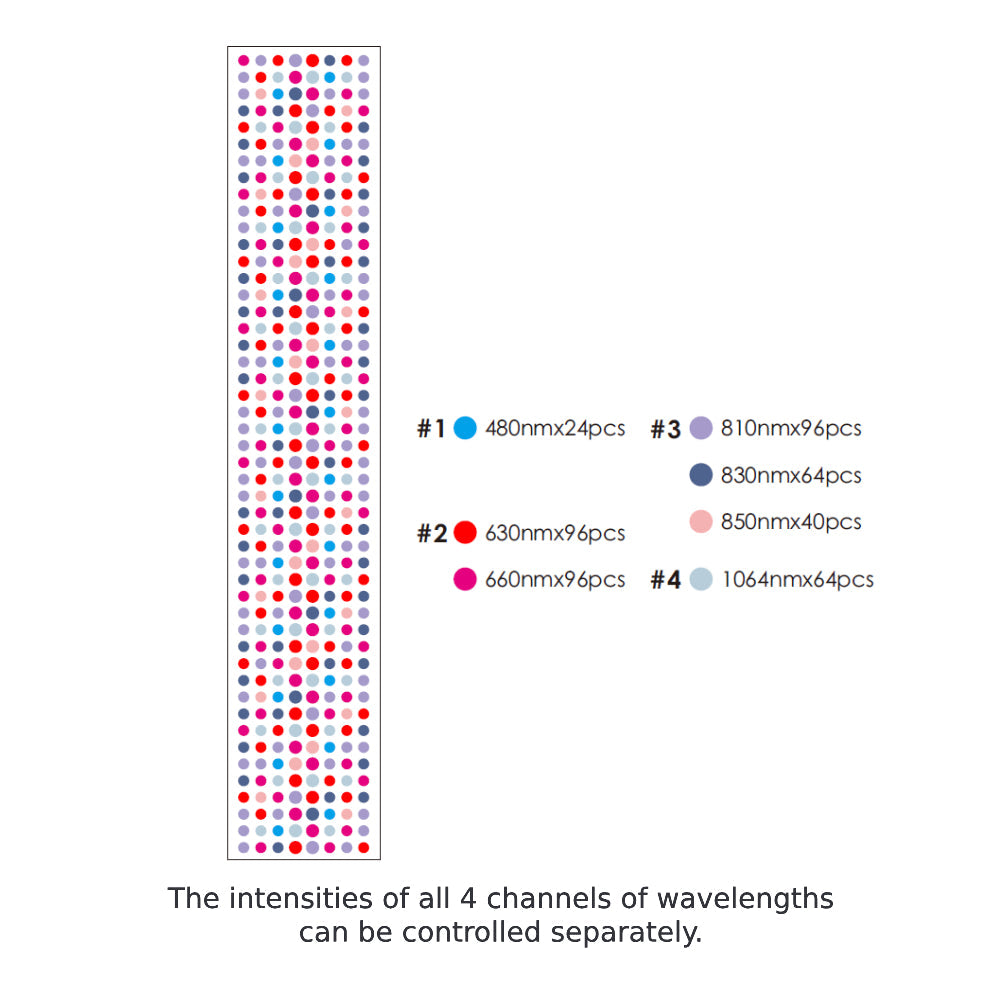

- 480 LEDs, 7 wavelengths: 480 nm blue (5%), 630 nm and 660 nm red (20% each), 810 nm (20%), 830 nm (13%), 850 nm (8%) near-infrared, and 1064 nm infrared (14%)
- Full-body coverage: 64.3" tall panel

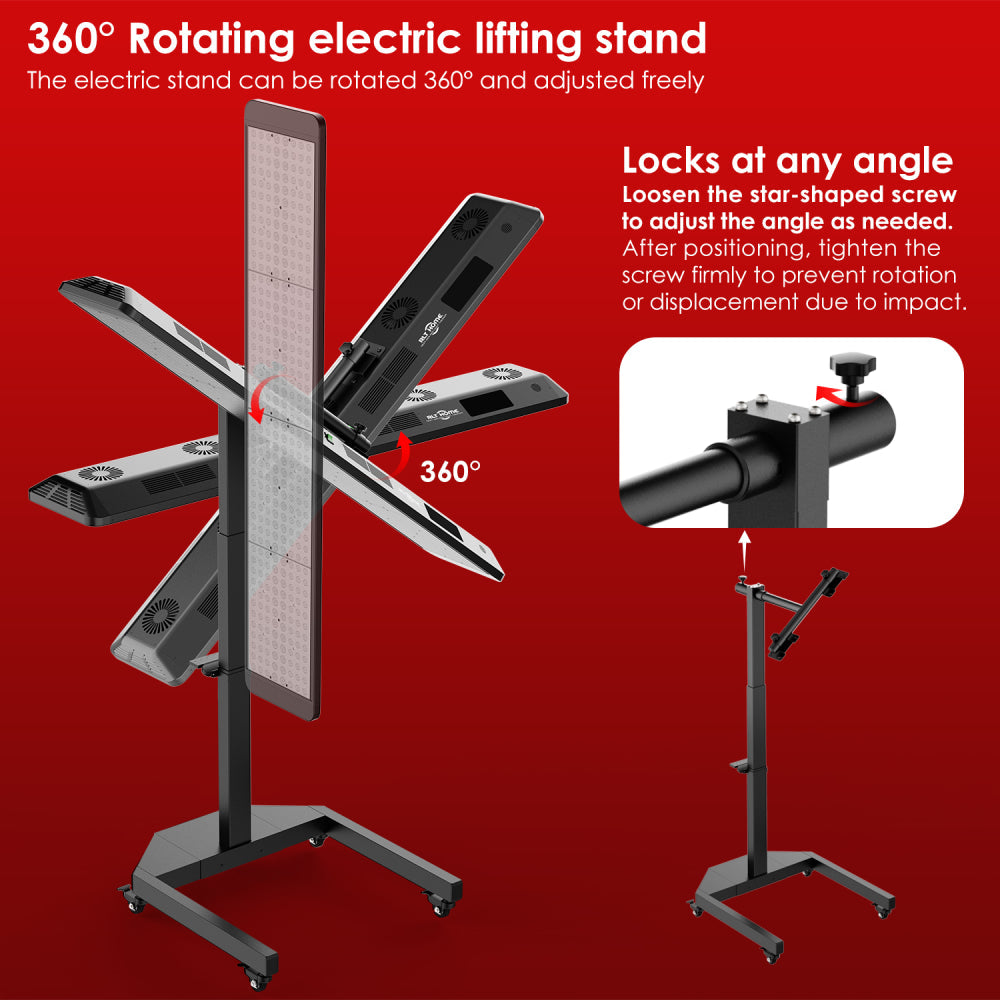

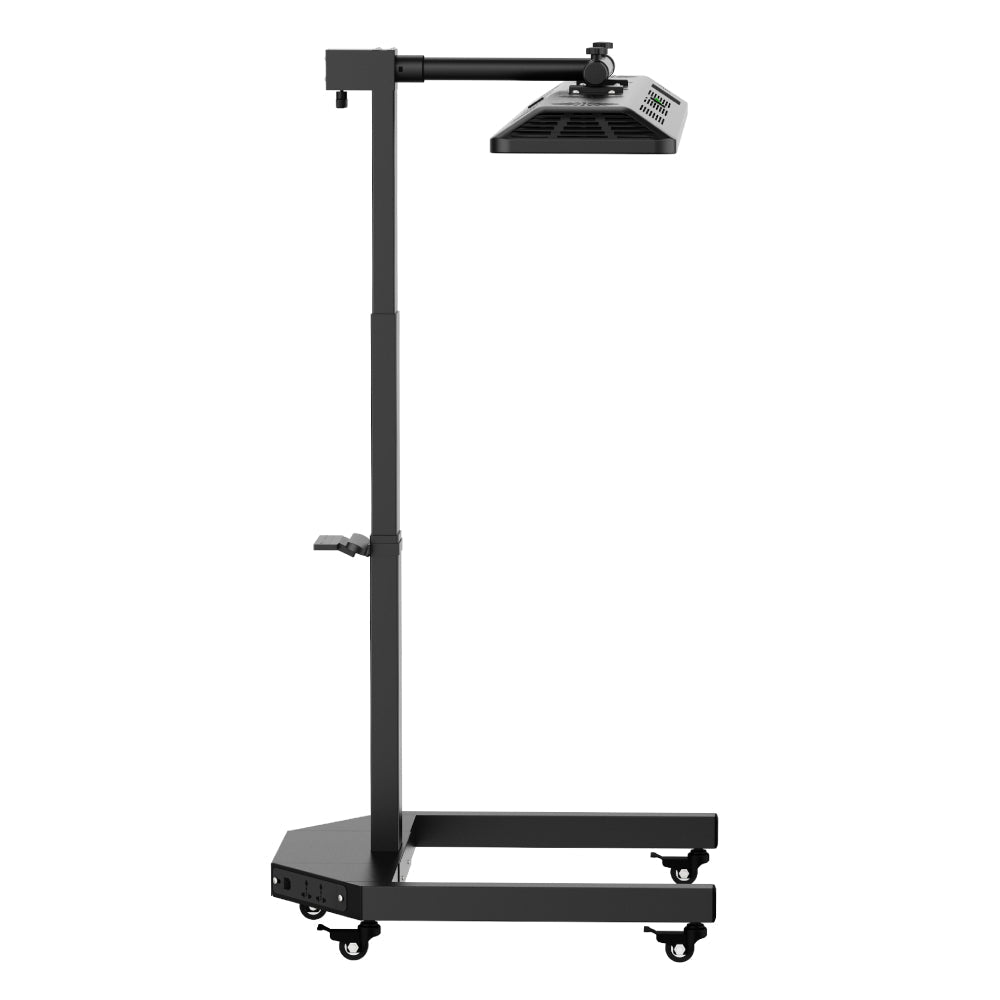

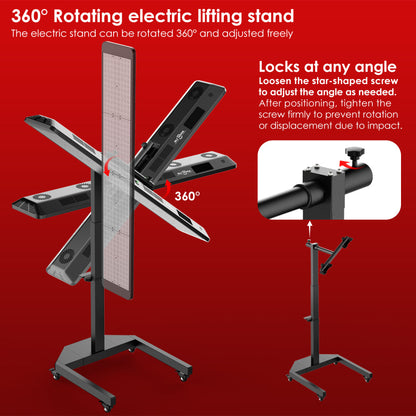

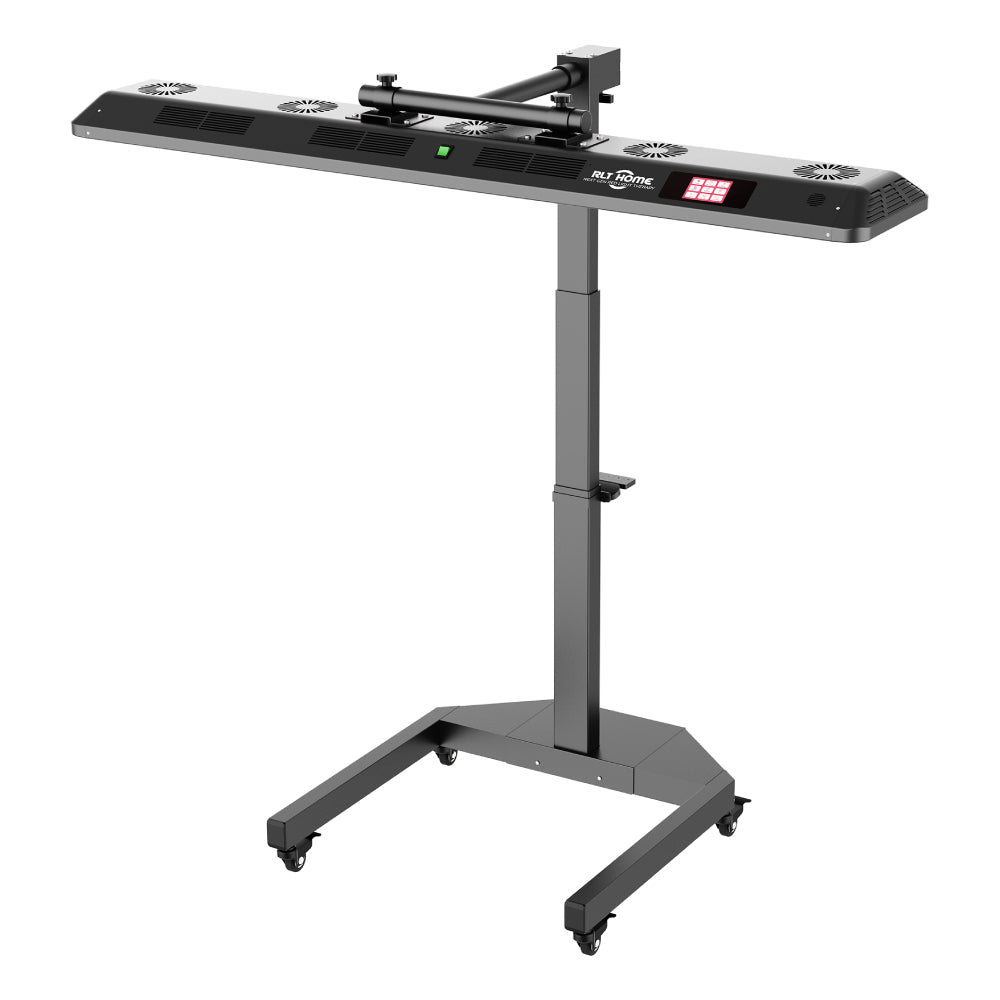

- Motorized electric stand included: height adjustable 29" to 64", rotates from vertical to horizontal for lying-down sessions

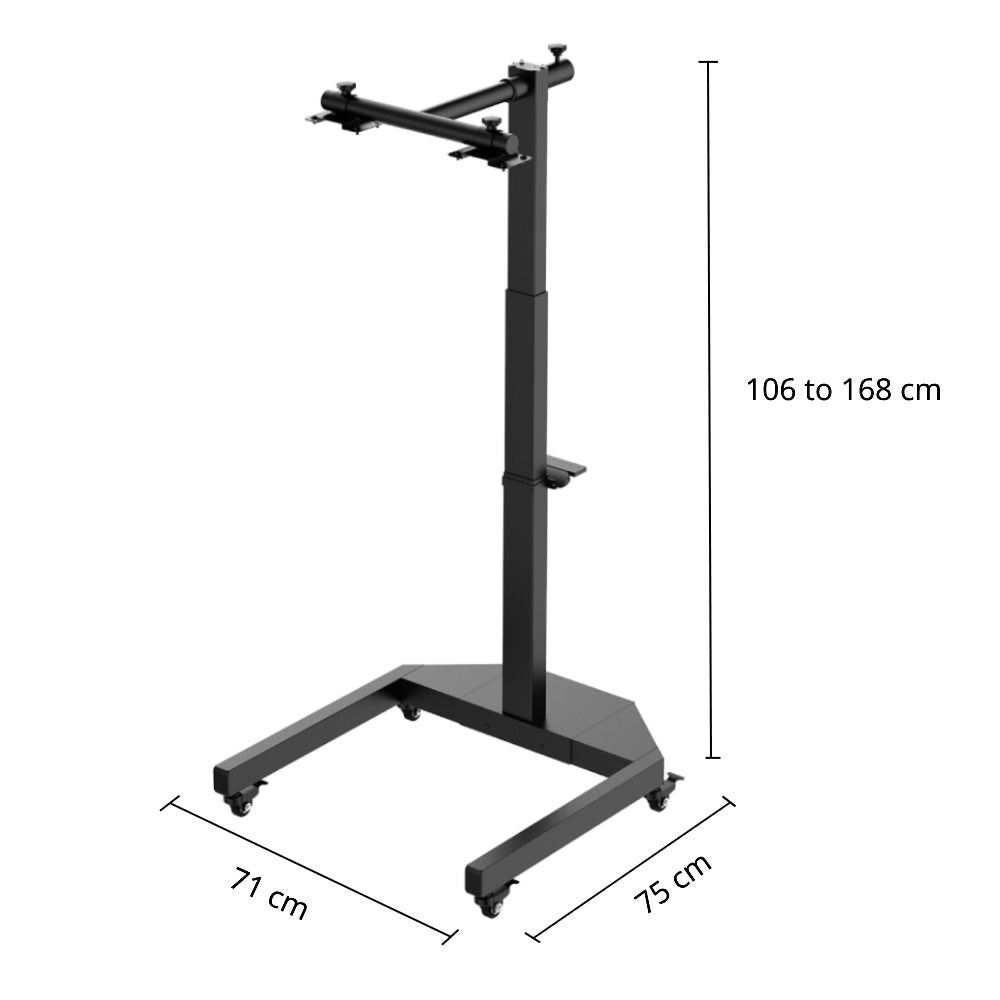

- Stand footprint approximately 3 ft x 3 ft; 5.5" under-bed clearance with wheels (3" without)
- FDA-registered Class II general-use infrared lamp (product code ILY, 21 CFR 890.5500), 510(k)-exempt
- Irradiance: 174 mW/cm² at 8 in (solar power meter); 119.28 mW/cm² at 6 in (spectrometer); third-party test results published by RLT Home
- Three-angle lens system: 30-degree core, 60-degree inner lenses, 15-degree outer lenses for even edge-to-edge coverage
- 9 preset programs plus custom mode with independent intensity and pulsing for 4 channels
- Pulsing range 0 to 5,000 Hz

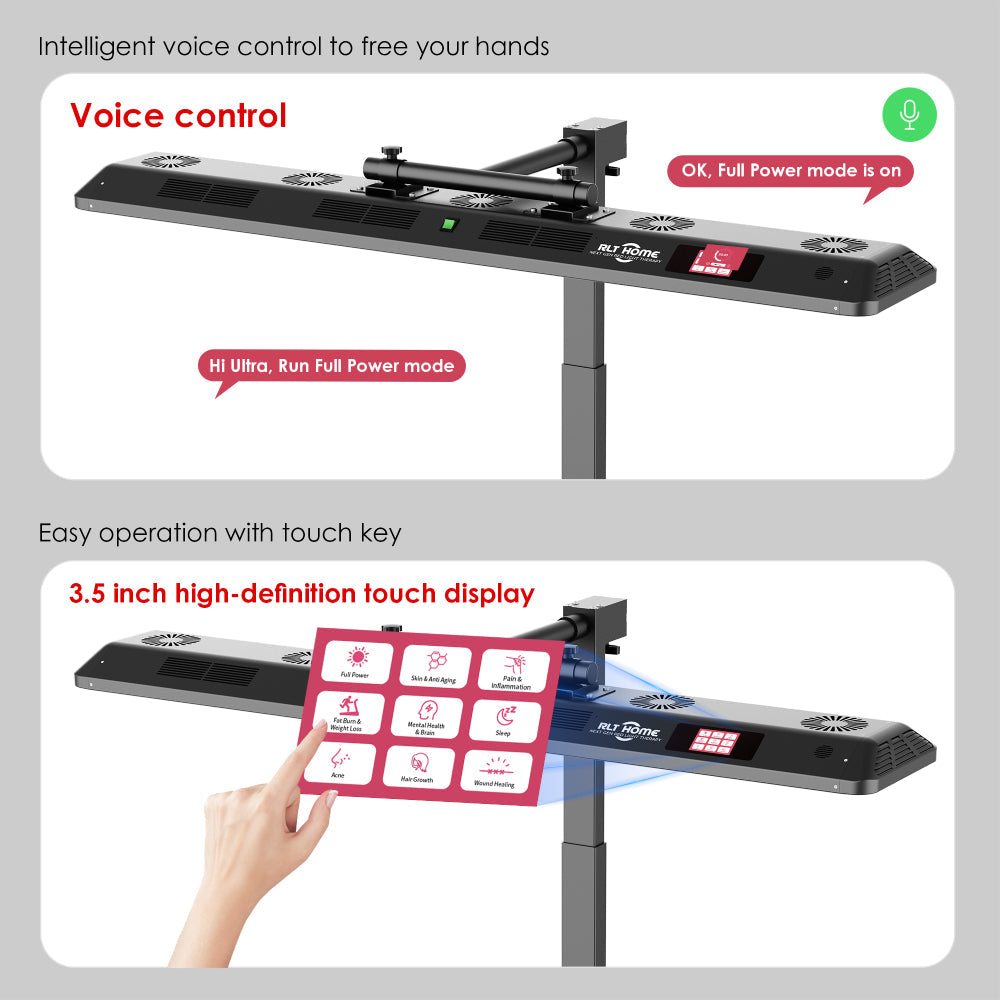

- Touch interface and voice control; no remote required
- Built-in Bluetooth speaker for music streaming
- Flicker-free LEDs; approximately 0.0 μT EMF at 6 in or greater (Cornet EMF meter)
- No app, account, or data sharing required
- Iron housing; 3535 dual-chip LEDs rated 100,000 hours
- 850 W power draw; AC 100-240V universal input, standard household outlet

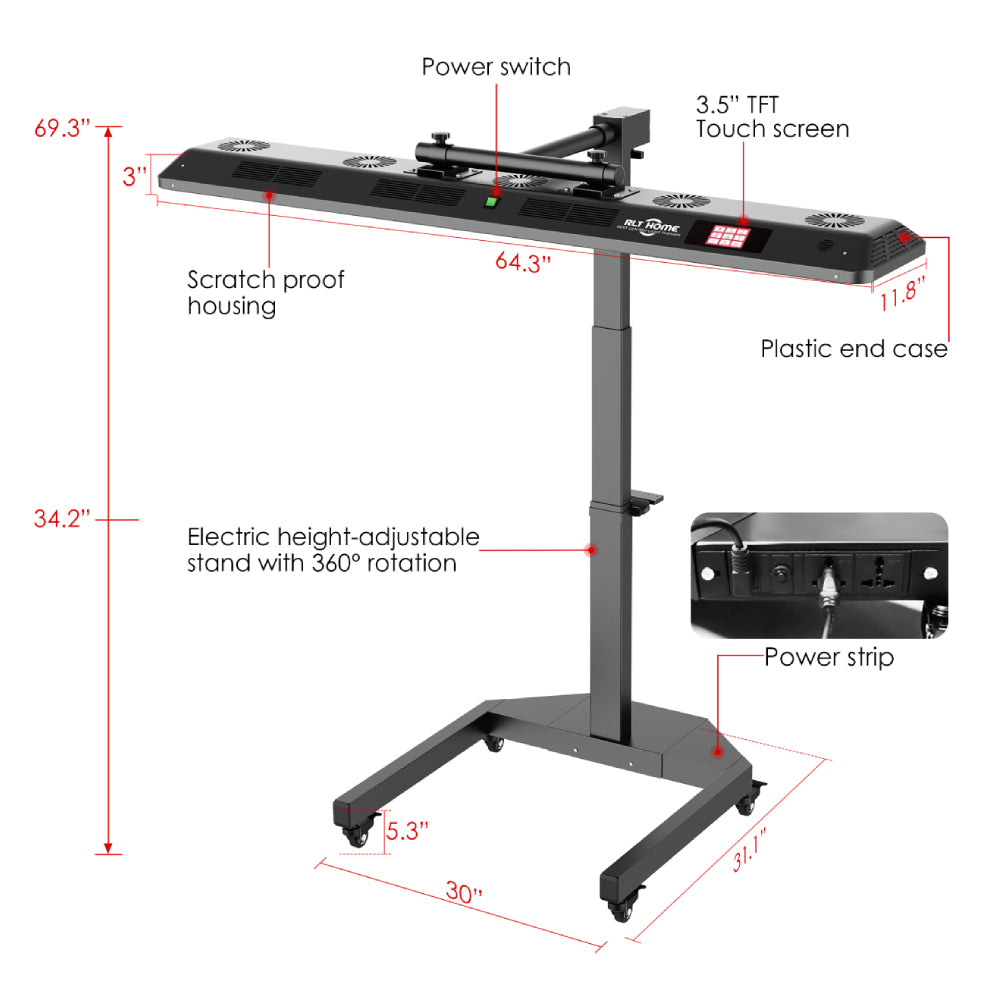

- Panel: 64.3" x 11.8" x 3" (1635 x 300 x 75 mm), 39.6 lb (18 kg)
- Stand: 33" x 28" x 5" (838 x 711 x 127 mm), 53 lb (24 kg)
- Ships in 2 cartons: panel box 71" x 15" x 6", 51.5 lb; stand box 33" x 29" x 6", 61.3 lb
- RoHS certified; CE certified under the Low Voltage Directive and Electromagnetic Compatibility Directive
- 3-year manufacturer warranty

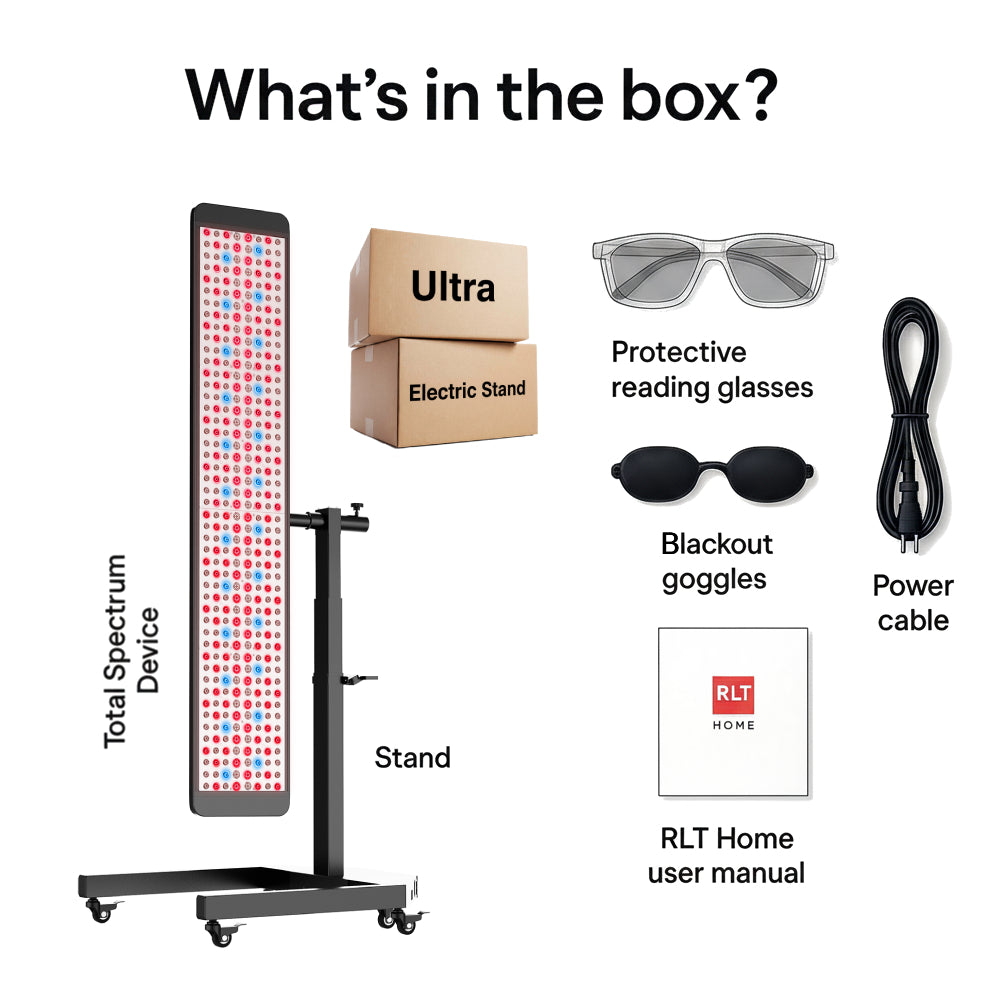

- In the box: Total Spectrum ULTRA panel, adjustable electric stand, protective reading glasses, blackout goggles, power cable, user manual
- Brand: RLT Home (Red Light Therapy Home)
